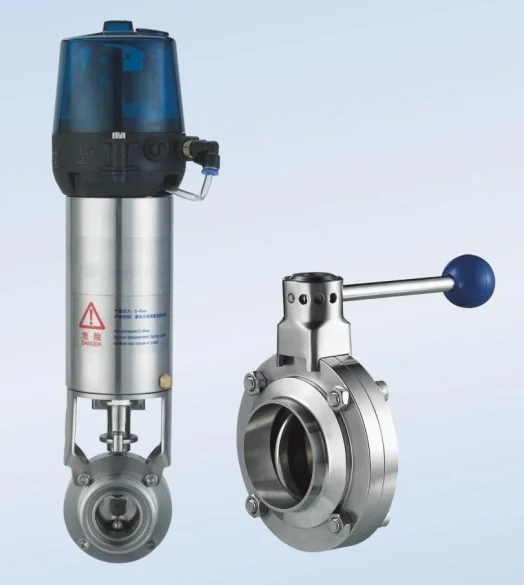

Sanitary Pneumatic/Manual Butterfly Valve (RD) |
||||||||||
|
||||||||||
Work Principle: |
||||||||||
This kind of valve can be handled by manual an electric actuator, and also can be handled by a pneumatic actuator. Electric actuator or pneumatic actuator covert the axial movement of piston to be 90° rotation of valve shaft. So that the valve can be open or close to achieve the requirement of control and open/close for the pipeline system. They have three type of actuator: normally open (NO), normally closed (NC), air/air (A/A), or close four position, also achieves control of medium flow purpose. Multi-position handle regulates the valve by 15?in its open of close 12 seats achieving control of medium flow purpose: Pulling handle regulates the valve through four multi-function positioning, in its open |
||||||||||

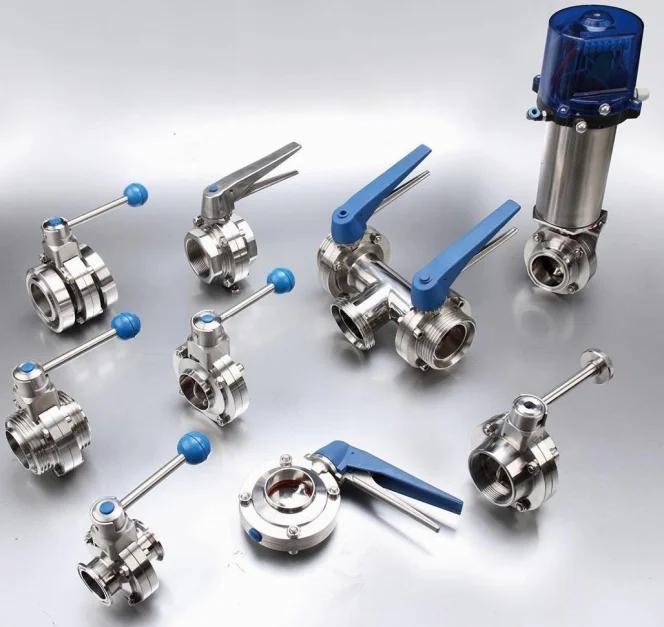

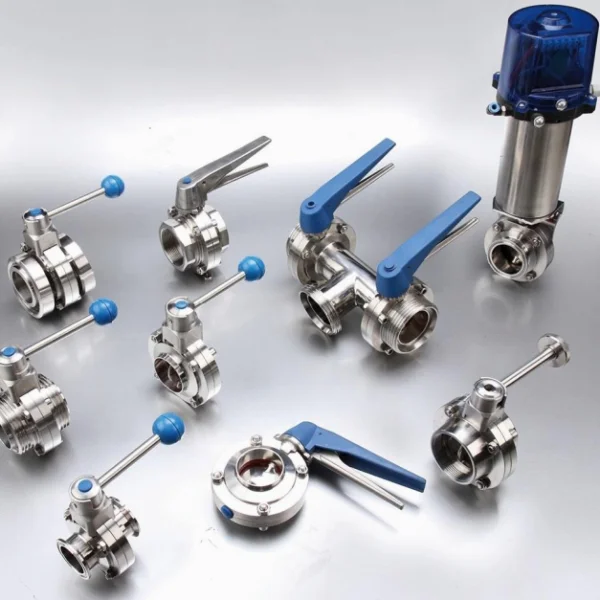

Sanitary Pneumatic/Manual Butterfly Valve (RD) |
||||||||||
Application |
|
|||||||||
The series of this valve are sanitary pneumatic or manual butterfly valves, which are widely used in stainless steel pipeline system to control and regulate medium flow. |
||||||||||
Material |
||||||||||
Steel parts: stainless steel 304, Stainless steel 316L. Seal: silicone (VMQ) fluoroelastomer (FPM), EPDM |
||||||||||
|
|
|||||||||
Sanitary Pneumatic/Manual Butterfly Valve (RD) |
||||||||||
Technical Data |
||||||||||
Metal Material |
Contact with the product components |
304/316 (1.4301/1.4404) Forging |
Can provide material inspection report |
|||||||
Material No contact with the product components |
304/202 (1.4301/202) |
|
||||||||

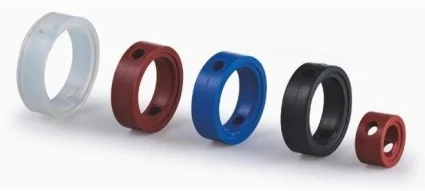

Sealing material |
Standard |
VMQ |
|
|||||||
Option |
EPDM / (FPM) |
|
||||||||
Pressure |
Pressure of work |
0 ~ 10bar |
|
|||||||
Control air pressure |
5 - 8bar |
|
||||||||
Temperature |
Working temperature |
VMQ: (-50 ~ +180°C) EPDM: (-20 ~ +135°C) FPM: (-30 ~ +230°C) |
||||||||
Sterilization temperature |
150°C (MAX 20min) |
|
||||||||
Surface treatment |
Inside surface treatment |
Ra ≥ 0.4 - 0.8 µm |
|
|||||||
Surface treatment |
Ra ≥ 0.8 - 1.6 µm |
|
||||||||
Connection |

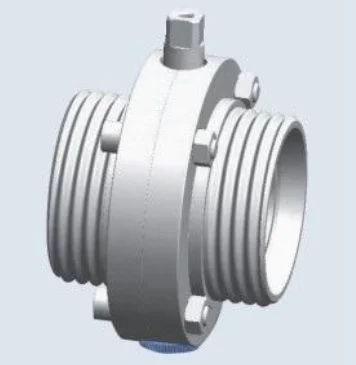

The diameter welding |
Welding connection: DIN 11850-2 with 11850-1/SMS/3AISO Series etc |
||||||||

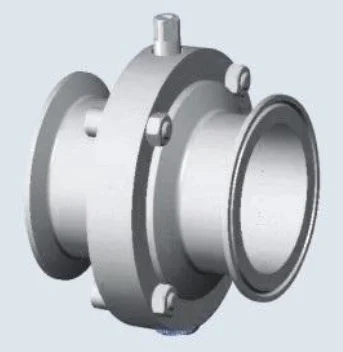

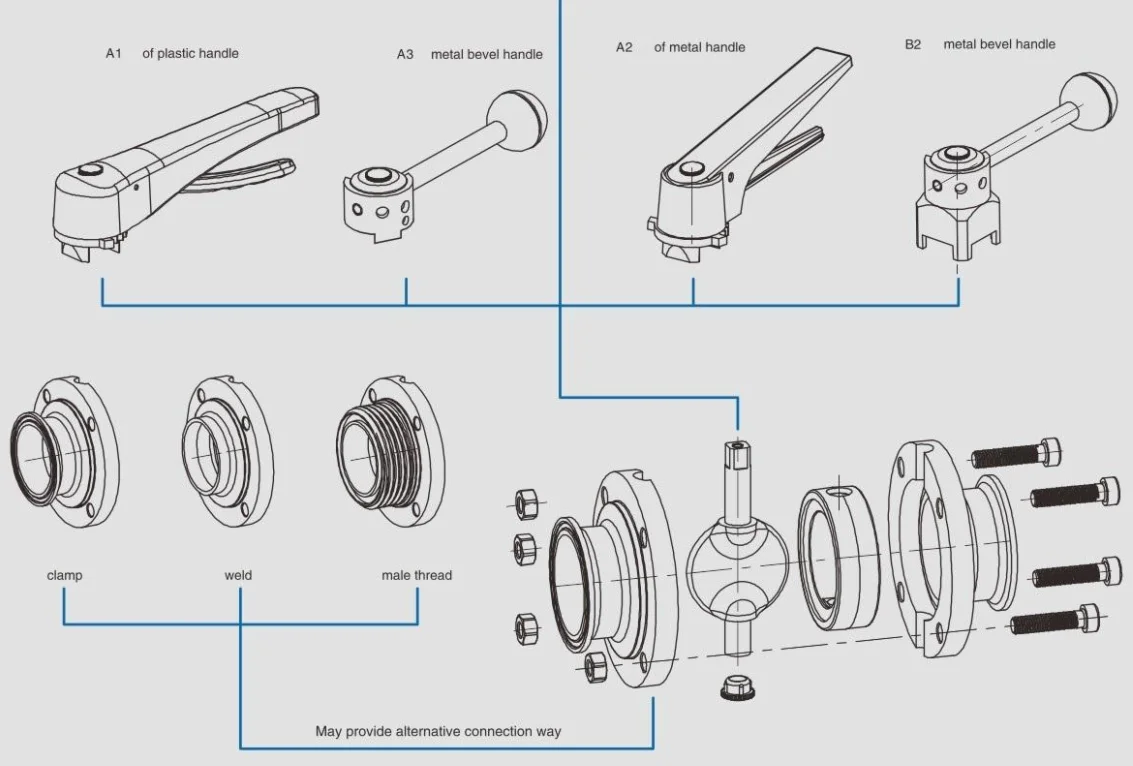

Connection mode: welding, Clamp, male and female, flange, etc. |
||||||||||
Optional driven |
Brainpower |
|
|
|||||||
Pneumatic control |

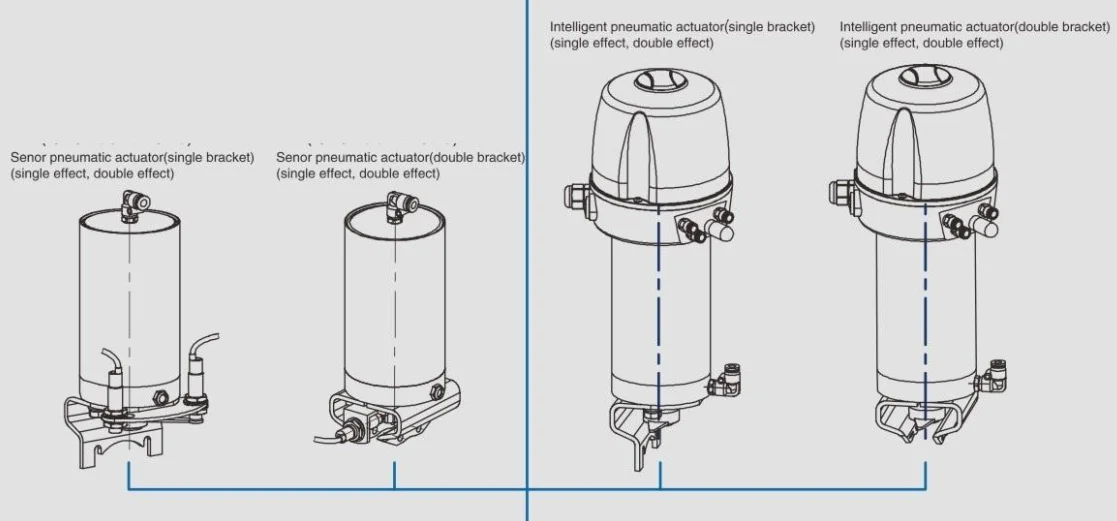

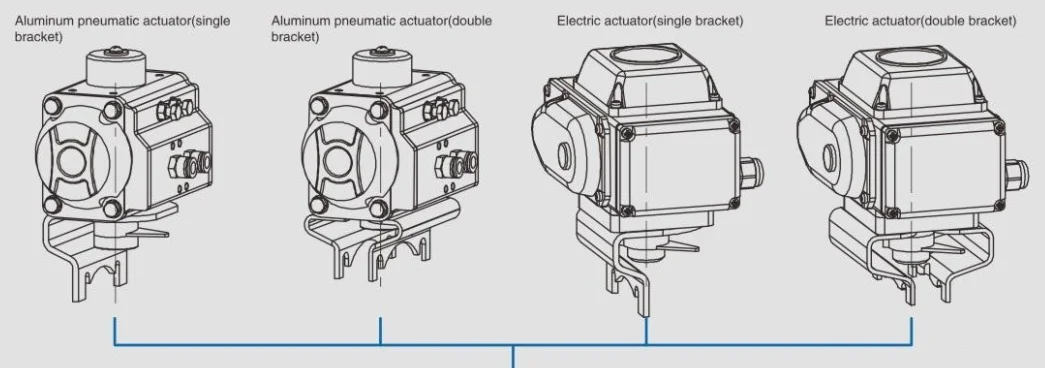

Pneumatic head and fixed bracket |
|
||||||||
Butterfly valve volume flow: flow through the butterfly valve per unit time of a cross-sectional area of the fluid volume |
Volume flow: cubic meters / hour (m3/h) detailed technical date please refer to the (next page) |
|||||||||

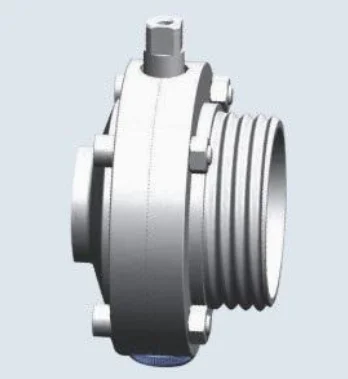

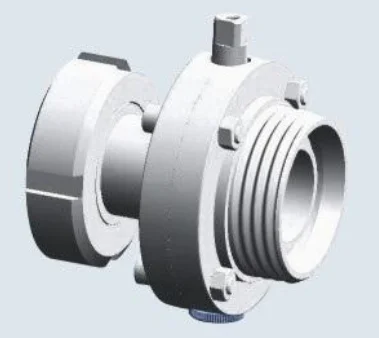

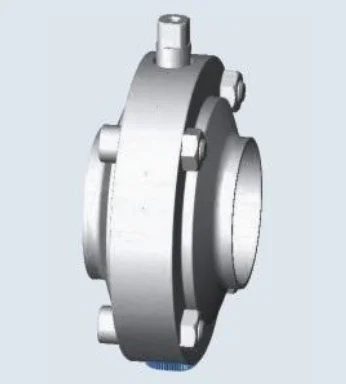

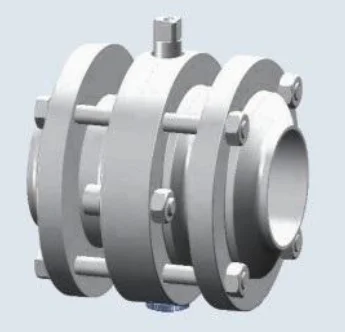

Connection Type |
||||||||||
|
||||||||||
Sanitary Pneumatic/Manual Butterfly Valve (RD) |
||||||||||
|
