SH6000 Series

HBC High Pressure Balanced Perforated Plug Type

Large capacity high pressure globe valve body, thick wall bonnet, Metal-seated quick-changeable trim and complex piston rings combination. HTP ensures safety and credibility in > 100Kg/cm2 high pressure conditions.

Guided by big area of bushing and cage, working trims are of dynamic stability. The series is characterized by balanced trims require for very high pressure drops. Only need smaller thrust force to reliably modulate. Perforated cylinder Plug can effectively protect sealing surface of seat to be damaged by high speed flow scoured.

HBC series suits normal and heavy duty applications with high pressure.



Valve Body



Type: Cast globe Valve

Nominal Size:    DN80, 100, 150, 200

Nominal Pressure:   ANSI 600, 900, 1500

DIN PN63, 100, 160, 250

JIS 63K

GB PN6.3, 10.0, 16.0 MPa

End Connection:    Flange ANSI B16.5   RF, RTJ

DIN2543/2544/2545 RF

JISB2201 RF

JB/T81 RF

JB/T82.2  FM

Weld ANSI B16.5; BW

Face to Face Dimension: ANSI is according to IEC60534-3-1 & ASME B16.10

DIN PN63, 100, 160 is according to DIN 3202-F2

DIN PN250 is according to DIN 3202-F3

GB PN6.3, 10.0, 16.0 MPA is according to GB 12221 STD 2 Series

Please refer to table 6.1~6.2

Body Material: Please refer to table1         Please refer to figure 3 for Operated Temp.&Pressure Range

Bonnet Type: Bellows type·········-46°C ~ 300°C, 200°C ~ 300°C, Radiation fin type·········300°C ~ 530°C

Please pay attention to the different Temp.&Pressure Range of material

Packing Material: Graphite compound packing, graphite packing, etc.

Operating Temp.&Pressure range is shown in table 2, figure2

Seal Gasket: Spiral wound gasket ( PTFE+316,  Flexible Graphite+316 )

Graphite with metal gasket ( Graphite+316,  Graphite+304 )

Valve Trim

Plug Type: Perforated cylinder plug

Flow Characteristic: EQ%, Linearity (As shown in figure4)

Trim Material:  please refer to table 3 for STD material assembly, operated Temp.&Pressure Range

Actuator

Type: Multi-spring diaphragm

Air Supply: Max.  6bar

Ambient Temp.:  -20°C+80°C

Spring range: As shown in Table 5

Air Connection: G1/8 ( SA1 ) ; G1/4 ( SA2 ) ; G3/4 ( SA3 )

STD Specification: As shown in Table 5

Accessory

Positioner,  Filter-regulator valve, Solenoid valve, Limit switch, Valve position

Transmitter,  Booster relay,  Lock-valve,  Handwheel,  etc.

Action

Air to open, Air to close

Performance

Rangeability: 50:1

Seat leakage:  According to ANSI B16.104 ClassIV

Hysteresis: 3%  ( Without Positioner )   1% ( With Positioner )

Linearity: ± 5% ( Without Positioner )   ±1% ( With Positioner )

Rated CV: As shown in table 4

Allowable pressure differential: As shown in table 5

Figure Size: As shown in figure5, table 6.1~6.2

Weight of product: As shown in table 6.1~6.2

Performance

Special inspection

  • Flow characteristic test, material test, low temperature test, steam test, non-damages test
  • copper-free treatment
  • non-standard painting
  • dust and sand proof
  • vacuum service
  • tropical area proof
  • completely oi-free, water-free treatment
  • special air piping and fitting
  • strong corrosion proof
  • stainless steel bolt and nut for exposed parts
  • cold area proof

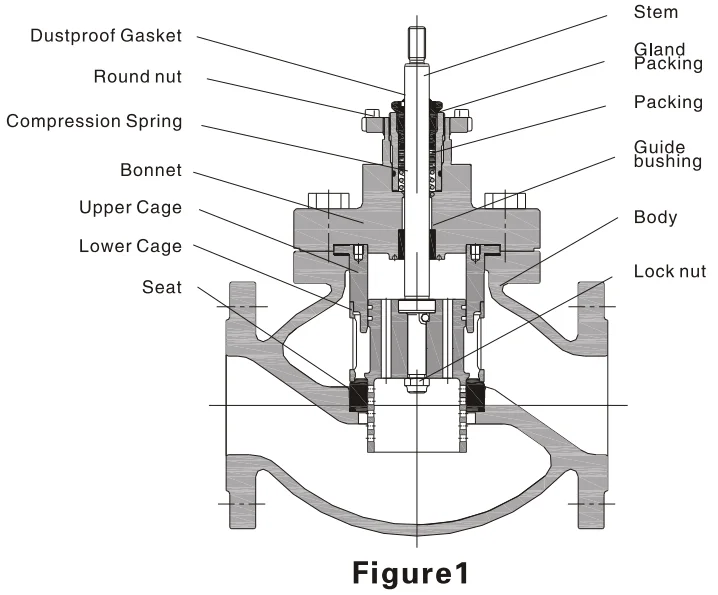

Body Assembly Structure ( As shown in figure 1 )

Performance

  • Both faces of valve seat can be used to improve service life
  • Quickly disassembly and installation without any special tools
  • Good price performance
  • Optimize flow of cage
  • Various of materials are available
  • Maintenance-free for packing
  • Packing stuffing box is wear resistance and corrosion resistance


Table 1 Body material

GB

ANSI

DIN

Temp.Range

ZG230-450 WCB

A216 WCB ( ASTM )

1.0619   GP240GH

-10°C ~ 400°C

ZG0Cr18Ni9

A351 CF8 ( ASTM )

1.4308 G-X6CrNi18 9

-200°C ~ 530°C

ZG0Cr18Ni12Mo2Ti

A351 CF8M ( ASTM )

1.4408 G-X6CrNiMo18 10

-200°C ~ 530°C

ZG0Cr18Ni12Mo2Nb

-

1.4581 G-X5CrNiMoNb18 10

-200°C ~ 530°C



A217 WC6 ( ASTM )

1.7357 GS-17CrMo5 5

-10°C ~ 450°C



A217 WC9 ( ASTM )

1.7379 GS-18CrMo9 10

-10°C ~ 450°C

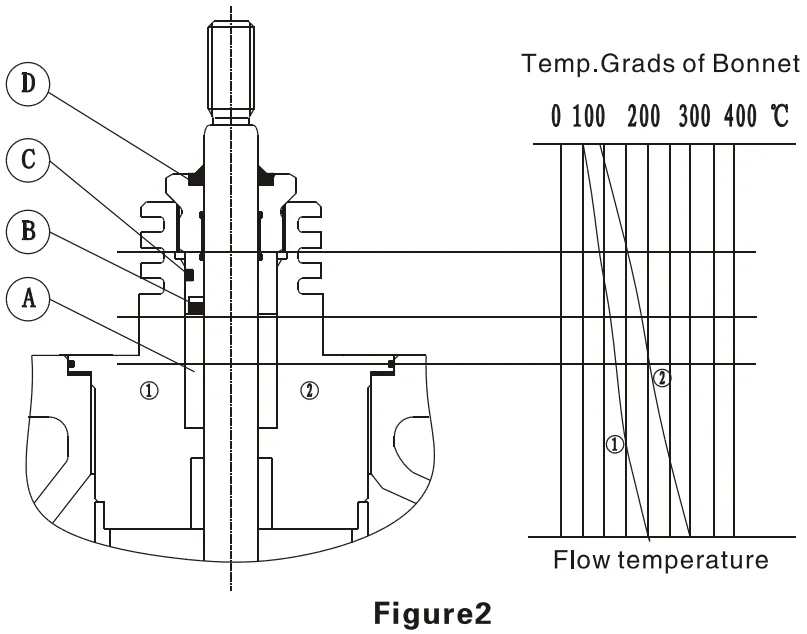

Table 2 Applicable Temp.&Pressure range of packing material

Type of material

( Shown in A )

Code

Seal material

( Shown in B )

O-ring material

( Shown in C )

Dustproof ring

( Shown in D )

Temp.Range

Bonnet

Type

Remarks

Graphite+

Incnel packing

3

-

-

NBR

( VITON )

-20°C ~ 400°C

Standard/with radiation fin

General occasion

Pure graphite

( Density 1.2 )

5

-

-

VITON

-196°C ~ 530°C

Standard/with radiation fin

High

Temp. occasion

Graphite+PTFE

6

-

-

NBR

-196°C ~ 200°C

Standard/ extension type

Low

Temp. occasion

Note: please choose the most related Temp.Range

ASME B16.35 150/300

Temp.

ASME

B16.34/B16.35





ASME B16.34 600/900/1500

Temp.

DIN EN 1092-1 PN16, PN25, PN40

Temp.

DIN EN

1092-1



DIN EN 1092-1 PN63, PN100, PN160, PN250

Temp.

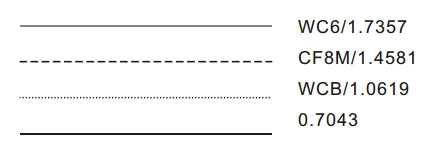

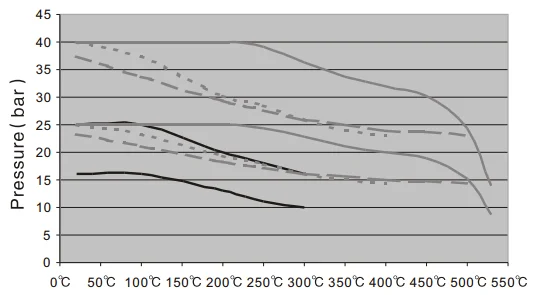

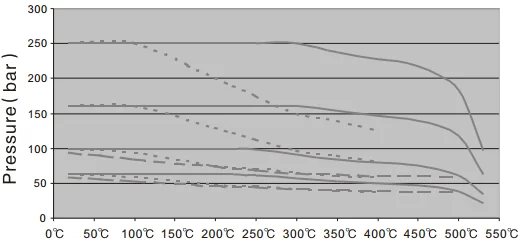

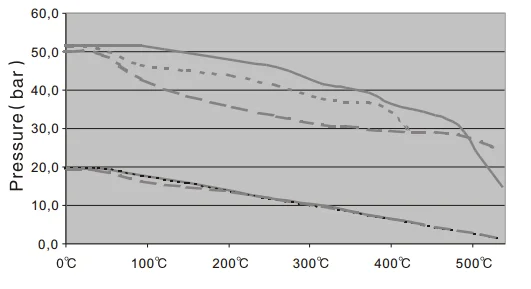

Figure 3 Temp.&Pressure curve

Table 3 STD Material Assembly,   Operated Temp.&Pressure Range of Trim

Perforated cylinder plug

Seat

Type of seat seal

Temp.

0Cr18Ni12Mo2Ti ( 1.4571 )

0Cr18Ni12Mo2Ti ( 1.4571 )

Metal seal

-46°C~530°C

3Cr17NiMo ( 1.4122 )

Harden treatment

2Cr13 ( 1.4021 )

Metal seal

9Cr18MoV ( 1.4112 )

Harden treatment

9Cr18MoV ( 1.4112 )

Harden treatment

Metal seal

Harden treatment: Hard chrome plated, Stellite surface, Heat treatment, Nitriding treatment, Spray tungsten carbide, etc.

Table 4 Rated Cv.

Seat type

Perforated cylinder plug

Flow characteristic

Linearity

EQ%

Nominal size

(DN)

Travel

Cv1

Cv2

Cv3

Cv1

Cv2

Cv3

80

30

94

70

65

65

50

44

100

30

129

94

70

80

65

50

150

60

445

280

198

246

176

146

200

60

527

445

304

304

246

176

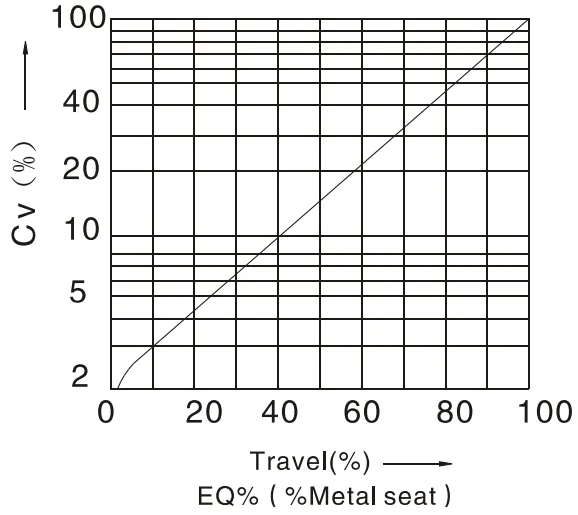

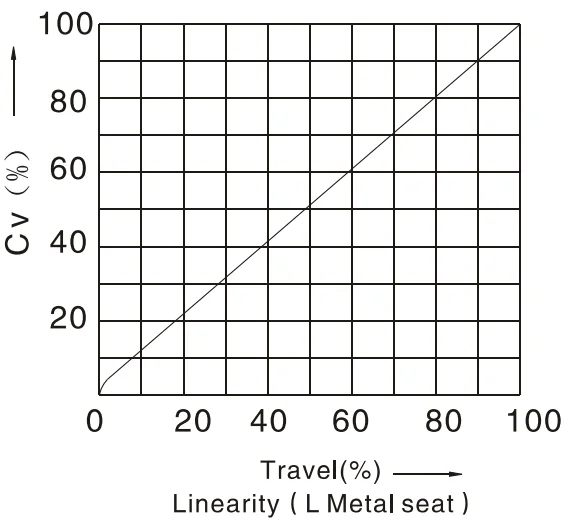

Figure 4 Flow characteristic curve

Table 5 Allowable pressure differential ( Leakage class IV )

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

80

3"

30

-5XX

320cm2 (50in2)

94

73

-

41.0

-

-

41.0

160.0

160.0

41.0

46.0

70

73

-

41.0

-

-

41.0

160.0

160.0

41.0

46.0

65

62

-

41.0

-

-

41.0

160.0

160.0

41.0

46.0

50

62

-

41.0

-

-

41.0

160.0

160.0

41.0

46.0

44

48

-

41.0

-

-

41.0

160.0

160.0

41.0

46.0

-1XX

720cm2 (111in2)

94

73

47.4

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

70

73

47.4

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

65

62

47.4

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

50

62

47.4

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

44

48

47.4

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

100

4"

30

-5XX

320cm2 (50in2)

176

90

-

29.4

-

-

29.4

160.0

160.0

147.7

160.0

117

90

-

29.4

-

-

29.4

160.0

160.0

147.7

160.0

80

73

-

29.4

-

-

29.4

160.0

160.0

147.7

160.0

65

73

-

29.4

-

-

29.4

160.0

160.0

147.7

160.0

50

62

-

29.4

-

-

29.4

160.0

160.0

147.7

160.0

-1XX

720cm2 (111in2)

176

90

35.8

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

117

90

35.8

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

80

73

35.8

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

65

73

35.8

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

50

62

35.8

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

Continued Table 5

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

150

6"

60

-2XX

720cm2 (111in2)

445

143

6.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

280

143

6.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

246

143

6.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

198

143

6.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

176

143

6.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

146

143

6.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

200

8"

60

-2XX

720cm2 (111in2)

527

172

128.6

160.0

160.0

154.0

160.0

160.0

154.0

160.0

445

172

128.6

160.0

160.0

154.0

160.0

160.0

154.0

160.0

304

172

128.6

160.0

160.0

154.0

160.0

160.0

154.0

160.0

246

172

128.6

160.0

160.0

154.0

160.0

160.0

154.0

160.0

176

172

128.6

160.0

160.0

154.0

160.0

160.0

154.0

160.0



Actuator SA3 Series

Spring Nos.

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

4

6

8

2

2

2

4

4

bar

bar

Bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

150

6"

60

-2XX

1600cm2 (248in2)

445

143

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

280

143

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

246

143

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

198

143

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

176

143

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0

146

143

160.0

160.0

160.0

160.0

160.0

160.0

160.0

160.0



Continued Table 5

Actuator SA3 Series

Spring Nos.

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

4

6

8

2

2

2

4

4

bar

bar

Bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

200

8"

60

-1XX

1600cm2 (248in2)

527

172

128.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

445

172

128.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

304

172

128.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

246

172

128.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

176

172

128.6

160.0

160.0

160.0

160.0

160.0

160.0

160.0

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

           2. The implication of “XX” is shown in SA series actuator specification.

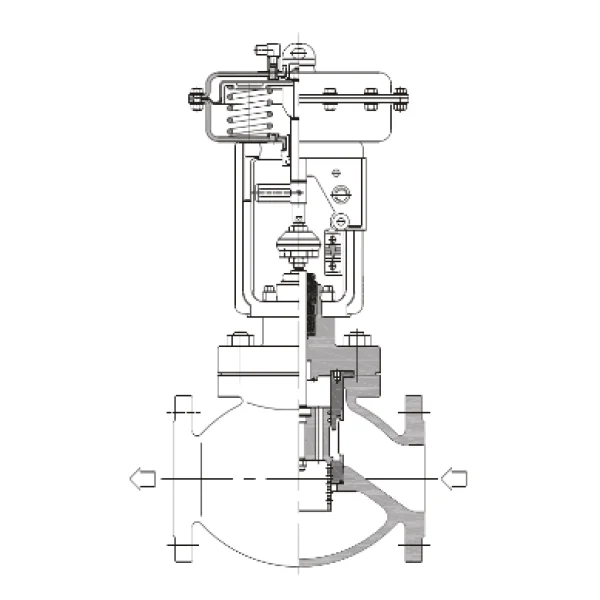

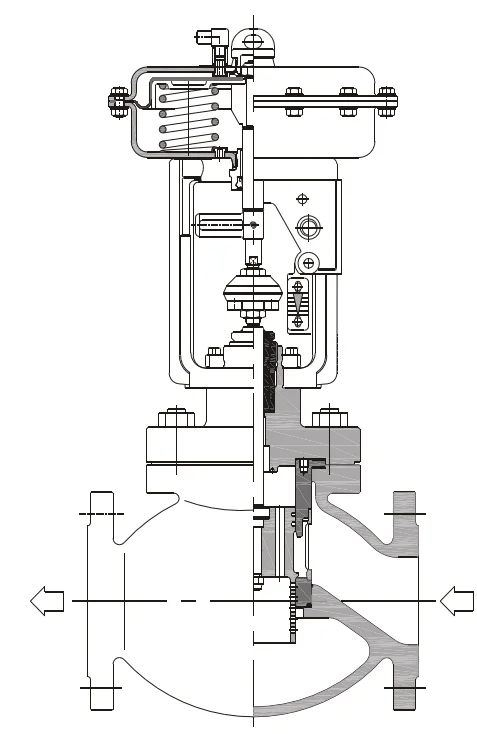

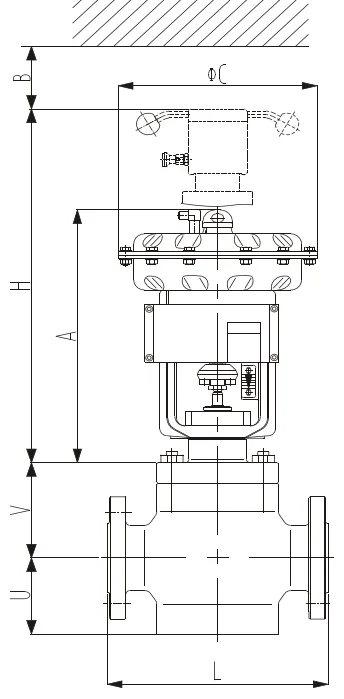

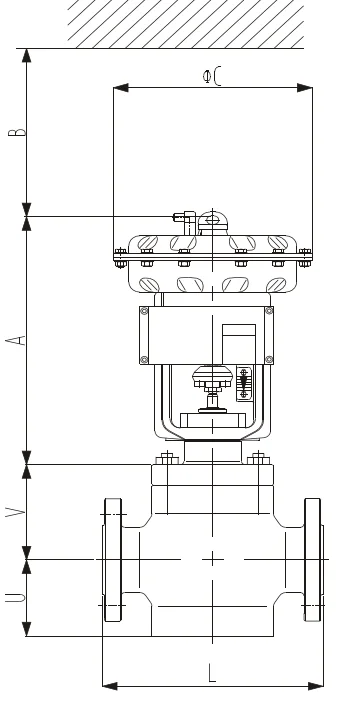

Figure 5 DN80 ~ DN200 ( 3" ~ 8" )

Table 6.1 Figure size (mm)&Weight (Kg)  ( DN80 ~ DN200, DIN PN63/100/160/250)

Flange (DIN 2546/2547/2548). Face to face dimension DIN PN63/100/160 (DIN3202-F2)

(Except DN200), DIN PN250 (DIN 3202-F3). After Body U size "/" is Data of DIN PN250.

Body

assembly

DN

80

100

150

200

L

PN63/100/160

380

430

550

700

PN250

450

520

700

800

V

<300°C

220

255

342

357

³300°C

300

332

402

447

U

153

178

228/238

260/273

Actuator

ÆC

SA2

400

SA3



596

A

SA2

489

625

SA3



840

H

SA2

657

888

B

150

200

Weight

SA2

127

162

317

607

SA3





460

750

Note: Weight=Body assembly + Actuator ( without handwheel )

Table 6.2 Figure size(mm)&Weight (Kg)  ( 3"   ~  8"   ,  ANSI600/900/1500  )

Flange (ANSI B16.5 CLASS600/900/1500RF/RTJ). Face to face dimension ASME B16.10

Class600/900/1500 RF/RTJ & IEC60534-3-1. After Body U size "/" is Data of ANSI Class 1500.

Body

assembly

DN

3"

4"

6"

8"

L

CI.600

RF

256

432

559

660

RFJ

259

435

562

664

L

CI.900

RF

381

457

610

737

RFJ

384

460

613

740

L

CI.1500

RF

370

446

705

832

RFJ

373

449

711

841

V

<300°C

220

255

342

357

³300°C

300

332

402

447

U

153

178

228/238

260/273

Actuator



ÆC

SA2

400

SA3



596

A

SA2

489

625

SA3



840

H

SA2

657

888

B

150

200

Weight

SA2

127

162

317

607

SA3





460

750

Note: Weight=Body assembly + Actuator ( without handwheel )

Ordering Information

Please specify the following information:

1.    Type

2.    Nominal size

3.    Nominal pressure & end connection

4.    Body & trim material, harden treatment request

5.    Flow characteristic

6.    Packing material (code)

7.    Actuator type, with handwheel or not & Air pressure supply

8.    Action type (Direct or Reverse)

9.    Accessory (with positioner & Air regulator or not)

10.Oil-free or Copper-free, etc.

11.Fluid Name & state (liquid, gas, steam, etc.)

12.Pipeline size, wall thickness (Inlet, outlet)

13.Nor. Flow, Max. flow & Min. flow

14.Flow pressure & Pressure differential

15.(Full open/close)

16.Flow temp., Gravity or Density

17.Inlet and outlet pressure

18.The Gravity & viscosity of fluid, with slurry, flashing or not

19.Used in high pressure, Temp., &EXP. Condition or not

20. Other special requests





Lưu ý

Sản phẩm Van điều khiển HBC được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!

Đánh giá sản phẩm

Sản phẩm liên quan

Sản phẩm đã xem
