SH6000 Series
HGC High Pressure Perforated Plug Type
|
|

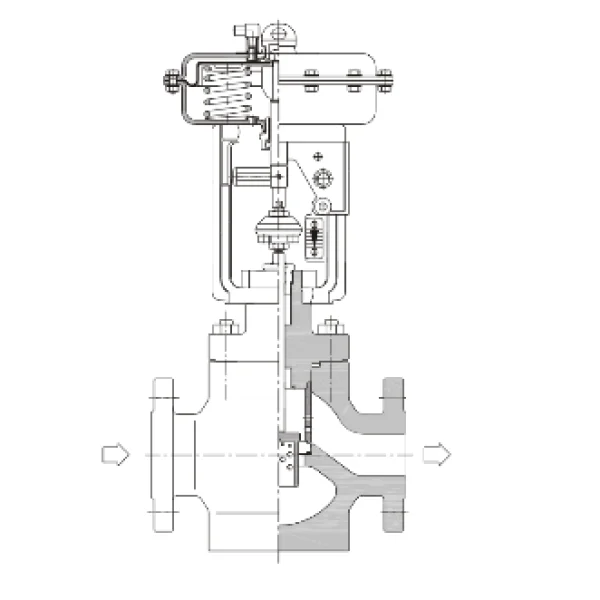

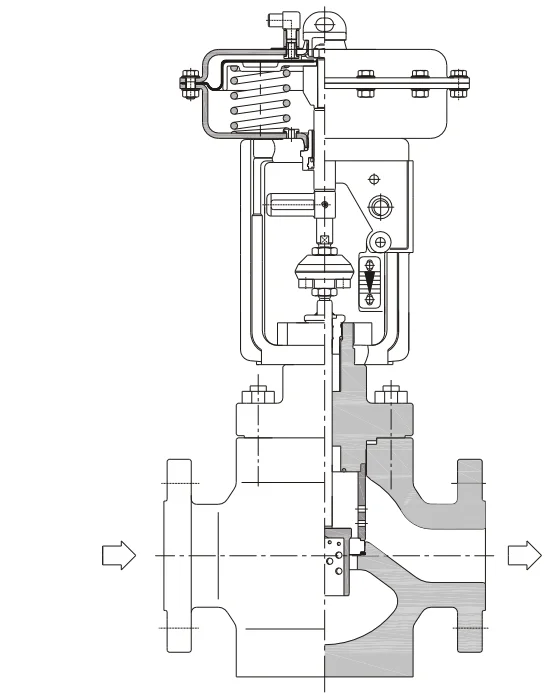

Large capacity high pressure globe valve body, thick wall bonnet, Metal-seated quick-changeable trim combination. HGC ensures safety and credibility in > 100Kg/cm2 high pressure conditions. Double guided by bushing and port, working trims are of dynamic stability. Perforated cylinder Plug can effectively protect sealing surface of seat to be damaged by high speed flow scoured.
HGC series is especially suitable for the high pressure fluid with larger pressure drop and possibility of cavitition.
|
 |
|
Valve Body
|
|
Type: Cast globe Valve
Nominal Size: DN25, 40, 50, 80, 100, 150, 200
Nominal Pressure: ANSI 600, 900, 1500
DIN PN63, 100, 160, 250
JIS 63K
GB PN6.3, 10.0, 16.0 MPa
End Connection: Flange ANSI B16.5 RF, RTJ
DIN2543/2544/2545 RF
JISB2201 RF
JB/T81 RF
JB/T82.2 FM
|
|
Weld ANSI B16.5 SW ( DN £ 80 ) ; BW ( DN > 80 )
Face to Face Dimension: ANSI is according to IEC60534-3-1 & ASME B16.10
DIN PN63, 100, 160 is according to DIN 3202-F2
DIN PN250 is according to DIN 3202-F2
GB PN6.3, 10.0, 16.0 MPA is according to GB 12221 STD 2 Series
Please refer to table 6.1~6.2
Body Material: Please refer to table1 Please refer to figure 3 for Operated Temp.&Pressure Range
Bonnet Type: Bellows type·········-46°C ~ 300°C, radiation fin type·········300°C ~ 530°C
Please pay attention to the different Temp.&Pressure Range of material
Packing Material: Graphite compound packing, graphite packing, etc.

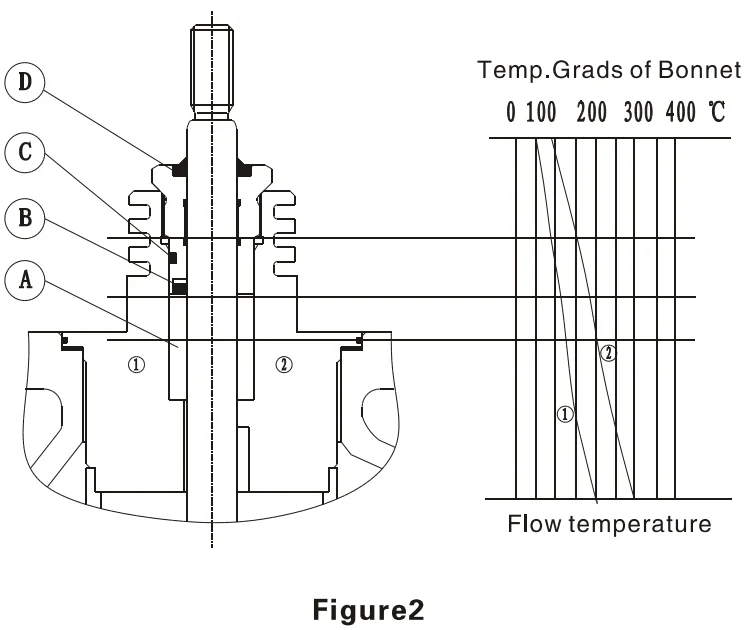

Operating Temp.&Pressure range is shown in table 2, figure2
Seal Gasket: Spiral wound gasket ( PTFE+316, Flexible Graphite+316 )
Graphite with metal gasket ( Graphite+316, Graphite+304 )
Valve Trim
Plug Type: Perforated cylinder plug
Flow Characteristic: EQ%, Linearity (As shown in figure4)
Trim Material: please refer to table 3 for STD material assembly, operated Temp.&Pressure Range
Actuator
Type: Multi-spring diaphragm
Air Supply: Max. 6bar
Ambient Temp.: -20°C+80°C
Spring range: As shown in Table 5.1 ~ 5.2
Air Connection: G1/8 ( SA1 ) ; G1/4 ( SA2 ) ; G3/4 ( SA3 )
STD Specification: As shown in Table 5.1 ~ 5.2
|
|
Accessory
Positioner, Filter-regulator valve, Solenoid valve, Limit switch, Valve position
Transmitter, Booster relay, Lock-valve, Handwheel, etc.
Action
Air to open, Air to close
Performance
Rangeability: 50:1
Seat leakage: According to ANSI B16.104 ClassIV, Class V
Hysteresis: 3% ( Without Positioner ) 1% ( With Positioner )
Linearity: ± 5% ( Without Positioner ) ±1% ( With Positioner )
Rated CV: As shown in table 4
Allowable pressure differential: As shown in table 5.1~5.2

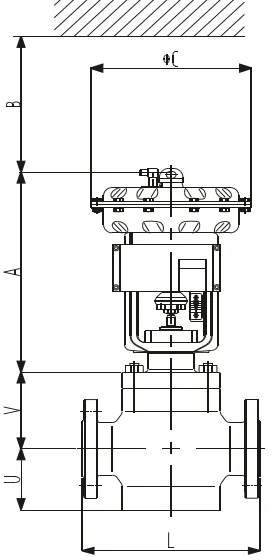

Figure Size: As shown in figure5, table 6.1~6.2
Weight of product: As shown in table 6.1~6.2
Performance
Special inspection
- Flow characteristic test, material test, low temperature test, steam test, non-damages test
- copper-free treatment
- non-standard painting
- dust and sand proof
- vacuum service
- tropical area proof
- completely oi-free, water-free treatment
- special air piping and fitting
- strong corrosion proof
- stainless steel bolt and nut for exposed parts
- cold area proof

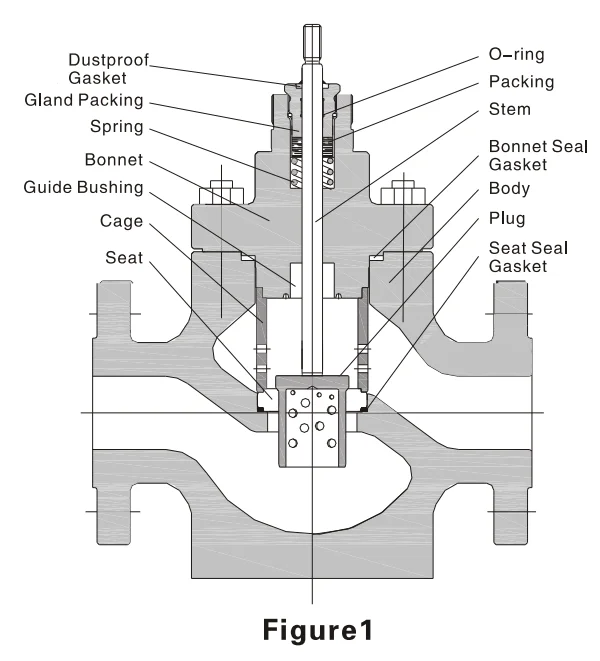

Body Assembly Structure ( As shown in figure 1 )
|
|
Performance
- Both faces of valve seat can be used to improve service life
- Quickly disassembly and installation without any special tools
- Good price performance
- Optimize flow of cage
- Various of materials are available
- Maintenance-free for packing
- Packing stuffing box is wear resistance and corrosion resistance
|
 |
Table 1 Body material
|
GB
|
ANSI
|
DIN
|
Temp.Range
|
|
ZG230-450 WCB
|
A216 WCB ( ASTM )
|
1.0619 GP240GH
|
-10°C ~ 400°C
|
|
ZG0Cr18Ni9
|
A351 CF8 ( ASTM )
|
1.4308 G-X6CrNi18 9
|
-200°C ~ 530°C
|
|
ZG0Cr18Ni12Mo2Ti
|
A351 CF8M ( ASTM )
|
1.4408 G-X6CrNiMo18 10
|
-200°C ~ 530°C
|
|
ZG0Cr18Ni12Mo2Nb
|
-
|
1.4581 G-X5CrNiMoNb18 10
|
-200°C ~ 530°C
|
|
|
A217 WC6 ( ASTM )
|
1.7357 GS-17CrMo5 5
|
-10°C ~ 450°C
|
|
|
A217 WC9 ( ASTM )
|
1.7379 GS-18CrMo9 10
|
-10°C ~ 450°C
|
|
Table 2 Applicable Temp.&Pressure range of packing material
|
Type of material
( Shown in A )
|
Code
|
Seal material
( Shown in B )
|
O-ring material
( Shown in C )
|
Dustproof ring
( Shown in D )
|
Temp.Range
|
Bonnet
Type
|
Remarks
|
|
Graphite+
Incnel packing
|
3
|
-
|
-
|
NBR
VITON
|
-20°C ~ 400°C
|
Standard/with radiation fin
|
General occasion
|
|
Pure graphite
( Density 1.2 )
|
5
|
-
|
-
|
VITON
|
-196°C ~ 530°C
|
Standard/with radiation fin
|
High&Low Temp. occasion
|
|
Graphite+PTFE
|
6
|
-
|
-
|
NBR
|
-196°C ~ 200°C
|
Standard/ extension type
|
Low
Temp. occasion
|
Note: please choose the most related Temp.Range
|
|
ASME B16.35 150/300
Temp.
|
ASME
B16.34/B16.35
|
|
|
ASME B16.34 600/900/1500
Temp.
|
|
DIN EN 1092-1 PN16, PN25, PN40
Temp.
|
DIN EN
1092-1
|
 |
DIN EN 1092-1 PN63, PN100, PN160, PN250
Temp.
|
|

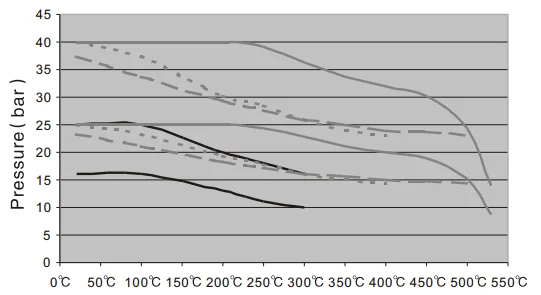

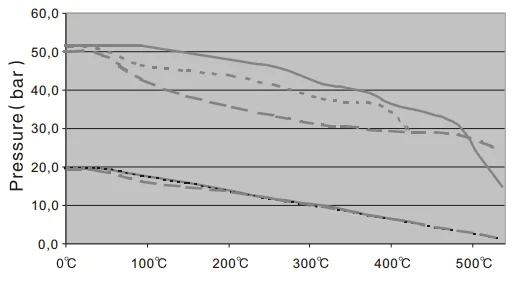

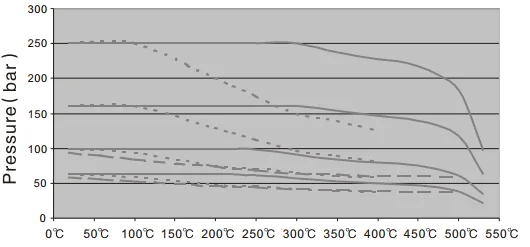

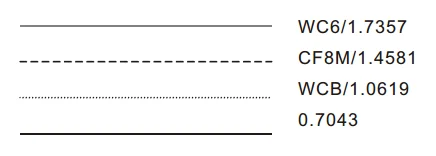

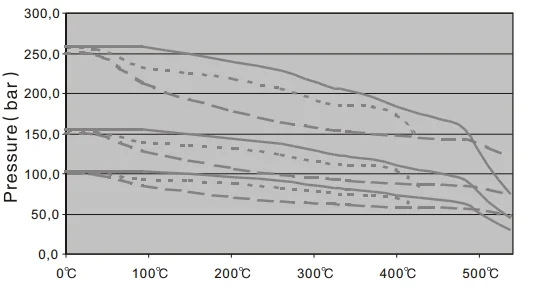

Figure3 Temp.&Pressure curve
|
Table 3 STD Material Assembly, Operated Temp.&Pressure Range of Trim
|
Perforated cylinder plug
|
Seat
|
Type of seat seal
|
Temp.
|
|
0Cr18Ni12Mo2Ti ( 1.4571 )
|
0Cr18Ni12Mo2Ti ( 1.4571 )
|
Metal seal
|
-46°C~530°C
|
|
3Cr17NiMo ( 1.4122 )
Harden treatment
|
2Cr13 ( 1.4021 )
|
Metal seal
|
|
9Cr18MoV ( 1.4112 )
Harden treatment
|
9Cr18MoV ( 1.4112 )
Harden treatment
|
Metal seal
|
|
|
Harden treatment: Hard chrome plated, Stellite surface, Heat treatment, Nitriding treatment, Spray tungsten carbide, etc.
|
Table 4 Rated Cv.
|
Seat type
|
Perforated cylinder plug
|
|
Flow characteristic
|
Linearity
|
EQ%
|
|
Nominal size
(DN)
|
Travel
|
Cv1
|
Cv2
|
Cv3
|
Cv1
|
Cv2
|
Cv3
|
|
15
|
|
|
|
|
|
|
|
|
20
|
|
|
25
|
20
|
11.7
|
8.2
|
4.7
|
8.2
|
4.7
|
|
|
32
|
|
|
|
|
|
|
|
|
40
|
20
|
31
|
21
|
|
19
|
13
|
|
|
50
|
30
|
50
|
31
|
|
41
|
25
|
|
|
65
|
|
|
|
|
|
|
|
|
80
|
30
|
94
|
70
|
65
|
65
|
50
|
44
|
|
100
|
30
|
129
|
94
|
70
|
80
|
65
|
50
|
|
150
|
60
|
445
|
304
|
198
|
246
|
176
|
146
|
|
200
|
60
|
527
|
445
|
304
|
304
|
246
|
176
|
|
250
|
|
|
|
300
|
|
|
350
|
|
|
400
|
|
|
|
|
|
|

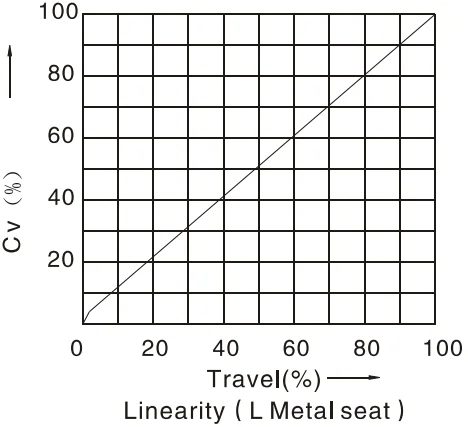

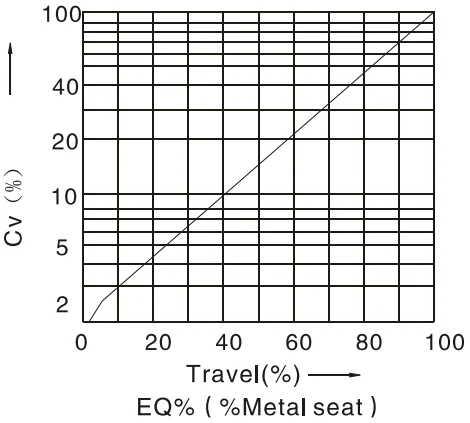

Figure 4 Flow characteristic curve
|
Table 5.1 Allowable pressure differential ( Leakage classIV
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
25
1"
|
20
|
- 3XX
320cm2 (50in2)
|
11.7
|
24
|
0.5
|
53.6
|
-
|
-
|
53.6
|
159.7
|
160.0
|
53.6
|
159.7
|
|
8.2
|
24
|
0.5
|
53.6
|
-
|
-
|
53.6
|
159.7
|
160.0
|
53.6
|
159.7
|
|
4.7
|
19
|
3.6
|
88.3
|
-
|
-
|
88.3
|
160.0
|
160.0
|
88.3
|
160.0
|
|
40
1 1/2"
|
20
|
- 3XX
320cm2 (50in2)
|
31
|
37
|
|
20.6
|
-
|
-
|
20.6
|
65.3
|
110.0
|
20.6
|
65.3
|
|
21
|
37
|
-
|
20.6
|
-
|
-
|
20.6
|
65.3
|
110.0
|
20.6
|
65.3
|
|
19
|
37
|
-
|
20.6
|
-
|
-
|
20.6
|
65.3
|
110.0
|
20.6
|
65.3
|
|
13
|
37
|
-
|
20.6
|
-
|
-
|
20.6
|
65.3
|
110.0
|
20.6
|
65.3
|
|
50
2"
|
30
|
-5XX
320cm2 (50in2)
|
50
|
48
|
-
|
11.3
|
-
|
-
|
11.3
|
37.9
|
64.4
|
11.3
|
37.9
|
|
41
|
48
|
-
|
11.3
|
-
|
-
|
11.3
|
37.9
|
64.4
|
11.3
|
37.9
|
|
31
|
37
|
-
|
20.6
|
-
|
-
|
20.6
|
65.3
|
110.0
|
20.6
|
65.3
|
|
25
|
37
|
-
|
20.6
|
-
|
-
|
20.6
|
65.3
|
110.0
|
20.6
|
65.3
|
|
-1XX
720cm2 (111in2)
|
50
|
48
|
12.4
|
40.1
|
56.7
|
73.2
|
44.5
|
104.2
|
160.0
|
44.5
|
104.2
|
|
41
|
48
|
12.4
|
40.1
|
56.7
|
73.2
|
44.5
|
104.2
|
160.0
|
44.5
|
104.2
|
|
31
|
37
|
22.5
|
69.0
|
97.0
|
124.9
|
76.5
|
160.0
|
160.0
|
76.5
|
160.0
|
|
25
|
37
|
22.5
|
69.0
|
97.0
|
124.9
|
76.5
|
160.0
|
160.0
|
76.5
|
160.0
|
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
94
|
73
|
-
|
4.0
|
-
|
-
|
4.0
|
15.4
|
26.9
|
4.0
|
15.4
|
|
65%
|
73
|
-
|
4.0
|
-
|
-
|
4.0
|
15.4
|
26.9
|
4.0
|
15.4
|
|
70
|
62
|
-
|
6.1
|
-
|
-
|
6.1
|
22.0
|
37.9
|
6.1
|
22.0
|
|
50
|
62
|
-
|
6.1
|
-
|
-
|
6.1
|
22.0
|
37.9
|
6.1
|
22.0
|
|
65L
|
48
|
-
|
11.3
|
-
|
-
|
11.3
|
37.9
|
64.4
|
11.3
|
37.9
|
|
44
|
48
|
-
|
11.3
|
-
|
-
|
11.3
|
37.9
|
64.4
|
11.3
|
37.9
|
|
-1XX
720cm2 (111in2)
|
94
|
73
|
4.4
|
16.4
|
23.6
|
30.7
|
18.3
|
44.1
|
69.9
|
18.3
|
44.1
|
|
65%
|
73
|
4.4
|
16.4
|
23.6
|
30.7
|
18.3
|
44.1
|
69.9
|
18.3
|
44.1
|
|
70
|
62
|
6.7
|
23.3
|
33.2
|
43.2
|
25.9
|
61.7
|
97.5
|
25.9
|
61.7
|
|
50
|
62
|
6.7
|
23.3
|
33.2
|
43.2
|
25.9
|
61.7
|
97.5
|
25.9
|
61.7
|
|
65L
|
48
|
12.4
|
40.1
|
56.7
|
73.2
|
44.5
|
104.2
|
160.0
|
44.5
|
104.2
|
|
44
|
48
|
12.4
|
40.1
|
56.7
|
73.2
|
44.5
|
104.2
|
160.0
|
44.5
|
104.2
|
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
129
|
90
|
-
|
2.2
|
-
|
-
|
2.2
|
9.7
|
17.3
|
2.2
|
9.7
|
|
80
|
90
|
-
|
2.2
|
-
|
-
|
2.2
|
9.7
|
17.3
|
2.2
|
9.7
|
|
94
|
73
|
-
|
4.0
|
-
|
-
|
4.0
|
15.4
|
26.9
|
4.0
|
15.4
|
|
65
|
73
|
-
|
4.0
|
-
|
-
|
4.0
|
15.4
|
26.9
|
4.0
|
15.4
|
|
70
|
62
|
-
|
6.1
|
-
|
-
|
6.1
|
22.0
|
37.9
|
6.1
|
22.0
|
|
50
|
62
|
-
|
6.1
|
-
|
-
|
6.1
|
22.0
|
37.9
|
6.1
|
22.0
|
|
-1XX
720cm2 (111in2)
|
129
|
90
|
2.5
|
10.4
|
15.1
|
19.8
|
11.6
|
28.6
|
45.6
|
11.6
|
28.6
|
|
80
|
90
|
2.5
|
10.4
|
15.1
|
19.8
|
11.6
|
28.6
|
45.6
|
11.6
|
28.6
|
|
94
|
73
|
4.4
|
16.4
|
23.6
|
30.7
|
18.3
|
44.1
|
69.9
|
18.3
|
44.1
|
|
65
|
73
|
4.4
|
16.4
|
23.6
|
30.7
|
18.3
|
44.1
|
69.9
|
18.3
|
44.1
|
|
70
|
62
|
6.7
|
23.3
|
33.2
|
43.2
|
25.9
|
61.7
|
97.5
|
25.9
|
61.7
|
|
50
|
62
|
6.7
|
23.3
|
33.2
|
43.2
|
25.9
|
61.7
|
97.5
|
25.9
|
61.7
|
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
0.6
|
4.1
|
6.2
|
8.3
|
4.7
|
12.2
|
19.8
|
4.7
|
12.2
|
|
246
|
143
|
0.6
|
4.1
|
6.2
|
8.3
|
4.7
|
12.2
|
19.8
|
4.7
|
12.2
|
|
304
|
113
|
1.2
|
6.2
|
9.2
|
12.2
|
7.0
|
17.8
|
28.6
|
7.0
|
17.8
|
|
176
|
113
|
1.2
|
6.2
|
9.2
|
12.2
|
7.0
|
17.8
|
28.6
|
7.0
|
17.8
|
|
198
|
90
|
2.5
|
10.4
|
15.1
|
19.8
|
11.6
|
28.6
|
45.6
|
11.6
|
28.6
|
|
146
|
90
|
2.5
|
10.4
|
15.1
|
19.8
|
11.6
|
28.6
|
45.6
|
11.6
|
28.6
|
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
527
|
172
|
0.1
|
2.3
|
3.6
|
4.9
|
2.6
|
7.3
|
11.9
|
2.6
|
7.3
|
|
304%
|
172
|
0.1
|
2.3
|
3.6
|
4.9
|
2.6
|
7.3
|
11.9
|
2.6
|
7.3
|
|
445
|
143
|
0.6
|
4.1
|
6.2
|
8.3
|
4.7
|
12.2
|
19.8
|
4.7
|
12.2
|
|
246
|
143
|
0.6
|
4.1
|
6.2
|
8.3
|
4.7
|
12.2
|
19.8
|
4.7
|
12.2
|
|
304L
|
113
|
1.2
|
6.2
|
9.2
|
12.2
|
7.0
|
17.8
|
28.6
|
7.0
|
17.8
|
|
176
|
113
|
1.2
|
6.2
|
9.2
|
12.2
|
7.0
|
17.8
|
28.6
|
7.0
|
17.8
|
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-1XX
1600cm2 (248in2)
|
445
|
143
|
11.1
|
18.1
|
25.1
|
26.1
|
45.7
|
64.9
|
35.9
|
55.1
|
|
246
|
143
|
11.1
|
18.1
|
25.1
|
26.1
|
45.7
|
64.9
|
35.9
|
55.1
|
|
304
|
113
|
16.2
|
26.2
|
36.1
|
37.6
|
65.6
|
93.0
|
51.6
|
79.0
|
|
176
|
113
|
16.2
|
26.2
|
36.1
|
37.6
|
65.6
|
93.0
|
51.6
|
79.0
|
|
198
|
90
|
26.1
|
41.8
|
57.5
|
59.9
|
103.9
|
147.2
|
81.9
|
125.2
|
|
146
|
90
|
26.1
|
41.8
|
57.5
|
59.9
|
103.9
|
147.2
|
81.9
|
125.2
|
|
200
8"
|
60
|
-1XX
1600cm2 (248in2)
|
527
|
172
|
6.6
|
10.9
|
15.2
|
15.8
|
27.9
|
39.7
|
21.9
|
33.7
|
|
304%
|
172
|
6.6
|
10.9
|
15.2
|
15.8
|
27.9
|
39.7
|
21.9
|
33.7
|
|
445
|
143
|
11.1
|
18.1
|
25.1
|
26.1
|
45.7
|
64.9
|
35.9
|
55.1
|
|
246
|
143
|
11.1
|
18.1
|
25.1
|
26.1
|
45.7
|
64.9
|
35.9
|
55.1
|
|
304L
|
113
|
16.2
|
26.2
|
36.1
|
37.6
|
65.6
|
93.0
|
51.6
|
79.0
|
|
176
|
113
|
16.2
|
26.2
|
36.1
|
37.6
|
65.6
|
93.0
|
51.6
|
79.0
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
Table 5.2 Allowable pressure differential ( Leakage classV )
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
25
1"
|
20
|
- 3XX
320cm2 (50in2)
|
11.7
|
24
|
-
|
20.3
|
-
|
-
|
20.3
|
126.4
|
160.0
|
20.3
|
126.4
|
|
8.2
|
24
|
-
|
20.3
|
-
|
-
|
20.3
|
126.4
|
160.0
|
20.3
|
126.4
|
|
4.7
|
19
|
-
|
20.3
|
-
|
-
|
20.3
|
126.4
|
160.0
|
20.3
|
126.4
|
|
40
1 1/2"
|
20
|
- 3XX
320cm2 (50in2)
|
31
|
37
|
-
|
-
|
-
|
-
|
-
|
43.7
|
88.4
|
-
|
43.7
|
|
21
|
37
|
-
|
-
|
-
|
-
|
-
|
43.7
|
88.4
|
-
|
43.7
|
|
19
|
37
|
-
|
-
|
-
|
-
|
-
|
43.7
|
88.4
|
-
|
43.7
|
|
13
|
37
|
-
|
-
|
-
|
-
|
-
|
43.7
|
88.4
|
-
|
43.7
|
|
50
2"
|
30
|
-5XX
320cm2 (50in2)
|
50
|
48
|
-
|
-
|
-
|
-
|
-
|
21.2
|
47.7
|
-
|
21.2
|
|
41
|
48
|
-
|
-
|
-
|
-
|
-
|
21.2
|
47.7
|
-
|
21.2
|
|
31
|
37
|
-
|
-
|
-
|
-
|
-
|
43.7
|
88.4
|
-
|
43.7
|
|
25
|
37
|
-
|
-
|
-
|
-
|
-
|
43.7
|
88.4
|
-
|
43.7
|
|
-1XX
720cm2 (111in2)
|
50
|
48
|
-
|
23.4
|
40.0
|
56.6
|
27.8
|
87.5
|
147.2
|
27.8
|
87.5
|
|
41
|
48
|
-
|
23.4
|
40.0
|
56.6
|
27.8
|
87.5
|
147.2
|
27.8
|
87.5
|
|
31
|
37
|
0.9
|
47.4
|
75.3
|
103.2
|
54.9
|
155.4
|
160.0
|
54.9
|
155.4
|
|
25
|
37
|
0.9
|
47.4
|
75.3
|
103.2
|
54.9
|
155.4
|
160.0
|
54.9
|
155.4
|
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
94
|
73
|
-
|
-
|
-
|
-
|
-
|
4.5
|
15.9
|
-
|
4.5
|
|
65%
|
73
|
-
|
-
|
-
|
-
|
-
|
4.5
|
15.9
|
-
|
4.5
|
|
70
|
62
|
-
|
-
|
-
|
-
|
-
|
9.1
|
25.0
|
-
|
9.1
|
|
50
|
62
|
-
|
-
|
-
|
-
|
-
|
9.1
|
25.0
|
-
|
9.1
|
|
65L
|
48
|
-
|
-
|
-
|
-
|
-
|
21.2
|
47.7
|
-
|
21.2
|
|
44
|
48
|
-
|
-
|
-
|
-
|
-
|
21.2
|
47.7
|
-
|
21.2
|
|
-1XX
720cm2 (111in2)
|
94
|
73
|
-
|
5.4
|
12.6
|
19.8
|
7.3
|
33.2
|
59.0
|
7.3
|
33.2
|
|
65%
|
73
|
-
|
5.4
|
12.6
|
19.8
|
7.3
|
33.2
|
59.0
|
7.3
|
33.2
|
|
70
|
62
|
-
|
10.4
|
20.3
|
30.3
|
13.0
|
48.8
|
84.6
|
13.0
|
48.8
|
|
50
|
62
|
-
|
10.4
|
20.3
|
30.3
|
13.0
|
48.8
|
84.6
|
13.0
|
48.8
|
|
65L
|
48
|
-
|
23.4
|
40.0
|
56.6
|
27.8
|
87.5
|
147.2
|
27.8
|
87.5
|
|
44
|
48
|
-
|
23.4
|
40.0
|
56.6
|
27.8
|
87.5
|
147.2
|
27.8
|
87.5
|
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
129
|
90
|
-
|
-
|
-
|
-
|
-
|
0.8
|
8.4
|
-
|
0.8
|
|
80
|
90
|
-
|
-
|
-
|
-
|
-
|
0.8
|
8.4
|
-
|
0.8
|
|
94
|
73
|
-
|
-
|
-
|
-
|
-
|
4.5
|
15.9
|
-
|
4.5
|
|
65
|
73
|
-
|
-
|
-
|
-
|
-
|
4.5
|
15.9
|
-
|
4.5
|
|
70
|
62
|
-
|
-
|
-
|
-
|
-
|
9.1
|
25.0
|
-
|
9.1
|
|
50
|
62
|
-
|
-
|
-
|
-
|
-
|
9.1
|
25.0
|
-
|
9.1
|
|
-1XX
720cm2 (111in2)
|
129
|
90
|
-
|
1.5
|
6.2
|
10.9
|
2.7
|
19.7
|
36.7
|
2.7
|
19.7
|
|
80
|
90
|
-
|
1.5
|
6.2
|
10.9
|
2.7
|
19.7
|
36.7
|
2.7
|
19.7
|
|
94
|
73
|
-
|
5.4
|
12.6
|
19.8
|
7.3
|
33.2
|
59.0
|
7.3
|
33.2
|
|
65
|
73
|
-
|
5.4
|
12.6
|
19.8
|
7.3
|
33.2
|
59.0
|
7.3
|
33.2
|
|
70
|
62
|
-
|
10.4
|
20.3
|
30.3
|
13.0
|
48.8
|
84.6
|
13.0
|
48.8
|
|
50
|
62
|
-
|
10.4
|
20.3
|
30.3
|
13.0
|
48.8
|
84.6
|
13.0
|
48.8
|
|
|
Continued Table 5.2
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
−
|
−
|
0.3
|
2.4
|
−
|
6.3
|
13.8
|
−
|
6.3
|
|
246
|
143
|
−
|
−
|
0.3
|
2.4
|
−
|
6.3
|
13.8
|
−
|
6.3
|
|
304
|
113
|
−
|
−
|
2.1
|
5.1
|
−
|
10.7
|
21.5
|
−
|
10.7
|
|
176
|
113
|
−
|
−
|
2.1
|
5.1
|
−
|
10.7
|
21.5
|
−
|
10.7
|
|
198
|
90
|
−
|
1.5
|
6.2
|
10.9
|
2.7
|
19.7
|
36.7
|
2.7
|
19.7
|
|
146
|
90
|
−
|
1.5
|
6.2
|
10.9
|
2.7
|
19.7
|
36.7
|
2.7
|
19.7
|
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
527
|
172
|
−
|
−
|
−
|
0.2
|
−
|
2.6
|
7.3
|
−
|
2.6
|
|
304%
|
172
|
−
|
−
|
−
|
0.2
|
−
|
2.6
|
7.3
|
−
|
2.6
|
|
445
|
143
|
−
|
−
|
0.3
|
2.4
|
−
|
6.3
|
13.8
|
−
|
6.3
|
|
246
|
143
|
−
|
−
|
0.3
|
2.4
|
−
|
6.3
|
13.8
|
−
|
6.3
|
|
304L
|
113
|
−
|
−
|
2.1
|
5.1
|
−
|
10.7
|
21.5
|
−
|
10.7
|
|
176
|
113
|
−
|
−
|
2.1
|
5.1
|
−
|
10.7
|
21.5
|
−
|
10.7
|
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-1XX
1600cm2 (248in2)
|
445
|
143
|
5.2
|
12.2
|
19.2
|
20.2
|
39.8
|
59.0
|
30.0
|
49.2
|
|
246
|
143
|
5.2
|
12.2
|
19.2
|
20.2
|
39.8
|
59.0
|
30.0
|
49.2
|
|
304
|
113
|
9.1
|
19.1
|
29.1
|
30.6
|
58.5
|
85.9
|
44.5
|
72.0
|
|
176
|
113
|
9.1
|
19.1
|
29.1
|
30.6
|
58.5
|
85.9
|
44.5
|
72.0
|
|
198
|
90
|
17.2
|
32.9
|
48.7
|
51.0
|
95.0
|
138.3
|
73.0
|
116.3
|
|
146
|
90
|
17.2
|
32.9
|
48.7
|
51.0
|
95.0
|
138.3
|
73.0
|
116.3
|
|
200
8"
|
60
|
-1XX
1600cm2 (248in2)
|
527
|
172
|
1.9
|
6.2
|
10.5
|
11.2
|
23.3
|
35.1
|
17.2
|
29.1
|
|
304%
|
172
|
1.9
|
6.2
|
10.5
|
11.2
|
23.3
|
35.1
|
17.2
|
29.1
|
|
445
|
143
|
5.2
|
12.2
|
19.2
|
20.2
|
39.8
|
59.0
|
30.0
|
49.2
|
|
246
|
143
|
5.2
|
12.2
|
19.2
|
20.2
|
39.8
|
59.0
|
30.0
|
49.2
|
|
304L
|
113
|
9.1
|
19.1
|
29.1
|
30.6
|
58.5
|
85.9
|
44.5
|
72.0
|
|
176
|
113
|
9.1
|
19.1
|
29.1
|
30.6
|
58.5
|
85.9
|
44.5
|
72.0
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
|
|
|
|
Figure5 DN25~DN200 ( 1"~8" )
|
Table 6.1 Figure size (mm)&Weight (Kg) ( DN25 ~ DN200, DIN PN63/100/160/250)
|
Body flange dimension is according to DIN 2543/2544/2545.
The Face to face dimension is according to DIN3202-F1
|
|
Body
assembly
|
DN
|
25
|
40
|
50
|
80
|
100
|
150
|
200
|
|
L
|
PN63/100/160
|
230
|
260
|
300
|
380
|
430
|
550
|
700
|
|
PN250
|
260
|
300
|
350
|
450
|
520
|
700
|
800
|
|
V
|
<300°C
|
132
|
159
|
178
|
220
|
255
|
342
|
357
|
|
³300°C
|
167
|
239
|
243
|
300
|
332
|
402
|
447
|
|
U
|
68
|
103
|
113
|
153
|
178
|
228/238
|
260/273
|
|
Actuator
|
ÆC
|
SA1
|
270
|
|
|
SA2
|
|
400
|
|
SA3
|
|
596
|
|
A
|
SA1
|
361
|
|
|
SA2
|
|
489
|
625
|
|
SA3
|
|
840
|
|
H
|
SA1
|
508
|
|
|
|
SA2
|
|
657
|
888
|
|
B
|
130
|
150
|
200
|
|
Weight
|
SA1
|
34
|
42
|
72
|
101
|
136
|
|
|
SA2
|
|
|
98
|
127
|
162
|
317
|
607
|
|
SA3
|
|
|
|
|
|
460
|
750
|
Note: Weight=Body assembly+Actuator ( without handwheel )
|
Table 6.2 Figure size(mm)&Weight (Kg) ( 1" ~ 8" , ANSI150/300 )
|
Flange ( ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF
(IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
|
|
|
Body
assembly
|
DN
|
1"
|
1½"
|
2"
|
3"
|
4"
|
6"
|
8"
|
|
|
L
CI.600
|
RF
|
216
|
241
|
292
|
256
|
432
|
559
|
660
|
|
|
RFJ
|
216
|
241
|
292
|
259
|
435
|
562
|
664
|
|
|
L
CI.900
|
RF
|
254
|
305
|
368
|
381
|
457
|
610
|
737
|
|
|
RFJ
|
254
|
305
|
372
|
384
|
460
|
613
|
740
|
|
|
L
CI.1500
|
RF
|
254
|
305
|
368
|
370
|
446
|
705
|
832
|
|
|
RFJ
|
254
|
305
|
372
|
373
|
449
|
711
|
841
|
|
|
V
|
<300°C
|
132
|
159
|
178
|
220
|
255
|
342
|
357
|
|
|
³300°C
|
167
|
239
|
243
|
300
|
332
|
402
|
447
|
|
|
U
|
68
|
103
|
113
|
153
|
178
|
228/238
|
260/273
|
|
|
Actuator
|
ÆC
|
SA1
|
270
|
|
|
|
SA2
|
|
400
|
|
|
SA3
|
|
596
|
|
|
A
|
SA1
|
361
|
|
|
|
SA2
|
|
489
|
625
|
|
|
SA3
|
|
|
840
|
|
|
H
|
SA1
|
508
|
|
|
|
|
SA2
|
|
657
|
888
|
|
|
B
|
130
|
150
|
200
|
|
|
Weight
|
SA1
|
34
|
42
|
72
|
101
|
136
|
|
|
|
SA2
|
|
98
|
127
|
162
|
317
|
607
|
|
|
|
|
96
|
119
|
|
SA3
|
|
460
|
750
|
|
|
|
|
|
|
Note: Weight=Body assembly + Actuator ( without handwhell )
|
|
Ordering Information
Please specify the following information:
1. Type
2. Nominal size
3. Nominal pressure & end connection
4. Body & trim material, harden treatment request
5. Flow characteristic
6. Packing material (code)
7. Actuator type, with handwheel or not & Air pressure supply
8. Action type (Direct or Reverse)
9. Accessory (with positioner & Air regulator or not)
10.Oil-free or Copper-free, etc.
11.Fluid Name & state (liquid, gas, steam, etc.)
12.Pipeline size, wall thickness (Inlet, outlet)
13.Nor. Flow, Max. flow & Min. flow
14.Flow pressure & Pressure differential
15.(Full open/close)
16.Flow temp., Gravity or Density
17.Inlet and outlet pressure
18.The Gravity & viscosity of fluid, with slurry, flashing or not
19.Used in high pressure, Temp., &EXP. Condition or not
20. Other special requests
|
.png)
