SH6000 Series
SBP Pressure Balanced Cage and Port Guiding Parabolic Plug Type
|
|
SBP series has both optional structures of metal and soft sealing. Combined with complex piston rings, SBP presents excellent seal performance. The series with balanced trims requires much lower drops. Parabolic column plug ensure large rangebility, precise flow characteristics and not being locked.
SBP series is best suitable to large pressure drop ratio, wide temperature change and particle conditions, ect.
|
 |
|
Valve Body
|
|
Type: Cast globe Valve
Nominal Size: DN80, 100, 150,
200, 250, 300, 350, 400
Nominal Pressure: ANSI 150, 300
DIN PN16, 25, 40
JIS 10K, 20K 30K
GB PN1.6, 2.5, 4.0 MPa
End Connection: Flange ANSI B16.5 RF, RTJ
DIN2543/2544/2545 RF
JISB2201 RF
JB/T81 RF
JB/T82.2 FM
|
|
Weld ANSI B16.5 SW ( DN £ 50 ) ; BW ( DN > 50 )
Face to Face Dimension: ANSI150RF, JIS10K ( IEC60534-3-1 37 Series )
ANSI300RF, JIS20K, JIS30K ( IEC60534-3-1 38 Series )
ANSI150/300 RTJ ( ASME B16.10 CLASS 150/300RTJ )
DIN PN16, 25, 40 ( DIN3202-F1 )
GB PN1.6, 2.5, 4.0 MPa ( ISO5752 1 Series )
Please refer to table 6.1~6.2
Body Material: Please refer to table1 Please refer to figure 3 for Operated Temp.&Pressure Range
Bonnet Type: STD type·········-46°C ~ 200°C ; 200°C ~ 300°C Radiation fin type·········300°C ~ 530°C
Please pay attention to the different Temp.&Pressure Range of material
Packing Material: PTFE V-ring compound packing, graphite compound packing, graphite packing

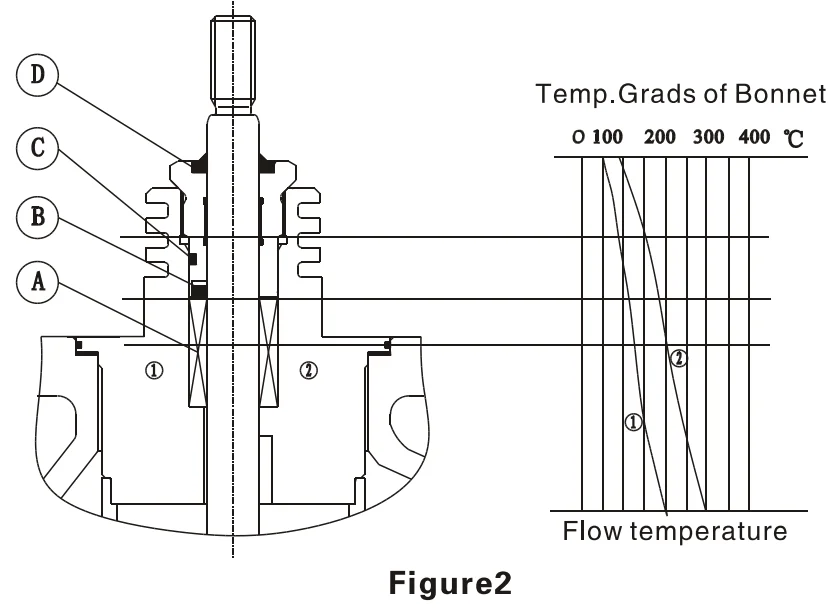

Operating Temp.&Pressure range is shown in table 2, figure2
Seal Gasket: Spiral wound gasket ( PTFE+316, Flexible Graphite+316 )
Graphite with metal gasket ( Graphite+316, Graphite+304 )
Valve Trim
Plug Type: Perforated cylinder plug
Flow Characteristic: EQ%, Linearity ( Please refer to figure4 )
Trim Material: Please refer to table 3 for STD material assembly, operated Temp.&Pressure Range
Actuator
Type: Multi-spring diaphragm
Air Supply: Max. 6bar
Ambient Temp.: -20°C+80°C
Spring range: As shown in Table 5.1 ~ 5.2
Air Connection: G1/8 ( SA1 ) ; G1/4 ( SA2 ) ; G3/4 ( SA3 )
STD Specification: As shown in Table 5.1 ~ 5.2
|
|
Accessory
Positioner, Filter-regulator valve, Solenoid valve, Limit switch, Valve position
Transmitter, Booster relay, Lock-valve, Handwheel, etc.
Action
Air to open, Air to close
Performance
Rangeability: 50:1
Seat leakage: Metal seal is according to ANSI B16.104 ClassIV, Class V
Soft seal is according to ANSI B16.104 Class VI
Hysteresis: 3% ( Without Positioner ) 1% ( With Positioner )
Linearity: ± 5% ( Without Positioner ) ±1% ( With Positioner )
Rated CV: As shown in table 4
Allowable pressure differential: As shown in table 5.1~5.2

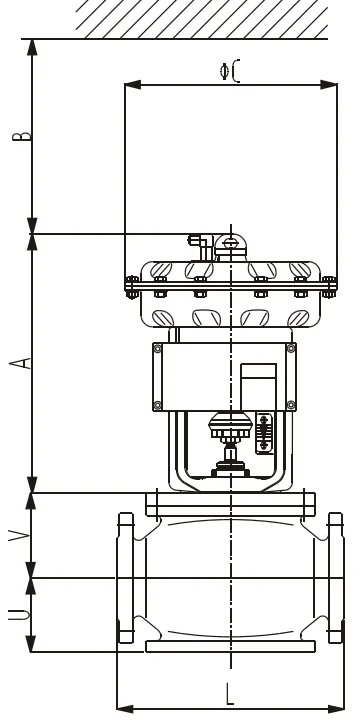

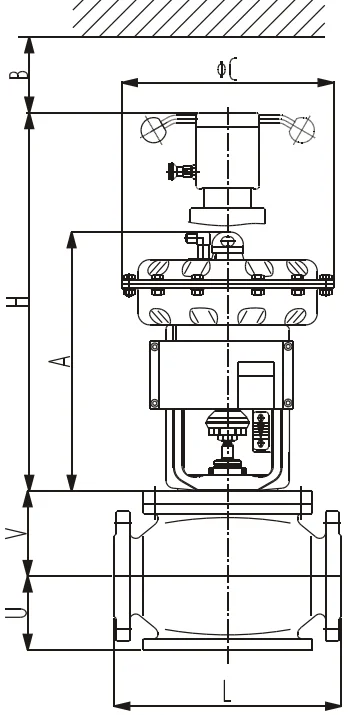

Figure Size: As shown in figure5.1, 5.2, table 6.1~6.2
Weight of product: As shown in table 6.1~6.2
Performance
- Special inspection
- Flow characteristic test, material test, low temperature test, steam test, non-damages test
- copper-free treatment
- non-standard painting
- dust and sand proof
- vacuum service
- tropical area proof
- completely oi-free, water-free treatment
- special air piping and fitting
- strong corrosion proof
- stainless steel bolt and nut for exposed parts
- cold area proof

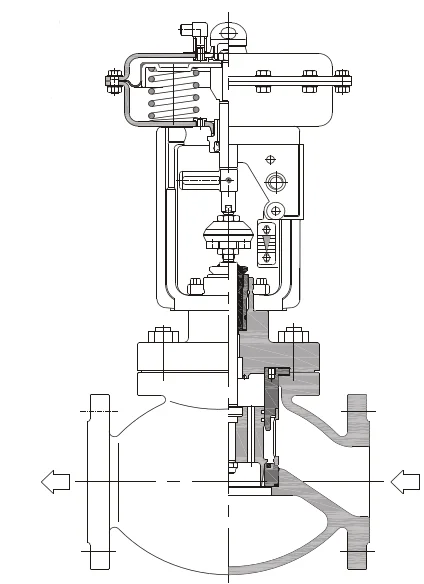

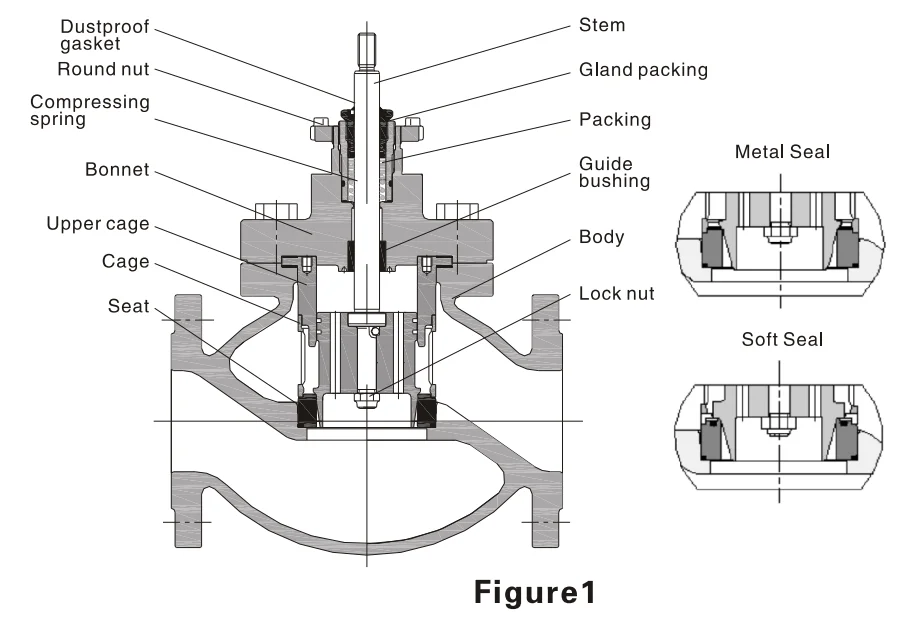

Body Assembly Structure ( As shown in figure 1 )
|
|
4Performance3
- Both faces of valve seat can
- be used to improve service life
- Quickly disassembly and installation
- without any special tools
- Good price performance
- Optimize flow of cage
- Various of materials are available
- Maintenance-free for packing
- Packing stuffing box is wear resistance
- and corrosion resistance
|
 |
Table1 Body material
|
GB
|
ANSI
|
DIN
|
Temp.Range
|
|
ZG230-450 WCB
|
A216 WCB ( ASTM )
|
1.0619 GP240GH
|
-10°C ~ 400°C
|
|
ZG0Cr18Ni9
|
A351 CF8 ( ASTM )
|
1.4308 G-X6CrNi18 9
|
-200°C ~ 530°C
|
|
ZG0Cr18Ni12Mo2Ti
|
A351 CF8M ( ASTM )
|
1.4408 G-X6CrNiMo18 10
|
-200°C ~ 530°C
|
|
ZG0Cr18Ni12Mo2Nb
|
-
|
1.4581 G-X5CrNiMo18 10
|
-200°C ~ 530°C
|
|
|
A217 WC6 ( ASTM )
|
1.7357 GS-17CrMo5 5
|
-10°C ~ 450°C
|
|
|
A217 WC9 ( ASTM )
|
1.7379 GS-18CrMo9 10
|
-10°C ~ 450°C
|
|
Table 2 Applicable Temp.&Pressure range of packing material
|
Type of material
( Shown in A )
|
Code
|
Seal material
( Shown in B )
|
O-ring material
( Shown in C )
|
Dustproof ring
( Shown in D )
|
Temp.Range
|
Bonnet
Type
|
Remarks
|
|
PTFE
V type packing
|
1
|
EPDM
|
EPDM
|
NBR
|
-25°C ~ 180°C
|
Standard
|
( Alter-
nate
load )
with
compress
spring
|
|
2
|
VITON
|
VITON
|
-25°C ~ 200°C
|
|
|
Graphite+
Incnel packing
|
3
|
-
|
-
|
NBR
( VITON )
|
-20°C ~ 400°C
|
Standard/with radiation fin
|
General occasion
|
|
Pure graphite
( Density 1.2 )
|
4
|
-
|
-
|
VITON
|
-196°C ~ 530°C
|
Standard/with radiation fin
|
High Temp. occasion
|
|
Graphite+PTFE
|
6
|
-
|
-
|
NBR
|
-196°C ~ 200°C
|
Standard/ extension type
|
Low Temp. occasion
|
Note: please choose the most related Temp.Range
|
|
ASME B16.35 150/300
Temp.
|
ASME
B16.34/B16.35
|
|
|
ASME B16.34 600/900/1500
Temp.
|
|
DIN EN 1092-1 PN16, PN25, PN40
Temp.
|
DIN EN
1092-1
|
 |
DIN EN 1092-1 PN63, PN100, PN160, PN250
Temp.
|
|

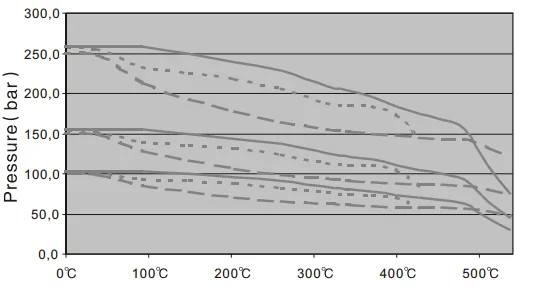

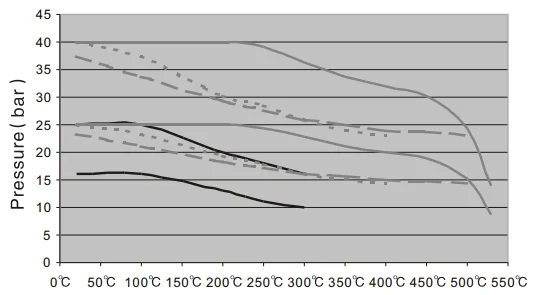

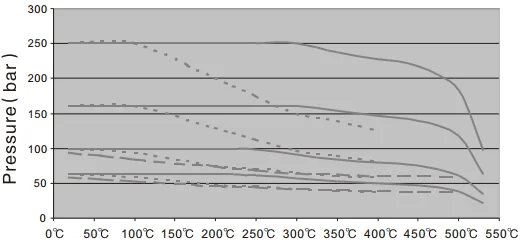

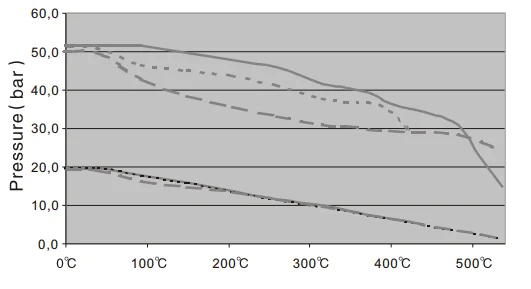

Figure3 Temp.&Pressure curve
|
Table 3 STD Material Assembly, Operated Temp.&Pressure Range of Trim
|
Perforated cylinder plug
|
Seat
|
Type of seat seal
|
Temp.
|
|
0Cr18Ni12Mo2Ti ( 1.4571 )
|
0Cr18Ni12Mo2Ti ( 1.4571 )
|
Metal seal
|
-46°C~530°C
|
|
3Cr17NiMo ( 1.4122 )
Nitriding treatment
|
2Cr13 ( 1.4021 )
Harden treatment
|
|
9Cr18MoV ( 1.4112 )
Harden treatment
|
9Cr18MoV ( 1.4112 )
Harden treatment
|
|
2Cr13 ( 1.4021 )
|
2Cr13 ( 1.4021 )
Harden treatment
|
|
0Cr18Ni12Mo2Ti ( 1.4571 )
|
0Cr18Ni12Mo2Ti ( 1.4571 )
|
PTFE/EPDM
|
-46°C~140°C
|
|
3Cr17NiMo ( 1.4122 )
Nitriding treatment
|
2Cr13 ( 1.4021 )
|
Harden treatment: Hard chrome plated, Stellite surface, Heat treatment, Nitriding treatment, Spray tungsten carbide, etc.
Tungsten carbide
|
 |
 |
 |
 |
|

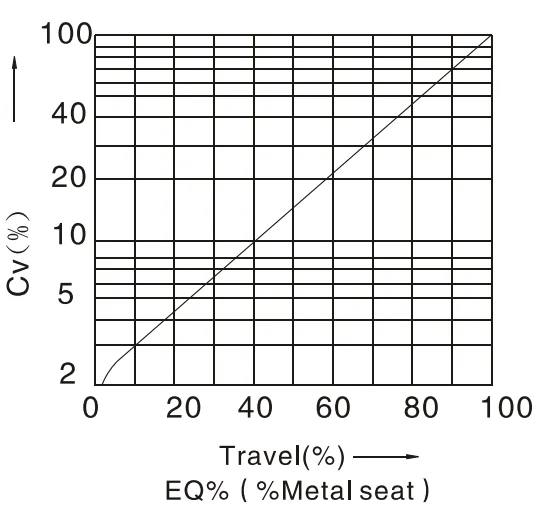

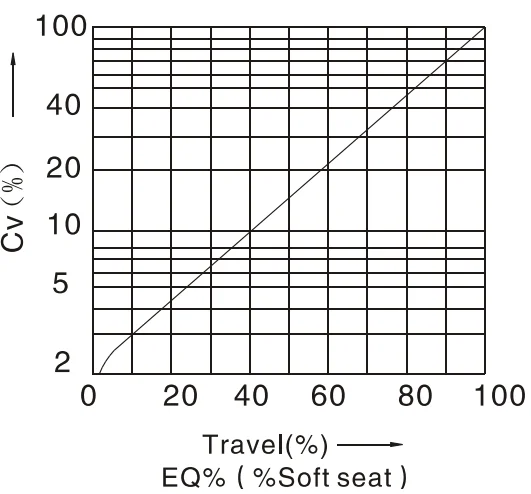

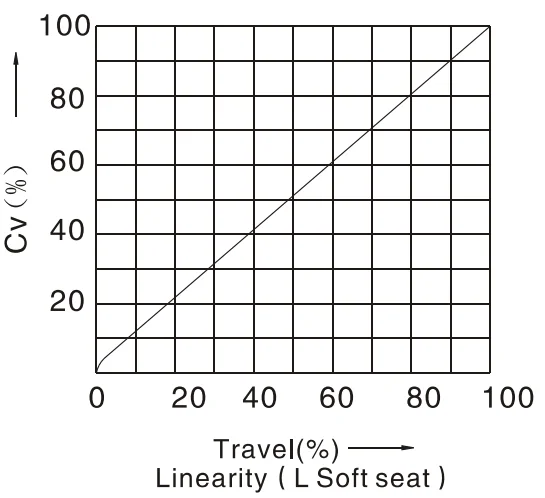

Figure 4 Flow characteristic curve
|
Table 4 Rated Cv.
|
Seat type
|
Metal seat
|
Soft seat
|
|
Flow chatacteristic
|
Linearity
|
EQ%
|
Quick
|
Linearity
|
EQ%
|
Quick
|
|
Nomial size
(DN)
|
Travel
|
Cv1
|
Cv2
|
Cv3
|
Cv1
|
Cv2
|
Cv3
|
Cv1
|
Cv1
|
Cv2
|
Cv3
|
Cv1
|
Cv2
|
Cv3
|
Cv1
|
|
80
|
30
|
116
|
73
|
46
|
116
|
73
|
46
|
116
|
116
|
73
|
46
|
116
|
73
|
46
|
116
|
|
100
|
186
|
116
|
73
|
186
|
116
|
73
|
186
|
186
|
116
|
73
|
186
|
116
|
73
|
186
|
|
150
|
60
|
445
|
304
|
176
|
445
|
304
|
176
|
445
|
445
|
304
|
|
445
|
304
|
|
445
|
|
200
|
761
|
445
|
304
|
761
|
445
|
304
|
761
|
761
|
|
761
|
|
761
|
|
250
|
100
|
1053
|
761
|
445
|
1053
|
761
|
445
|
1053
|
1053
|
1053
|
1053
|
|
300
|
1521
|
1053
|
761
|
1521
|
1053
|
761
|
1521
|
1521
|
1521
|
1521
|
|
350
|
2106
|
1521
|
1053
|
2106
|
1521
|
1053
|
2106
|
2106
|
2106
|
2106
|
|
400
|
120
|
2925
|
2106
|
1521
|
2925
|
2106
|
1521
|
2925
|
2925
|
2925
|
2925
|
|
Table 5.1 Allowable pressure differential (Leakage class IV PTFE packing)
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
116
|
80
|
-
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
73
|
80
|
-
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
46
|
80
|
-
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
-1XX
720cm2 (111in2)
|
116
|
80
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
73
|
50
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
46
|
46
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
|
Table 5.1 Allowable pressure differential ( Leakage class IV PTFE packing )
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
186
|
100
|
-
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
116
|
100
|
-
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
73
|
100
|
-
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
-1XX
720cm2 (111in2)
|
186
|
100
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
116
|
100
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
73
|
100
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
32.1
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
304
|
143
|
32.1
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
246
|
143
|
32.1
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
761
|
172
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
445
|
172
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
304
|
172
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
Table 5.2 Allowable pressure differential ( Leakage class IV PTFE packing )
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
116
|
80
|
-
|
4.8
|
-
|
-
|
4.8
|
50.0
|
35.2
|
4.8
|
35.2
|
|
73
|
80
|
-
|
4.8
|
-
|
-
|
4.8
|
50.0
|
35.2
|
4.8
|
35.2
|
|
46
|
80
|
-
|
4.8
|
-
|
-
|
4.8
|
50.0
|
35.2
|
4.8
|
35.2
|
|
-1XX
720cm2 (111in2)
|
116
|
80
|
6.1
|
37.8
|
50.0
|
50.0
|
42.8
|
50.0
|
50.0
|
42.8
|
50.0
|
|
73
|
80
|
6.1
|
37.8
|
50.0
|
50.0
|
42.8
|
50.0
|
50.0
|
42.8
|
50.0
|
|
46
|
80
|
6.1
|
37.8
|
50.0
|
50.0
|
42.8
|
50.0
|
50.0
|
42.8
|
50.0
|
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
186
|
100
|
-
|
-
|
-
|
-
|
-
|
50.0
|
25.2
|
-
|
25.2
|
|
116
|
100
|
-
|
-
|
-
|
-
|
-
|
50.0
|
25.2
|
-
|
25.2
|
|
73
|
100
|
-
|
-
|
-
|
-
|
-
|
50.0
|
25.2
|
-
|
25.2
|
|
-1XX
720cm2 (111in2)
|
186
|
100
|
0.7
|
27.4
|
43.4
|
50.0
|
31.6
|
50.0
|
50.0
|
31.6
|
50.0
|
|
116
|
100
|
0.7
|
27.4
|
43.4
|
50.0
|
31.6
|
50.0
|
50.0
|
31.6
|
50.0
|
|
73
|
100
|
0.7
|
27.4
|
43.4
|
50.0
|
31.6
|
50.0
|
50.0
|
31.6
|
50.0
|
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
-
|
7.9
|
14.9
|
22.0
|
9.8
|
50.0
|
35.1
|
9.8
|
35.1
|
|
304
|
143
|
-
|
7.9
|
14.9
|
22.0
|
9.8
|
50.0
|
35.1
|
9.8
|
35.1
|
|
176
|
143
|
-
|
7.9
|
14.9
|
22.0
|
9.8
|
50.0
|
35.1
|
9.8
|
35.1
|
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
761
|
172
|
-
|
3.3
|
11.5
|
19.7
|
5.5
|
50.0
|
34.9
|
5.5
|
34.9
|
|
445
|
172
|
-
|
3.3
|
11.5
|
19.7
|
5.5
|
50.0
|
34.9
|
5.5
|
34.9
|
|
304
|
172
|
-
|
3.3
|
11.5
|
19.7
|
5.5
|
50.0
|
34.9
|
5.5
|
34.9
|
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-1XX
1660cm2 (248in2)
|
445
|
143
|
31.3
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
304
|
143
|
31.3
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
176
|
143
|
31.3
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
200
8"
|
60
|
-1XX
1660cm2 (248in2)
|
761
|
172
|
30.6
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
445
|
172
|
30.6
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
304
|
172
|
30.6
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
250
10"
|
100
|
-2XX
1660cm2 (248in2)
|
1053
|
220
|
16.2
|
36.9
|
50.0
|
45.6
|
50.0
|
50.0
|
50.0
|
50.0
|
|
761
|
220
|
16.2
|
36.9
|
50.0
|
45.6
|
50.0
|
50.0
|
50.0
|
50.0
|
|
445
|
220
|
16.2
|
36.9
|
50.0
|
45.6
|
50.0
|
50.0
|
50.0
|
50.0
|
|
300
12"
|
100
|
-2XX
1660cm2 (248in2)
|
1521
|
282
|
6.6
|
22.9
|
38.4
|
29.8
|
50.0
|
50.0
|
42.7
|
50.0
|
|
1053
|
282
|
6.6
|
22.9
|
38.4
|
29.8
|
50.0
|
50.0
|
42.7
|
50.0
|
|
761
|
282
|
6.6
|
22.9
|
38.4
|
29.8
|
50.0
|
50.0
|
42.7
|
50.0
|
|
350
14"
|
100
|
-2XX
1660cm2 (248in2)
|
2106
|
313
|
1.7
|
16.0
|
29.5
|
22.0
|
50.0
|
50.0
|
33.2
|
50.0
|
|
1521
|
313
|
1.7
|
16.0
|
29.5
|
22.0
|
50.0
|
50.0
|
33.2
|
50.0
|
|
1053
|
313
|
1.7
|
16.0
|
29.5
|
22.0
|
50.0
|
50.0
|
33.2
|
50.0
|
|
400
16"
|
120
|
-2XX
1660cm2 (248in2)
|
2925
|
400
|
-
|
-
|
0.8
|
3.5
|
19.3
|
35.1
|
6.5
|
23.3
|
|
2106
|
400
|
-
|
-
|
0.8
|
3.5
|
19.3
|
35.1
|
6.5
|
23.3
|
|
1521
|
400
|
-
|
-
|
0.8
|
3.5
|
19.3
|
35.1
|
6.5
|
23.3
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
|
|
|
|

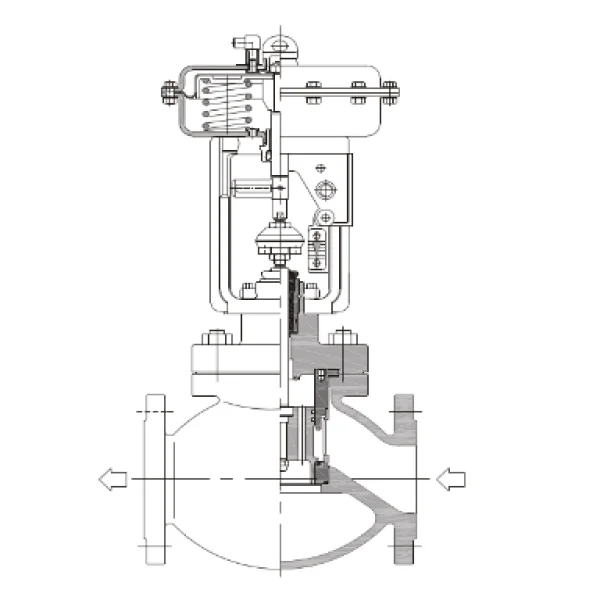

Figure 5 DN80~DN400 ( 3"~16" )
|
|
Table 6.1 Figure size (mm)&Weight (Kg) ( DN15 ~ DN100, DIN PN16/25/40)
|
Body flange dimension is according to DIN 2543/2544/2545.
The Face to face dimension is according to DIN3202-F1
|
|
Body
assembly
|
DN
|
80
|
100
|
150
|
200
|
250
|
300
|
350
|
400
|
|
L
|
310
|
350
|
480
|
600
|
730
|
850
|
980
|
1100
|
|
V
|
<300°C
|
196
|
221
|
260
|
292
|
357
|
394
|
462
|
518
|
|
³300°C
|
261
|
286
|
355
|
407
|
506
|
543
|
611
|
667
|
|
U
|
106
|
136
|
189
|
239
|
305
|
335
|
395
|
443
|
|
Actuator
|
ÆC
|
SA1
|
270
|
|
|
|
|
|
|
|
SA2
|
400
|
|
|
|
|
|
SA3
|
|
|
596
|
|
A
|
SA1
|
404
|
|
|
|
|
|
|
SA2
|
489
|
625
|
|
|
|
|
|
SA3
|
|
840
|
1010
|
1080
|
|
H
|
SA1
|
551
|
|
|
|
|
|
|
SA2
|
651
|
888
|
|
|
|
|
|
B
|
150
|
220
|
340
|
|
|
Weight
|
SA1
|
70
|
90
|
|
|
|
|
|
|
|
SA2
|
96
|
119
|
190
|
250
|
355
|
655
|
745
|
1395
|
|
SA3
|
|
|
330
|
390
|
450
|
750
|
840
|
1490
|
Note: Weight=Body assembly+Actuator ( without handwheel )
|
Table 6.2 Figure size(mm)&Weight (Kg) ( 3" ~ 16", ANSI150/300)
|
Flange ( ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF
(IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
|
|
Body
assembly
|
DN
|
3"
|
4"
|
6"
|
8"
|
10"
|
12"
|
14"
|
16"
|
|
L
CI.150
|
RF
|
298
|
352
|
451
|
543
|
673
|
737
|
889
|
1016
|
|
RFJ
|
311
|
365
|
464
|
556
|
686
|
750
|
902
|
1029
|
|
L
CI.300
|
RF
|
317
|
368
|
473
|
568
|
708
|
775
|
927
|
1057
|
|
RFJ
|
333
|
384
|
489
|
584
|
724
|
791
|
943
|
1073
|
|
V
|
<300°C
|
196
|
221
|
260
|
292
|
357
|
394
|
462
|
518
|
|
³300°C
|
261
|
286
|
355
|
407
|
506
|
543
|
611
|
667
|
|
U
|
106
|
136
|
189
|
239
|
305
|
335
|
395
|
443
|
|
Actuator
|
ÆC
|
SA1
|
270
|
|
|
|
|
|
|
|
SA2
|
400
|
|
|
|
|
|
SA3
|
|
|
596
|
|
A
|
SA1
|
404
|
|
|
|
|
|
|
|
SA2
|
489
|
625
|
|
|
|
|
|
SA3
|
|
840
|
1010
|
1080
|
|
H
|
SA1
|
551
|
493
|
|
|
|
|
|
SA2
|
651
|
888
|
|
|
|
|
|
B
|
200
|
340
|
|
Weight
|
SA1
|
70
|
93
|
|
|
|
|
|
|
|
SA2
|
96
|
119
|
190
|
|
|
|
|
|
|
|
SA3
|
|
|
330
|
390
|
450
|
750
|
840
|
1490
|
Note: Weight=Body assembly+Actuator ( without handwhell )
|
| Ordering Information
Please specify the following information:
- Type
- Nominal size
- Nominal pressure & end connection
- Body & trim material, harden treatment request
- Flow characteristic
- Packing material ( code )
- Actuator type, with handwheel or not & Air pressure supply
- Action type ( Direct or Reverse )
- Accessory ( with positioner & Air regulator or not )
- Oil-free or Copper-free, etc.
- Fluid Name & state ( liquid, gas, steam, etc. )
- Pipeline size, wall thickness ( Inlet, outlet )
- Flow, Max. flow & Min. flow
- Flow pressure & Pressure differential
- ( Full open/close )
- Flow temp., Gravity or Density
- Inlet and outlet pressure
- The Gravity & viscosity of fluid, with slurry, flashing or not
- Used in high pressure, Temp., &EXP. Condition or not
|
.png)
