SH6000 Series
SCL Perforated Plug low Temperature Type
|
|
SCL series is specially used in cryogenic services. Valve plug and stem extension are double guided. The bottom guiding is located right below the valve seat. Each part which is subject to wear can be individually replaced, and SGC is its base type. The bonnet extension prevents icing of the packing area. The thin walls of the insulation column and of the stem extension allow only a very low conductive heat flow. The bonnet extension length is based on customer requirements.
|
 |
|
Valve Body
|
|
Type: Cast globe Valve
Nominal Size: DN15, 20, 25, 32, 40, 50, 65, 80, 100, 150,
200, 250, 300
Nominal Pressure: ANSI 150, 300
DIN PN16, 25, 40
JIS 10K, 20K 30K
GB PN1.6, 2.5, 4.0 MPa
End Connection: Flange ANSI B16.5 RF, RTJ
DIN2543/2544/2545 RF
JISB2201 RF
JB/T81 RF
JB/T82.2 FM
|
|
Weld ANSI B16.5 SW ( DN £ 50 ) ; BW ( DN > 50 )
Face to Face Dimension: ANSI150RF, JIS10K ( IEC60534-3-1 37 Series )
ANSI300RF, JIS20K, JIS30K ( IEC60534-3-1 38 Series )
ANSI150/300 RTJ ( ASME B16.10 CLASS 150/300RTJ )
DIN PN16, 25, 40 ( DIN3202-F1 )
GB PN1.6, 2.5, 4.0 MPa ( ISO5752 1 Series )
Please refer to table 5.1~5.4
Body Material: Please refer to table1 Please refer to figure 3 for Operated Temp.&Pressure Range
Bonnet Type: Bellows type·········-196°C ~ -46°C
Please pay attention to the different Temp.&Pressure Range of material
Packing Material: Graphite compound packing, graphite packing, ect.

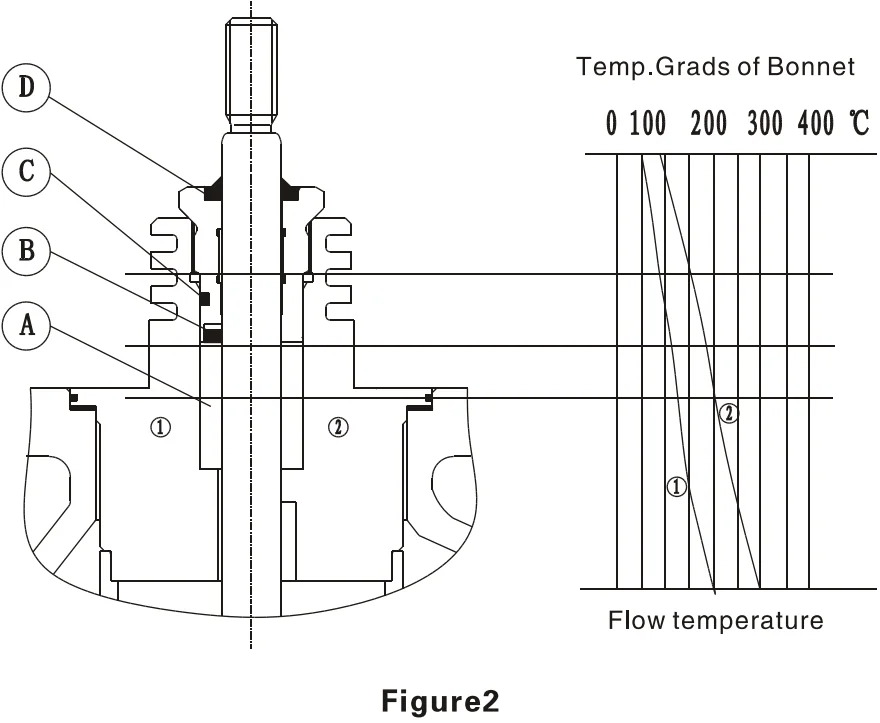

Operating Temp.&Pressure range is shown in table 2, figure2
Seal Gasket: Spiral wound gasket ( PTFE+316, Flexible Graphite+316 )
Graphite with metal gasket ( Graphite+316, Graphite+304 )
Valve Trim
Plug Type: Perforated cylinder plug
Flow Characteristic: EQ%, Linearity ( As shown in figure4 )
Trim Material: Plug 0Cr18Ni12Mo2Ti (316Ti) Nitriding Treatment Seat 0Cr18Ni12Mo2Ti (316Ti)
Actuator
Type: Multi-spring diaphragm
Air Supply: Max. 6bar
Ambient Temp.: -20°C+80°C
Spring range: As shown in Table 4.1 ~ 4.4
Air Connection: G1/8 ( SA1 ) ; G1/4 ( SA2 ) ; G3/4 ( SA3 )
STD Specification: As shown in Table 4.1 ~ 4.4
|
|
Accessory
Positioner, Filter-regulator valve, Solenoid valve, Limit switch, Valve position
Transmitter, Booster relay, Lock-valve, Handwheel, etc.
Action
Air to open, Air to close
Performance
Rangeability: 50:1
Seat leakage: According to ANSI B16.104 ClassIV, Class V
Hysteresis: 3% ( Without Positioner ) 1% ( With Positioner )
Linearity: ± 5% ( Without Positioner ) ±1% ( With Positioner )
Rated CV: As shown in table 4
Allowable pressure differential: As shown in table 4.1~4.4

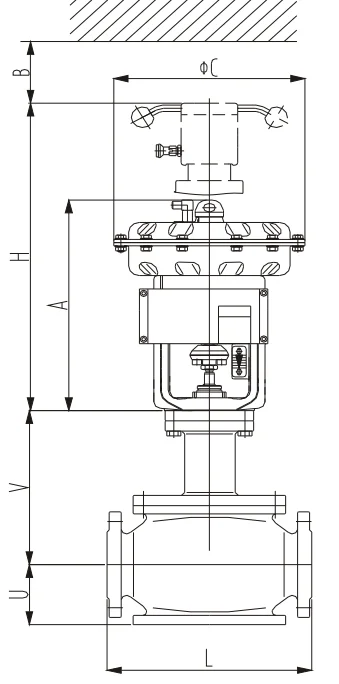

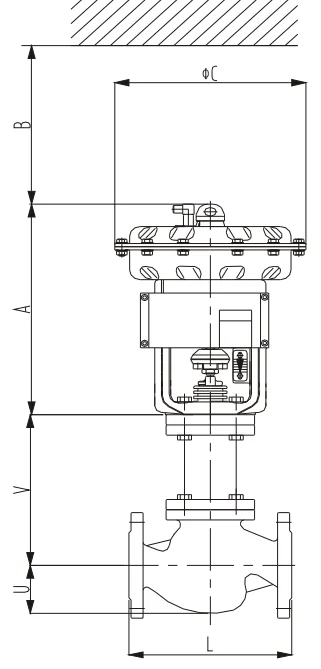

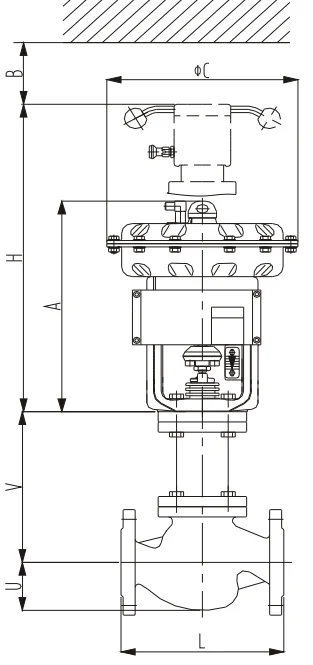

Figure Size: As shown in figure5.1, 5.2, table 5.1~5.4
Weight of product: As shown in table 5.1~5.4
Performance
Special inspection
- Flow characteristic test, material test, low temperature test, steam test, non-damages test
- copper-free treatment
- non-standard painting
- dust and sand proof
- vacuum service
- tropical area proof
- completely oi-free, water-free treatment
- special air piping and fitting
- strong corrosion proof
- stainless steel bolt and nut for exposed parts
- cold area proof

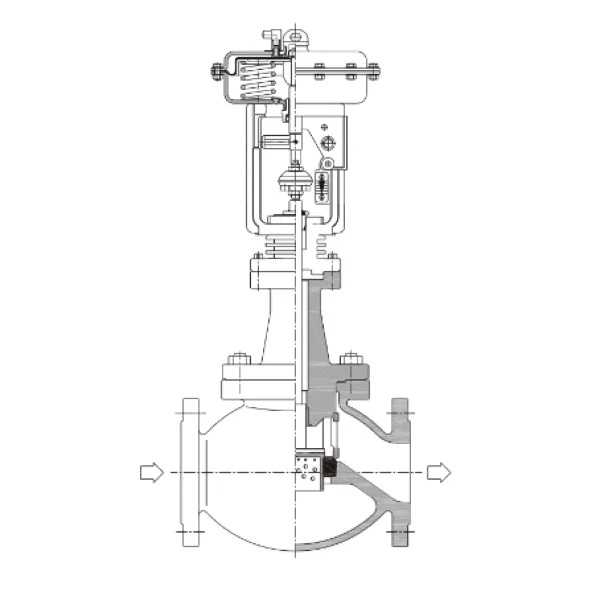

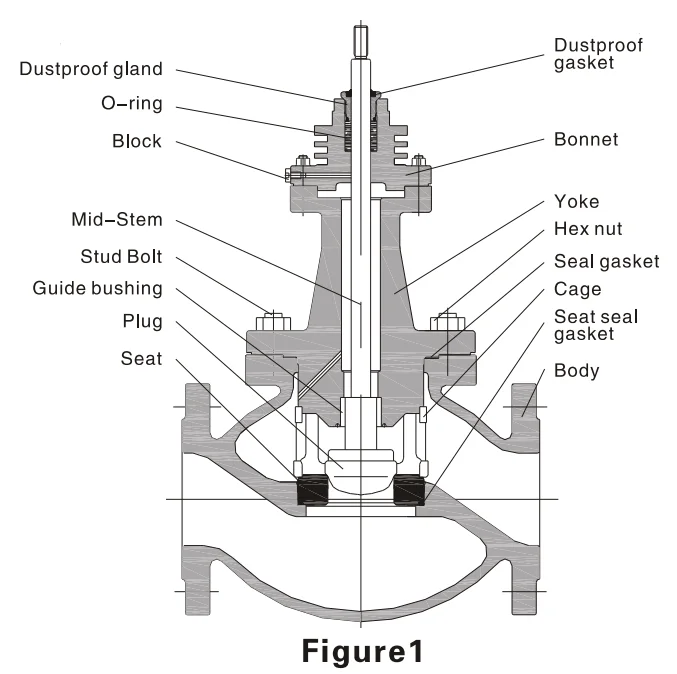

Body Assembly Structure ( As shown in figure 1 )
|
|
Performance
- Both faces of valve seat can be used to improve service life
- Quickly disassembly and installation without any special tools
- Good price performance
- Optimize flow of cage
- Various of materials are available
- Maintenance-free for packing
- Packing stuffing box is wear resistance and corrosion resistance
|
 |
Table 1 Body material
|
GB
|
ANSI
|
DIN
|
Temp.Range
|
|
ZG0Cr18Ni9
|
A351 CF8 ( ASTM )
|
1.4308 G-X6CrNi18 9
|
-200°C ~ 530°C
|
|
ZG0Cr18Ni12Mo2Ti
|
A351 CF8M ( ASTM )
|
1.4408 G-X6CrNiMo18 10
|
-200°C ~ 530°C
|
|
ZG0Cr18Ni12Mo2Nb
|
-
|
1.4581 G-X5CrNiMoNb18 10
|
-200°C ~ 530°C
|
|
Table 2 Applicable Temp.&Pressure range of packing material
|
Type of material
( Shown in A )
|
Code
|
Seal material
( Shown in B )
|
O-ring material
( Shown in C )
|
Dustproof ring
( Shown in D )
|
Temp.Range
|
Bonnet
Type
|
Remarks
|
Type of material
( Shown in A )
|
|
Pure graphite
( Density 1.2 )
|
4
|
-
|
-
|
VITON
|
-196°C ~ 530°C
|
Standard/with radiation fin
|
High&Low Temp. occasion
|
Pure graphite
( Density 1.2 )
|
|
Graphite+PTFE
|
6
|
-
|
-
|
NBR
|
-196°C ~ 200°C
|
Bellow
|
High Temp. occasion
|
Graphite+PTFE
|
Note: please choose the most related Temp.Range
|
|
ASME B16.35 150/300
Temp.
|
ASME
B16.34/B16.35
|
|
|
ASME B16.34 600/900/1500
Temp.
|
|
DIN EN 1092-1 PN16, PN25, PN40
Temp.
|
DIN EN
1092-1
|
 |
DIN EN 1092-1 PN63, PN100, PN160, PN250
Temp.
|
|

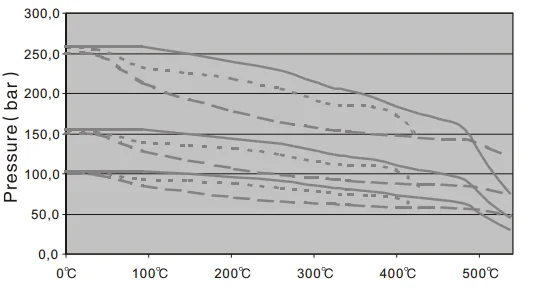

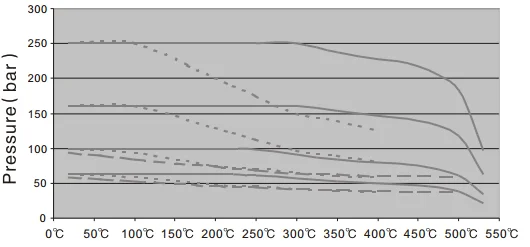

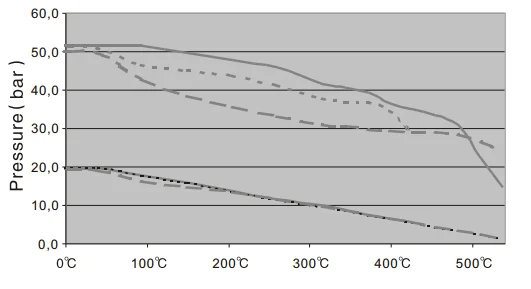

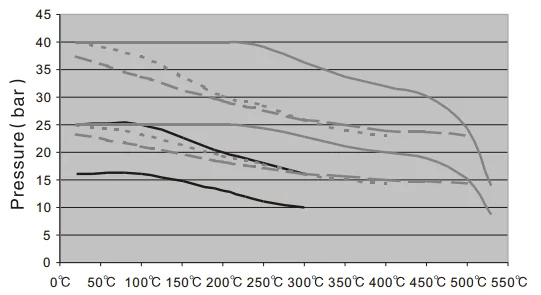

Figure 3 Temp.&Pressure curve
|
Table 3 Rated Cv.
|
Seat type
|
Perforated cylinder plug
|
|
Flow characteristic
|
Linearity
|
EQ%
|
|
Nominal size
(DN)
|
Travel
|
Cv1
|
Cv2
|
Cv3
|
Cv1
|
Cv2
|
Cv3
|
|
15
|
20
|
2.9
|
|
|
2.9
|
|
|
|
20
|
2.9
|
2.9
|
|
25
|
7.3
|
2.9
|
4.7
|
2.9
|
|
32
|
7.3
|
2.9
|
4.7
|
2.9
|
|
40
|
19
|
11.5
|
7.3
|
19
|
11.5
|
7.3
|
|
50
|
29
|
19
|
11.5
|
2.9
|
19
|
11.5
|
|
65
|
46
|
29
|
19
|
2.9
|
19
|
11.5
|
|
80
|
30
|
116
|
73
|
46
|
64
|
46
|
29
|
|
100
|
139
|
116
|
73
|
73
|
64
|
46
|
|
150
|
60
|
445
|
304
|
198
|
246
|
176
|
146
|
|
200
|
527
|
445
|
304
|
304
|
246
|
176
|
|
250
|
100
|
1053
|
761
|
445
|
608
|
445
|
375
|
|
300
|
1521
|
1053
|
761
|
842
|
608
|
445
|
|
.PNG) |
.PNG) |
|

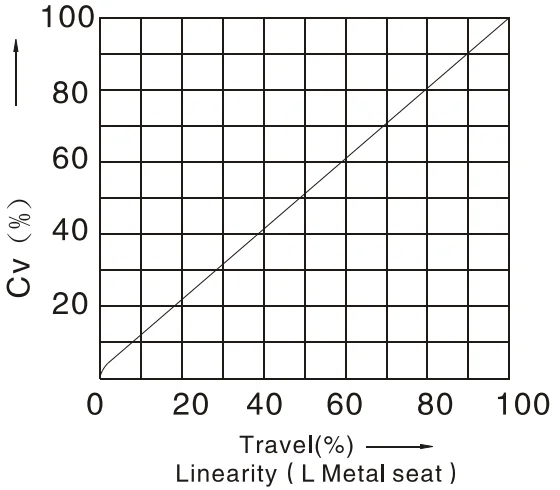

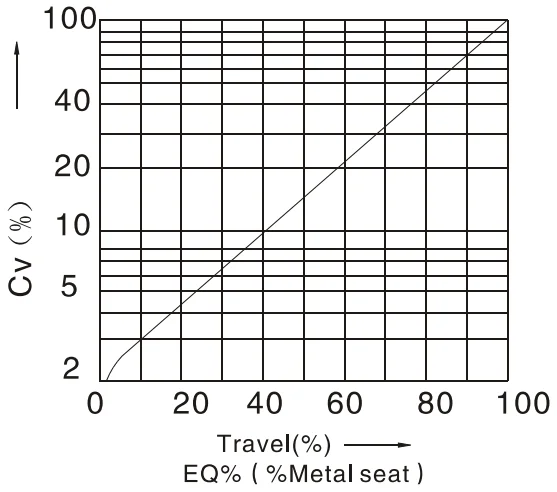

Figure 4 Flow characteristic curve
|
Table 4.1 Allowable pressure differential ( Leakage class IV PTFE packing )
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
15
1/2"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
20
3/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
25
1"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
32.8
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
4.7
|
25
|
32.8
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
32
1 1/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
32.8
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
4.7
|
25
|
32.8
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
40
1 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
19
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
|
11.5
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
|
7.3
|
25
|
32.7
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
50
2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
29
|
46
|
7.7
|
22.1
|
-
|
-
|
22.1
|
50.0
|
50.0
|
22.1
|
50.0
|
|
19
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
|
11.5
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
|
7.3
|
25
|
21.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
65
2 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
46
|
50
|
6.2
|
18.4
|
-
|
-
|
18.4
|
42.9
|
50.0
|
18.4
|
42.9
|
|
29
|
46
|
7.7
|
22.1
|
-
|
-
|
22.1
|
50.0
|
50.0
|
22.1
|
50.0
|
|
19
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
|
11.5
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
116
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
|
73
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
|
64
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
|
46%
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
|
64L
|
50
|
5.7
|
17.9
|
-
|
-
|
17.9
|
42.4
|
50.0
|
17.9
|
42.4
|
|
29
|
46
|
7.1
|
21.5
|
-
|
-
|
21.5
|
50.0
|
50.0
|
21.5
|
50.0
|
|
-1XX
720cm2 (111in2)
|
116
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
|
73
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
|
64
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
|
46%
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
|
64L
|
50
|
18.9
|
44.4
|
50.0
|
50.0
|
48.5
|
50.0
|
50.0
|
48.5
|
50.0
|
|
29
|
46
|
22.7
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
139
|
100
|
0.4
|
3.5
|
-
|
-
|
3.5
|
9.6
|
15.7
|
3.5
|
9.6
|
|
73%
|
100
|
0.4
|
3.5
|
-
|
-
|
3.5
|
9.6
|
15.7
|
3.5
|
9.6
|
|
116
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
|
73L
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
|
64
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
|
46
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
|
-1XX
720cm2 (111in2)
|
139
|
100
|
3.7
|
10.1
|
13.9
|
17.7
|
11.1
|
24.9
|
38.6
|
11.1
|
24.9
|
|
73%
|
100
|
3.7
|
10.1
|
13.9
|
17.7
|
11.1
|
24.9
|
38.6
|
11.1
|
24.9
|
|
116
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
|
73L
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
|
64
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
|
46
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
|
|
Continued Table 4.1
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
1.7
|
5.2
|
7.3
|
9.4
|
5.7
|
13.3
|
20.8
|
5.7
|
13.3
|
|
246
|
143
|
1.7
|
5.2
|
7.3
|
9.4
|
5.7
|
13.3
|
20.8
|
5.7
|
13.3
|
|
304
|
113
|
2.6
|
7.4
|
10.3
|
13.2
|
8.2
|
18.6
|
29.0
|
8.2
|
18.6
|
|
176
|
113
|
2.6
|
7.4
|
10.3
|
13.2
|
8.2
|
18.6
|
29.0
|
8.2
|
18.6
|
|
198
|
90
|
4.9
|
12.7
|
17.4
|
22.2
|
14.0
|
31.0
|
47.9
|
14.0
|
31.0
|
|
146
|
90
|
4.9
|
12.7
|
17.4
|
22.2
|
14.0
|
31.0
|
47.9
|
14.0
|
31.0
|
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
527
|
172
|
0.7
|
2.6
|
3.8
|
5.0
|
2.9
|
7.2
|
11.4
|
2.9
|
7.2
|
|
304%
|
172
|
0.7
|
2.6
|
3.8
|
5.0
|
2.9
|
7.2
|
11.4
|
2.9
|
7.2
|
|
445
|
143
|
1.7
|
5.2
|
7.3
|
9.4
|
5.7
|
13.3
|
20.8
|
5.7
|
13.3
|
|
246
|
143
|
1.7
|
5.2
|
7.3
|
9.4
|
5.7
|
13.3
|
20.8
|
5.7
|
13.3
|
|
304L
|
113
|
2.6
|
7.4
|
10.3
|
13.2
|
8.2
|
18.6
|
29.0
|
8.2
|
18.6
|
|
176
|
113
|
2.6
|
7.4
|
10.3
|
13.2
|
8.2
|
18.6
|
29.0
|
8.2
|
18.6
|
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-1XX
1600cm2 (248in2)
|
445
|
143
|
12.1
|
19.1
|
26.1
|
27.2
|
46.7
|
50.0
|
37.0
|
50.0
|
|
246
|
143
|
12.1
|
19.1
|
26.1
|
27.2
|
46.7
|
50.0
|
37.0
|
50.0
|
|
304
|
113
|
17.0
|
26.7
|
36.3
|
37.8
|
50.0
|
50.0
|
50.0
|
50.0
|
|
176
|
113
|
17.0
|
26.7
|
36.3
|
37.8
|
50.0
|
50.0
|
50.0
|
50.0
|
|
198
|
90
|
28.4
|
44.2
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
146
|
90
|
28.4
|
44.2
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
200
8"
|
60
|
-1XX
1600cm2 (248in2)
|
527
|
172
|
6.6
|
10.5
|
14.4
|
15.0
|
26.7
|
36.8
|
20.5
|
31.3
|
|
304%
|
172
|
6.6
|
10.5
|
14.4
|
15.0
|
26.7
|
36.8
|
20.5
|
31.3
|
|
445
|
143
|
12.1
|
19.1
|
26.1
|
27.2
|
46.7
|
50.0
|
37.0
|
50.0
|
|
246
|
143
|
12.1
|
19.1
|
26.1
|
27.2
|
46.7
|
50.0
|
37.0
|
50.0
|
|
304L
|
113
|
17.0
|
26.7
|
36.3
|
37.8
|
50.0
|
50.0
|
50.0
|
50.0
|
|
176
|
113
|
17.0
|
26.7
|
36.3
|
37.8
|
50.0
|
50.0
|
50.0
|
50.0
|
|
250
10"
|
100
|
-2XX
1600cm2 (248in2)
|
1053
|
220
|
3.9
|
6.4
|
8.7
|
7.4
|
13.9
|
20.4
|
9.4
|
16.0
|
|
608
|
220
|
3.9
|
6.4
|
8.7
|
7.4
|
13.9
|
20.4
|
9.4
|
16.0
|
|
761
|
172
|
6.0
|
9.7
|
13.3
|
11.3
|
20.9
|
30.8
|
14.3
|
24.1
|
|
445%
|
172
|
6.0
|
9.7
|
13.3
|
11.3
|
20.9
|
30.8
|
14.3
|
24.1
|
|
445L
|
143
|
11.2
|
17.8
|
24.1
|
20.6
|
37.7
|
50.0
|
25.8
|
43.3
|
|
375
|
143
|
11.2
|
17.8
|
24.1
|
20.6
|
37.7
|
50.0
|
25.8
|
43.3
|
|
300
12"
|
100
|
-2XX
1600cm2 (248in2)
|
1521
|
282
|
2.5
|
4.3
|
5.9
|
5.0
|
9.4
|
14.0
|
6.3
|
10.9
|
|
842
|
282
|
2.5
|
4.3
|
5.9
|
5.0
|
9.4
|
14.0
|
6.3
|
10.9
|
|
1053
|
220
|
3.9
|
6.4
|
8.7
|
7.4
|
13.9
|
20.4
|
9.4
|
16.0
|
|
608
|
220
|
3.9
|
6.4
|
8.7
|
7.4
|
13.9
|
20.4
|
9.4
|
16.0
|
|
761
|
172
|
6.0
|
9.7
|
13.3
|
11.3
|
20.9
|
30.8
|
14.3
|
24.1
|
|
445
|
172
|
6.0
|
9.7
|
13.3
|
11.3
|
20.9
|
30.8
|
14.3
|
24.1
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
Table 4.2 Allowable pressure differential ( Leakage classIV Graphite packing )
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
15
1/2"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
20
3/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
25
1"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
20.5
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
4.7
|
25
|
20.5
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
32
1 1/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
20.5
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
4.7
|
25
|
20.5
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
40
1 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
19
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
|
11.5
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
|
7.3
|
25
|
20.5
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
50
2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
29
|
46
|
4.1
|
18.5
|
-
|
-
|
18.5
|
47.4
|
50.0
|
18.5
|
47.4
|
|
19
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
|
11.5
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
|
7.3
|
25
|
13.1
|
47.1
|
-
|
-
|
47.1
|
50.0
|
50.0
|
47.1
|
50.0
|
|
65
2 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
46
|
50
|
3.1
|
15.4
|
-
|
-
|
15.4
|
39.8
|
50.0
|
15.4
|
39.8
|
|
29
|
46
|
4.1
|
18.5
|
-
|
-
|
18.5
|
47.4
|
50.0
|
18.5
|
47.4
|
|
19
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
|
11.5
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
116
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
|
73
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
|
64
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
|
46%
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
|
64L
|
50
|
2.1
|
14.3
|
-
|
-
|
14.3
|
38.8
|
50.0
|
14.3
|
38.8
|
|
29
|
46
|
2.9
|
17.3
|
-
|
-
|
17.3
|
46.2
|
50.0
|
17.3
|
46.2
|
|
-1XX
720cm2 (111in2)
|
116
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
15.0
|
38.1
|
50.0
|
15.0
|
38.1
|
|
73
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
15.0
|
38.1
|
50.0
|
15.0
|
38.1
|
|
64
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
15.0
|
38.1
|
50.0
|
15.0
|
38.1
|
|
46%
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
15.0
|
38.1
|
50.0
|
15.0
|
38.1
|
|
64L
|
50
|
15.4
|
40.8
|
50.0
|
50.0
|
40.8
|
50.0
|
50.0
|
40.8
|
50.0
|
|
29
|
46
|
18.5
|
18.6
|
50.0
|
50.0
|
18.6
|
50.0
|
50.0
|
18.6
|
50.0
|
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
139
|
100
|
-
|
2.6
|
-
|
-
|
2.6
|
8.7
|
14.8
|
2.6
|
8.7
|
|
73%
|
100
|
-
|
2.6
|
-
|
-
|
2.6
|
8.7
|
14.8
|
2.6
|
8.7
|
|
116
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
|
73L
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
|
64
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
|
46
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
|
-1XX
720cm2 (111in2)
|
139
|
100
|
2.8
|
9.2
|
13.0
|
16.9
|
10.2
|
24.0
|
50.0
|
10.2
|
24.0
|
|
73%
|
100
|
2.8
|
9.2
|
13.0
|
16.9
|
10.2
|
24.0
|
50.0
|
10.2
|
24.0
|
|
116
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
16.6
|
38.1
|
50.0
|
16.6
|
38.1
|
|
73L
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
16.6
|
38.1
|
50.0
|
16.6
|
38.1
|
|
64
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
16.6
|
38.1
|
50.0
|
16.6
|
38.1
|
|
46
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
16.6
|
38.1
|
50.0
|
16.6
|
38.1
|
|
|
Continued Table 4.2
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
1.2
|
4.7
|
6.8
|
8.9
|
5.2
|
12.8
|
20.3
|
5.2
|
12.8
|
|
246
|
143
|
1.2
|
4.7
|
6.8
|
8.9
|
5.2
|
12.8
|
20.3
|
5.2
|
12.8
|
|
304
|
113
|
1.9
|
6.7
|
9.6
|
12.5
|
7.5
|
17.9
|
28.3
|
7.5
|
17.9
|
|
176
|
113
|
1.9
|
6.7
|
9.6
|
12.5
|
7.5
|
17.9
|
28.3
|
7.5
|
17.9
|
|
198
|
90
|
3.8
|
11.6
|
16.3
|
21.1
|
12.9
|
29.9
|
46.8
|
12.9
|
29.9
|
|
146
|
90
|
3.8
|
11.6
|
16.3
|
21.1
|
12.9
|
29.9
|
46.8
|
12.9
|
29.9
|
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
527
|
172
|
0.4
|
2.3
|
3.5
|
4.7
|
2.7
|
6.9
|
11.2
|
2.7
|
6.9
|
|
304%
|
172
|
0.4
|
2.3
|
3.5
|
4.7
|
2.7
|
6.9
|
11.2
|
2.7
|
6.9
|
|
445
|
143
|
1.2
|
4.7
|
6.8
|
8.9
|
5.2
|
12.8
|
20.3
|
5.2
|
12.8
|
|
246
|
143
|
1.2
|
4.7
|
6.8
|
8.9
|
5.2
|
12.8
|
20.3
|
5.2
|
12.8
|
|
304L
|
113
|
1.9
|
6.7
|
9.6
|
12.5
|
7.5
|
17.9
|
28.3
|
7.5
|
17.9
|
|
176
|
113
|
1.9
|
6.7
|
9.6
|
12.5
|
7.5
|
17.9
|
28.3
|
7.5
|
17.9
|
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-2XX
1600cm2 (248in2)
|
445
|
143
|
11.7
|
18.6
|
25.6
|
27.7
|
46.3
|
50.0
|
36.5
|
50.0
|
|
246
|
143
|
11.7
|
18.6
|
25.6
|
27.7
|
46.3
|
50.0
|
36.5
|
50.0
|
|
304
|
113
|
16.4
|
26.0
|
35.6
|
37.1
|
50.0
|
50.0
|
50.0
|
50.0
|
|
176
|
113
|
16.4
|
26.0
|
35.6
|
37.1
|
50.0
|
50.0
|
50.0
|
50.0
|
|
198
|
90
|
27.3
|
43.1
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
146
|
90
|
27.3
|
43.1
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
200
8"
|
60
|
-2XX
1600cm2 (248in2)
|
527
|
172
|
6.3
|
10.2
|
14.1
|
14.7
|
25.7
|
36.6
|
20.2
|
31.1
|
|
304%
|
172
|
6.3
|
10.2
|
14.1
|
14.7
|
25.7
|
36.6
|
20.2
|
31.1
|
|
445
|
143
|
11.7
|
18.6
|
25.6
|
26.7
|
46.3
|
50.0
|
36.5
|
50.0
|
|
246
|
143
|
11.7
|
18.6
|
25.6
|
26.7
|
46.3
|
50.0
|
36.5
|
50.0
|
|
304L
|
113
|
16.4
|
26.0
|
35.6
|
37.1
|
50.0
|
50.0
|
50.0
|
50.0
|
|
176
|
113
|
16.4
|
26.0
|
35.6
|
37.1
|
50.0
|
50.0
|
50.0
|
50.0
|
|
250
10"
|
100
|
-2XX
1600cm2 (248in2)
|
1053
|
220
|
3.6
|
6.1
|
8.4
|
7.1
|
13.6
|
20.1
|
9.1
|
15.7
|
|
608
|
220
|
3.6
|
6.1
|
8.4
|
7.1
|
13.6
|
20.1
|
9.1
|
15.7
|
|
761
|
172
|
5.6
|
9.3
|
12.8
|
10.9
|
20.5
|
30.3
|
13.8
|
23.7
|
|
445%
|
172
|
5.6
|
9.3
|
12.8
|
10.9
|
20.5
|
30.3
|
13.8
|
23.7
|
|
445L
|
143
|
10.4
|
17.0
|
23.3
|
19.8
|
37.0
|
50.0
|
25.1
|
42.6
|
|
375
|
143
|
10.4
|
17.0
|
23.3
|
19.8
|
37.0
|
50.0
|
25.1
|
42.6
|
|
300
12"
|
100
|
-2XX
1600cm2 (248in2)
|
1521
|
282
|
2.3
|
4.1
|
5.7
|
4.8
|
9.2
|
13.8
|
6.1
|
10.7
|
|
842
|
282
|
2.3
|
4.1
|
5.7
|
4.8
|
9.2
|
13.8
|
6.1
|
10.7
|
|
1053
|
220
|
3.6
|
6.1
|
8.4
|
7.1
|
13.6
|
20.1
|
9.1
|
15.7
|
|
608
|
220
|
3.6
|
6.1
|
8.4
|
7.1
|
13.6
|
20.1
|
9.1
|
15.7
|
|
761
|
172
|
5.6
|
9.3
|
12.8
|
10.9
|
20.5
|
30.3
|
13.8
|
23.7
|
|
445
|
172
|
5.6
|
9.3
|
12.8
|
10.9
|
20.5
|
30.3
|
13.8
|
23.7
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
Table 4.3 Allowable pressure differential ( Leakage class IV PTFE packing )
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
15
1/2"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
46.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
20
3/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
46.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
25
1"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
0.8
|
49.7
|
-
|
-
|
49.7
|
50.0
|
50.0
|
49.7
|
50.0
|
|
4.7
|
25
|
0.8
|
49.7
|
-
|
-
|
49.7
|
50.0
|
50.0
|
49.7
|
50.0
|
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
32
1 1/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
0.8
|
49.7
|
-
|
-
|
49.7
|
50.0
|
50.0
|
49.7
|
50.0
|
|
4.7
|
25
|
0.8
|
49.7
|
-
|
-
|
49.7
|
50.0
|
50.0
|
49.7
|
50.0
|
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
40
1 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
19
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
|
11.5
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
|
7.3
|
25
|
0.8
|
49.7
|
-
|
-
|
49.7
|
50.0
|
50.0
|
49.7
|
50.0
|
|
50
2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
29
|
46
|
-
|
4.7
|
-
|
-
|
4.7
|
33.6
|
50.0
|
4.7
|
33.6
|
|
19
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
|
11.5
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
|
7.3
|
25
|
-
|
28.9
|
-
|
-
|
28.9
|
50.0
|
50.0
|
28.9
|
50.0
|
|
65
2 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
46
|
50
|
-
|
2.4
|
-
|
-
|
2.4
|
26.9
|
50.0
|
2.4
|
26.9
|
|
29
|
46
|
-
|
4.7
|
-
|
-
|
4.7
|
33.6
|
50.0
|
4.7
|
33.6
|
|
19
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
|
11.5
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
116
|
80
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
-
|
|
73
|
80
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
-
|
|
64
|
80
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
-
|
|
46%
|
80
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
-
|
|
64L
|
50
|
-
|
1.9
|
-
|
-
|
1.9
|
26.4
|
50.0
|
1.9
|
26.4
|
|
29
|
46
|
-
|
4.1
|
-
|
-
|
4.1
|
33.0
|
50.0
|
4.1
|
33.0
|
|
-1XX
720cm2 (111in2)
|
116
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
|
73
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
|
64
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
|
46%
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
|
64L
|
50
|
2.9
|
28.4
|
43.7
|
50.0
|
32.5
|
50.0
|
50.0
|
32.5
|
50.0
|
|
29
|
46
|
5.4
|
35.5
|
50.0
|
50.0
|
40.3
|
50.0
|
50.0
|
40.3
|
50.0
|
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
139
|
100
|
-
|
-
|
-
|
-
|
-
|
1.6
|
7.7
|
-
|
1.6
|
|
73%
|
100
|
-
|
-
|
-
|
-
|
-
|
1.6
|
7.7
|
-
|
1.6
|
|
116
|
80
|
-
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
|
73L
|
80
|
-
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
|
64
|
80
|
-
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
|
46
|
80
|
-
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
|
-1XX
720cm2 (111in2)
|
139
|
100
|
-
|
2.1
|
5.9
|
9.7
|
3.1
|
16.9
|
30.6
|
3.1
|
16.9
|
|
73%
|
100
|
-
|
2.1
|
5.9
|
9.7
|
3.1
|
16.9
|
30.6
|
3.1
|
16.9
|
|
116
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
|
73L
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
|
64
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
|
46
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
|
|
Continued Table 4.3
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
-
|
-
|
1.3
|
3.4
|
-
|
7.3
|
14.9
|
-
|
7.3
|
|
246
|
143
|
-
|
-
|
1.3
|
3.4
|
-
|
7.3
|
14.9
|
-
|
7.3
|
|
304
|
113
|
-
|
0.5
|
3.3
|
6.2
|
1.2
|
11.6
|
22.0
|
1.2
|
11.6
|
|
176
|
113
|
-
|
0.5
|
3.3
|
6.2
|
1.2
|
11.6
|
22.0
|
1.2
|
11.6
|
|
198
|
90
|
-
|
3.8
|
8.5
|
13.3
|
5.1
|
22.1
|
39.1
|
5.1
|
22.1
|
|
146
|
90
|
-
|
3.8
|
8.5
|
13.3
|
5.1
|
22.1
|
39.1
|
5.1
|
22.1
|
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
527
|
172
|
-
|
-
|
-
|
0.5
|
-
|
2.7
|
7.0
|
-
|
2.7
|
|
304%
|
172
|
-
|
-
|
-
|
0.5
|
-
|
2.7
|
7.0
|
-
|
2.7
|
|
445
|
143
|
-
|
-
|
1.3
|
3.4
|
-
|
7.3
|
14.9
|
-
|
7.3
|
|
246
|
143
|
-
|
-
|
1.3
|
3.4
|
-
|
7.3
|
14.9
|
-
|
7.3
|
|
304L
|
113
|
-
|
0.5
|
3.3
|
6.2
|
1.2
|
11.6
|
22.0
|
1.2
|
11.6
|
|
176
|
113
|
-
|
0.5
|
3.3
|
6.2
|
1.2
|
11.6
|
22.0
|
1.2
|
11.6
|
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-2XX
1600cm2 (248in2)
|
445
|
143
|
6.2
|
13.2
|
20.2
|
21.3
|
40.8
|
50.0
|
31.0
|
50.0
|
|
246
|
143
|
6.2
|
13.2
|
20.2
|
21.3
|
40.8
|
50.0
|
31.0
|
50.0
|
|
304
|
113
|
10.1
|
19.7
|
29.4
|
30.8
|
50.0
|
50.0
|
44.3
|
50.0
|
|
176
|
113
|
10.1
|
19.7
|
29.4
|
30.8
|
50.0
|
50.0
|
44.3
|
50.0
|
|
198
|
90
|
19.6
|
35.3
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
146
|
90
|
19.6
|
35.3
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
200
8"
|
60
|
-2XX
1600cm2 (248in2)
|
527
|
172
|
2.1
|
6.0
|
10.0
|
10.6
|
21.6
|
32.4
|
16.1
|
26.9
|
|
304%
|
172
|
2.1
|
6.0
|
10.0
|
10.6
|
21.6
|
32.4
|
16.1
|
26.9
|
|
445
|
143
|
6.2
|
13.2
|
20.2
|
21.3
|
40.8
|
50.0
|
31.0
|
50.0
|
|
246
|
143
|
6.2
|
13.2
|
20.2
|
21.3
|
40.8
|
50.0
|
31.0
|
50.0
|
|
304L
|
113
|
10.1
|
19.7
|
29.4
|
30.8
|
50.0
|
50.0
|
44.3
|
50.0
|
|
176
|
113
|
10.1
|
19.7
|
29.4
|
30.8
|
50.0
|
50.0
|
44.3
|
50.0
|
|
250
10"
|
100
|
-2XX
1600cm2 (248in2)
|
1053
|
220
|
0.2
|
2.7
|
5.1
|
3.8
|
10.2
|
16.8
|
5.7
|
12.3
|
|
608
|
220
|
0.2
|
2.7
|
5.1
|
3.8
|
10.2
|
16.8
|
5.7
|
12.3
|
|
761
|
172
|
1.6
|
5.3
|
8.8
|
6.9
|
16.5
|
26.3
|
9.8
|
19.6
|
|
445%
|
172
|
1.6
|
5.3
|
8.8
|
6.9
|
16.5
|
26.3
|
9.8
|
19.6
|
|
445L
|
143
|
5.2
|
11.9
|
18.2
|
14.7
|
31.8
|
49.3
|
19.9
|
37.4
|
|
375
|
143
|
5.2
|
11.9
|
18.2
|
14.7
|
31.8
|
49.3
|
19.9
|
37.4
|
|
300
12"
|
100
|
-2XX
1600cm2 (248in2)
|
1521
|
282
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
842
|
282
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
1053
|
220
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
608
|
220
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
761
|
172
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
445
|
172
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
Table 4.4 Allowable pressure differential ( Leakage class IV Graphite packing )
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
15
1/2"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
12.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
20
3/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
12.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
25
1"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
-
|
37.5
|
-
|
-
|
37.5
|
50.0
|
50.0
|
37.5
|
50.0
|
|
4.7
|
25
|
-
|
37.5
|
-
|
-
|
37.5
|
50.0
|
50.0
|
37.5
|
50.0
|
|
2.9
|
20
|
12.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
32
1 1/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
-
|
37.5
|
-
|
-
|
37.5
|
50.0
|
50.0
|
37.5
|
50.0
|
|
4.7
|
25
|
-
|
37.5
|
-
|
-
|
37.5
|
50.0
|
50.0
|
37.5
|
50.0
|
|
2.9
|
20
|
-
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
40
1 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
19
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
|
11.5
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
|
7.3
|
25
|
37.5
|
-
|
-
|
37.5
|
50.0
|
50.0
|
37.5
|
50.0
|
37.5
|
|
50
2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
29
|
46
|
-
|
1.1
|
-
|
-
|
1.1
|
30.0
|
50.0
|
1.1
|
30.0
|
|
19
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
|
11.5
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
|
7.3
|
25
|
-
|
20.5
|
-
|
-
|
20.5
|
50.0
|
50.0
|
20.5
|
50.0
|
|
65
2 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
46
|
50
|
-
|
-
|
-
|
-
|
-
|
23.8
|
48.3
|
-
|
23.8
|
|
29
|
46
|
-
|
1.1
|
-
|
-
|
1.1
|
30.0
|
50.0
|
1.1
|
30.0
|
|
19
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
|
11.5
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
116
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
|
73
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
|
64
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
|
46%
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
|
64L
|
50
|
-
|
-
|
-
|
-
|
-
|
22.8
|
47.3
|
-
|
22.8
|
|
29
|
46
|
-
|
-
|
-
|
-
|
-
|
28.8
|
50.0
|
-
|
28.8
|
|
-1XX
720cm2 (111in2)
|
116
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
50.0
|
6.6
|
28.1
|
|
73
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
50.0
|
6.6
|
28.1
|
|
64
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
50.0
|
6.6
|
28.1
|
|
46%
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
50.0
|
6.6
|
28.1
|
|
64L
|
50
|
-
|
24.8
|
40.1
|
50.0
|
28.9
|
50.0
|
50.0
|
28.9
|
50.0
|
|
29
|
46
|
1.1
|
31.2
|
49.3
|
50.0
|
36.1
|
50.0
|
50.0
|
36.1
|
50.0
|
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
139
|
100
|
-
|
-
|
-
|
-
|
-
|
0.7
|
6.8
|
-
|
0.7
|
|
73%
|
100
|
-
|
-
|
-
|
-
|
-
|
0.7
|
6.8
|
-
|
0.7
|
|
116
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
|
73L
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
|
64
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
|
46
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
|
-1XX
720cm2 (111in2)
|
139
|
100
|
-
|
1.2
|
5.0
|
8.9
|
2.2
|
16.0
|
29.7
|
2.2
|
16.0
|
|
73%
|
100
|
-
|
1.2
|
5.0
|
8.9
|
2.2
|
16.0
|
29.7
|
2.2
|
16.0
|
|
116
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
49.6
|
6.6
|
28.1
|
|
73L
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
49.6
|
6.6
|
28.1
|
|
64
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
49.6
|
6.6
|
28.1
|
|
46
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
49.6
|
6.6
|
28.1
|
|
|
Continued Table 4.4
|
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
-
|
-
|
0.8
|
2.9
|
-
|
6.9
|
14.4
|
-
|
6.9
|
|
246
|
143
|
-
|
-
|
0.8
|
2.9
|
-
|
6.9
|
14.4
|
-
|
6.9
|
|
304
|
113
|
-
|
-
|
2.7
|
5.6
|
0.6
|
11.0
|
21.4
|
0.6
|
11.0
|
|
176
|
113
|
-
|
-
|
2.7
|
5.6
|
0.6
|
11.0
|
21.4
|
0.6
|
11.0
|
|
198
|
90
|
-
|
2.7
|
7.4
|
12.2
|
4.0
|
21.0
|
38.0
|
4.0
|
21.0
|
|
146
|
90
|
-
|
2.7
|
7.4
|
12.2
|
4.0
|
21.0
|
38.0
|
4.0
|
21.0
|
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
527
|
172
|
-
|
-
|
-
|
0.3
|
-
|
2.5
|
6.7
|
-
|
2.5
|
|
304%
|
172
|
-
|
-
|
-
|
0.3
|
-
|
2.5
|
6.7
|
-
|
2.5
|
|
445
|
143
|
-
|
-
|
0.8
|
2.9
|
-
|
6.9
|
14.4
|
-
|
6.9
|
|
246
|
143
|
-
|
-
|
0.8
|
2.9
|
-
|
6.9
|
14.4
|
-
|
6.9
|
|
304L
|
113
|
-
|
-
|
2.7
|
5.6
|
0.6
|
11.0
|
21.4
|
0.6
|
11.0
|
|
176
|
113
|
-
|
-
|
2.7
|
5.6
|
0.6
|
11.0
|
21.4
|
0.6
|
11.0
|
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
|
bar
|
bar
|
bar
|
Air supply (bar)
|
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
|
150
6"
|
60
|
-2XX
1600cm2 (248in2)
|
445
|
143
|
5.7
|
12.7
|
19.7
|
20.8
|
40.3
|
50.0
|
30.5
|
49.8
|
|
246
|
143
|
5.7
|
12.7
|
19.7
|
20.8
|
40.3
|
50.0
|
30.5
|
49.8
|
|
304
|
113
|
9.4
|
19.0
|
28.7
|
30.1
|
50.0
|
50.0
|
43.6
|
50.0
|
|
176
|
113
|
9.4
|
19.0
|
28.7
|
30.1
|
50.0
|
50.0
|
43.6
|
50.0
|
|
198
|
90
|
18.5
|
34.2
|
49.9
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
146
|
90
|
18.5
|
34.2
|
49.9
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
|
200
8"
|
60
|
-2XX
1600cm2 (248in2)
|
527
|
172
|
1.8
|
5.8
|
9.7
|
10.3
|
21.3
|
32.1
|
15.8
|
26.6
|
|
304%
|
172
|
1.8
|
5.8
|
9.7
|
10.3
|
21.3
|
32.1
|
15.8
|
26.6
|
|
445
|
143
|
5.7
|
12.7
|
19.7
|
20.8
|
40.3
|
50.0
|
30.5
|
49.8
|
|
246
|
143
|
5.7
|
12.7
|
19.7
|
20.8
|
40.3
|
50.0
|
30.5
|
49.8
|
|
304L
|
113
|
9.1
|
19.0
|
28.7
|
30.1
|
50.0
|
50.0
|
43.6
|
50.0
|
|
176
|
113
|
9.1
|
19.0
|
28.7
|
30.1
|
50.0
|
50.0
|
43.6
|
50.0
|
|
250
10"
|
100
|
-2XX
1600cm2 (248in2)
|
1053
|
220
|
-
|
2.4
|
4.8
|
3.5
|
9.9
|
16.5
|
5.5
|
12.0
|
|
608
|
220
|
-
|
2.4
|
4.8
|
3.5
|
9.9
|
16.5
|
5.5
|
12.0
|
|
761
|
172
|
1.1
|
4.9
|
8.4
|
6.4
|
16.1
|
25.9
|
9.4
|
19.2
|
|
445%
|
172
|
1.1
|
4.9
|
8.4
|
6.4
|
16.1
|
25.9
|
9.4
|
19.2
|
|
445L
|
143
|
4.5
|
11.1
|
17.4
|
13.9
|
31.0
|
48.5
|
19.2
|
36.6
|
|
375
|
143
|
4.5
|
11.1
|
17.4
|
13.9
|
31.0
|
48.5
|
19.2
|
36.6
|
|
300
12"
|
100
|
-2XX
1600cm2 (248in2)
|
1521
|
282
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
842
|
282
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
1053
|
220
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
608
|
220
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
761
|
172
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
|
445
|
172
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
|
.PNG)
|
.PNG)
|
|

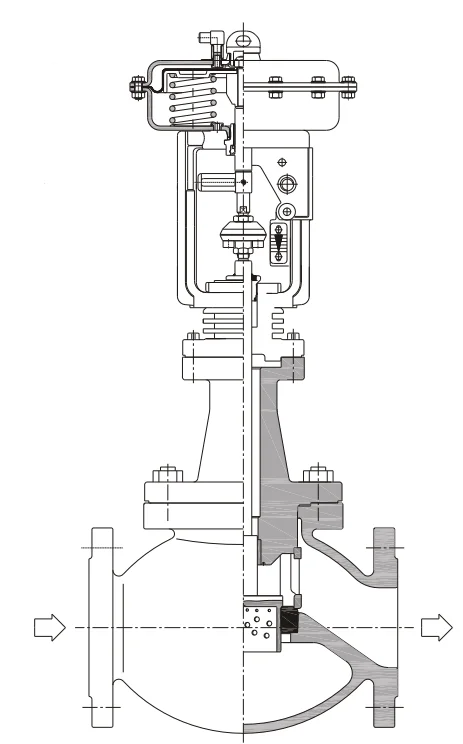

Figure 5.1 DN4015 ~ DN100 ( 1/2" ~ 4" )
|
|
.PNG)
|
.PNG)
|
|
Figure 5.1 DN150 ~ DN300 ( 6" ~ 12")
|
Table 5.1 Figure size (mm)&Weight (Kg) ( DN15 ~ DN100, DIN PN16/25/40)
|
Body flange dimension is according to DIN 2543/2544/2545.
The Face to face dimension is according to DIN3202-F1
|
|
Body
assembly
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
|
L
|
130
|
150
|
150
|
180
|
200
|
230
|
290
|
310
|
350
|
|
V
|
228
|
223
|
356
|
389
|
|
U
|
48
|
59
|
62
|
70
|
78
|
83
|
93
|
106
|
136
|
|
Actuator
|
ÆC
|
SA1
|
270
|
|
SA2
|
|
400
|
|
A
|
SA1
|
346
|
404
|
|
SA2
|
|
489
|
|
H
|
SA1
|
493
|
551
|
|
SA2
|
|
651
|
|
B
|
130
|
150
|
|
Weight
|
SA1
|
20.5
|
22.5
|
23
|
24
|
31
|
33
|
41.5
|
70
|
93
|
|
SA2
|
|
96
|
119
|
Note: Weight=Body assembly + Actuator ( without handwheel )
|
Table 5.2 Figure size(mm)&Weight (Kg) ( 1/2" ~ 4" , ANSI150/300 )
|
Flange (ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF
(IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
|
|
Body
assembly
|
DN
|
1/2"
|
3/4"
|
1"
|
11/4"
|
11/2"
|
2"
|
2½"
|
3"
|
4"
|
|
L
CI.150
|
RF
|
178
|
181
|
184
|
200
|
222
|
254
|
276
|
298
|
352
|
|
RFJ
|
|
|
197
|
213
|
235
|
267
|
289
|
311
|
365
|
|
L
CI.300
|
RF
|
190
|
194
|
197
|
213
|
235
|
267
|
292
|
317
|
368
|
|
RFJ
|
202
|
206
|
210
|
225
|
248
|
282
|
308
|
333
|
384
|
|
V
|
228
|
223
|
356
|
389
|
|
U
|
48
|
59
|
62
|
70
|
78
|
83
|
93
|
106
|
136
|
|
Actuator
|
ÆC
|
SA1
|
270
|
|
SA2
|
|
400
|
|
A
|
SA1
|
346
|
404
|
|
SA2
|
|
189
|
|
H
|
SA1
|
493
|
551
|
|
SA2
|
|
651
|
|
B
|
130
|
150
|
|
Weight
|
SA1
|
20.5
|
22.5
|
23
|
24
|
31
|
33
|
41.5
|
70
|
93
|
|
SA2
|
96
|
119
|
Note: Weight=Body assembly + Actuator ( without handwhell )
|
Table 5.3 Figure size (mm)&Weight (Kg) ( DN150 ~ DN100, DIN PN16/25/40)
|
Body flange dimension is according to DIN 2543/2544/2545.
The Face to face dimension is according to DIN3202-F1
|
|
Body
assembly
|
DN
|
150
|
200
|
250
|
300
|
|
L
|
480
|
600
|
730
|
850
|
|
V
|
Depends on the customer’s needs
|
|
U
|
189
|
239
|
305
|
335
|
|
|
ÆC
|
SA2
|
400
|
|
|
|
SA3
|
596
|
|
|
A
|
SA2
|
625
|
|
|
|
SA3
|
840
|
1010
|
|
Actuator
|
H
|
SA2
|
888
|
|
|
|
B
|
200
|
340
|
|
|
Weight
|
SA2
|
190
|
250
|
|
|
|
SA3
|
330
|
390
|
450
|
750
|
Note: Weight=Body assembly + Actuator ( without handwheel )
|
Table 5.4 Figure size(mm)&Weight (Kg) ( 6" ~ 16" , ANSI150/300 )
|
Flange (ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF
(IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
|
|
Body
assembly
|
DN
|
6"
|
8"
|
10"
|
12"
|
|
L
CI.150
|
RF
|
451
|
543
|
673
|
737
|
|
RFJ
|
464
|
556
|
686
|
750
|
|
L
CI.300
|
RF
|
473
|
568
|
708
|
775
|
|
RFJ
|
489
|
584
|
724
|
791
|
|
V
|
Depends on the customer’s needs
|
|
U
|
189
|
239
|
305
|
335
|
|
Actuator
|
ÆC
|
SA2
|
400
|
|
|
SA3
|
596
|
|
A
|
SA2
|
625
|
|
|
SA3
|
840
|
1010
|
|
H
|
SA2
|
888
|
|
|
B
|
200
|
340
|
|
Weight
|
SA2
|
190
|
250
|
190
|
|
SA3
|
330
|
390
|
450
|
750
|
Note: Weight=Body assembly + Actuator ( without handwheel )
|
|
Ordering Information
Please specify the following information:
1. Type
2. Nominal size
3. Nominal pressure & end connection
4. Body & trim material, harden treatment request
5. Flow characteristic
6. Packing material (code)
7. Actuator type, with handwheel or not & Air pressure supply
8. Action type (Direct or Reverse)
9. Accessory (with positioner & Air regulator or not)
10.Oil-free or Copper-free, etc.
11.Fluid Name & state (liquid, gas, steam, etc.)
12.Pipeline size, wall thickness (Inlet, outlet)
13.Nor. Flow, Max. flow & Min. flow
14.Flow pressure & Pressure differential
15.(Full open/close)
16.Flow temp., Gravity or Density
17.Inlet and outlet pressure
18.The Gravity & viscosity of fluid, with slurry, flashing or not
19.Used in high pressure, Temp., &EXP. Condition or not
20. Other special requests
|
.png)
