SH6000 Series

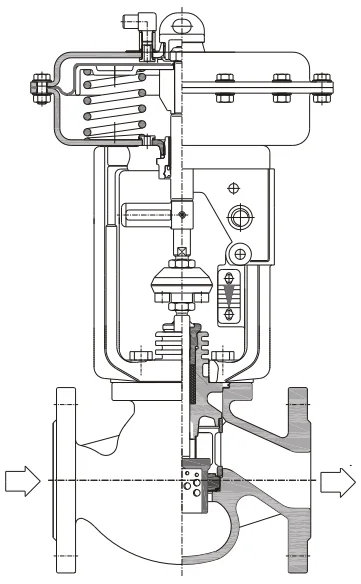

SCN Pressure Balanced Bushing and Cage Guiding Perforated Plug Type

SH6000 Series

SCN Pressure Balanced Bushing and Cage Guiding Perforated Plug Type

SCN is remodel product of SGC. The series are dedicated specifically for low noise and critical anti-cavitation application on liquid, gas or steam. Unique perforated cylinder plug and multi hole cage control flowing velocities in the valve trims to carry out fluid rationally expand and scientifically arrange pressure grads. The nois level is considerably reduced by 20-30 bBA.

SCN series is particularly effective for modulating compressible fluids at high pressure drop ratios.

Valve Body

Type: Cast globe Valve

Nominal Size: DN15, 20, 25, 32, 40, 50, 65, 80, 100, 150,

200, 250, 300, 350, 400

Nominal Pressure: ANSI 150, 300

DIN PN16, 25, 40

JIS 10K, 20K 30K

GB PN1.6, 2.5, 4.0 MPa

End Connection: Flange ANSI B16.5 RF, RTJ

DIN2543/2544/2545 RF

JISB2201 RF

JB/T81 RF

JB/T82.2 FM

Weld ANSI B16.5 SW ( DN £ 50 ) ; BW ( DN > 50 )

Face to Face Dimension: ANSI150RF, JIS10K ( IEC60534-3-1 37 Series )

ANSI300RF, JIS20K, JIS30K ( IEC60534-3-1 38 Series )

ANSI150/300 RTJ ( ASME B16.10 CLASS 150/300RTJ )

DIN PN16, 25, 40 ( DIN3202-F1 )

GB PN1.6, 2.5, 4.0 MPa ( ISO5752 1 Series )

Please refer to table 6.1~6.4

Body Material: Please refer to table1 Please refer to figure 3 for Operated Temp.&Pressure Range

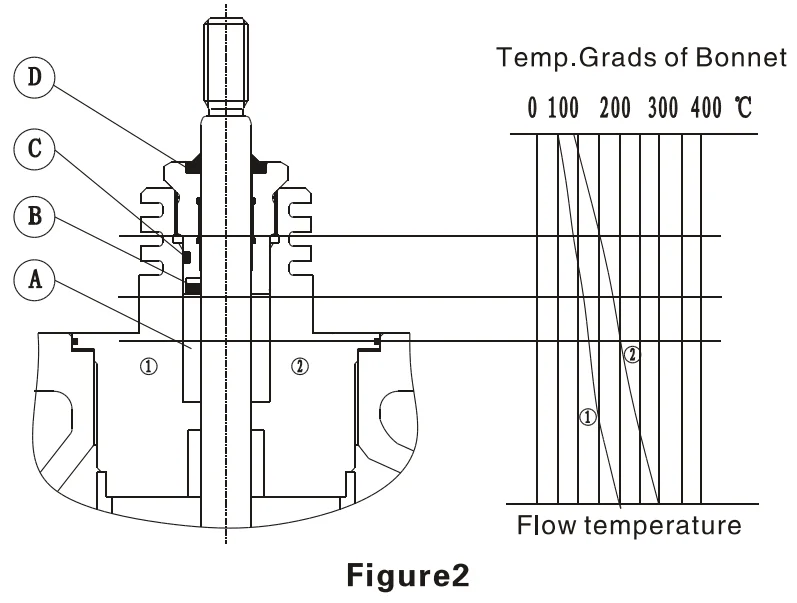

Bonnet Type: STD type·········-46°C ~ 200°C ; 200°C ~ 300°C Radiation fin type·········300°C ~ 530°C

Please pay attention to the different Temp.&Pressure Range of material

Packing Material: PTFE V-ring compound packing, graphite compound packing, graphite packing

Operating Temp.&Pressure range is shown in table 2, figure2

Seal Gasket: Spiral wound gasket ( PTFE+316, Flexible Graphite+316 )

Graphite with metal gasket ( Graphite+316, Graphite+304 )

Valve Trim

Plug Type: Perforated cylinder plug

Flow Characteristic: EQ%, Linearity ( Please refer to figure4 )

Trim Material: Please refer to table 3 for STD material assembly, operated Temp.&Pressure Range

Actuator

Type: Multi-spring diaphragm

Air Supply: Max. 6bar

Ambient Temp.: -20°C+80°C

Spring range: As shown in Table 5.1 ~ 5.4

Air Connection: G1/8 ( SA1 ) ; G1/4 ( SA2 ) ; G3/4 ( SA3 )

STD Specification: As shown in Table 5.1 ~ 5.4

Accessory

Positioner, Filter-regulator valve, Solenoid valve, Limit switch, Valve position

Transmitter, Booster relay, Lock-valve, Handwheel, etc.

Action

Air to open, Air to close

Performance

Rangeability: 50:1

Seat leakage: Metal seal is according to ANSI B16.104 ClassIV, Class V

Hysteresis: 3% ( Without Positioner ) 1% ( With Positioner )

Linearity: ± 5% ( Without Positioner ) ±1% ( With Positioner )

Rated CV: As shown in table 4

Allowable pressure differential: As shown in table 5.1~5.4

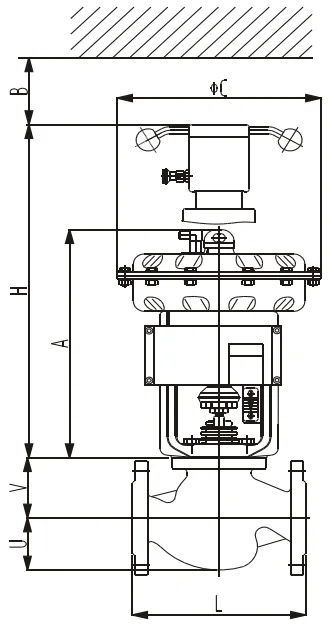

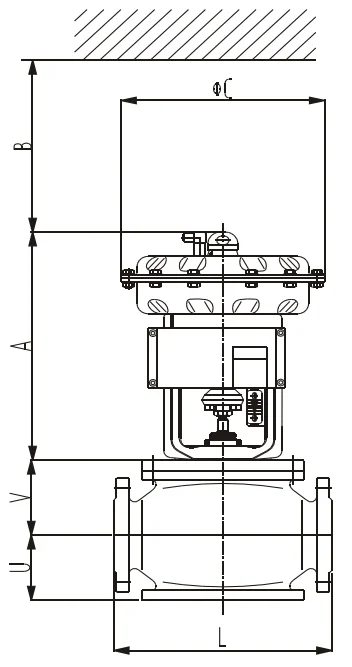

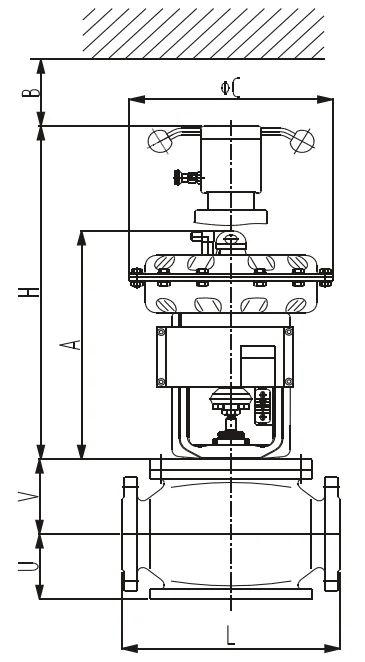

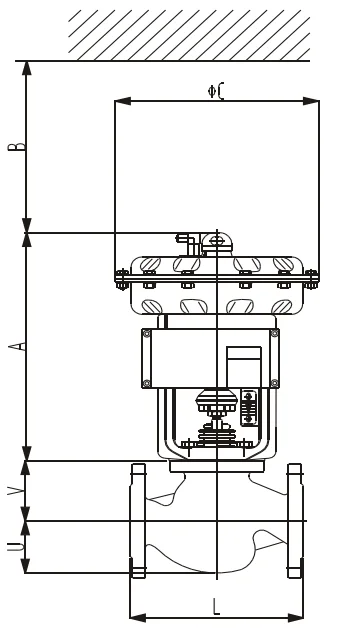

Figure Size: As shown in figure5.1, 5.2, table 6.1~6.4

Weight of product: As shown in table 6.1~6.4

Performance

Special inspection

Flow characteristic test, material test, low temperature test, steam test, non-damages test
copper-free treatment
non-standard painting
dust and sand proof
vacuum service
tropical area proof
completely oi-free, water-free treatment
special air piping and fitting
strong corrosion proof
stainless steel bolt and nut for exposed parts
cold area proof

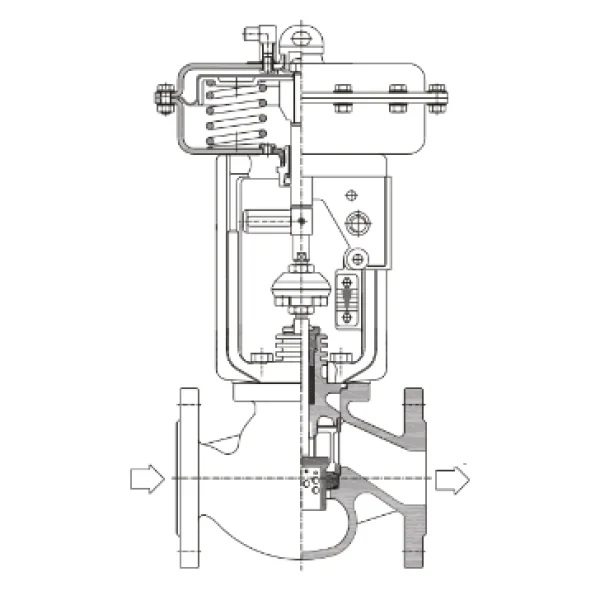

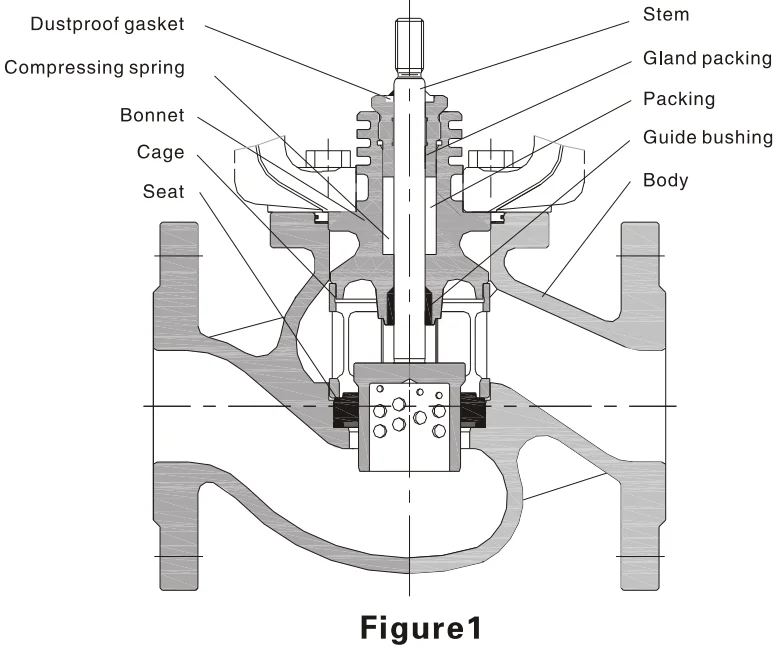

Body Assembly Structure ( As shown in figure 1 )

Performance

Both faces of valve seat can
be used to improve service life
Quickly disassembly and installation
without any special tools
Good price performance
Optimize flow of cage
Various of materials are available
Maintenance-free for packing
Packing stuffing box is wear resistance

and corrosion resistance

Table 1 Body material

GB	ANSI	DIN	Temp.Range
ZG230-450 WCB	A216 WCB ( ASTM )	1.0619 GP240GH	-10°C ~ 400°C
ZG0Cr18Ni9	A351 CF8 ( ASTM )	1.4308 G-X6CrNi18 9	-200°C ~ 530°C
ZG0Cr18Ni12Mo2Ti	A351 CF8M ( ASTM )	1.4408 G-X6CrNiMo18 10	-200°C ~ 530°C
ZG0Cr18Ni12Mo2Nb	-	1.4581 G-X5CrNiMo18 10	-200°C ~ 530°C
	A217 WC6 ( ASTM )	1.7357 GS-17CrMo5 5	-10°C ~ 450°C
	A217 WC9 ( ASTM )	1.7379 GS-18CrMo9 10	-10°C ~ 450°C

Table 2 Applicable Temp.&Pressure range of packing material

Type of material ( Shown in A )	Code	Seal material ( Shown in B )	O-ring material ( Shown in C )	Dustproof ring ( Shown in D )	Temp.Range	Bonnet Type	Remarks
PTFE V type packing	1	EPDM	EPDM	NBR	-25°C ~ 180°C	Standard	( Alter- nate load ) with compress spring
PTFE V type packing	2	VITON	EPDM	VITON	-25°C ~ 200°C	Standard	( Alter- nate load ) with compress spring
Graphite+ Incnel packing	3	-	-	NBR ( VITON )	-20°C ~ 400°C	Standard/with radiation fin	General occasion
Pure graphite ( Density 1.2 )	4	-	-	VITON	-196°C ~ 530°C	Standard/with radiation fin	High Temp. occasion
Graphite+PTFE	6	-	-	NBR	-196°C ~ 200°C	Standard/ extension type	Low Temp. occasion

Note: please choose the most related Temp.Range

ASME B16.35 150/300

Temp.

ASME

B16.34/B16.35

ASME B16.34 600/900/1500

Temp.

DIN EN 1092-1 PN16, PN25, PN40

Temp.

DIN EN

1092-1

DIN EN 1092-1 PN63, PN100, PN160, PN250

Temp.

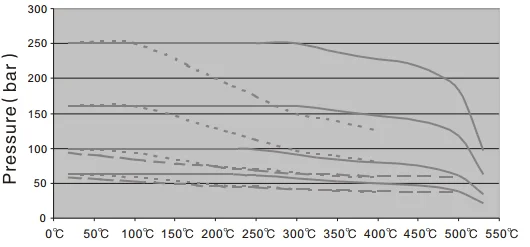

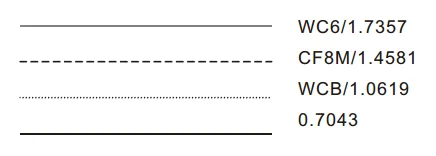

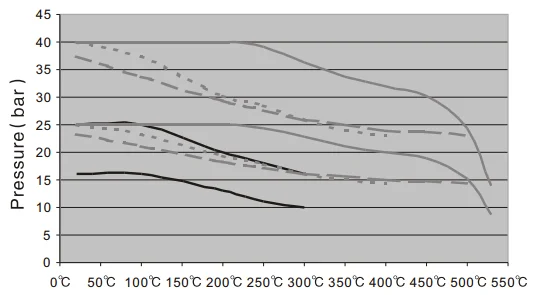

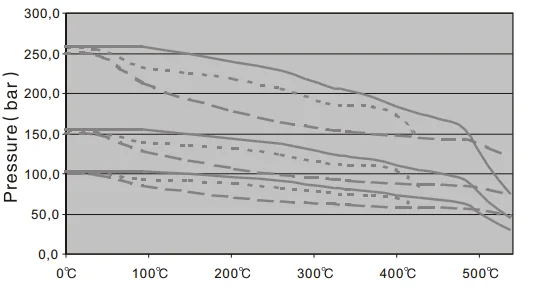

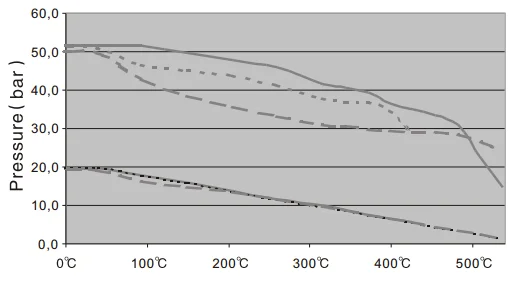

Figure3 Temp.&Pressure curve

Table 3 STD Material Assembly, Operated Temp.&Pressure Range of Trim

Perforated cylinder plug	Seat	Type of seat seal	Temp.
0Cr18Ni12Mo2Ti ( 1.4571 ) Nitriding treatment	0Cr18Ni12Mo2Ti ( 1.4571 )	Metal seal	-46°C~530°C
3Cr17NiMo ( 1.4122 ) Nitriding treatment	2Cr13 ( 1.4021 )	Metal seal
9Cr18MoV ( 1.4112 ) Harden treatment	9Cr18MoV ( 1.4112 ) Harden treatment	Metal seal

Harden treatment: Hard chrome plated, Stellite surface, Heat treatment, Nitriding treatment, Spray tungsten carbide, etc.

Table 4 Rated Cv.

Seat type		Perforated cylinder plug
Flow characteristic		Linearity			EQ%
Nominal size (DN)	Travel	Cv1	Cv2	Cv3	Cv1	Cv2	Cv3
15	20	2.9			2.9
20		2.9			2.9
25		7.3	2.9		4.7	2.9
32		7.3	2.9		4.7	2.9
40		19	11.5	7.3	19	11.5	7.3
50		29	19	11.5	2.9	19	11.5
65		46	29	19	2.9	19	11.5
80	30	116	73	46	64	46	29
100	30	139	116	73	73	64	46
150	60	445	304	198	246	176	146
200	60	527	445	304	304	246	176
250	120	1053	761	445	608	445	375
300		1521	1053	761	842	608	445
350		2106	1521	1053	995	842	608
400		2925	2106	1638	1463	1053	878

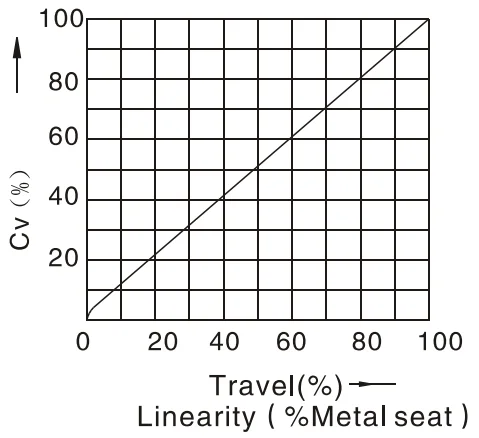

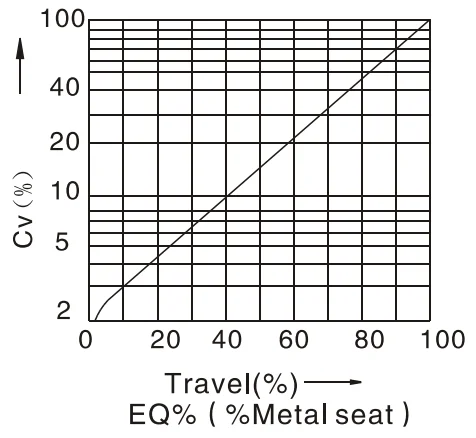

Figure 4 Flow characteristic curve

Table 5.1 Allowable pressure differential ( Leakage class IV PTFE packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3		3		6		6
					bar	bar	bar	bar	Air supply (bar)
									3.0		4.5		6.0		4.5		6.0
15 1/2"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
20 3/4"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
25 1"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	32.8	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			4.7	25	32.8	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
32 1 1/4"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	32.8	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			4.7	25	32.8	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
40 1 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	19	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
			11.5	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
			7.3	25	32.8	50.0	-	-	50.0		50.0		50.0		50.0		50.0
50 2"	20	-2^Ö(3)XX 320cm²(50in²)	29	46	7.7	22.1	-	-	22.1		50.0		50.0		22.1		50.0
			19	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
			11.5	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
			7.3	25	21.6	50.0	-	-	50.0		50.0		50.0		50.0		50.0
65 2 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	46	50	6.2	18.4	-	-	18.4		42.9		50.0		18.4		42.9
			29	46	7.7	22.1	-	-	22.1		50.0		50.0		22.1		50.0
			19	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
			11.5	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	1.3	6.1	-	-	6.1		15.6		25.2		6.1		15.6
			73	80	1.3	6.1	-	-	6.1		15.6		25.2		6.1		15.6
			64	80	1.3	6.1	-	-	6.1		15.6		25.2		6.1		15.6
			46%	80	1.3	6.1	-	-	6.1		15.6		25.2		6.1		15.6
			64L	50	5.7	17.9	-	-	17.9		42.4		50.0		17.9		42.4
			29	46	7.1	21.5	-	-	21.5		50.0		50.0		21.5		50.0
		-1XX 720cm²(111in²)	116	80	6.5	16.4	22.4	28.4	18.0		39.5		50.0		18.0		39.5
			73	80	6.5	16.4	22.4	28.4	18.0		39.5		50.0		18.0		39.5
			64	80	6.5	16.4	22.4	28.4	18.0		39.5		50.0		18.0		39.5
			46%	80	6.5	16.4	22.4	28.4	18.0		39.5		50.0		18.0		39.5
			64L	50	18.9	44.4	50.0	50.0	48.5		50.0		50.0		48.5		50.0
			29	46	22.7	50.0	50.0	50.0	50.0		50.0		50.0		50.0		50.0

Continued Table 5.1

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
100 4"	30	-5XX 320cm²(50in²)	139	100	0.4	3.5	-	-	3.5	9.6	15.7	3.5	9.6
			73%	100	0.4	3.5	-	-	3.5	9.6	15.7	3.5	9.6
			116	80	1.3	6.1	-	-	6.1	15.6	25.2	6.1	15.6
			73L	80	1.3	6.1	-	-	6.1	15.6	25.2	6.1	15.6
			64	80	1.3	6.1	-	-	6.1	15.6	25.2	6.1	15.6
			46	80	1.3	6.1	-	-	6.1	15.6	25.2	6.1	15.6
		-1XX 720cm²(111in²)	139	100	3.7	10.1	13.9	17.7	11.1	24.9	38.6	11.1	24.9
			73%	100	3.7	10.1	13.9	17.7	11.1	24.9	38.6	11.1	24.9
			116	80	6.5	16.4	22.4	28.4	18.0	39.5	50.0	18.0	39.5
			73L	80	6.5	16.4	22.4	28.4	18.0	39.5	50.0	18.0	39.5
			64	80	6.5	16.4	22.4	28.4	18.0	39.5	50.0	18.0	39.5
			46	80	6.5	16.4	22.4	28.4	18.0	39.5	50.0	18.0	39.5
150 6"	60	-2XX 720cm²(111in²)	445	143	1.7	5.2	7.3	9.4	5.7	13.3	20.8	5.7	13.3
			246	143	1.7	5.2	7.3	9.4	5.7	13.3	20.8	5.7	13.3
			304	113	2.6	7.4	10.3	13.2	8.2	18.6	29.0	8.2	18.6
			176	113	2.6	7.4	10.3	13.2	8.2	18.6	29.0	8.2	18.6
			198	90	4.9	12.7	17.4	22.2	14.0	31.0	47.9	14.0	31.0
			146	90	4.9	12.7	17.4	22.2	14.0	31.0	47.9	14.0	31.0
200 8"	60	-2XX 720cm²(111in²)	527	172	0.7	2.6	3.8	5.0	2.9	7.2	11.4	2.9	7.2
			304%	172	0.7	2.6	3.8	5.0	2.9	7.2	11.4	2.9	7.2
			445	143	1.7	5.2	7.3	9.4	5.7	13.3	20.8	5.7	13.3
			246	143	1.7	5.2	7.3	9.4	5.7	13.3	20.8	5.7	13.3
			304L	113	2.6	7.4	10.3	13.2	8.2	18.6	29.0	8.2	18.6
			176	113	2.6	7.4	10.3	13.2	8.2	18.6	29.0	8.2	18.6

Continued Table 5.1

Actuator SA3 Series					Spring Nos.			Spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-1XX 1600cm²(248in²)	445	143	12.1	19.1	26.1	27.2	46.7	50.0	37.0	50.0
			246	143	12.1	19.1	26.1	27.2	46.7	50.0	37.0	50.0
			304	113	17.0	26.7	36.3	37.8	50.0	50.0	50.0	50.0
			176	113	17.0	26.7	36.3	37.8	50.0	50.0	50.0	50.0
			198	90	28.4	44.2	50.0	50.0	50.0	50.0	50.0	50.0
			146	90	28.4	44.2	50.0	50.0	50.0	50.0	50.0	50.0
200 8"	60	-1XX 1600cm²(248in²)	527	172	6.6	10.5	14.4	15.0	26.7	36.8	20.5	31.3
			304%	172	6.6	10.5	14.4	15.0	26.7	36.8	20.5	31.3
			445	143	12.1	19.1	26.1	27.2	46.7	50.0	37.0	50.0
			246	143	12.1	19.1	26.1	27.2	46.7	50.0	37.0	50.0
			304L	113	17.0	26.7	36.3	37.8	50.0	50.0	50.0	50.0
			176	113	17.0	26.7	36.3	37.8	50.0	50.0	50.0	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			608	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			761	172	6.0	9.7	13.3	11.3	20.9	30.8	14.3	24.1
			445%	172	6.0	9.7	13.3	11.3	20.9	30.8	14.3	24.1
			445L	143	11.2	17.8	24.1	20.6	37.7	50.0	25.8	43.3
			375	143	11.2	17.8	24.1	20.6	37.7	50.0	25.8	43.3
300 12"	100	-2XX 1600cm²(248in²)	1521	282	2.5	4.3	5.9	5.0	9.4	14.0	6.3	10.9
			842	282	2.5	4.3	5.9	5.0	9.4	14.0	6.3	10.9
			1053	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			608	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			761	172	6.0	9.7	13.3	11.3	20.9	30.8	14.3	24.1
			445	172	6.0	9.7	13.3	11.3	20.9	30.8	14.3	24.1
350 14"	100	-2XX 1600cm²(248in²)	2106	313	1.8	3.0	4.2	3.5	6.8	10.1	4.5	7.9
			995	313	1.8	3.0	4.2	3.5	6.8	10.1	4.5	7.9
			1521	282	2.5	4.3	5.9	5.0	9.4	14.0	6.3	10.9
			842	282	2.5	4.3	5.9	5.0	9.4	14.0	6.3	10.9
			1053	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			608	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
400 16"	120	-2XX 1600cm²(248in²)	2925	400	0.4	0.9	1.3	1.6	3.5	5.4	2.0	3.8
			1463	400	0.4	0.9	1.3	1.6	3.5	5.4	2.0	3.8
			2106	313	0.9	1.7	2.4	2.9	6.0	9.1	3.5	6.6
			1053	313	0.9	1.7	2.4	2.9	6.0	9.1	3.5	6.6
			1638	282	1.3	2.5	3.3	4.1	8.3	12.6	4.9	9.1
			878	282	1.3	2.5	3.3	4.1	8.3	12.6	4.9	9.1

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Table 5.2 Allowable pressure differential ( Leakage class IV PTFE packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3		3		6		6
					bar	bar	bar	bar	Air supply (bar)
									3.0		4.5		6.0		4.5		6.0
15 1/2"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
20 3/4"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
25 1"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	20.5	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			4.7	25	20.5	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
32 1 1/4"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	20.5	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			4.7	25	20.5	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
40 1 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	19	36	8.2	31.8	-	-	31.8		50.0		50.0		31.8		50.0
			11.5	36	8.2	31.8	-	-	31.8		50.0		50.0		31.8		50.0
			7.3	25	20.5	50.0	-	-	50.0		50.0		50.0		50.0		50.0
50 2"	20	-2^Ö(3)XX 320cm²(50in²)	29	46	4.1	18.5	-	-	18.5		47.4		50.0		18.5		47.4
			19	36	8.2	31.8	-	-	31.8		50.0		50.0		31.8		50.0
			11.5	36	8.2	31.8	-	-	31.8		50.0		50.0		31.8		50.0
			7.3	25	13.1	47.1	-	-	47.1		50.0		50.0		47.1		50.0
65 2 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	46	50	3.1	15.4	-	-	15.4		39.8		50.0		15.4		39.8
			29	46	4.1	18.5	-	-	18.5		47.4		50.0		18.5		47.4
			19	36	8.2	31.8	-	-	31.8		50.0		50.0		31.8		50.0
			11.5	36	8.2	31.8	-	-	31.8		50.0		50.0		31.8		50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	-	4.7	-	-	4.7		14.2		23.8		4.7		14.2
			73	80	-	4.7	-	-	4.7		14.2		23.8		4.7		14.2
			64	80	-	4.7	-	-	4.7		14.2		23.8		4.7		14.2
			46%	80	-	4.7	-	-	4.7		14.2		23.8		4.7		14.2
			64L	50	2.1	14.3	-	-	14.3		38.8		50.0		14.3		38.8
			29	46	2.9	17.3	-	-	17.3		46.2		50.0		17.3		46.2
		-1XX 720cm²(111in²)	116	80	5.1	15.0	21.0	27.0	15.0		38.1		50.0		15.0		38.1
			73	80	5.1	15.0	21.0	27.0	15.0		38.1		50.0		15.0		38.1
			64	80	5.1	15.0	21.0	27.0	15.0		38.1		50.0		15.0		38.1
			46%	80	5.1	15.0	21.0	27.0	15.0		38.1		50.0		15.0		38.1
			64L	50	15.4	40.8	50.0	50.0	40.8		50.0		50.0		40.8		50.0
			29	46	18.5	18.6	50.0	50.0	18.6		50.0		50.0		18.6		50.0

Continued Table 5.2

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
100 4"	30	-5XX 320cm²(50in²)	139	100	-	2.6	-	-	2.6	8.7	14.8	2.6	8.7
			73%	100	-	2.6	-	-	2.6	8.7	14.8	2.6	8.7
			116	80	-	4.7	-	-	4.7	14.2	23.8	4.7	14.2
			73L	80	-	4.7	-	-	4.7	14.2	23.8	4.7	14.2
			64	80	-	4.7	-	-	4.7	14.2	23.8	4.7	14.2
			46	80	-	4.7	-	-	4.7	14.2	23.8	4.7	14.2
		-1XX 720cm²(111in²)	139	100	2.8	9.2	13.0	16.9	10.2	24.0	37.7	10.2	24.0
			73%	100	2.8	9.2	13.0	16.9	10.2	24.0	37.7	10.2	24.0
			116	80	5.1	15.0	21.0	27.0	16.6	38.1	50.0	16.6	38.1
			73L	80	5.1	15.0	21.0	27.0	16.6	38.1	50.0	16.6	38.1
			64	80	5.1	15.0	21.0	27.0	16.6	38.1	50.0	16.6	38.1
			46	80	5.1	15.0	21.0	27.0	16.6	38.1	50.0	16.6	38.1
150 6"	60	-2XX 720cm²(111in²)	445	143	1.2	4.7	6.8	8.9	5.2	12.8	20.3	5.2	12.8
			246	143	1.2	4.7	6.8	8.9	5.2	12.8	20.3	5.2	12.8
			304	113	1.9	6.7	9.6	12.5	7.5	17.9	28.3	7.5	17.9
			176	113	1.9	6.7	9.6	12.5	7.5	17.9	28.3	7.5	17.9
			198	90	3.8	11.6	16.3	21.1	12.9	29.9	46.8	12.9	29.9
			146	90	3.8	11.6	16.3	21.1	12.9	29.9	46.8	12.9	29.9
200 8"	60	-2XX 720cm²(111in²)	527	172	0.4	2.3	3.5	4.7	2.7	6.9	11.2	2.7	6.9
			304%	172	0.4	2.3	3.5	4.7	2.7	6.9	11.2	2.7	6.9
			445	143	1.2	4.7	6.8	8.9	5.2	12.8	20.3	5.2	12.8
			246	143	1.2	4.7	6.8	8.9	5.2	12.8	20.3	5.2	12.8
			304L	113	1.9	6.7	9.6	12.5	7.5	17.9	28.3	7.5	17.9
			176	113	1.9	6.7	9.6	12.5	7.5	17.9	28.3	7.5	17.9

Continued Table 5.2

Actuator SA3 Series					Spring Nos.			spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-2XX 1600cm²(248in²)	445	143	11.7	18.6	25.6	27.7	46.3	50.0	36.5	50.0
			246	143	11.7	18.6	25.6	27.7	46.3	50.0	36.5	50.0
			304	113	16.4	26.0	35.6	37.1	50.0	50.0	50.0	50.0
			176	113	16.4	26.0	35.6	37.1	50.0	50.0	50.0	50.0
			198	90	27.3	43.1	50.0	50.0	50.0	50.0	50.0	50.0
			146	90	27.3	43.1	50.0	50.0	50.0	50.0	50.0	50.0
200 8"	60	-2XX 1600cm²(248in²)	527	172	6.3	10.2	14.1	14.7	25.7	36.6	20.2	31.1
			304%	172	6.3	10.2	14.1	14.7	25.7	36.6	20.2	31.1
			445	143	11.7	18.6	25.6	26.7	46.3	50.0	36.5	50.0
			246	143	11.7	18.6	25.6	26.7	46.3	50.0	36.5	50.0
			304L	113	16.4	26.0	35.6	37.1	50.0	50.0	50.0	50.0
			176	113	16.4	26.0	35.6	37.1	50.0	50.0	50.0	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	3.6	6.1	8.4	7.1	13.6	20.1	9.1	15.7
			608	220	3.6	6.1	8.4	7.1	13.6	20.1	9.1	15.7
			761	172	5.6	9.3	12.8	10.9	20.5	30.3	13.8	23.7
			445%	172	5.6	9.3	12.8	10.9	20.5	30.3	13.8	23.7
			445L	143	10.4	17.0	23.3	19.8	37.0	50.0	25.1	42.6
			375	143	10.4	17.0	23.3	19.8	37.0	50.0	25.1	42.6
300 12"	100	-2XX 1600cm²(248in²)	1521	282	2.3	4.1	5.7	4.8	9.2	13.8	6.1	10.7
			842	282	2.3	4.1	5.7	4.8	9.2	13.8	6.1	10.7
			1053	220	3.6	6.1	8.4	7.1	13.6	20.1	9.1	15.7
			608	220	3.6	6.1	8.4	7.1	13.6	20.1	9.1	15.7
			761	172	5.6	9.3	12.8	10.9	20.5	30.3	13.8	23.7
			445	172	5.6	9.3	12.8	10.9	20.5	30.3	13.8	23.7
350 14"	100	-2XX 1600cm²(248in²)	2106	313	1.6	2.9	4.1	3.4	6.6	10.0	4.4	7.7
			995	313	1.6	2.9	4.1	3.4	6.6	10.0	4.4	7.7
			1521	282	2.3	4.1	5.7	4.8	9.2	13.8	6.1	10.7
			842	282	2.3	4.1	5.7	4.8	9.2	13.8	6.1	10.7
			1053	220	3.6	6.1	8.4	7.1	13.6	20.1	9.1	15.7
			608	220	3.6	6.1	8.4	7.1	13.6	20.1	9.1	15.7
400 16"	120	-2XX 1600cm²(248in²)	2925	400	0.3	0.8	1.2	1.5	3.4	5.3	1.9	3.8
			1463	400	0.3	0.8	1.2	1.5	3.4	5.3	1.9	3.8
			2106	313	0.7	1.6	2.2	2.7	5.9	9.0	3.3	6.4
			1053	313	0.7	1.6	2.2	2.7	5.9	9.0	3.3	6.4
			1638	282	1.1	2.3	3.1	3.9	8.1	12.4	4.7	9.0
			878	282	1.1	2.3	3.1	3.9	8.1	12.4	4.7	9.0

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Table 5.3 Allowable pressure differential ( Leakage classIV PTFE packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3		3		6		6
					bar	bar	bar	bar	Air supply (bar)
									3.0		4.5		6.0		4.5		6.0
15 1/2"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	46.6	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
20 3/4"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	46.6	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
25 1"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	0.8	49.7	-	-	49.7		50.0		50.0		49.7		50.0
			4.7	25	0.8	49.7	-	-	49.7		50.0		50.0		49.7		50.0
			2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
32 1 1/4"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	0.8	49.7	-	-	49.7		50.0		50.0		49.7		50.0
			4.7	25	0.8	49.7	-	-	49.7		50.0		50.0		49.7		50.0
			2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
40 1 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	19	36	-	15.5	-	-	15.5		50.0		50.0		15.5		50.0
			11.5	36	-	15.5	-	-	15.5		50.0		50.0		15.5		50.0
			7.3	25	0.8	49.7	-	-	49.7		50.0		50.0		49.7		50.0
50 2"	20	-2^Ö(3)XX 320cm²(50in²)	29	46	-	4.7	-	-	4.7		33.6		50.0		4.7		33.6
			19	36	-	15.5	-	-	15.5		50.0		50.0		15.5		50.0
			11.5	36	-	15.5	-	-	15.5		50.0		50.0		15.5		50.0
			7.3	25	-	28.9	-	-	28.9		50.0		50.0		28.9		50.0
65 2 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	46	50	-	2.4	-	-	2.4		26.9		50.0		2.4		26.9
			29	46	-	4.7	-	-	4.7		33.6		50.0		4.7		33.6
			19	36	-	15.5	-	-	15.5		50.0		50.0		15.5		50.0
			11.5	36	-	15.5	-	-	15.5		50.0		50.0		15.5		50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	-	-	-	-	5.6		15.2		-		5.6		-
			73	80	-	-	-	-	5.6		15.2		-		5.6		-
			64	80	-	-	-	-	5.6		15.2		-		5.6		-
			46%	80	-	-	-	-	5.6		15.2		-		5.6		-
			64L	50	-	1.9	-	-	1.9		26.4		50.0		1.9		26.4
			29	46	-	4.1	-	-	4.1		33.0		50.0		4.1		33.0
		-1XX 720cm²(111in²)	116	80	-	6.4	12.4	18.4	8.0		29.5		50.0		8.0		29.5
			73	80	-	6.4	12.4	18.4	8.0		29.5		50.0		8.0		29.5
			64	80	-	6.4	12.4	18.4	8.0		29.5		50.0		8.0		29.5
			46%	80	-	6.4	12.4	18.4	8.0		29.5		50.0		8.0		29.5
			64L	50	2.9	28.4	43.7	50.0	32.5		50.0		50.0		32.5		50.0
			29	46	5.4	35.5	50.0	50.0	40.3		50.0		50.0		40.3		50.0

Continued Table 5.3

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
100 4"	30	-5XX 320cm²(50in²)	139	100	-	-	-	-	-	1.6	7.7	-	1.6
			73%	100	-	-	-	-	-	1.6	7.7	-	1.6
			116	80	-	-	-	-	-	5.6	15.2	-	5.6
			73L	80	-	-	-	-	-	5.6	15.2	-	5.6
			64	80	-	-	-	-	-	5.6	15.2	-	5.6
			46	80	-	-	-	-	-	5.6	15.2	-	5.6
		-1XX 720cm²(111in²)	139	100	-	2.1	5.9	9.7	3.1	16.9	30.6	3.1	16.9
			73%	100	-	2.1	5.9	9.7	3.1	16.9	30.6	3.1	16.9
			116	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			73L	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			64	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			46	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
150 6"	60	-2XX 720cm²(111in²)	445	143	-	-	1.3	3.4	-	7.3	14.9	-	7.3
			246	143	-	-	1.3	3.4	-	7.3	14.9	-	7.3
			304	113	-	0.5	3.3	6.2	1.2	11.6	22.0	1.2	11.6
			176	113	-	0.5	3.3	6.2	1.2	11.6	22.0	1.2	11.6
			198	90	-	3.8	8.5	13.3	5.1	22.1	39.1	5.1	22.1
			146	90	-	3.8	8.5	13.3	5.1	22.1	39.1	5.1	22.1
200 8"	60	-2XX 720cm²(111in²)	527	172	-	-	-	0.5	-	2.7	7.0	-	2.7
			304%	172	-	-	-	0.5	-	2.7	7.0	-	2.7
			445	143	-	-	1.3	3.4	-	7.3	14.9	-	7.3
			246	143	-	-	1.3	3.4	-	7.3	14.9	-	7.3
			304L	113	-	0.5	3.3	6.2	1.2	11.6	22.0	1.2	11.6
			176	113	-	0.5	3.3	6.2	1.2	11.6	22.0	1.2	11.6

Continued Table 5.3

Actuator SA3 Series					Spring Nos.			spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-1XX 1600cm²(248in²)	445	143	6.2	13.2	20.2	21.3	40.8	50.0	31.0	50.0
			246	143	6.2	13.2	20.2	21.3	40.8	50.0	31.0	50.0
			304	113	10.1	19.7	29.4	30.8	50.0	50.0	44.3	50.0
			176	113	10.1	19.7	29.4	30.8	50.0	50.0	44.3	50.0
			198	90	19.6	35.3	50.0	50.0	50.0	50.0	50.0	50.0
			146	90	19.6	35.3	50.0	50.0	50.0	50.0	50.0	50.0
200 8"	60	-1XX 1600cm²(248in²)	527	172	2.1	6.0	10.0	10.6	21.6	32.4	16.1	26.9
			304%	172	2.1	6.0	10.0	10.6	21.6	32.4	16.1	26.9
			445	143	6.2	13.2	20.2	21.3	40.8	50.0	31.0	50.0
			246	143	6.2	13.2	20.2	21.3	40.8	50.0	31.0	50.0
			304L	113	10.1	19.7	29.4	30.8	50.0	50.0	44.3	50.0
			176	113	10.1	19.7	29.4	30.8	50.0	50.0	44.3	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	0.2	2.7	5.1	3.8	10.2	16.8	5.7	12.3
			608	220	0.2	2.7	5.1	3.8	10.2	16.8	5.7	12.3
			761	172	1.6	5.3	8.8	6.9	16.5	26.3	9.8	19.6
			445%	172	1.6	5.3	8.8	6.9	16.5	26.3	9.8	19.6
			445L	143	5.2	11.9	18.2	14.7	31.8	49.3	19.9	37.4
			375	143	5.2	11.9	18.2	14.7	31.8	49.3	19.9	37.4
300 12"	100	-2XX 1600cm²(248in²)	1521	282	-	-	-	-	-	-	-	-
			842	282	-	-	-	-	-	-	-	-
			1053	220	-	-	-	-	-	-	-	-
			608	220	-	-	-	-	-	-	-	-
			761	172	-	-	-	-	-	-	-	-
			445	172	-	-	-	-	-	-	-	-
350 14"	100	-2XX 1600cm²(248in²)	2106	313	-	-	-	-	-	-	-	-
			995	313	-	-	-	-	-	-	-	-
			1521	282	-	-	-	-	-	-	-	-
			842	282	-	-	-	-	-	-	-	-
			1053	220	-	-	-	-	-	-	-	-
			608	220	-	-	-	-	-	-	-	-
400 16"	120	-2XX 1600cm²(248in²)	2925	400	-	-	-	-	-	-	-	-
			1463	400	-	-	-	-	-	-	-	-
			2106	313	-	-	-	-	-	-	-	-
			1053	313	-	-	-	-	-	-	-	-
			1638	282	-	-	-	-	-	-	-	-
			878	282	-	-	-	-	-	-	-	-

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Table 5.4 Allowable pressure differential ( Leakage classIV PTFE packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3		3		6		6
					bar	bar	bar	bar	Air supply (bar)
									3.0		4.5		6.0		4.5		6.0
15 1/2"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	12.6	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
20 3/4"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	12.6	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
25 1"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	-	37.5	-	-	37.5		50.0		50.0		37.5		50.0
			4.7	25	-	37.5	-	-	37.5		50.0		50.0		37.5		50.0
			2.9	20	12.6	50.0	-	-	50.0		50.0		50.0		50.0		50.0
32 1 1/4"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	-	37.5	-	-	37.5		50.0		50.0		37.5		50.0
			4.7	25	-	37.5	-	-	37.5		50.0		50.0		37.5		50.0
			2.9	20	-	50.0	-	-	50.0		50.0		50.0		50.0		50.0
40 1 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	19	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
			11.5	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
			7.3	25	37.5	-	-	37.5	50.0		50.0		37.5		50.0		37.5
50 2"	20	-2^Ö(3)XX 320cm²(50in²)	29	46	-	1.1	-	-	1.1		30.0		50.0		1.1		30.0
			19	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
			11.5	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
			7.3	25	-	20.5	-	-	20.5		50.0		50.0		20.5		50.0
65 2 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	46	50	-	-	-	-	-		23.8		48.3		-		23.8
			29	46	-	1.1	-	-	1.1		30.0		50.0		1.1		30.0
			19	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
			11.5	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	-	-	-	-	-		4.2		13.8		-		4.2
			73	80	-	-	-	-	-		4.2		13.8		-		4.2
			64	80	-	-	-	-	-		4.2		13.8		-		4.2
			46%	80	-	-	-	-	-		4.2		13.8		-		4.2
			64L	50	-	-	-	-	-		22.8		47.3		-		22.8
			29	46	-	-	-	-	-		28.8		50.0		-		28.8
		-1XX 720cm²(111in²)	116	80	-	5.0	11.0	17.0	6.6		28.1		50.0		6.6		28.1
			73	80	-	5.0	11.0	17.0	6.6		28.1		50.0		6.6		28.1
			64	80	-	5.0	11.0	17.0	6.6		28.1		50.0		6.6		28.1
			46%	80	-	5.0	11.0	17.0	6.6		28.1		50.0		6.6		28.1
			64L	50	-	24.8	40.1	50.0	28.9		50.0		50.0		28.9		50.0
			29	46	1.1	31.2	49.3	50.0	36.1		50.0		50.0		36.1		50.0

Continued Table 5.4

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
100 4"	30	-5XX 320cm²(50in²)	139	100	-	-	-	-	-	0.7	6.8	-	0.7
			73%	100	-	-	-	-	-	0.7	6.8	-	0.7
			116	80	-	-	-	-	-	4.2	13.8	-	4.2
			73L	80	-	-	-	-	-	4.2	13.8	-	4.2
			64	80	-	-	-	-	-	4.2	13.8	-	4.2
			46	80	-	-	-	-	-	4.2	13.8	-	4.2
		-1XX 720cm²(111in²)	139	100	-	1.2	5.0	8.9	2.2	16.0	29.7	2.2	16.0
			73%	100	-	1.2	5.0	8.9	2.2	16.0	29.7	2.2	16.0
			116	80	-	5.0	11.0	17.0	6.6	28.1	49.6	6.6	28.1
			73L	80	-	5.0	11.0	17.0	6.6	28.1	49.6	6.6	28.1
			64	80	-	5.0	11.0	17.0	6.6	28.1	49.6	6.6	28.1
			46	80	-	5.0	11.0	17.0	6.6	28.1	49.6	6.6	28.1
150 6"	60	-2XX 720cm²(111in²)	445	143	-	-	0.8	2.9	-	6.9	14.4	-	6.9
			246	143	-	-	0.8	2.9	-	6.9	14.4	-	6.9
			304	113	-	-	2.7	5.6	0.6	11.0	21.4	0.6	11.0
			176	113	-	-	2.7	5.6	0.6	11.0	21.4	0.6	11.0
			198	90	-	2.7	7.4	12.2	4.0	21.0	38.0	4.0	21.0
			146	90	-	2.7	7.4	12.2	4.0	21.0	38.0	4.0	21.0
200 8"	60	-2XX 720cm²(111in²)	527	172	-	-	-	0.3	-	2.5	6.7	-	2.5
			304%	172	-	-	-	0.3	-	2.5	6.7	-	2.5
			445	143	-	-	0.8	2.9	-	6.9	14.4	-	6.9
			246	143	-	-	0.8	2.9	-	6.9	14.4	-	6.9
			304L	113	-	-	2.7	5.6	0.6	11.0	21.4	0.6	11.0
			176	113	-	-	2.7	5.6	0.6	11.0	21.4	0.6	11.0

Continued Table 5.4

Actuator SA3 Series					Spring Nos.			spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-1XX 1600cm²(248in²)	445	143	5.7	12.7	19.7	20.8	40.3	50.0	30.5	49.8
			246	143	5.7	12.7	19.7	20.8	40.3	50.0	30.5	49.8
			304	113	9.4	19.0	28.7	30.1	50.0	50.0	43.6	50.0
			176	113	9.4	19.0	28.7	30.1	50.0	50.0	43.6	50.0
			198	90	18.5	34.2	49.9	50.0	50.0	50.0	50.0	50.0
			146	90	18.5	34.2	49.9	50.0	50.0	50.0	50.0	50.0
200 8"	60	-1XX 1600cm²(248in²)	527	172	1.8	5.8	9.7	10.3	21.3	32.1	15.8	26.6
			304%	172	1.8	5.8	9.7	10.3	21.3	32.1	15.8	26.6
			445	143	5.7	12.7	19.7	20.8	40.3	50.0	30.5	49.8
			246	143	5.7	12.7	19.7	20.8	40.3	50.0	30.5	49.8
			304L	113	9.4	19.0	28.7	30.1	50.0	50.0	43.6	50.0
			176	113	9.4	19.0	28.7	30.1	50.0	50.0	43.6	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	-	2.4	4.8	3.5	9.9	16.5	5.5	12.0
			608	220	-	2.4	4.8	3.5	9.9	16.5	5.5	12.0
			761	172	1.1	4.9	8.4	6.4	16.1	25.9	9.4	19.2
			445%	172	1.1	4.9	8.4	6.4	16.1	25.9	9.4	19.2
			445L	143	4.5	11.1	17.4	13.9	31.0	48.5	19.2	36.6
			375	143	4.5	11.1	17.4	13.9	31.0	48.5	19.2	36.6
300 12"	100	-2XX 1600cm²(248in²)	1521	282	-	-	-	-	-	-	-	-
			842	282	-	-	-	-	-	-	-	-
			1053	220	-	-	-	-	-	-	-	-
			608	220	-	-	-	-	-	-	-	-
			761	172	-	-	-	-	-	-	-	-
			445	172	-	-	-	-	-	-	-	-
350 14"	100	-2XX 1600cm²(248in²)	2106	313	-	-	-	-	-	-	-	-
			995	313	-	-	-	-	-	-	-	-
			1521	282	-	-	-	-	-	-	-	-
			842	282	-	-	-	-	-	-	-	-
			1053	220	-	-	-	-	-	-	-	-
			608	220	-	-	-	-	-	-	-	-
400 16"	120	-2XX 1600cm²(248in²)	2925	400	-	-	-	-	-	-	-	-
			1463	400	-	-	-	-	-	-	-	-
			2106	313	-	-	-	-	-	-	-	-
			1053	313	-	-	-	-	-	-	-	-
			1638	282	-	-	-	-	-	-	-	-
			878	282	-	-	-	-	-	-	-	-

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Figure 5.1 DN15~DN100 ( 1/2" ~ 4" )

Figure 5.2 DN150~DN400 (6" ~ 16" )

Table 6.1 Figure size (mm)&Weight (Kg) ( DN15 ~ DN100, DIN PN16/25/40)

Body flange dimension is according to DIN 2543/2544/2545. The Face to face dimension is according to DIN3202-F1
Body assembly	DN		15	20	25	32	40	50	65	80	100
	L		130	150	150	180	200	230	290	310	350
	V	<300°C	114				105			156	181
		³300°C	170				167			248	267
	U		48	59	62	70	78	83	93	106	136
Actuator	ÆC	SA1	270
		SA2								400
	A	SA1	346							404
		SA2								489
	H	SA1	493							551
		SA2								651
	B		130							150
	Weight	SA1	20.5	22.5	23	24	31	33	41.5	70	93
		SA2								96	119

Note: Weight=Body assembly+Actuator ( without handwheel )

Table 6.2 Figure size(mm)&Weight (Kg) ( 1/2" ~ 4", ANSI150/300)

Flange ( ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF (IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
Body assembly	DN		1/2"	3/4"	1"	11/4"	11/2"	2"	2½"	3"	4"
	L CI.150	RF	178	181	184	200	222	254	276	298	352
	L CI.150	RFJ			197	213	235	267	289	311	365
	L CI.300	RF	190	194	197	213	235	267	292	317	368
	L CI.300	RFJ	202	206	210	225	248	282	308	333	384
	V	<300°C	114				105			156	181
	V	³300°C	170				167			248	267
	U		48	59	62	70	78	83	93	106	136
Actuator	ÆC	SA1	270
	ÆC	SA2								400
	A	SA1	346							404
	A	SA2								189
	H	SA1	493							551
	H	SA2								651
	B		130							150
	Weight	SA1	20.5	22.5	23	24	31	33	41.5	70	93
	Weight	SA2	96							119

Note: Weight=Body assembly+Actuator ( without handwhell )

Table 6.3 Figure size (mm)&Weight (Kg) ( DN150 ~ DN100, DIN PN16/25/40)

Body flange dimension is according to DIN 2543/2544/2545. The Face to face dimension is according to DIN3202-F1
Body assembly	DN		150	200	250	300	350	400
	L		480	600	730	850	980	1100
	V	<300°C	260	292	357	394	462	518
	V	³300°C	355	407	506	543	611	667
	U		189	239	305	335	395	443
	ÆC	SA2	400
	ÆC	SA3	596
	A	SA2	625
	A	SA3	840		1010			1080
Actuator	H	SA2	888
	B		200		340
	Weight	SA2	190	250
	Weight	SA3	330	390	450	750	840	1490

Note: Weight=Body assembly+Actuator ( without handwheel )

Table 6.4 Figure size(mm)&Weight (Kg) ( 6" ~ 16", ANSI150/300)

Flange ( ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF (IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
Body assembly	DN			6"	8"	10"	12"	14"	16"
	L CI.150	RF		451	543	673	737	889	1016
		RFJ		464	556	686	750	902	1029
	L CI.300	RF		473	568	708	775	927	1057
		RFJ		489	584	724	791	943	1073
	V	<300°C		260	292	357	394	462	518
		³300°C		355	407	506	543	611	667
	U			189	239	305	335	395	443
Actuator	ÆC	SA2		400
		SA3		596
	A	SA2		625
		SA3		840		1010			1080
	H	SA2		888
	B			200		340
	Weight		SA2	190	250	190
			SA3	330	390	450	750	840	1490

Note: Weight=Body asembly+Actuator ( without handwheel )

Ordering Information

Please specify the following information:

Type
Nominal size
Nominal pressure & end connection
Body & trim material, harden treatment request
Flow characteristic
Packing material ( code )
Actuator type, with handwheel or not & Air pressure supply
Action type ( Direct or Reverse )
Accessory ( with positioner & Air regulator or not )
Oil-free or Copper-free, etc.
Fluid Name & state ( liquid, gas, steam, etc. )
Pipeline size, wall thickness ( Inlet, outlet )
Flow, Max. flow & Min. flow
Flow pressure & Pressure differential
( Full open/close )
Flow temp., Gravity or Density
Inlet and outlet pressure
The Gravity & viscosity of fluid, with slurry, flashing or not
Used in high pressure, Temp., &EXP. Condition or not
Other special requests

Lưu ý

Sản phẩm Van điều khiển SGC được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!

Đánh giá sản phẩm của chúng tôi

Gửi ảnh
