SH6000 Series
SCW Perforated Plug Bellows Sealing Type
|
Based SGC structure, Sealing bellows are i.0en stem leakage can’t be tolerated at all (e.g. toxic fluids).
|
|
Valve Body
|
Type: Cast globe Valve
Nominal Size: DN15, 20, 25, 32, 40, 50, 65, 80, 100, 150,
200, 250, 300
Nominal Pressure: ANSI 150, 300
DIN PN16, 25, 40
JIS 10K, 20K 30K
GB PN1.6, 2.5, 4.0 MPa
End Connection: Flange ANSI B16.5 RF, RTJ
DIN2543/2544/2545 RF
JISB2201 RF
JB/T81 RF
JB/T82.2 FM
|
Weld ANSI B16.5 SW ( DN £ 50 ) ; BW ( DN > 50 )
Face to Face Dimension: ANSI150RF, JIS10K ( IEC60534-3-1 37 Series )
ANSI300RF, JIS20K, JIS30K ( IEC60534-3-1 38 Series )
ANSI150/300 RTJ ( ASME B16.10 CLASS 150/300RTJ )
DIN PN16, 25, 40 ( DIN3202-F1 )
GB PN1.6, 2.5, 4.0 MPa ( ISO5752 1 Series )
Please refer to table 6.1~6.4
Body Material: Please refer to table1 Please refer to figure 3 for Operated Temp.&Pressure Range
Bonnet Type: Bellows type·········-46°C ~ 350°C
Please pay attention to the different Temp.&Pressure Range of material
Packing Material: V-ring compound packing, graphite + PTFE,

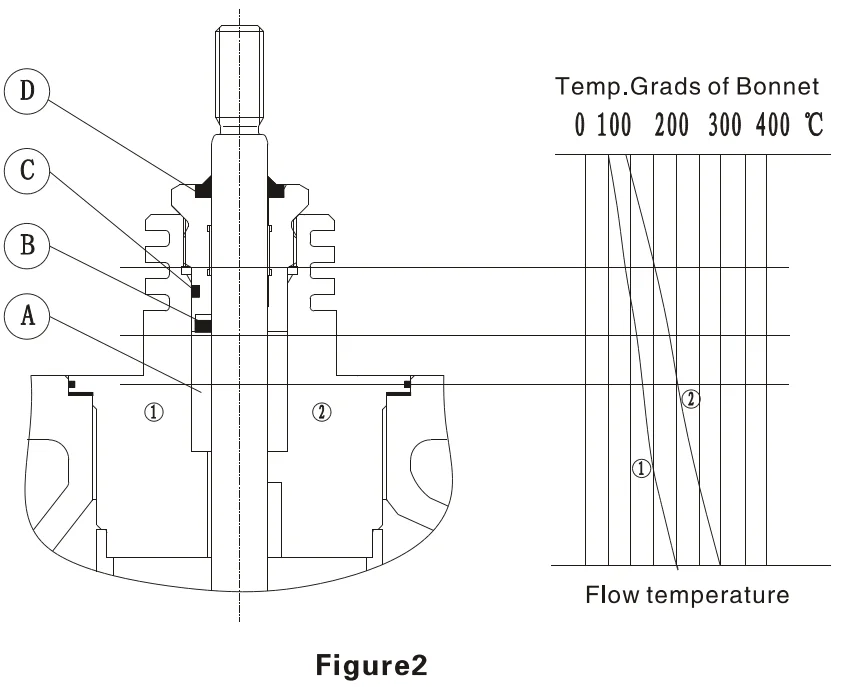

Operating Temp.&Pressure range is shown in table 2, figure2
Seal Gasket: Spiral wound gasket ( PTFE+316, Flexible Graphite+316 )
Graphite with metal gasket ( Graphite+316, Graphite+304 )
Valve Trim
Plug Type: Perforated cylinder plug
Flow Characteristic: EQ%, Linearity ( As shown in figure4 )
Trim Material: Plug 0Cr18Ni12Mo2Ti (316Ti) Nitriding Treatment Seat 0Cr18Ni12Mo2Ti (316Ti)
Bellows Material: 0Cr18Ni12Mo2Ti (316Ti)
Actuator
Type: Multi-spring diaphragm
Air Supply: Max. 6bar
Ambient Temp.: -20°C+80°C
Spring range: As shown in Table 5.1 ~ 5.4
Air Connection: G1/8 ( SA1 ) ; G1/4 ( SA2 ) ; G3/4 ( SA3 )
STD Specification: As shown in Table 5.1 ~ 5.4
|
Accessory
Positioner, Filter-regulator valve, Solenoid valve, Limit switch, Valve position
Transmitter, Booster relay, Lock-valve, Handwheel, etc.
Action
Air to open, Air to close
Performance
Rangeability: 50:1
Seat leakage: Metal seal is according to ANSI B16.104 ClassIV, Class V
Hysteresis: 3% ( Without Positioner ) 1% ( With Positioner )
Linearity: ± 5% ( Without Positioner ) ±1% ( With Positioner )
Rated CV: As shown in table 4
Allowable pressure differential: As shown in table 5.1~5.4

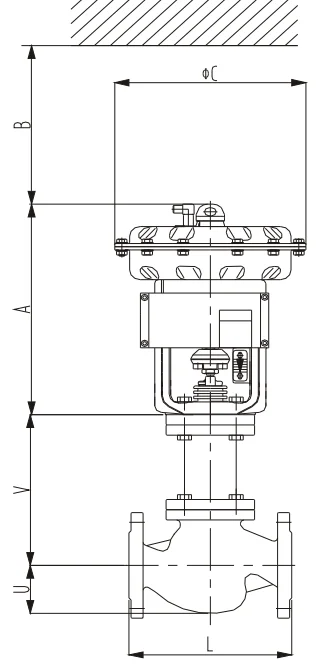

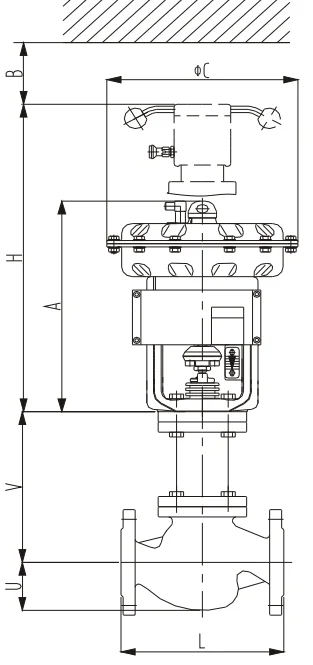

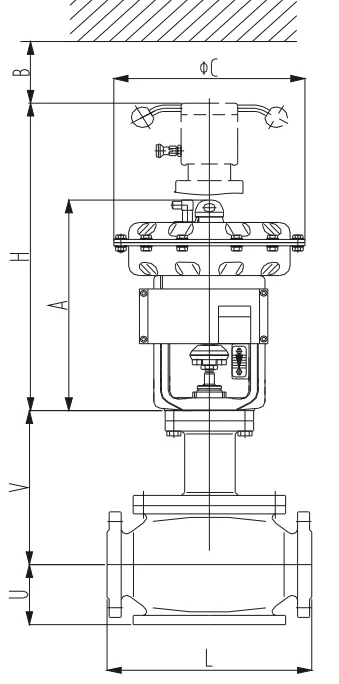

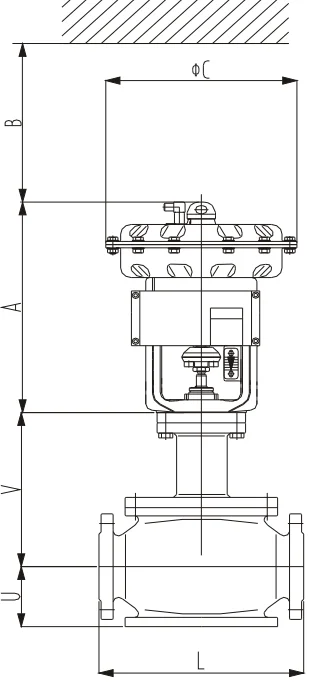

Figure Size: As shown in figure5.1, 5.2, table 6.1~6.4
Weight of product: As shown in table 6.1~6.4
Performance
Special inspection
Flow characteristic test, material test, low temperature test, steam test, non-damages test
- copper-free treatment
- non-standard painting
- dust and sand proof
- vacuum service
- tropical area proof
- completely oi-free, water-free treatment
- special air piping and fitting
- strong corrosion proof
- stainless steel bolt and nut for exposed parts
- cold area proof

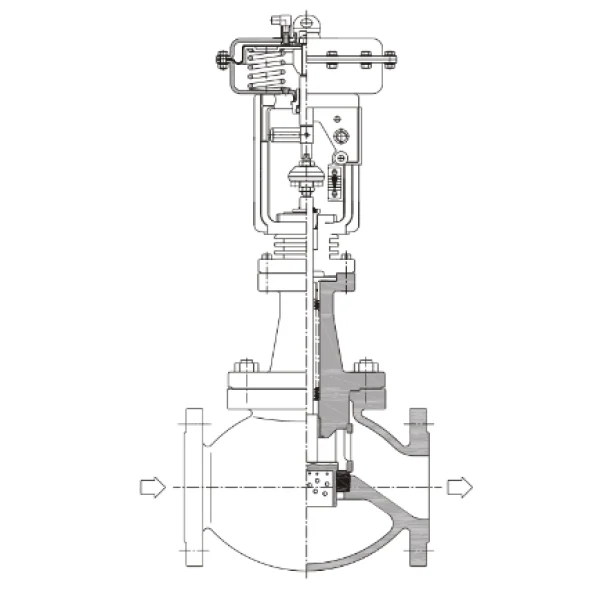

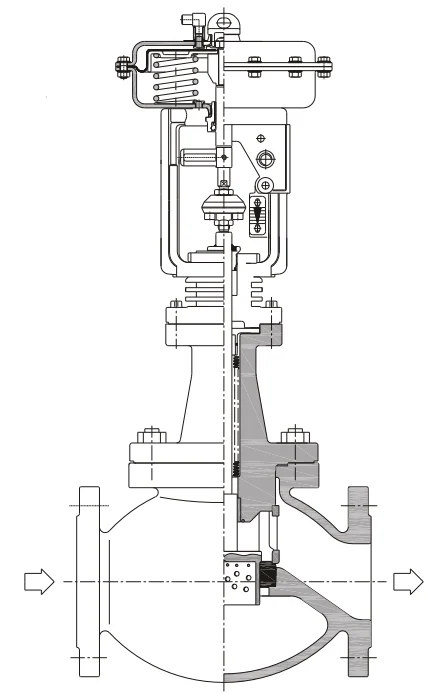

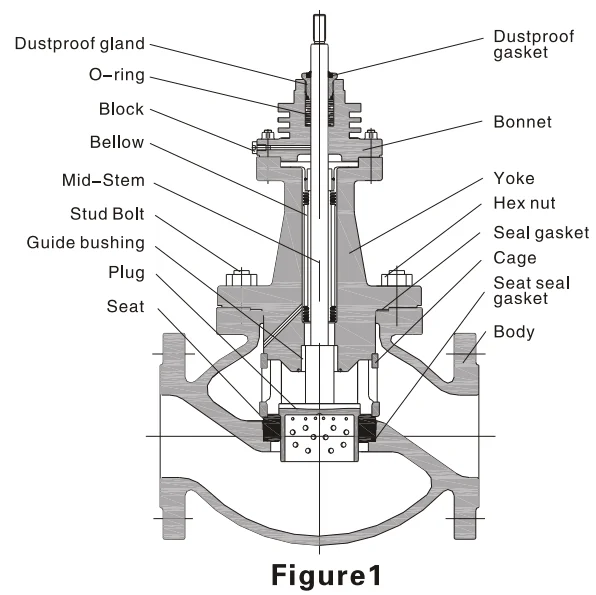

Body Assembly Structure ( As shown in figure 1 )
|
Performance
- Both faces of valve seat can be used to improve service life
- Quickly disassembly and installation without any special tools
- Good price performance
- Optimize flow of cage
- Various of materials are available
- Maintenance-free for packing
- Packing stuffing box is wear resistance and corrosion resistance
|
|
Table 1 Body material
GB
|
ANSI
|
DIN
|
Temp.Range
|
ZG230-450 WCB
|
A216 WCB ( ASTM )
|
1.0619 GP240GH
|
-10°C ~ 400°C
|
ZG0Cr18Ni9
|
A351 CF8 ( ASTM )
|
1.4308 G-X6CrNi18 9
|
-200°C ~ 530°C
|
ZG0Cr18Ni12Mo2Ti
|
A351 CF8M ( ASTM )
|
1.4408 G-X6CrNiMoNb18 10
|
-200°C ~ 530°C
|
ZG0Cr18Ni12Mo2Nb
|
-
|
1.4581 G-X5CrNiMo18 10
|
-200°C ~ 530°C
|
|
A217 WC6 ( ASTM )
|
1.7357 GS-17CrMo5 5
|
-10°C ~ 450°C
|
|
A217 WC9 ( ASTM )
|
1.7379 GS-18CrMo9 10
|
-10°C ~ 450°C
|
|
Table 2 Applicable Temp.&Pressure range of packing material
Type of material
( Shown in A )
|
Code
|
Seal material
( Shown in B )
|
O-ring material
( Shown in C )
|
Dustproof ring
( Shown in D )
|
Temp.Range
|
Bonnet
Type
|
Remarks
|
PTFE
V type packing
|
1
|
EPDM
|
EPDM
|
NBR
|
-25°C ~ 180°C
|
Bellow
|
( Alter-
nate
load )
with
compress
spring
|
2
|
VITON
|
VITON
|
-25°C ~ 200°C
|
|
Graphite+PTFE
|
6
|
-
|
-
|
NBR
|
-196°C ~ 200°C
|
Bellow
|
High Temp. occasion
|
Note: please choose the most related Temp.Range
|
ASME B16.35 150/300
Temp.
|
ASME
B16.34/B16.35
|
|
ASME B16.34 600/900/1500
Temp.
|
DIN EN 1092-1 PN16, PN25, PN40
Temp.
|
DIN EN
1092-1
|
|
DIN EN 1092-1 PN63, PN100, PN160, PN250
Temp.
|

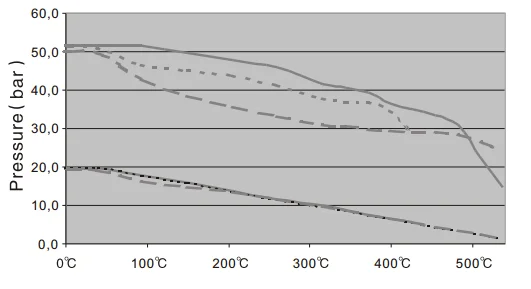

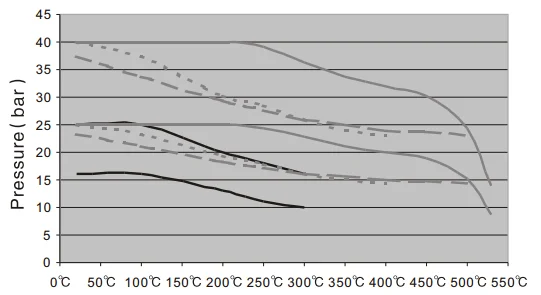

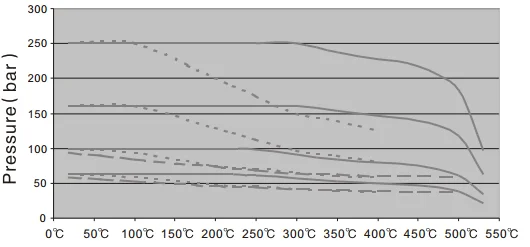

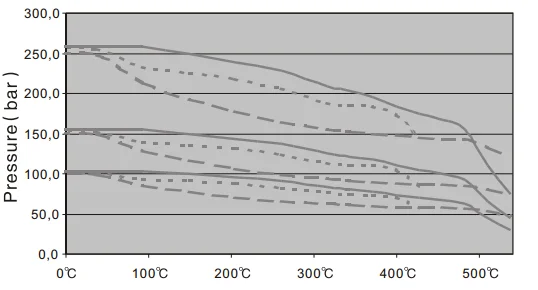

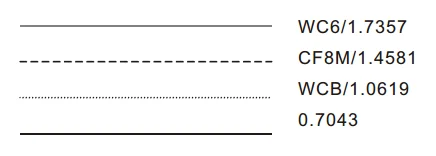

Figure3 Temp.&Pressure curve
|
Table 3 STD Material Assembly, Operated Temp.&Pressure Range of Trim
Perforated cylinder plug
|
Seat
|
Type of seat seal
|
Temp.
|
0Cr18Ni12Mo2Ti ( 1.4571 )
|
0Cr18Ni12Mo2Ti ( 1.4571 )
|
Metal seal
|
-196°C~530°C
|
0Cr18Ni12Mo2Ti ( 1.4571 )
|
0Cr18Ni12Mo2Ti ( 1.4571 )
|
PTFE/EPDM
|
-46°C~140°C
|
|
Harden treatment: Hard chrome plated, Stellite surface, Heat treatment, Nitriding treatment, Spray tungsten carbide, etc.
|
Table4 Rated Cv.
Seat type
|
Perforated cylinder plug
|
Flow characteristic
|
Linearity
|
EQ%
|
Nominal size
(DN)
|
Travel
|
Cv1
|
Cv2
|
Cv3
|
Cv1
|
Cv2
|
Cv3
|
15
|
20
|
2.9
|
|
|
2.9
|
|
|
20
|
2.9
|
2.9
|
25
|
7.3
|
2.9
|
4.7
|
2.9
|
32
|
7.3
|
2.9
|
4.7
|
2.9
|
40
|
19
|
11.5
|
7.3
|
19
|
11.5
|
7.3
|
50
|
29
|
19
|
11.5
|
2.9
|
19
|
11.5
|
65
|
46
|
29
|
19
|
2.9
|
19
|
11.5
|
80
|
30
|
116
|
73
|
46
|
64
|
46
|
29
|
100
|
139
|
116
|
73
|
73
|
64
|
46
|
150
|
60
|
445
|
304
|
198
|
246
|
176
|
146
|
200
|
527
|
445
|
304
|
304
|
246
|
176
|
250
|
100
|
1053
|
761
|
445
|
608
|
445
|
375
|
300
|
1521
|
1053
|
761
|
842
|
608
|
445
|
350
|
|
400
|
|
|
|

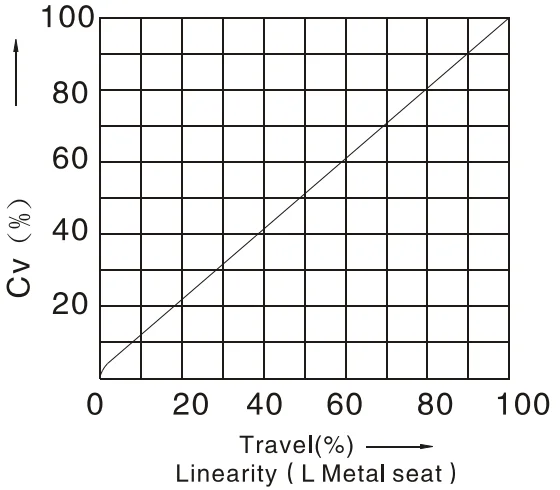

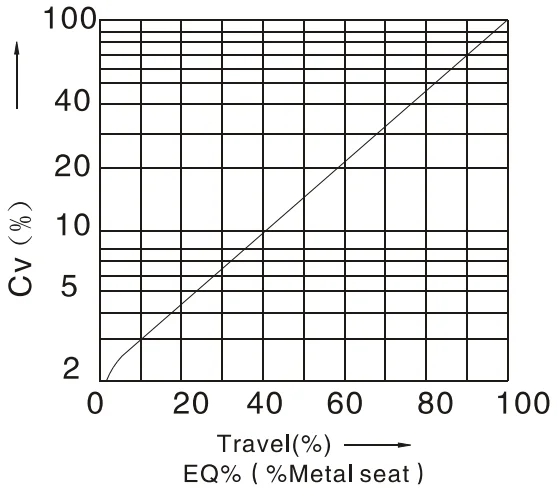

Figure 4 Flow characteristic curve
|
Table 5.1 Allowable pressure differential ( Leakage class IV PTFE packing )
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
15
1/2"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
20
3/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
25
1"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
32.8
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
4.7
|
25
|
32.8
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
32
1 1/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
32.8
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
4.7
|
25
|
32.8
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
40
1 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
19
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
11.5
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
7.3
|
25
|
32.7
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50
2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
29
|
46
|
7.7
|
22.1
|
-
|
-
|
22.1
|
50.0
|
50.0
|
22.1
|
50.0
|
19
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
11.5
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
7.3
|
25
|
21.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
65
2 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
46
|
50
|
6.2
|
18.4
|
-
|
-
|
18.4
|
42.9
|
50.0
|
18.4
|
42.9
|
29
|
46
|
7.7
|
22.1
|
-
|
-
|
22.1
|
50.0
|
50.0
|
22.1
|
50.0
|
19
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
11.5
|
36
|
14.1
|
37.7
|
-
|
-
|
37.7
|
50.0
|
50.0
|
37.7
|
50.0
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
116
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
73
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
64
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
46%
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
64L
|
50
|
5.7
|
17.9
|
-
|
-
|
17.9
|
42.4
|
50.0
|
17.9
|
42.4
|
29
|
46
|
7.1
|
21.5
|
-
|
-
|
21.5
|
50.0
|
50.0
|
21.5
|
50.0
|
-1XX
720cm2 (111in2)
|
116
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
73
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
64
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
46%
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
64L
|
50
|
18.9
|
44.4
|
50.0
|
50.0
|
48.5
|
50.0
|
50.0
|
48.5
|
50.0
|
29
|
46
|
22.7
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
139
|
100
|
0.4
|
3.5
|
-
|
-
|
3.5
|
9.6
|
15.7
|
3.5
|
9.6
|
73%
|
100
|
0.4
|
3.5
|
-
|
-
|
3.5
|
9.6
|
15.7
|
3.5
|
9.6
|
116
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
73L
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
64
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
46
|
80
|
1.3
|
6.1
|
-
|
-
|
6.1
|
15.6
|
25.2
|
6.1
|
15.6
|
-1XX
720cm2 (111in2)
|
139
|
100
|
3.7
|
10.1
|
13.9
|
17.7
|
11.1
|
24.9
|
38.6
|
11.1
|
24.9
|
73%
|
100
|
3.7
|
10.1
|
13.9
|
17.7
|
11.1
|
24.9
|
38.6
|
11.1
|
24.9
|
116
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
73L
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
64
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
46
|
80
|
6.5
|
16.4
|
22.4
|
28.4
|
18.0
|
39.5
|
50.0
|
18.0
|
39.5
|
|
Continued Table 5.1
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
1.7
|
5.2
|
7.3
|
9.4
|
5.7
|
13.3
|
20.8
|
5.7
|
13.3
|
246
|
143
|
1.7
|
5.2
|
7.3
|
9.4
|
5.7
|
13.3
|
20.8
|
5.7
|
13.3
|
304
|
113
|
2.6
|
7.4
|
10.3
|
13.2
|
8.2
|
18.6
|
29.0
|
8.2
|
18.6
|
176
|
113
|
2.6
|
7.4
|
10.3
|
13.2
|
8.2
|
18.6
|
29.0
|
8.2
|
18.6
|
198
|
90
|
4.9
|
12.7
|
17.4
|
22.2
|
14.0
|
31.0
|
47.9
|
14.0
|
31.0
|
146
|
90
|
4.9
|
12.7
|
17.4
|
22.2
|
14.0
|
31.0
|
47.9
|
14.0
|
31.0
|
60
|
-2XX
720cm2 (111in2)
|
527
|
172
|
0.7
|
2.6
|
3.8
|
5.0
|
2.9
|
7.2
|
11.4
|
2.9
|
7.2
|
304%
|
172
|
0.7
|
2.6
|
3.8
|
5.0
|
2.9
|
7.2
|
11.4
|
2.9
|
7.2
|
445
|
143
|
1.7
|
5.2
|
7.3
|
9.4
|
5.7
|
13.3
|
20.8
|
5.7
|
13.3
|
246
|
143
|
1.7
|
5.2
|
7.3
|
9.4
|
5.7
|
13.3
|
20.8
|
5.7
|
13.3
|
304L
|
113
|
2.6
|
7.4
|
10.3
|
13.2
|
8.2
|
18.6
|
29.0
|
8.2
|
18.6
|
176
|
113
|
2.6
|
7.4
|
10.3
|
13.2
|
8.2
|
18.6
|
29.0
|
8.2
|
18.6
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
150
6"
|
60
|
-1XX
1600cm2 (248in2)
|
445
|
143
|
12.1
|
19.1
|
26.1
|
27.2
|
46.7
|
50.0
|
37.0
|
50.0
|
246
|
143
|
12.1
|
19.1
|
26.1
|
27.2
|
46.7
|
50.0
|
37.0
|
50.0
|
304
|
113
|
17.0
|
26.7
|
36.3
|
37.8
|
50.0
|
50.0
|
50.0
|
50.0
|
176
|
113
|
17.0
|
26.7
|
36.3
|
37.8
|
50.0
|
50.0
|
50.0
|
50.0
|
198
|
90
|
28.4
|
44.2
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
146
|
90
|
28.4
|
44.2
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
200
8"
|
60
|
-1XX
1600cm2 (248in2)
|
527
|
172
|
6.6
|
10.5
|
14.4
|
15.0
|
26.7
|
36.8
|
20.5
|
31.3
|
304%
|
172
|
6.6
|
10.5
|
14.4
|
15.0
|
26.7
|
36.8
|
20.5
|
31.3
|
445
|
143
|
12.1
|
19.1
|
26.1
|
27.2
|
46.7
|
50.0
|
37.0
|
50.0
|
246
|
143
|
12.1
|
19.1
|
26.1
|
27.2
|
46.7
|
50.0
|
37.0
|
50.0
|
304L
|
113
|
17.0
|
26.7
|
36.3
|
37.8
|
50.0
|
50.0
|
50.0
|
50.0
|
176
|
113
|
17.0
|
26.7
|
36.3
|
37.8
|
50.0
|
50.0
|
50.0
|
50.0
|
250
10"
|
100
|
-2XX
1600cm2 (248in2)
|
1053
|
220
|
3.9
|
6.4
|
8.7
|
7.4
|
13.9
|
20.4
|
9.4
|
16.0
|
608
|
220
|
3.9
|
6.4
|
8.7
|
7.4
|
13.9
|
20.4
|
9.4
|
16.0
|
761
|
172
|
6.0
|
9.7
|
13.3
|
11.3
|
20.9
|
30.8
|
14.3
|
24.1
|
445%
|
172
|
6.0
|
9.7
|
13.3
|
11.3
|
20.9
|
30.8
|
14.3
|
24.1
|
445L
|
143
|
11.2
|
17.8
|
24.1
|
20.6
|
37.7
|
50.0
|
25.8
|
43.3
|
375
|
143
|
11.2
|
17.8
|
24.1
|
20.6
|
37.7
|
50.0
|
25.8
|
43.3
|
300
12"
|
100
|
-2XX
1600cm2 (248in2)
|
1521
|
282
|
2.5
|
4.3
|
5.9
|
5.0
|
9.4
|
14.0
|
6.3
|
10.9
|
842
|
282
|
2.5
|
4.3
|
5.9
|
5.0
|
9.4
|
14.0
|
6.3
|
10.9
|
1053
|
220
|
3.9
|
6.4
|
8.7
|
7.4
|
13.9
|
20.4
|
9.4
|
16.0
|
608
|
220
|
3.9
|
6.4
|
8.7
|
7.4
|
13.9
|
20.4
|
9.4
|
16.0
|
761
|
172
|
6.0
|
9.7
|
13.3
|
11.3
|
20.9
|
30.8
|
14.3
|
24.1
|
445
|
172
|
6.0
|
9.7
|
13.3
|
11.3
|
20.9
|
30.8
|
14.3
|
24.1
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
Table 5.2 Allowable pressure differential ( Leakage class IV Graphite packing )
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
15
1/2"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
20
3/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
25
1"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
20.5
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
4.7
|
25
|
20.5
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
32
1 1/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
20.5
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
4.7
|
25
|
20.5
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
40
1 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
19
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
11.5
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
7.3
|
25
|
20.5
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50
2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
29
|
46
|
4.1
|
18.5
|
-
|
-
|
18.5
|
47.4
|
50.0
|
18.5
|
47.4
|
19
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
11.5
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
7.3
|
25
|
13.1
|
47.1
|
-
|
-
|
47.1
|
50.0
|
50.0
|
47.1
|
50.0
|
65
2 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
46
|
50
|
3.1
|
15.4
|
-
|
-
|
15.4
|
39.8
|
50.0
|
15.4
|
39.8
|
29
|
46
|
4.1
|
18.5
|
-
|
-
|
18.5
|
47.4
|
50.0
|
18.5
|
47.4
|
19
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
11.5
|
36
|
8.2
|
31.8
|
-
|
-
|
31.8
|
50.0
|
50.0
|
31.8
|
50.0
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
116
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
73
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
64
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
46%
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
64L
|
50
|
2.1
|
14.3
|
-
|
-
|
14.3
|
38.8
|
50.0
|
14.3
|
38.8
|
29
|
46
|
2.9
|
17.3
|
-
|
-
|
17.3
|
46.2
|
50.0
|
17.3
|
46.2
|
-1XX
720cm2 (111in2)
|
116
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
15.0
|
38.1
|
50.0
|
15.0
|
38.1
|
73
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
15.0
|
38.1
|
50.0
|
15.0
|
38.1
|
64
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
15.0
|
38.1
|
50.0
|
15.0
|
38.1
|
46%
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
15.0
|
38.1
|
50.0
|
15.0
|
38.1
|
64L
|
50
|
15.4
|
40.8
|
50.0
|
50.0
|
40.8
|
50.0
|
50.0
|
40.8
|
50.0
|
29
|
46
|
18.5
|
18.6
|
50.0
|
50.0
|
18.6
|
50.0
|
50.0
|
18.6
|
50.0
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
139
|
100
|
-
|
2.6
|
-
|
-
|
2.6
|
8.7
|
14.8
|
2.6
|
8.7
|
73%
|
100
|
-
|
2.6
|
-
|
-
|
2.6
|
8.7
|
14.8
|
2.6
|
8.7
|
116
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
73L
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
64
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
46
|
80
|
-
|
4.7
|
-
|
-
|
4.7
|
14.2
|
23.8
|
4.7
|
14.2
|
-1XX
720cm2 (111in2)
|
139
|
100
|
2.8
|
9.2
|
13.0
|
16.9
|
10.2
|
24.0
|
50.0
|
10.2
|
24.0
|
73%
|
100
|
2.8
|
9.2
|
13.0
|
16.9
|
10.2
|
24.0
|
50.0
|
10.2
|
24.0
|
116
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
16.6
|
38.1
|
50.0
|
16.6
|
38.1
|
73L
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
16.6
|
38.1
|
50.0
|
16.6
|
38.1
|
64
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
16.6
|
38.1
|
50.0
|
16.6
|
38.1
|
46
|
80
|
5.1
|
15.0
|
21.0
|
27.0
|
16.6
|
38.1
|
50.0
|
16.6
|
38.1
|
|
Continued Table 5.2
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
1.2
|
4.7
|
6.8
|
8.9
|
5.2
|
12.8
|
20.3
|
5.2
|
12.8
|
246
|
143
|
1.2
|
4.7
|
6.8
|
8.9
|
5.2
|
12.8
|
20.3
|
5.2
|
12.8
|
304
|
113
|
1.9
|
6.7
|
9.6
|
12.5
|
7.5
|
17.9
|
28.3
|
7.5
|
17.9
|
176
|
113
|
1.9
|
6.7
|
9.6
|
12.5
|
7.5
|
17.9
|
28.3
|
7.5
|
17.9
|
198
|
90
|
3.8
|
11.6
|
16.3
|
21.1
|
12.9
|
29.9
|
46.8
|
12.9
|
29.9
|
146
|
90
|
3.8
|
11.6
|
16.3
|
21.1
|
12.9
|
29.9
|
46.8
|
12.9
|
29.9
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
527
|
172
|
0.4
|
2.3
|
3.5
|
4.7
|
2.7
|
6.9
|
11.2
|
2.7
|
6.9
|
304%
|
172
|
0.4
|
2.3
|
3.5
|
4.7
|
2.7
|
6.9
|
11.2
|
2.7
|
6.9
|
445
|
143
|
1.2
|
4.7
|
6.8
|
8.9
|
5.2
|
12.8
|
20.3
|
5.2
|
12.8
|
246
|
143
|
1.2
|
4.7
|
6.8
|
8.9
|
5.2
|
12.8
|
20.3
|
5.2
|
12.8
|
304L
|
113
|
1.9
|
6.7
|
9.6
|
12.5
|
7.5
|
17.9
|
28.3
|
7.5
|
17.9
|
176
|
113
|
1.9
|
6.7
|
9.6
|
12.5
|
7.5
|
17.9
|
28.3
|
7.5
|
17.9
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
150
6"
|
60
|
-2XX
1600cm2 (248in2)
|
445
|
143
|
11.7
|
18.6
|
25.6
|
27.7
|
46.3
|
50.0
|
36.5
|
50.0
|
246
|
143
|
11.7
|
18.6
|
25.6
|
27.7
|
46.3
|
50.0
|
36.5
|
50.0
|
304
|
113
|
16.4
|
26.0
|
35.6
|
37.1
|
50.0
|
50.0
|
50.0
|
50.0
|
176
|
113
|
16.4
|
26.0
|
35.6
|
37.1
|
50.0
|
50.0
|
50.0
|
50.0
|
198
|
90
|
27.3
|
43.1
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
146
|
90
|
27.3
|
43.1
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
200
8"
|
60
|
-2XX
1600cm2 (248in2)
|
527
|
172
|
6.3
|
10.2
|
14.1
|
14.7
|
25.7
|
36.6
|
20.2
|
31.1
|
304%
|
172
|
6.3
|
10.2
|
14.1
|
14.7
|
25.7
|
36.6
|
20.2
|
31.1
|
445
|
143
|
11.7
|
18.6
|
25.6
|
26.7
|
46.3
|
50.0
|
36.5
|
50.0
|
246
|
143
|
11.7
|
18.6
|
25.6
|
26.7
|
46.3
|
50.0
|
36.5
|
50.0
|
304L
|
113
|
16.4
|
26.0
|
35.6
|
37.1
|
50.0
|
50.0
|
50.0
|
50.0
|
176
|
113
|
16.4
|
26.0
|
35.6
|
37.1
|
50.0
|
50.0
|
50.0
|
50.0
|
250
10"
|
100
|
-2XX
1600cm2 (248in2)
|
1053
|
220
|
3.6
|
6.1
|
8.4
|
7.1
|
13.6
|
20.1
|
9.1
|
15.7
|
608
|
220
|
3.6
|
6.1
|
8.4
|
7.1
|
13.6
|
20.1
|
9.1
|
15.7
|
761
|
172
|
5.6
|
9.3
|
12.8
|
10.9
|
20.5
|
30.3
|
13.8
|
23.7
|
445%
|
172
|
5.6
|
9.3
|
12.8
|
10.9
|
20.5
|
30.3
|
13.8
|
23.7
|
445L
|
143
|
10.4
|
17.0
|
23.3
|
19.8
|
37.0
|
50.0
|
25.1
|
42.6
|
375
|
143
|
10.4
|
17.0
|
23.3
|
19.8
|
37.0
|
50.0
|
25.1
|
42.6
|
300
12"
|
100
|
-2XX
1600cm2 (248in2)
|
1521
|
282
|
2.3
|
4.1
|
5.7
|
4.8
|
9.2
|
13.8
|
6.1
|
10.7
|
842
|
282
|
2.3
|
4.1
|
5.7
|
4.8
|
9.2
|
13.8
|
6.1
|
10.7
|
1053
|
220
|
3.6
|
6.1
|
8.4
|
7.1
|
13.6
|
20.1
|
9.1
|
15.7
|
608
|
220
|
3.6
|
6.1
|
8.4
|
7.1
|
13.6
|
20.1
|
9.1
|
15.7
|
761
|
172
|
5.6
|
9.3
|
12.8
|
10.9
|
20.5
|
30.3
|
13.8
|
23.7
|
445
|
172
|
5.6
|
9.3
|
12.8
|
10.9
|
20.5
|
30.3
|
13.8
|
23.7
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
Table 5.3 Allowable pressure differential ( Leakage class IV PTFE packing )
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
15
1/2"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
46.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
20
3/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
46.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
25
1"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
0.8
|
49.7
|
-
|
-
|
49.7
|
50.0
|
50.0
|
49.7
|
50.0
|
4.7
|
25
|
0.8
|
49.7
|
-
|
-
|
49.7
|
50.0
|
50.0
|
49.7
|
50.0
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
32
1 1/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
0.8
|
49.7
|
-
|
-
|
49.7
|
50.0
|
50.0
|
49.7
|
50.0
|
4.7
|
25
|
0.8
|
49.7
|
-
|
-
|
49.7
|
50.0
|
50.0
|
49.7
|
50.0
|
2.9
|
20
|
50.0
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
40
1 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
19
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
11.5
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
7.3
|
25
|
0.8
|
49.7
|
-
|
-
|
49.7
|
50.0
|
50.0
|
49.7
|
50.0
|
50
2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
29
|
46
|
-
|
4.7
|
-
|
-
|
4.7
|
33.6
|
50.0
|
4.7
|
33.6
|
19
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
11.5
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
7.3
|
25
|
-
|
28.9
|
-
|
-
|
28.9
|
50.0
|
50.0
|
28.9
|
50.0
|
65
2 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
46
|
50
|
-
|
2.4
|
-
|
-
|
2.4
|
26.9
|
50.0
|
2.4
|
26.9
|
29
|
46
|
-
|
4.7
|
-
|
-
|
4.7
|
33.6
|
50.0
|
4.7
|
33.6
|
19
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
11.5
|
36
|
-
|
15.5
|
-
|
-
|
15.5
|
50.0
|
50.0
|
15.5
|
50.0
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
116
|
80
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
-
|
73
|
80
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
-
|
64
|
80
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
-
|
46%
|
80
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
-
|
64L
|
50
|
-
|
1.9
|
-
|
-
|
1.9
|
26.4
|
50.0
|
1.9
|
26.4
|
29
|
46
|
-
|
4.1
|
-
|
-
|
4.1
|
33.0
|
50.0
|
4.1
|
33.0
|
-1XX
720cm2 (111in2)
|
116
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
73
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
64
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
46%
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
64L
|
50
|
2.9
|
28.4
|
43.7
|
50.0
|
32.5
|
50.0
|
50.0
|
32.5
|
50.0
|
29
|
46
|
5.4
|
35.5
|
50.0
|
50.0
|
40.3
|
50.0
|
50.0
|
40.3
|
50.0
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
139
|
100
|
-
|
-
|
-
|
-
|
-
|
1.6
|
7.7
|
-
|
1.6
|
73%
|
100
|
-
|
-
|
-
|
-
|
-
|
1.6
|
7.7
|
-
|
1.6
|
116
|
80
|
-
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
73L
|
80
|
-
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
64
|
80
|
-
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
46
|
80
|
-
|
-
|
-
|
-
|
-
|
5.6
|
15.2
|
-
|
5.6
|
-1XX
720cm2 (111in2)
|
139
|
100
|
-
|
2.1
|
5.9
|
9.7
|
3.1
|
16.9
|
30.6
|
3.1
|
16.9
|
73%
|
100
|
-
|
2.1
|
5.9
|
9.7
|
3.1
|
16.9
|
30.6
|
3.1
|
16.9
|
116
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
73L
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
64
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
46
|
80
|
-
|
6.4
|
12.4
|
18.4
|
8.0
|
29.5
|
50.0
|
8.0
|
29.5
|
|
Continued Table 5.3
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
-
|
-
|
1.3
|
3.4
|
-
|
7.3
|
14.9
|
-
|
7.3
|
246
|
143
|
-
|
-
|
1.3
|
3.4
|
-
|
7.3
|
14.9
|
-
|
7.3
|
304
|
113
|
-
|
0.5
|
3.3
|
6.2
|
1.2
|
11.6
|
22.0
|
1.2
|
11.6
|
176
|
113
|
-
|
0.5
|
3.3
|
6.2
|
1.2
|
11.6
|
22.0
|
1.2
|
11.6
|
198
|
90
|
-
|
3.8
|
8.5
|
13.3
|
5.1
|
22.1
|
39.1
|
5.1
|
22.1
|
146
|
90
|
-
|
3.8
|
8.5
|
13.3
|
5.1
|
22.1
|
39.1
|
5.1
|
22.1
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
527
|
172
|
-
|
-
|
-
|
0.5
|
-
|
2.7
|
7.0
|
-
|
2.7
|
304%
|
172
|
-
|
-
|
-
|
0.5
|
-
|
2.7
|
7.0
|
-
|
2.7
|
445
|
143
|
-
|
-
|
1.3
|
3.4
|
-
|
7.3
|
14.9
|
-
|
7.3
|
246
|
143
|
-
|
-
|
1.3
|
3.4
|
-
|
7.3
|
14.9
|
-
|
7.3
|
304L
|
113
|
-
|
0.5
|
3.3
|
6.2
|
1.2
|
11.6
|
22.0
|
1.2
|
11.6
|
176
|
113
|
-
|
0.5
|
3.3
|
6.2
|
1.2
|
11.6
|
22.0
|
1.2
|
11.6
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
150
6"
|
60
|
-2XX
1600cm2 (248in2)
|
445
|
143
|
6.2
|
13.2
|
20.2
|
21.3
|
40.8
|
50.0
|
31.0
|
50.0
|
246
|
143
|
6.2
|
13.2
|
20.2
|
21.3
|
40.8
|
50.0
|
31.0
|
50.0
|
304
|
113
|
10.1
|
19.7
|
29.4
|
30.8
|
50.0
|
50.0
|
44.3
|
50.0
|
176
|
113
|
10.1
|
19.7
|
29.4
|
30.8
|
50.0
|
50.0
|
44.3
|
50.0
|
198
|
90
|
19.6
|
35.3
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
146
|
90
|
19.6
|
35.3
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
200
8"
|
60
|
-2XX
1600cm2 (248in2)
|
527
|
172
|
2.1
|
6.0
|
10.0
|
10.6
|
21.6
|
32.4
|
16.1
|
26.9
|
304%
|
172
|
2.1
|
6.0
|
10.0
|
10.6
|
21.6
|
32.4
|
16.1
|
26.9
|
445
|
143
|
6.2
|
13.2
|
20.2
|
21.3
|
40.8
|
50.0
|
31.0
|
50.0
|
246
|
143
|
6.2
|
13.2
|
20.2
|
21.3
|
40.8
|
50.0
|
31.0
|
50.0
|
304L
|
113
|
10.1
|
19.7
|
29.4
|
30.8
|
50.0
|
50.0
|
44.3
|
50.0
|
176
|
113
|
10.1
|
19.7
|
29.4
|
30.8
|
50.0
|
50.0
|
44.3
|
50.0
|
250
10"
|
100
|
-2XX
1600cm2 (248in2)
|
1053
|
220
|
0.2
|
2.7
|
5.1
|
3.8
|
10.2
|
16.8
|
5.7
|
12.3
|
608
|
220
|
0.2
|
2.7
|
5.1
|
3.8
|
10.2
|
16.8
|
5.7
|
12.3
|
761
|
172
|
1.6
|
5.3
|
8.8
|
6.9
|
16.5
|
26.3
|
9.8
|
19.6
|
445%
|
172
|
1.6
|
5.3
|
8.8
|
6.9
|
16.5
|
26.3
|
9.8
|
19.6
|
445L
|
143
|
5.2
|
11.9
|
18.2
|
14.7
|
31.8
|
49.3
|
19.9
|
37.4
|
375
|
143
|
5.2
|
11.9
|
18.2
|
14.7
|
31.8
|
49.3
|
19.9
|
37.4
|
300
12"
|
100
|
-2XX
1600cm2 (248in2)
|
1521
|
282
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
842
|
282
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
1053
|
220
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
608
|
220
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
761
|
172
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
445
|
172
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
Table 5.4 Allowable pressure differential ( Leakage class IV Graphite packing )
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
15
1/2"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
12.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
20
3/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
2.9
|
20
|
12.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
25
1"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
-
|
37.5
|
-
|
-
|
37.5
|
50.0
|
50.0
|
37.5
|
50.0
|
4.7
|
25
|
-
|
37.5
|
-
|
-
|
37.5
|
50.0
|
50.0
|
37.5
|
50.0
|
2.9
|
20
|
12.6
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
32
1 1/4"
|
20
|
-1Ö(6)XX
320cm2 (50in2)
|
7.3
|
25
|
-
|
37.5
|
-
|
-
|
37.5
|
50.0
|
50.0
|
37.5
|
50.0
|
4.7
|
25
|
-
|
37.5
|
-
|
-
|
37.5
|
50.0
|
50.0
|
37.5
|
50.0
|
2.9
|
20
|
-
|
50.0
|
-
|
-
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
40
1 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
19
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
11.5
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
7.3
|
25
|
37.5
|
-
|
-
|
37.5
|
50.0
|
50.0
|
37.5
|
50.0
|
37.5
|
50
2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
29
|
46
|
-
|
1.1
|
-
|
-
|
1.1
|
30.0
|
50.0
|
1.1
|
30.0
|
19
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
11.5
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
7.3
|
25
|
-
|
20.5
|
-
|
-
|
20.5
|
50.0
|
50.0
|
20.5
|
50.0
|
65
2 1/2"
|
20
|
-2Ö(3)XX
320cm2 (50in2)
|
46
|
50
|
-
|
-
|
-
|
-
|
-
|
23.8
|
48.3
|
-
|
23.8
|
29
|
46
|
-
|
1.1
|
-
|
-
|
1.1
|
30.0
|
50.0
|
1.1
|
30.0
|
19
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
11.5
|
36
|
-
|
9.6
|
-
|
-
|
9.6
|
50.0
|
50.0
|
9.6
|
50.0
|
80
3"
|
30
|
-5XX
320cm2 (50in2)
|
116
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
73
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
64
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
46%
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
64L
|
50
|
-
|
-
|
-
|
-
|
-
|
22.8
|
47.3
|
-
|
22.8
|
29
|
46
|
-
|
-
|
-
|
-
|
-
|
28.8
|
50.0
|
-
|
28.8
|
-1XX
720cm2 (111in2)
|
116
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
50.0
|
6.6
|
28.1
|
73
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
50.0
|
6.6
|
28.1
|
64
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
50.0
|
6.6
|
28.1
|
46%
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
50.0
|
6.6
|
28.1
|
64L
|
50
|
-
|
24.8
|
40.1
|
50.0
|
28.9
|
50.0
|
50.0
|
28.9
|
50.0
|
29
|
46
|
1.1
|
31.2
|
49.3
|
50.0
|
36.1
|
50.0
|
50.0
|
36.1
|
50.0
|
100
4"
|
30
|
-5XX
320cm2 (50in2)
|
139
|
100
|
-
|
-
|
-
|
-
|
-
|
0.7
|
6.8
|
-
|
0.7
|
73%
|
100
|
-
|
-
|
-
|
-
|
-
|
0.7
|
6.8
|
-
|
0.7
|
116
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
73L
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
64
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
46
|
80
|
-
|
-
|
-
|
-
|
-
|
4.2
|
13.8
|
-
|
4.2
|
-1XX
720cm2 (111in2)
|
139
|
100
|
-
|
1.2
|
5.0
|
8.9
|
2.2
|
16.0
|
29.7
|
2.2
|
16.0
|
73%
|
100
|
-
|
1.2
|
5.0
|
8.9
|
2.2
|
16.0
|
29.7
|
2.2
|
16.0
|
116
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
49.6
|
6.6
|
28.1
|
73L
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
49.6
|
6.6
|
28.1
|
64
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
49.6
|
6.6
|
28.1
|
46
|
80
|
-
|
5.0
|
11.0
|
17.0
|
6.6
|
28.1
|
49.6
|
6.6
|
28.1
|
|
Continued Table 5.4
Actuator SA1, 2 Series
|
Air to open
Spring Nos.
|
Air to close
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
3
|
6
|
9
|
12
|
3
|
3
|
3
|
6
|
6
|
bar
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
150
6"
|
60
|
-2XX
720cm2 (111in2)
|
445
|
143
|
-
|
-
|
0.8
|
2.9
|
-
|
6.9
|
14.4
|
-
|
6.9
|
246
|
143
|
-
|
-
|
0.8
|
2.9
|
-
|
6.9
|
14.4
|
-
|
6.9
|
304
|
113
|
-
|
-
|
2.7
|
5.6
|
0.6
|
11.0
|
21.4
|
0.6
|
11.0
|
176
|
113
|
-
|
-
|
2.7
|
5.6
|
0.6
|
11.0
|
21.4
|
0.6
|
11.0
|
198
|
90
|
-
|
2.7
|
7.4
|
12.2
|
4.0
|
21.0
|
38.0
|
4.0
|
21.0
|
146
|
90
|
-
|
2.7
|
7.4
|
12.2
|
4.0
|
21.0
|
38.0
|
4.0
|
21.0
|
200
8"
|
60
|
-2XX
720cm2 (111in2)
|
527
|
172
|
-
|
-
|
-
|
0.3
|
-
|
2.5
|
6.7
|
-
|
2.5
|
304%
|
172
|
-
|
-
|
-
|
0.3
|
-
|
2.5
|
6.7
|
-
|
2.5
|
445
|
143
|
-
|
-
|
0.8
|
2.9
|
-
|
6.9
|
14.4
|
-
|
6.9
|
246
|
143
|
-
|
-
|
0.8
|
2.9
|
-
|
6.9
|
14.4
|
-
|
6.9
|
304L
|
113
|
-
|
-
|
2.7
|
5.6
|
0.6
|
11.0
|
21.4
|
0.6
|
11.0
|
176
|
113
|
-
|
-
|
2.7
|
5.6
|
0.6
|
11.0
|
21.4
|
0.6
|
11.0
|
Actuator SA3 Series
|
Spring Nos.
|
spring Nos.
|
Nominal size DN(mm)
|
Travel
(mm)
|
Actuator size parameter
|
Cv
|
Seat Dia.
F (mm)
|
4
|
6
|
8
|
2
|
2
|
2
|
4
|
4
|
bar
|
bar
|
bar
|
Air supply (bar)
|
3.0
|
4.5
|
6.0
|
4.5
|
6.0
|
150
6"
|
60
|
-2XX
1600cm2 (248in2)
|
445
|
143
|
5.7
|
12.7
|
19.7
|
20.8
|
40.3
|
50.0
|
30.5
|
49.8
|
246
|
143
|
5.7
|
12.7
|
19.7
|
20.8
|
40.3
|
50.0
|
30.5
|
49.8
|
304
|
113
|
9.4
|
19.0
|
28.7
|
30.1
|
50.0
|
50.0
|
43.6
|
50.0
|
176
|
113
|
9.4
|
19.0
|
28.7
|
30.1
|
50.0
|
50.0
|
43.6
|
50.0
|
198
|
90
|
18.5
|
34.2
|
49.9
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
146
|
90
|
18.5
|
34.2
|
49.9
|
50.0
|
50.0
|
50.0
|
50.0
|
50.0
|
200
8"
|
60
|
-2XX
1600cm2 (248in2)
|
527
|
172
|
1.8
|
5.8
|
9.7
|
10.3
|
21.3
|
32.1
|
15.8
|
26.6
|
304%
|
172
|
1.8
|
5.8
|
9.7
|
10.3
|
21.3
|
32.1
|
15.8
|
26.6
|
445
|
143
|
5.7
|
12.7
|
19.7
|
20.8
|
40.3
|
50.0
|
30.5
|
49.8
|
246
|
143
|
5.7
|
12.7
|
19.7
|
20.8
|
40.3
|
50.0
|
30.5
|
49.8
|
304L
|
113
|
9.1
|
19.0
|
28.7
|
30.1
|
50.0
|
50.0
|
43.6
|
50.0
|
176
|
113
|
9.1
|
19.0
|
28.7
|
30.1
|
50.0
|
50.0
|
43.6
|
50.0
|
250
10"
|
100
|
-2XX
1600cm2 (248in2)
|
1053
|
220
|
-
|
2.4
|
4.8
|
3.5
|
9.9
|
16.5
|
5.5
|
12.0
|
608
|
220
|
-
|
2.4
|
4.8
|
3.5
|
9.9
|
16.5
|
5.5
|
12.0
|
761
|
172
|
1.1
|
4.9
|
8.4
|
6.4
|
16.1
|
25.9
|
9.4
|
19.2
|
445%
|
172
|
1.1
|
4.9
|
8.4
|
6.4
|
16.1
|
25.9
|
9.4
|
19.2
|
445L
|
143
|
4.5
|
11.1
|
17.4
|
13.9
|
31.0
|
48.5
|
19.2
|
36.6
|
375
|
143
|
4.5
|
11.1
|
17.4
|
13.9
|
31.0
|
48.5
|
19.2
|
36.6
|
300
12"
|
100
|
-2XX
1600cm2 (248in2)
|
1521
|
282
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
842
|
282
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
1053
|
220
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
608
|
220
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
761
|
172
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
445
|
172
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .
2. The implication of “XX” is shown in SA series actuator specification.
|
|
|
Figure 5.1 DN4015 ~ DN100 ( 1/2" ~ 4" )
|
|
|
Figure 5.2 DN150 ~ DN300 ( 6" ~ 12" )
|
Table 6.1 Figure size (mm)&Weight (Kg) ( DN15 ~ DN100, DIN PN16/25/40)
Body flange dimension is according to DIN 2543/2544/2545.
The Face to face dimension is according to DIN3202-F1
|
Body
assembly
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
65
|
80
|
100
|
L
|
130
|
150
|
150
|
180
|
200
|
230
|
290
|
310
|
350
|
V
|
228
|
223
|
356
|
389
|
U
|
48
|
59
|
62
|
70
|
78
|
83
|
93
|
106
|
136
|
Actuator
|
ÆC
|
SA1
|
270
|
SA2
|
|
400
|
A
|
SA1
|
346
|
404
|
SA2
|
|
489
|
H
|
SA1
|
493
|
551
|
SA2
|
|
651
|
B
|
130
|
150
|
Weight
|
SA1
|
20.5
|
22.5
|
23
|
24
|
31
|
33
|
41.5
|
70
|
93
|
SA2
|
|
96
|
119
|
Note: Weight=Body assembly + Actuator ( without handwheel )
|
Table 6.2 Figure size(mm)&Weight (Kg) ( 1/2" ~ 4" , ANSI150/300 )
Flange (ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF
(IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
|
Body
assembly
|
DN
|
1/2"
|
3/4"
|
1"
|
11/4"
|
11/2"
|
2"
|
2½"
|
3"
|
4"
|
L
CI.150
|
RF
|
178
|
181
|
184
|
200
|
222
|
254
|
276
|
298
|
352
|
RFJ
|
|
|
197
|
213
|
235
|
267
|
289
|
311
|
365
|
L
CI.300
|
RF
|
190
|
194
|
197
|
213
|
235
|
267
|
292
|
317
|
368
|
RFJ
|
202
|
206
|
210
|
225
|
248
|
282
|
308
|
333
|
384
|
V
|
228
|
223
|
356
|
389
|
U
|
48
|
59
|
62
|
70
|
78
|
83
|
93
|
106
|
136
|
Actuator
|
ÆC
|
SA1
|
270
|
SA2
|
|
400
|
A
|
SA1
|
346
|
404
|
SA2
|
|
189
|
H
|
SA1
|
493
|
551
|
SA2
|
|
651
|
B
|
130
|
150
|
Weight
|
SA1
|
20.5
|
22.5
|
23
|
24
|
31
|
33
|
41.5
|
70
|
93
|
SA2
|
96
|
119
|
Note: Weight=Body assembly + Actuator ( without handwhell )
|
Table 6.3 Figure size (mm)&Weight (Kg) ( DN150 ~ DN100, DIN PN16/25/40)
Body flange dimension is according to DIN 2543/2544/2545.
The Face to face dimension is according to DIN3202-F1
|
Body
assembly
|
DN
|
150
|
200
|
250
|
300
|
L
|
480
|
600
|
730
|
850
|
V
|
Depends on the customer’s needs
|
U
|
189
|
239
|
305
|
335
|
|
ÆC
|
SA2
|
400
|
|
|
SA3
|
596
|
|
A
|
SA2
|
625
|
|
|
SA3
|
840
|
1010
|
Actuator
|
H
|
SA2
|
888
|
|
|
B
|
200
|
340
|
|
Weight
|
SA2
|
190
|
250
|
|
|
SA3
|
330
|
390
|
450
|
750
|
Note: Weight=Body assembly + Actuator ( without handwheel )
|
Table 6.4 Figure size(mm)&Weight (Kg) ( 6" ~ 16" , ANSI150/300 )
Flange (ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF
(IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
|
Body
assembly
|
DN
|
6"
|
8"
|
10"
|
12"
|
L
CI.150
|
RF
|
451
|
543
|
673
|
737
|
RFJ
|
464
|
556
|
686
|
750
|
L
CI.300
|
RF
|
473
|
568
|
708
|
775
|
RFJ
|
489
|
584
|
724
|
791
|
V
|
Depends on the customer’s needs
|
U
|
189
|
239
|
305
|
335
|
Actuator
|
ÆC
|
SA2
|
400
|
|
SA3
|
596
|
A
|
SA2
|
625
|
|
SA3
|
840
|
1010
|
H
|
SA2
|
888
|
|
B
|
200
|
340
|
Weight
|
SA2
|
190
|
250
|
190
|
SA3
|
330
|
390
|
450
|
750
|
Note: Weight=Body assembly + Actuator ( without handwheel )
|
Ordering Information
Please specify the following information:
1. Type
2. Nominal size
3. Nominal pressure & end connection
4. Body & trim material, harden treatment request
5. Flow characteristic
6. Packing material (code)
7. Actuator type, with handwheel or not & Air pressure supply
8. Action type (Direct or Reverse)
9. Accessory (with positioner & Air regulator or not)
10.Oil-free or Copper-free, etc.
11.Fluid Name & state (liquid, gas, steam, etc.)
12.Pipeline size, wall thickness (Inlet, outlet)
13.Nor. Flow, Max. flow & Min. flow
14.Flow pressure & Pressure differential
15.(Full open/close)
16.Flow temp., Gravity or Density
17.Inlet and outlet pressure
18.The Gravity & viscosity of fluid, with slurry, flashing or not
19.Used in high pressure, Temp., &EXP. Condition or not
20. Other special requests
|
