SH6000 Series
SDP Top and Bottom Double Guiding Parabolic Plug Type

SH6000 Series

SDP Top and Bottom Double Guiding Parabolic Plug Type

Metal-seated quick-changeable trim combination with top and bottom guiding. This double guiding construction stabilizes stem and plug over the full travel range. The bottom guiding is located right below the seat ring and can be easily replaced. Most conventional body designs with top and bottom guided trim have a bolted bottom flange which requires an extra body gasket plus the risk of additional external leakage.

SDP is recommended for large pressure drop, high flow rate and instability fluids applications.

Valve Body

Type: Cast globe Valve

Nominal Size: DN40, 50, 65, 80, 100, 150,

200, 250, 300, 350, 400

Nominal Pressure: ANSI 150, 300

DIN PN16, 25, 40

JIS 10K, 20K 30K

GB PN1.6, 2.5, 4.0 MPa

End Connection: Flange ANSI B16.5 RF, RTJ

DIN2543/2544/2545 RF

JISB2201 RF

JB/T81 RF

JB/T82.2 FM

Accessory

Positioner, Filter-regulator valve, Solenoid valve, Limit switch, Valve position

Transmitter, Booster relay, Lock-valve, Handwheel, etc.

Action

Air to open, Air to close

Performance

Rangeability: 50:1

Seat leakage: Metal seal is according to ANSI B16.104 ClassIV , ClassV

Soft seal is according to ANSI B16.104 ClassVI

Hysteresis: 3% ( Without Positioner ) 1% ( With Positioner )

Linearity: ± 5% ( Without Positioner ) ±1% ( With Positioner )

Rated CV: As shown in table 4

Allowable pressure differential: As shown in table 5.1 ~ 5.5

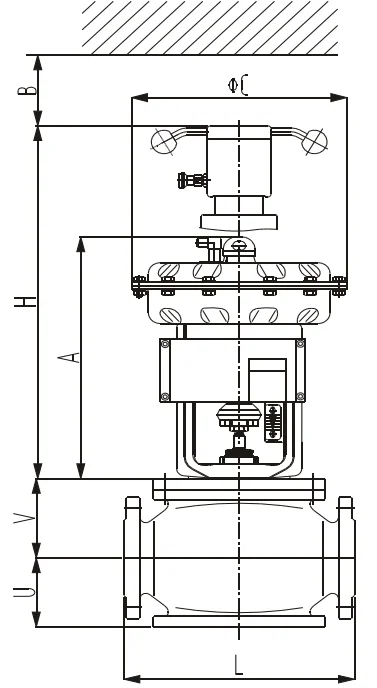

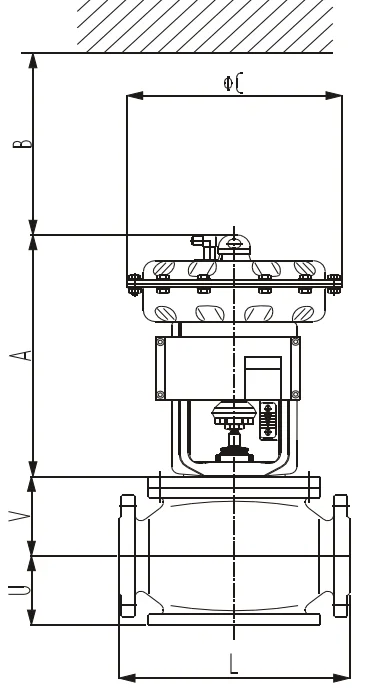

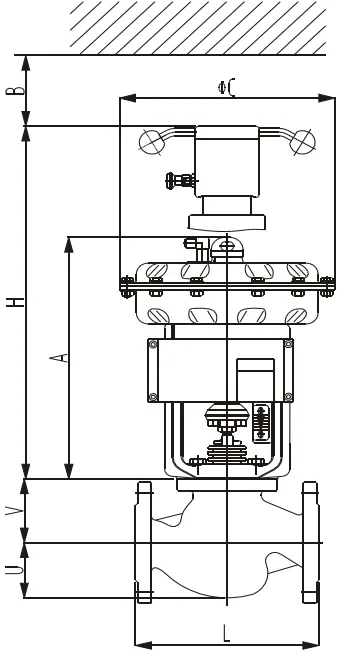

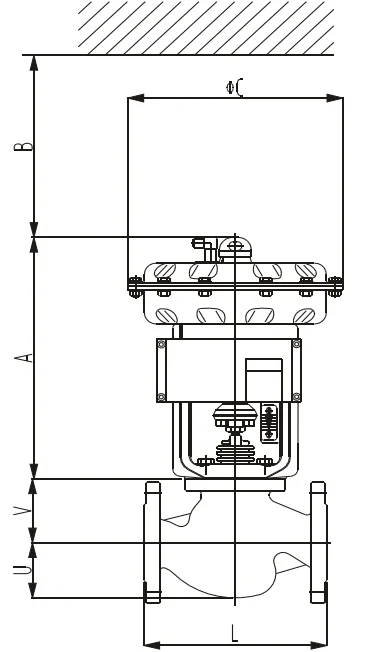

Figure Size: As shown in figure5.1 , 5.2, table 6.1~6.4

Weight of product: As shown in table 6.1~6.4

Performance

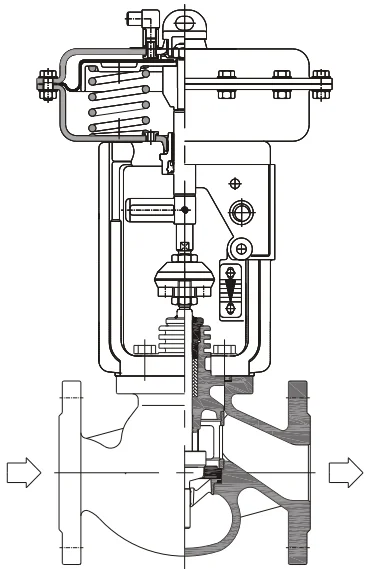

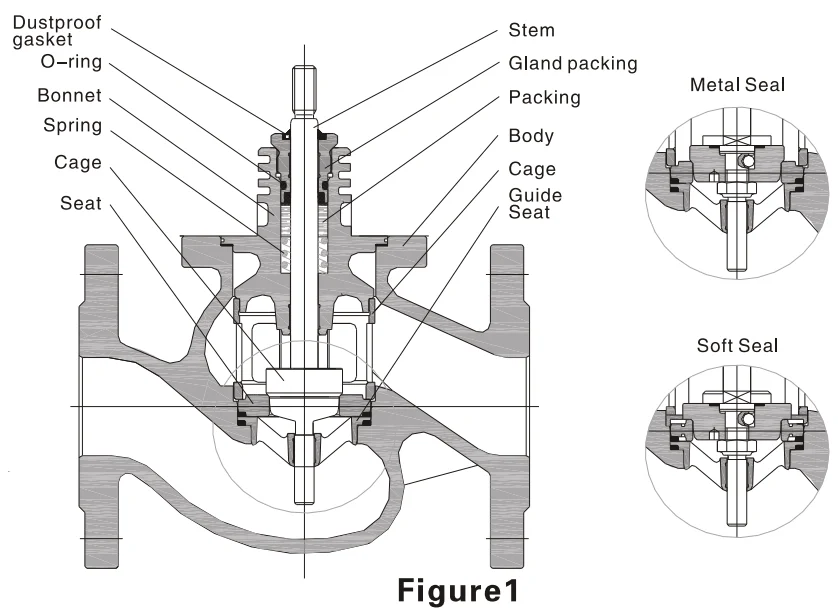

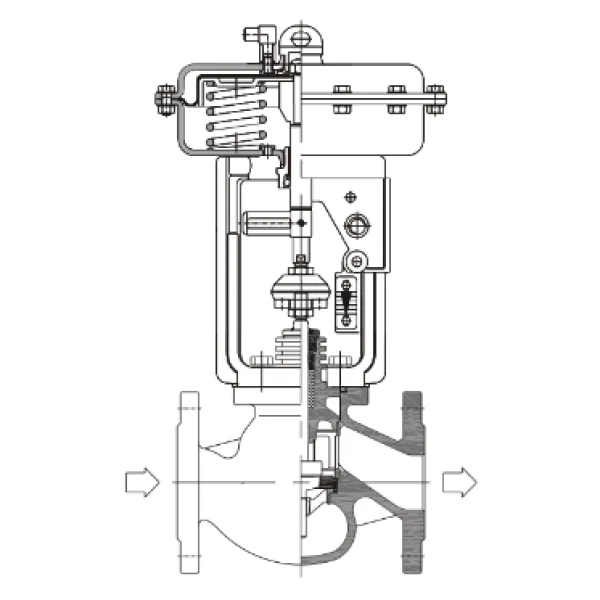

Body Assembly Structure ( As shown in figure 1 )

Special inspection

Flow characteristic test, material test, low temperature test, steam test, non-damages test

copper-free treatment
non-standard painting
dust and sand proof
vacuum service
tropical area proof
completely oi-free, water-free treatment
special air piping and fitting
strong corrosion proof
stainless steel bolt and nut for exposed parts
cold area proof

Notable Characteristics

Both faces of valve seat can be used to improve service life

Quickly disassembly and installation without any special tools
Good price performance
Optimize flow of cage
Various of materials are available
Maintenance-free for packing
Packing stuffing box is wear resistance and corrosion resistance

Table 1 Body material

GB	ANSI	DIN	Temp.Range
ZG230-450 WCB	A216 WCB ( ASTM )	1.0619 GP240GH	-10°C ~ 400°C
ZG0Cr18Ni9	A351 CF8 ( ASTM )	1.4308 G-X6CrNi18 9	-200°C ~ 530°C
ZG0Cr18Ni12Mo2Ti	A351 CF8M ( ASTM )	1.4408 G-X6CrNiMo18 10	-200°C ~ 530°C
ZG0Cr18Ni12Mo2Nb	-	1.4581 G-X5CrNiMo18 10	-200°C ~ 530°C
	A217 WC6 ( ASTM )	1.7357 GS-17CrMo5 5	-10°C ~ 450°C
	A217 WC9 ( ASTM )	1.7379 GS-18CrMo9 10	-10°C ~ 450°C

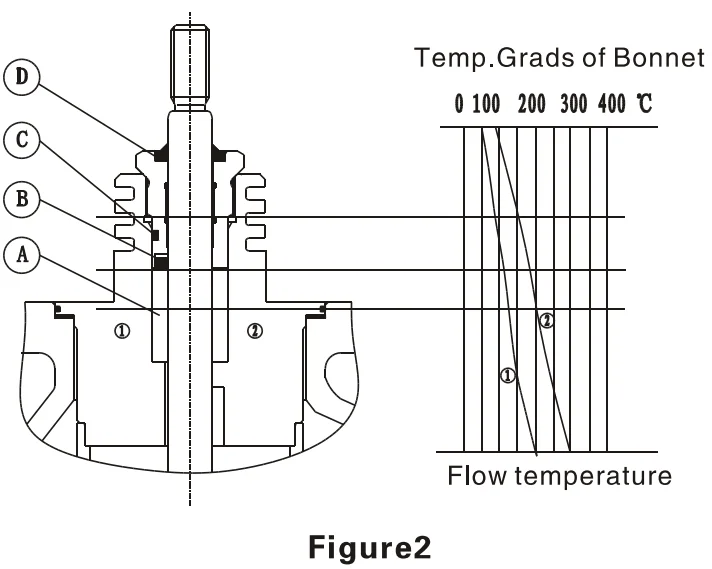

Table 2 Applicable Temp.&Pressure range of packing material

Type of material ( Shown in A )	Code	Seal material ( Shown in B )	O-ring material ( Shown in C )	Dustproof ring ( Shown in D )	Temp.Range	Bonnet Type	Remarks
PTFE V type packing	1	EPDM	EPDM	NBR	-25°C ~ 180°C	Standard	( Alter- nate load ) with compress spring
PTFE V type packing	2	VITON	EPDM	VITON	-25°C ~ 200°C	Standard
Graphite+ Incnel packing	3	-	-	NBR ( VITON )	-20°C ~ 400°C	Standard/with radiation fin	General occasion
Pure graphite ( Density 1.2 )	4	-	-	VITON	-196°C ~ 530°C	Standard/with radiation fin	High Temp. occasion
Graphite+PTFE	6	-	-	NBR	-196°C ~ 200°C	Standard/ extension type	Low Temp. occasion

Note: please choose the most related Temp.Range

ASME B16.35 150/300

Temp.

ASME

B16.34/B16.35

ASME B16.34 600/900/1500

Temp.

DIN EN 1092-1 PN16, PN25, PN40

Temp.

DIN EN

1092-1

DIN EN 1092-1 PN63, PN100, PN160, PN250

Temp.

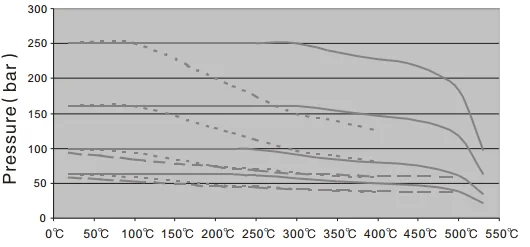

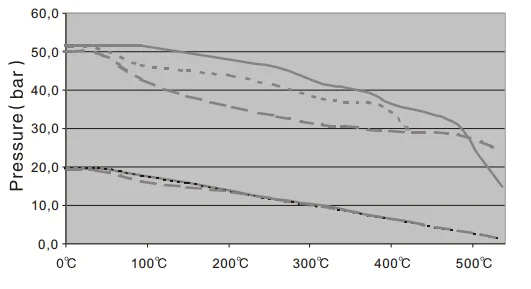

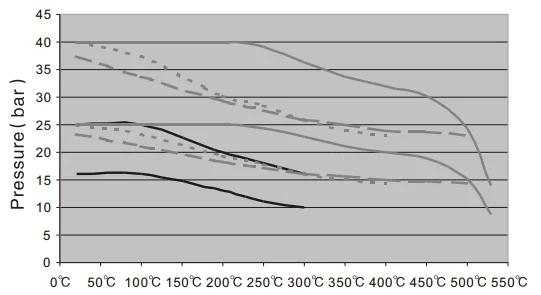

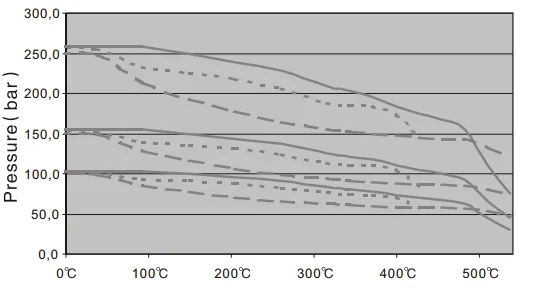

Figure3 Temp.&Pressure curve

Table 3 STD Material Assembly, Operated Temp.&Pressure Range of Trim

Parabolic column plug	Seat	Type of seat seal	Temp.
0Cr18Ni12Mo2Ti ( 1.4571 )	0Cr18Ni12Mo2Ti ( 1.4571 )	Metal seal	-46°C~530°C
2Cr13 ( 1.4021 ) Nitriding treatment	2Cr13 ( 1.4021 ) Nitriding treatment
9Cr18MoV ( 1.4112 ) Harden treatment	9Cr18MoV ( 1.4112 ) Harden treatment
3Cr17NiMo ( 1.4122 ) Nitriding treatment	2Cr13 ( 1.4021 ) Nitriding treatment
0Cr18Ni12Mo2Ti ( 1.4571 )	0Cr18Ni12Mo2Ti ( 1.4571 )	PTFE/EPDM	-46°C~140°C
2Cr13 ( 1.4021 )	2Cr13 ( 1.4021 )	PTFE/EPDM	-46°C~140°C

Harden treatment: Hard chrome plated, Stellite surface, Heat treatment, Nitriding treatment, Spray tungsten carbide, etc.

Table 4 Rated Cv.

Seat type		Metal seat							Soft seat
Flow characteristic		Linearity			EQ%			Quick	Linearity			EQ%			Quick
Nominal size (DN)	Travel (mm)	Cv1	Cv2	Cv3	Cv1	Cv2	Cv3	Cv1	Cv1	Cv2	Cv3	Cv1	Cv2	Cv3	Cv1
40	16	29	19	11.5	29	19	11.5	29	29	19	11.5	29	19	11.5	29
50		46	29	19	46	29	19	46	46	29	19	46	29	19	46
65		73	46	29	73	46	29	73	73	46	29	73	46	29	73
80	30	116	73	46	116	73	46	116	116	73	46	116	73	46	116
100	30	186	116	73	186	116	73	186	186	116	73	186	116	73	186
150	60	445	304	176	445	304	176	445	445	304		445	304		445
200	60	761	445	304	761	445	304	761	761			761			761
250	100	1053	761	445	1053	761	445	1053
300		1521	1053	761	1521	1053	761	1521
350		2106	1521	1053	2106	1521	1053	2106
400	120	2925	2106	1521	2925	2106	1521	2925

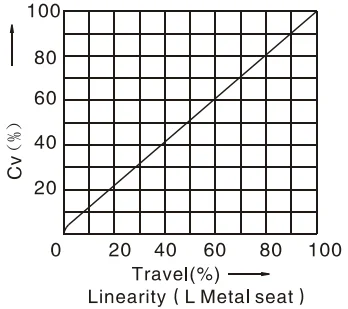

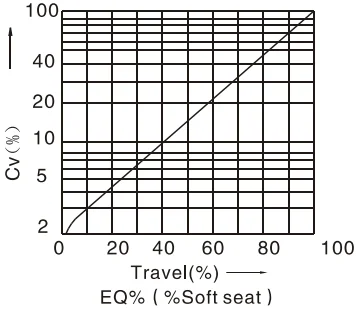

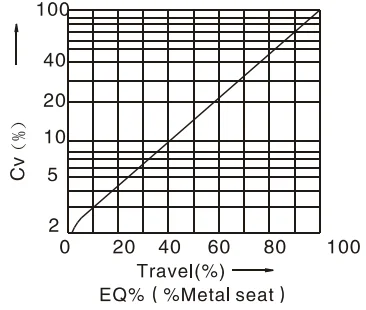

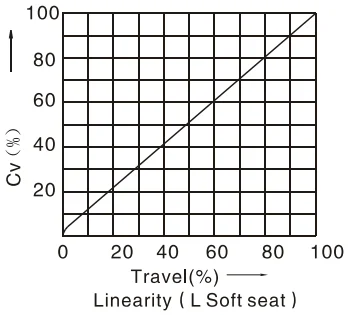

Figure4 Flow characteristic curve

Table 5.1 Allowable pressure differential ( Leakage class IV PTFE packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
40 1 1/2"	16	-2^Ö(3)XX 320cm²(50in²)	29	36	14.1	37.7	-	-	37.7	50.0	50.0	37.7	50.0
			19	30	21.6	50.0	-	-	50.0	50.0	50.0	50.0	50.0
			11.5	25	32.8	50.0	-	-	50.0	50.0	50.0	50.0	50.0
50 2"	16	-2^Ö(3)XX 320cm²(50in²)	46	46	7.1	22.1	-	-	22.1	50.0	50.0	22.1	50.0
			29	36	14.1	37.7	-	-	37.7	50.0	50.0	37.7	50.0
			19	30	21.6	50.0	-	-	50.0	50.0	50.0	50.0	50.0
65 2 1/2"	16	-2^Ö(3)XX 320cm²(50in²)	73	50	6.2	18.4	-	-	18.4	42.9	50.0	18.4	42.9
			46	46	7.1	22.1	-	-	22.1	50.0	50.0	22.1	50.0
			29	36	14.1	37.7	-	-	37.7	50.0	50.0	37.7	50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	1.3	6.1	-	-	6.1	15.6	25.2	6.1	15.6
			73	50	5.7	17.9	-	-	17.9	42.4	50.0	17.9	42.4
			46	46	7.1	21.5	-	-	21.5	50.0	50.0	21.5	50.0
		-1XX 720cm²(111in²)	116	80	6.5	16.4	22.4	28.4	18.0	39.5	50.0	18.0	39.5
			73	50	18.9	44.4	50.0	50.0	48.5	50.0	50.0	48.5	50.0
			46	46	22.7	50.0	50.0	50.0	50.0	50.0	50.0	50.0	50.0
100 4"	30	-5XX 320cm²(50in²)	186	100	0.4	3.5	-	-	3.5	9.6	15.7	3.5	9.6
			116	80	1.3	6.1	-	-	6.1	15.6	25.2	6.1	15.6
			73	50	5.7	17.9	-	-	17.9	42.4	50.0	17.9	42.4
		-1XX 720cm²(111in²)	186	100	3.7	10.1	13.9	17.7	11.1	24.9	38.6	11.1	24.9
			116	80	6.5	16.4	22.4	28.4	18.0	39.5	50.0	18.0	39.5
			73	50	18.9	44.4	50.0	50.0	48.5	50.0	50.0	48.5	50.0
150 6"	60	-1XX 720cm²(111in²)	445	143	1.7	5.2	7.3	9.4	5.7	13.3	20.8	5.7	13.3
			304	113	2.6	7.4	10.3	13.2	8.2	18.6	29.0	8.2	18.6
			176	90	4.9	12.7	17.4	22.2	14.0	31.0	47.9	14.0	31.0
200 8"	60	-1XX 720cm²(111in²)	761	172	0.7	2.6	3.8	5.0	2.9	7.2	11.4	2.9	7.2
			445	143	1.7	5.2	7.3	9.4	5.7	13.3	20.8	5.7	13.3
			304	113	2.6	7.4	10.3	13.2	8.2	18.6	29.0	8.2	18.6

Actuator SA3 Series					Spring Nos.			spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-1XX 1600cm²(248in²)	445	143	12.1	19.1	26.1	27.2	46.7	50.0	37.0	50.0
			304	113	17.0	26.7	36.3	37.8	50.0	50.0	50.0	50.0
			176	90	28.4	44.2	50.0	50.0	50.0	50.0	50.0	50.0
200 8"	60	-1XX 1600cm²(248in²)	761	172	6.6	10.5	14.4	15.0	26.7	36.8	20.5	31.3
			445	143	12.1	19.1	26.1	27.2	46.7	50.0	37.0	50.0
			304	113	17.0	26.7	36.3	37.8	50.0	50.0	50.0	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			761	172	6.0	9.7	13.3	11.3	20.9	30.8	14.3	24.1
			445	143	11.2	17.8	24.1	20.6	37.7	50.0	25.8	43.3
300 12"	100	-2XX 1600cm²(248in²)	1521	282	2.5	4.3	5.9	5.0	9.4	14.0	6.3	10.9
			1053	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			761	172	6.0	9.7	13.3	11.3	20.9	30.8	14.3	24.1
350 14"	100	-2XX 1600cm²(248in²)	2106	313	1.8	17.8	4.2	3.5	6.8	14.0	4.5	7.9
			1521	282	2.5	4.3	5.9	5.0	9.4	20.4	6.3	10.9
			1053	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
400 16"	120	-2XX 1600cm²(248in²)	2925	400	0.4	0.9	1.3	1.6	3.5	5.4	2.0	3.8
			2106	313	0.9	1.7	2.4	2.9	6.0	9.1	3.5	6.6
			1521	282	1.3	2.5	3.3	4.1	8.3	12.6	4.9	9.1

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Table 5.2 Allowable pressure differential ( Leakage class IV PTFE packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
40 1 1/2"	16	-2^Ö(3)XX 320cm²(50in²)	29	36	8.2	31.8	-	-	31.8	50.0	50.0	31.8	50.0
			19	30	13.1	47.1	-	-	47.1	50.0	50.0	47.1	50.0
			11.5	25	20.5	50.0	-	-	50.0	50.0	50.0	50.0	50.0
50 2"	16	-2^Ö(3)XX 320cm²(50in²)	46	46	4.1	18.5	-	-	18.5	47.4	50.0	18.5	47.4
			29	36	8.2	31.8	-	-	31.8	50.0	50.0	31.8	50.0
			19	30	13.1	47.1	-	-	47.1	50.0	50.0	47.1	50.0
65 2 1/2"	16	-2^Ö(3)XX 320cm²(50in²)	73	50	3.1	15.4	-	-	15.4	39.8	50.0	15.4	39.8
			46	46	4.1	18.5	-	-	18.5	47.4	50.0	18.5	47.4
			29	36	8.2	31.8	-	-	31.8	50.0	50.0	31.8	50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	-	4.7	-	-	4.7	14.2	23.8	4.7	14.2
			73	50	2.1	14.3	-	-	14.3	38.8	50.0	14.3	38.8
			46	46	2.9	17.3	-	-	17.3	46.2	50.0	17.3	46.2
		-1XX 720cm²(111in²)	116	80	5.1	15.0	21.0	27.0	16.6	38.1	50.0	16.6	38.1
			73	50	15.4	40.8	50.0	50.0	44.9	50.0	50.0	44.9	50.0
			46	46	18.5	48.6	50.0	50.0	50.0	50.0	50.0	50.0	50.0
100 4"	30	-5XX 320cm²(50in²)	186	100	-	2.6	-	-	2.6	8.7	14.8	2.6	8.7
			116	80	-	4.7	-	-	4.7	14.2	23.8	4.7	14.2
			73	50	2.1	14.3	-	-	14.3	38.8	50.0	14.3	38.8
		-1XX 720cm²(111in²)	186	100	2.8	9.2	13.0	16.9	10.2	24.0	37.7	10.2	24.0
			116	80	5.1	15.0	21.0	27.0	16.6	38.1	50.0	16.6	38.1
			73	50	15.4	40.8	50.0	50.0	44.9	50.0	50.0	44.9	50.0
150 6"	60	-2XX 720cm²(111in²)	445	143	1.2	4.7	6.8	8.9	5.2	12.8	20.3	5.2	12.8
			304	113	1.9	6.7	9.6	12.5	7.5	17.9	28.3	7.5	17.9
			176	90	3.8	11.6	16.3	21.1	12.9	29.9	46.8	12.9	29.9
200 8"	60	-2XX 720cm²(111in²)	761	172	0.4	2.3	3.5	4.7	2.7	6.9	11.2	2.7	6.9
			445	143	1.2	4.7	6.8	8.9	5.2	12.8	20.3	5.2	12.8
			304	113	1.9	6.7	9.6	12.5	7.5	17.9	28.3	7.5	17.9

Actuator SA3 Series					Spring Nos.			spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-1XX 1600cm²(248in²)	445	143	11.7	18.6	25.6	27.7	46.3	50.0	36.5	50.0
			304	113	16.4	26.0	35.6	37.1	50.0	50.0	50.0	50.0
			176	90	27.3	43.1	50.0	50.0	50.0	50.0	50.0	50.0
200 8"	60	-1XX 1600cm²(248in²)	761	172	6.3	10.2	14.1	14.7	25.7	36.6	20.2	31.1
			445	143	11.7	18.6	25.6	26.7	46.3	50.0	36.5	50.0
			304	113	16.4	26.0	35.6	37.1	50.0	50.0	50.0	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	3.6	6.1	8.4	7.1	13.6	20.1	9.1	15.7
			761	172	5.6	9.3	12.8	10.9	20.5	30.3	13.8	23.7
			445	143	10.4	17.0	23.3	19.8	37.0	50.0	25.1	42.6
300 12"	100	-2XX 1600cm²(248in²)	1521	282	2.3	4.1	5.7	4.8	9.2	13.8	6.1	10.7
			1053	220	3.6	6.1	8.4	7.1	13.6	20.1	9.1	15.7
			761	172	5.6	9.3	12.8	10.9	20.5	30.3	13.8	23.7
350 14"	100	-2XX 1600cm²(248in²)	2106	313	1.6	2.9	4.1	3.4	6.6	10.0	4.4	7.7
			1521	282	2.3	4.1	5.7	4.8	9.2	13.8	6.1	10.7
			1053	220	3.6	6.1	8.4	7.1	13.6	20.1	9.1	15.7
400 16"	120	-2XX 1600cm²(248in²)	2925	400	0.3	0.8	1.2	1.5	3.4	5.3	1.9	3.8
			2106	313	0.7	1.6	2.2	2.7	5.9	9.0	3.3	6.4
			1521	282	1.1	2.3	3.1	3.9	8.1	12.4	4.7	9.0

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Table 5.3 Allowable pressure differential ( Leakage class IV PTFE packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
40 1 1/2"	16	-2^Ö(3)XX 320cm²(50in²)	29	36	-	15.5	-	-	15.5	50.0	50.0	15.5	50.0
			19	30	-	28.9	-	-	28.9	50.0	50.0	28.9	50.0
			11.5	25	0.8	49.7	-	-	49.7	50.0	50.0	49.7	50.0
50 2"	16	-2^Ö(3)XX 320cm²(50in²)	46	46	-	4.7	-	-	4.7	33.6	50.0	4.7	33.6
			29	36	-	15.5	-	-	15.5	50.0	50.0	15.5	50.0
			19	30	-	28.9	-	-	28.9	50.0	50.0	28.9	50.0
65 2 1/2"	16	-2^Ö(3)XX 320cm²(50in²)	73	50	-	2.4	-	-	2.4	26.9	50.0	2.4	26.9
			46	46	-	4.7	-	-	4.7	33.6	50.0	4.7	33.6
			29	36	-	15.5	-	-	15.5	50.0	50.0	15.5	50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	-	-	-	-	-	5.6	15.2	-	5.6
			73	50	-	1.9	-	-	1.9	26.4	50.0	1.9	26.4
			46	46	-	4.1	-	-	4.1	33.0	50.0	4.1	33.0
		-1XX 720cm²(111in²)	116	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			73	50	2.9	28.4	43.7	50.0	32.5	50.0	50.0	32.5	50.0
			46	46	5.4	35.5	50.0	50.0	40.3	50.0	50.0	40.3	50.0
100 4"	30	-5XX 320cm²(50in²)	186	100	-	-	-	-	-	1.6	7.7	-	1.6
			116	80	-	-	-	-	-	5.6	15.2	-	5.6
			73	50	-	1.9	-	-	1.9	26.4	50.0	1.9	26.4
		-1XX 720cm²(111in²)	186	100	-	2.1	5.9	9.7	3.1	16.9	30.6	3.1	16.9
			116	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			73	50	2.9	28.4	43.7	50.0	32.5	50.0	50.0	32.5	50.0
150 6"	60	-2XX 720cm²(111in²)	445	143	-	-	1.3	3.4	-	7.3	14.9	-	7.3
			304	113	-	0.5	3.3	6.2	1.2	11.6	22.0	1.2	11.6
			176	90	-	3.8	8.5	13.3	5.1	22.1	39.1	5.1	22.1
200 8"	60	-2XX 720cm²(111in²)	761	172	-	-	-	0.5	-	2.7	7.0	-	2.7
			445	143	-	-	1.3	3.4	-	7.3	14.9	-	7.3
			304	113	-	0.5	3.3	6.2	1.2	11.6	22.0	1.2	11.6

Actuator SA3 Series					Spring Nos.			spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-1XX 1600cm²(248in²)	445	143	6.2	13.2	20.2	21.3	40.8	50.0	31.0	50.0
			304	113	10.1	19.7	29.4	30.8	50.0	50.0	44.3	50.0
			176	90	19.6	35.3	50.0	50.0	50.0	50.0	50.0	50.0
200 8"	60	-1XX 1600cm²(248in²)	761	172	2.1	6.0	10.0	10.6	21.6	32.4	16.1	26.9
			445	143	6.2	13.2	20.2	21.3	40.8	50.0	31.0	50.0
			304	113	10.1	19.7	29.4	30.8	50.0	50.0	44.3	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	0.2	2.7	5.1	3.8	10.2	16.8	5.7	12.3
			761	172	1.6	5.3	8.8	6.9	16.5	26.3	9.8	19.6
			445	143	5.2	11.9	18.2	14.7	31.8	49.3	19.9	37.4
300 12"	100	-2XX 1600cm²(248in²)	1521	282	-	-	-	-	-	-	-	-
			1053	220	-	-	-	-	-	-	-	-
			761	172	-	-	-	-	-	-	-	-
350 14"	100	-2XX 1600cm²(248in²)	2106	313	-	-	-	-	-	-	-	-
			1521	282	-	-	-	-	-	-	-	-
			1053	220	-	-	-	-	-	-	-	-
400 16"	120	-2XX 1600cm²(248in²)	2925	400	-	-	-	-	-	-	-	-
			2106	313	-	-	-	-	-	-	-	-
			1521	282	-	-	-	-	-	-	-	-

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Table 5.4 Allowable pressure differential ( Leakage class IV Graphite packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
40 1 1/2"	16	-2^Ö(3)XX 320cm²(50in²)	29	36	-	9.6	-	-	9.6	50.0	50.0	9.6	50.0
			19	30	-	20.5	-	-	20.5	50.0	50.0	20.5	50.0
			11.5	25	-	37.5	-	-	37.5	50.0	50.0	37.5	50.0
50 2"	16	-2^Ö(3)XX 320cm²(50in²)	46	46	-	1.1	-	-	1.1	30.0	50.0	1.1	30.0
			29	36	-	9.6	-	-	9.6	50.0	50.0	9.6	50.0
			19	30	-	20.5	-	-	20.5	50.0	50.0	20.5	50.0
65 2 1/2"	16	-2^Ö(3)XX 320cm²(50in²)	73	50	-	-	-	-	-	23.8	48.3	-	23.8
			46	46	-	1.1	-	-	1.1	30.0	50.0	1.1	30.0
			29	36	-	9.6	-	-	9.6	50.0	50.0	9.6	50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	-	-	-	-	-	4.2	13.8	-	4.2
			73	50	-	-	-	-	-	22.8	47.3	-	22.8
			46	46	-	-	-	-	-	28.8	49.6	-	28.8
		-1XX 720cm²(111in²)	116	80	-	5.0	11.0	17.0	6.6	28.1	50.0	6.6	28.1
			73	50	-	24.8	40.1	50.0	28.9	50.0	50.0	28.9	50.0
			46	46	1.1	31.2	49.3	50.0	36.1	50.0	50.0	36.1	50.0
100 4"	30	-5XX 320cm²(50in²)	186	100	-	-	-	-	-	0.7	6.8	-	0.7
			116	80	-	-	-	-	-	4.2	13.8	-	4.2
			73	50	-	-	-	-	-	22.8	47.3	-	22.8
		-1XX 720cm²(111in²)	186	100	-	1.2	5.0	8.9	2.2	16.0	29.7	2.2	16.0
			116	80	-	5.0	11.0	17.0	6.6	28.1	49.6	6.6	28.1
			73	50	-	24.8	40.1	50.0	28.9	50.0	50.0	28.9	50.0
150 6"	60	-2XX 720cm²(111in²)	445	143	-	-	0.8	2.9	-	6.9	14.4	-	6.9
			304	113	-	-	2.7	5.6	0.6	11.0	21.4	0.6	11.0
			176	90	-	2.7	7.4	12.2	4.0	21.0	38.0	4.0	21.0
200 8"	60	-2XX 720cm²(111in²)	761	172	-	-	-	0.3	-	2.5	6.7	-	2.5
			445	143	-	-	0.8	2.9	-	6.9	14.4	-	6.9
			304	113	-	-	2.7	5.6	0.6	11.0	21.4	0.6	11.0

Actuator SA3 Series					Spring Nos.			spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-1XX 1600cm²(248in²)	445	143	5.7	12.7	19.7	20.8	40.3	50.0	30.5	49.8
			304	113	9.4	19.0	28.7	30.1	50.0	50.0	43.6	50.0
			176	90	18.5	34.2	49.9	50.0	50.0	50.0	50.0	50.0
200 8"	60	-1XX 1600cm²(248in²)	761	172	1.8	5.8	9.7	10.3	21.3	32.1	15.8	26.6
			445	143	5.7	12.7	19.7	20.8	40.3	50.0	30.5	49.8
			304	113	9.1	19.0	28.7	30.1	50.0	50.0	43.6	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	-	2.4	4.8	3.5	9.9	16.5	5.5	12.0
			761	172	1.1	4.9	8.4	6.4	16.1	25.9	9.4	19.2
			445	143	4.5	11.1	17.4	13.9	31.0	48.5	19.2	36.6
300 12"	100	-2XX 1600cm²(248in²)	1521	282	-	-	-	-	-	-	-	-
			1053	220	-	-	-	-	-	-	-	-
			761	172	-	-	-	-	-	-	-	-
350 14"	100	-2XX 1600cm²(248in²)	2106	313	-	-	-	-	-	-	-	-
			1521	282	-	-	-	-	-	-	-	-
			1053	220	-	-	-	-	-	-	-	-
400 16"	120	-2XX 1600cm²(248in²)	2925	400	-	-	-	-	-	-	-	-
			2106	313	-	-	-	-	-	-	-	-
			1521	282	-	-	-	-	-	-	-	-

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Table 5.5 Allowable pressure differential ( Leakage class IV Soft packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
40 1 1/2"	16	-2^Ö(3)XX 320cm²(50in²)	29	36	4.3	20.4	-	-	20.4	50.0	50.0	20.4	50.0
			19	30	7.5	29.2	-	-	29.2	50.0	50.0	29.2	50.0
			11.5	25	12.4	42.2	-	-	42.2	50.0	50.0	42.2	50.0
50 2"	16	-2^Ö(3)XX 320cm²(50in²)	46	46	0.7	10.0	-	-	10.0	28.5	47.7	10.0	28.5
			29	36	4.3	20.4	-	-	20.4	50.0	50.0	20.4	50.0
			19	30	7.5	29.2	-	-	29.2	50.0	50.0	29.2	50.0
65 2 1/2"	16	-2^Ö(3)XX 320cm²(50in²)	73	50	0.7	10.0	-	-	10.0	28.5	47.7	10.0	28.5
			46	46	0.7	10.0	-	-	10.0	28.5	47.7	10.0	28.5
			29	36	4.3	20.4	-	-	20.4	50.0	50.0	20.4	50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	-	2.4	-	-	2.4	10.0	17.6	2.4	10.0
			73	50	0.4	9.6	-	-	9.6	28.1	46.6	9.6	28.1
			46	46	0.4	9.6	-	-	9.6	28.1	46.6	9.6	28.1
		-1XX 720cm²(111in²)	116	80	2.7	10.6	15.4	20.2	11.9	29.1	46.3	11.9	29.1
			73	50	10.4	29.6	41.2	50.0	32.7	50.0	50.0	32.7	50.0
			46	46	10.4	29.6	41.2	50.0	32.7	50.0	50.0	32.7	50.0
100 4"	30	-5XX 320cm²(50in²)	186	100	-	0.9	-	-	0.9	6.0	11.1	0.9	6.0
			116	80	-	2.4	-	-	2.4	10.0	17.6	2.4	10.0
			73	50	0.4	9.6	-	-	9.6	28.1	46.6	9.6	28.1
		-1XX 720cm²(111in²)	186	100	1.1	6.4	9.6	12.8	7.3	18.8	30.2	7.3	18.8
			116	80	2.7	10.6	15.4	20.2	11.9	29.1	46.3	11.9	29.1
			73	50	10.4	29.6	41.2	50.0	32.7	50.0	50.0	32.7	50.0
150 6"	60	-2XX 720cm²(111in²)	445	143	-	2.6	4.2	5.9	3.0	8.9	14.9	3.0	8.9
			304	113	0.6	4.8	7.3	9.9	5.5	14.6	23.8	5.5	14.6
			176	90	1.8	8.2	12.1	15.9	9.2	23.1	37.0	9.2	23.1
200 8"	60	-2XX 720cm²(111in²)	761	172	-	1.2	2.3	3.3	1.5	5.2	9.0	1.5	5.2
			445	143	-	2.6	4.2	5.9	3.0	8.9	14.9	3.0	8.9
			304	113	0.6	4.8	7.3	9.9	5.5	14.6	23.8	5.5	14.6

Actuator SA3 Series					Spring Nos.			spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-1XX 1600cm²(248in²)	445	143	8.1	13.5	19.0	19.8	35.2	50.0	27.5	42.6
			304	113	13.3	21.8	30.3	31.5	50.0	50.0	43.4	50.0
			176	90	21.1	33.9	46.8	48.7	50.0	50.0	50.0	50.0
200 8"	60	-1XX 1600cm²(248in²)	761	172	4.7	8.2	11.6	12.2	21.9	31.4	17.0	26.6
			445	143	8.1	13.5	19.0	19.8	35.2	50.0	27.5	42.6
			304	113	13.3	21.8	30.3	31.5	50.0	50.0	43.4	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	2.6	4.9	7.0	5.8	11.7	17.6	7.6	13.6
			761	172	4.2	7.5	10.6	8.9	17.4	26.1	11.5	20.2
			445	143	7.3	12.5	17.4	14.7	28.1	41.8	18.8	32.5
300 12"	100	-2XX 1600cm²(248in²)	1521	282	1.6	3.1	4.6	3.8	7.9	12.0	5.0	9.2
			1053	220	2.6	4.9	7.0	5.8	11.7	17.6	7.6	13.6
			761	172	4.2	7.5	10.6	8.9	17.4	26.1	11.5	20.2
350 14"	100	-2XX 1600cm²(248in²)	2106	313	1.0	2.1	3.3	2.6	5.7	8.7	3.6	6.6
			1521	282	1.6	3.1	4.6	3.8	7.9	12.0	5.0	9.2
			1053	220	2.6	4.9	7.0	5.8	11.7	17.6	7.6	13.6
400 16"	120	-2XX 1600cm²(248in²)	2925	400	-	0.3	0.7	1.0	2.6	4.3	1.3	3.0
			2106	313	0.2	0.9	1.5	2.0	4.9	7.8	2.6	5.5
			1521	282	0.5	1.5	2.3	3.0	6.9	10.8	3.7	7.6

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Figure 5.1 DN40 ~ DN100 ( 1 1/2" ~ 4")

Figure 5.2 DN150 ~ DN400 ( 6" ~ 16")

Table 6.1 Figure size (mm)&Weight (Kg) ( DN40 ~ DN100, DIN PN16/25/40)

Body flange dimension is according to DIN 2543/2544/2545. The Face to face dimension is according to DIN3202-F1
Body assembly	DN		40	50	65	80	100
	L		200	230	290	310	350
	V	<300°C	105			156	181
		³300°C	167			248	267
	U		78	83	93	106	136
Actuator	ÆC	SA1	270
		SA2				400
	A	SA1	346			404
		SA2				489
	H	SA1	493			551
		SA2				651
	B		130			150
	Weight	SA1	31	33	41.5	70	93
		SA2				96	119

Note: Weight=Body assembly+Actuator ( without handwheel )

Table 6.2 Figure size(mm)&Weight (Kg) ( 1 1/2" ~ 4" , ANSI150/300 )

Flange ( ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF (IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
Body assembly	DN			11/2"	2"		2½"		3"	4"
	L CI.150		RF	222	254		276		298	352
			RFJ	235	267		289		311	365
	L CI.300		RF	235	267		292		317	368
			RFJ	248	282		308		333	384
	V		<300°C	105					156	181
			³300°C	167					248	267
	U			78	83		93		106	136
Actuator	ÆC		SA1	270
			SA2						400
	A		SA1	346					404
			SA2						189
	H		SA1	493					551
			SA2						651
	B			130					150
	Weight	SA1		31		33		41.5	70	93
		SA2		96					119

Note: Weight=Body assembly+Actuator ( without handwhell )

Table 6.3 Figure size (mm)&Weight (Kg) ( DN150 ~ DN400, DIN PN16/25/40)

Body flange dimension is according to DIN 2543/2544/2545. The Face to face dimension is according to DIN3202-F1
Body assembly	DN		150	200	250	300	350	400
	L		480	600	730	850	980	1100
	V	<300°C	260	292	357	394	462	518
	V	³300°C	355	407	506	543	611	667
	U		189	239	305	335	395	443
	ÆC	SA2	400
	ÆC	SA3	596
	A	SA2	625
	A	SA3	840		1010			1080
Actuator	H	SA2	888
	B		200		340
	Weight	SA2	190	250
	Weight	SA3	330	390	450	750	840	1490

Note: Weight=Body assembly+Actuator ( without handwheel )

Table 6.4 Figure size(mm)&Weight (Kg) ( 6" ~ 16", ANSI150/300 )

Flange ( ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF (IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
Body assembly	DN			6"	8"	10"	12"	14"	16"
	L CI.150	RF		451	543	673	737	889	1016
		RFJ		464	556	686	750	902	1029
	L CI.300	RF		473	568	708	775	927	1057
		RFJ		489	584	724	791	943	1073
	V	<300°C		260	292	357	394	462	518
		³300°C		355	407	506	543	611	667
	U			189	239	305	335	395	443
Actuator	ÆC	SA2		400
		SA3		596
	A	SA2		625
		SA3		840		1010			840
	H	SA2		888
	B			200		340
	Weight		SA2	190	250
			SA3	330	390	330	390	330	390

Note: Weight=Body asembly+Actuator ( without handwheel )

Ordering Information

Please specify the following information

1. Type

2. Nominal size

3. Nominal pressure & end connection

4. Body & trim material, harden treatment request

5. Flow characteristic

6. Packing material ( code )

7. Actuator type, with handwheel or not & Air pressure supply

8. Action type ( Direct or Reverse )

9. Accessory ( with positioner & Air regulator or not )

10.Oil-free or Copper-free, etc.

11.Fluid Name & state ( liquid, gas, steam, etc. )

12.Pipeline size, wall thickness ( Inlet, outlet )

13.Nor. Flow, Max. flow & Min. flow

14.Flow pressure & Pressure differential

15.( Full open/close )

16.Flow temp., Gravity or Density

17.Inlet and outlet pressure

18.The Gravity & viscosity of fluid, with slurry, flashing or not

19.Used in high pressure, Temp., &EXP. Condition or not

20. Other special requests

Lưu ý

Sản phẩm Van điều khiển SDP được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!

Đánh giá sản phẩm của chúng tôi

Gửi ảnh
