SH6000 Series
SGC Bushing and Port Guiding Perforated Plug Type

SH6000 Series

SGC Bushing and Port Guiding Perforated Plug Type

SGC also is the basic type among SH6000 high performance coltrol valves. Metal-seated quick-changeable trim combination. Particular effective for liquids and compressible fluids at high pressure drop ratios. Perforated cylinder Plug can effectively protect sealing surface of seat to be dameged by high speed flow scoured. The flow which directly pass through the holes of the trim is divided into numerous jets of cavitation liquid. In the centre of the cage the jets impact and the vapour bubbles collapse. Here, they don't cause any damage to the valve internals and the noise level is also reduced by 5-10dBA.

SGC series is suitable to verous heavy duty services.

Valve Body

Type: Cast globe Valve

Nominal Size: DN15, 20, 25, 32, 40, 50, 65, 80, 100, 150,

200, 250, 300, 350, 400

Nominal Pressure: ANSI 150, 300

DIN PN16, 25, 40

JIS 10K, 20K 30K

GB PN1.6, 2.5, 4.0 MPa

End Connection: Flange ANSI B16.5 RF, RTJ

DIN2543/2544/2545 RF

JISB2201 RF

JB/T81 RF

JB/T82.2 FM

Weld ANSI B16.5 SW ( DN £ 50 ) ; BW ( DN > 50 )

Face to Face Dimension: ANSI150RF, JIS10K ( IEC60534-3-1 37 Series )

ANSI300RF, JIS20K, JIS30K ( IEC60534-3-1 38 Series )

ANSI150/300 RTJ ( ASME B16.10 CLASS 150/300RTJ )

DIN PN16, 25, 40 ( DIN3202-F1 )

GB PN1.6, 2.5, 4.0 MPa ( ISO5752 1 Series )

Please refer to table 6.1~6.4

Body Material: Please refer to table1 Please refer to figure 3 for Operated Temp.&Pressure Range

Bonnet Type: STD type·········-46°C ~ 200°C ; 200°C ~ 300°C Radiation fin type·········300°C ~ 530°C

Please pay attention to the different Temp.&Pressure Range of material

Packing Material: PTFE V-ring compound packing, graphite compound packing, graphite packing

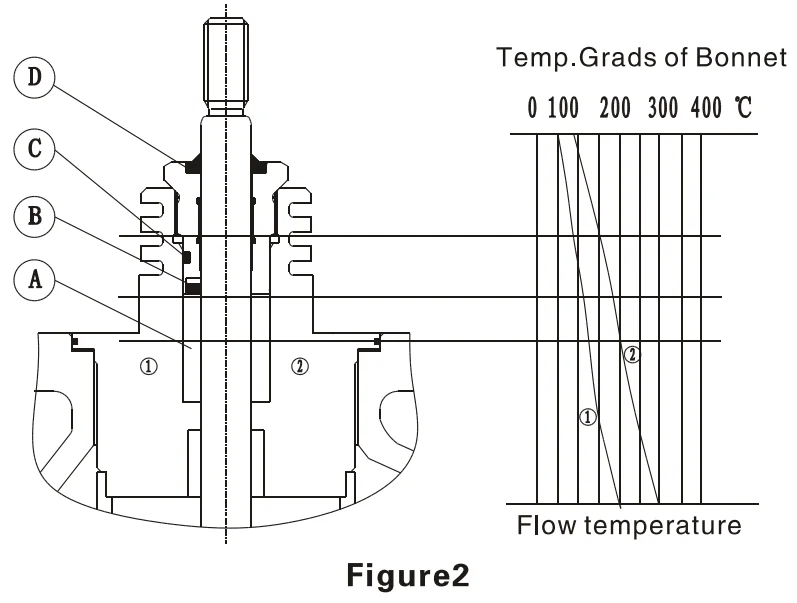

Operating Temp.&Pressure range is shown in table 2, figure2

Seal Gasket: Spiral wound gasket ( PTFE+316, Flexible Graphite+316 )

Graphite with metal gasket ( Graphite+316, Graphite+304 )

Valve Trim

Plug Type: Perforated cylinder plug

Flow Characteristic: EQ%, Linearity ( Please refer to figure4 )

Trim Material: Please refer to table 3 for STD material assembly, operated Temp.&Pressure Range

Actuator

Type: Multi-spring diaphragm

Air Supply: Max. 6bar

Ambient Temp.: -20°C+80°C

Spring range: As shown in Table 5.1 ~ 5.4

Air Connection: G1/8 ( SA1 ) ; G1/4 ( SA2 ) ; G3/4 ( SA3 )

STD Specification: As shown in Table 5.1 ~ 5.4

Accessory

Positioner, Filter-regulator valve, Solenoid valve, Limit switch, Valve position

Transmitter, Booster relay, Lock-valve, Handwheel, etc.

Action

Air to open, Air to close

Performance

Rangeability: 50:1

Seat leakage: Metal seal is according to ANSI B16.104 ClassIV, Class V

Hysteresis: 3% ( Without Positioner ) 1% ( With Positioner )

Linearity: ± 5% ( Without Positioner ) ±1% ( With Positioner )

Rated CV: As shown in table 4

Allowable pressure differential: As shown in table 5.1~5.4

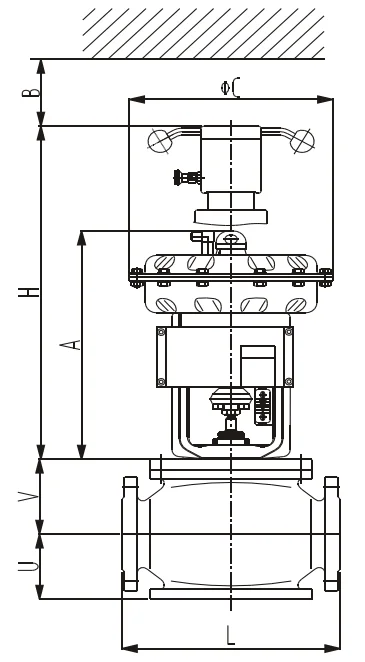

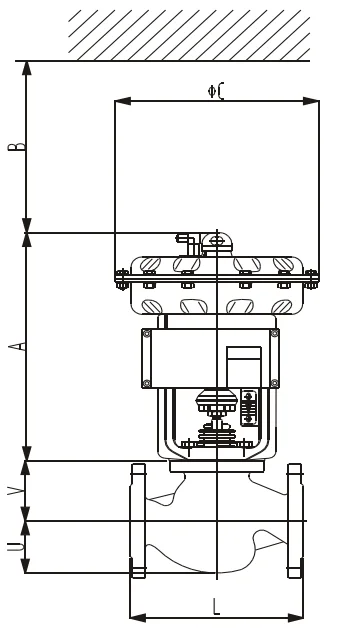

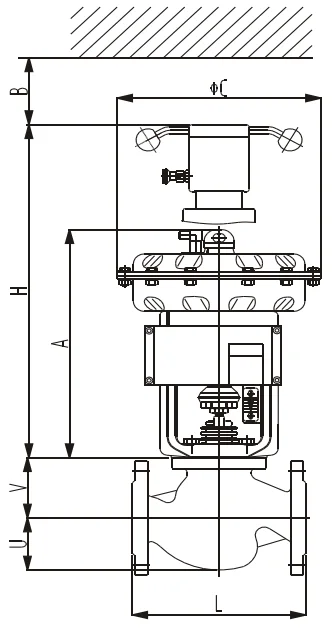

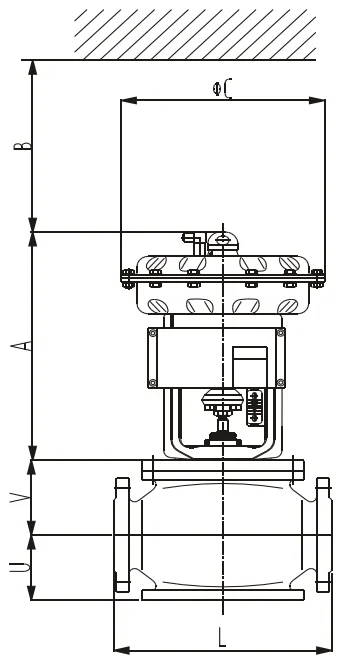

Figure Size: As shown in figure5.1, 5.2, table 6.1~6.4

Weight of product: As shown in table 6.1~6.4

Performance

Special inspection

Flow characteristic test, material test, low temperature test, steam test, non-damages test
copper-free treatment
non-standard painting
dust and sand proof
vacuum service
tropical area proof
completely oi-free, water-free treatment
special air piping and fitting
strong corrosion proof
stainless steel bolt and nut for exposed parts
cold area proof

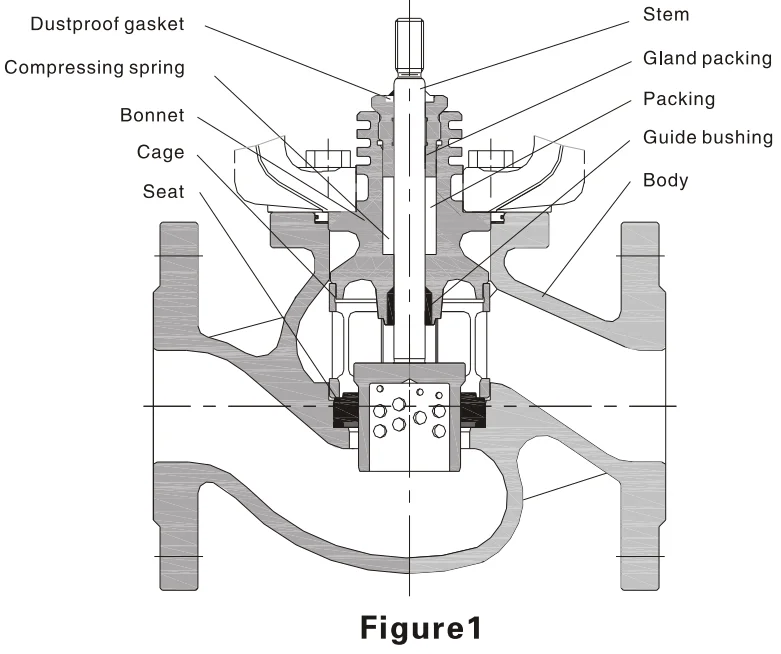

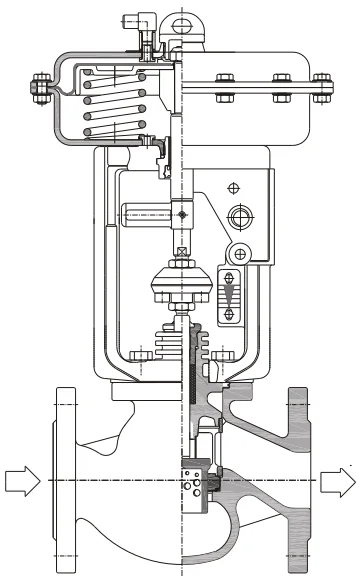

Body Assembly Structure ( As shown in figure 1 )

Performance

Both faces of valve seat can
be used to improve service life
Quickly disassembly and installation
without any special tools
Good price performance
Optimize flow of cage
Various of materials are available
Maintenance-free for packing
Packing stuffing box is wear resistance
and corrosion resistance

Table 1 Body material

GB			ANSI		DIN			Temp.Range
ZG230-450 WCB			A216 WCB ( ASTM )		1.0619 GP240GH			-10°C ~ 400°C
ZG0Cr18Ni9			A351 CF8 ( ASTM )		1.4308 G-X6CrNi18 9			-200°C ~ 530°C
ZG0Cr18Ni12Mo2Ti			A351 CF8M ( ASTM )		1.4408 G-X6CrNiMo18 10			-200°C ~ 530°C
ZG0Cr18Ni12Mo2Nb			-		1.4581 G-X5CrNiMo18 10			-200°C ~ 530°C
			A217 WC6 ( ASTM )		1.7357 GS-17CrMo5 5			-10°C ~ 450°C
			A217 WC9 ( ASTM )		1.7379 GS-18CrMo9 10			-10°C ~ 450°C
Table 2 Applicable Temp.&Pressure range of packing material
Type of material ( Shown in A )	Code	Seal material ( Shown in B )		O-ring material ( Shown in C )		Dustproof ring ( Shown in D )	Temp.Range		Bonnet Type	Remarks
PTFE V type packing	1	EPDM		EPDM		NBR	-25°C ~ 180°C		Standard	( Alter- nate load ) with compress spring
	2	VITON				VITON	-25°C ~ 200°C
Graphite+ Incnel packing	3	-		-		NBR ( VITON )	-20°C ~ 400°C		Standard/with radiation fin	General occasion
Pure graphite ( Density 1.2 )	4	-		-		VITON	-196°C ~ 530°C		Standard/with radiation fin	High Temp. occasion
Graphite+PTFE	6	-		-		NBR	-196°C ~ 200°C		Standard/ extension type	Low Temp. occasion
Note: please choose the most related Temp.Range

ASME B16.35 150/300

Temp.

ASME

B16.34/B16.35

ASME B16.34 600/900/1500

Temp.

DIN EN 1092-1 PN16, PN25, PN40

Temp.

DIN EN

1092-1

DIN EN 1092-1 PN63, PN100, PN160, PN250

Temp.

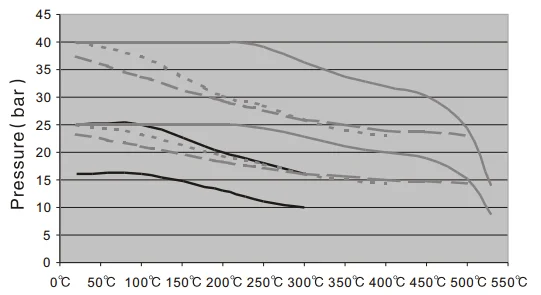

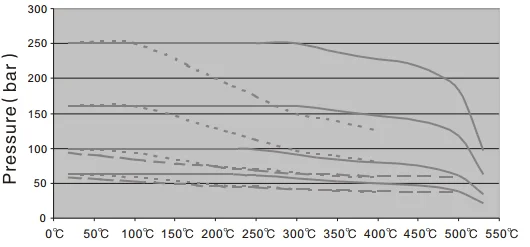

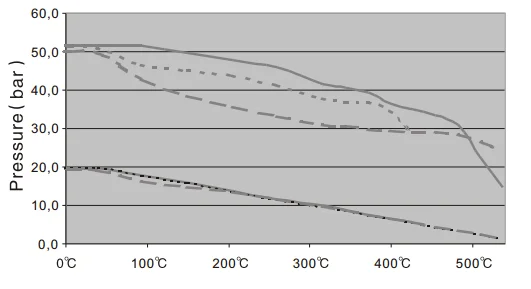

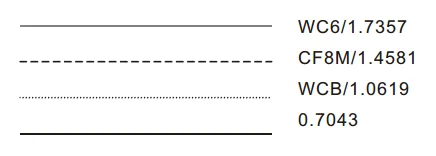

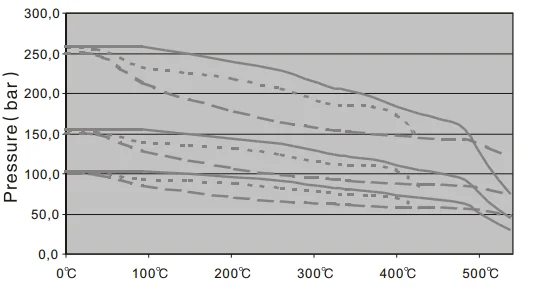

Figure3 Temp.&Pressure curve

Table 3 STD Material Assembly, Operated Temp.&Pressure Range of Trim

Perforated cylinder plug			Seat				Type of seat seal		Temp.
0Cr18Ni12Mo2Ti ( 1.4571 ) Nitriding treatment			0Cr18Ni12Mo2Ti ( 1.4571 )				Metal seal		-46°C~530°C
3Cr17NiMo ( 1.4122 ) Nitriding treatment			2Cr13 ( 1.40 1 ) Harden treatment				Metal seal
9Cr18MoV ( 1.4112 ) Harden treatment			9Cr18MoV ( 1.4112 ) Harden treatment				Metal seal
2Cr12MoV ( 1.4922 ) Harden treatment			9Cr18MoV ( 1.4112 ) Harden treatment				Metal seal
Harden treatment: Hard chrome plated, Stellite surface, Heat treatment, Nitriding treatment, Spray tungsten carbide, etc. Table 4 Rated Cv.
Seat type		Perforated cylinder plug
Flow characteristic		Linearity				EQ%
Nominal size (DN)	Travel	Cv1		Cv2	Cv3	Cv1		Cv2		Cv3
15	20	2.9				2.9
20		2.9				2.9
25		7.3		2.9		4.7		2.9
32		7.3		2.9		4.7		2.9
40		19		11.5	7.3	19		11.5		7.3
50		29		19	11.5	2.9		19		11.5
65		46		29	19	2.9		19		11.5
80	30	116		73	46	64		46		29
100		139		116	73	73		64		46
150	60	445		304	198	246		176		146
200		527		445	304	304		246		176
250	100	1053		761	445	608		445		375
300		1521		1053	761	842		608		445
350		2106		1521	1053	995		842		608
400	120	2925		2106	1638	1463		1053		878
Figure4 Flow characteristic curve

Table 5.1 Allowable pressure differential ( Leakage class IV PTFE packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3		3		6		6
					bar	bar	bar	bar	Air supply (bar)
									3.0		4.5		6.0		4.5		6.0
15 1/2"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
20 3/4"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
25 1"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	32.8	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			4.7	25	32.8	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
32 1 1/4"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	32.8	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			4.7	25	32.8	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			2.9	20	50.0	50.0	-	-	50.0		50.0		50.0		50.0		50.0
40 1 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	19	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
			11.5	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
			7.3	25	32.7	50.0	-	-	50.0		50.0		50.0		50.0		50.0
50 2"	20	-2^Ö(3)XX 320cm²(50in²)	29	46	7.7	22.1	-	-	22.1		50.0		50.0		22.1		50.0
			19	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
			11.5	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
			7.3	25	21.6	50.0	-	-	50.0		50.0		50.0		50.0		50.0
65 2 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	46	50	6.2	18.4	-	-	18.4		42.9		50.0		18.4		42.9
			29	46	7.7	22.1	-	-	22.1		50.0		50.0		22.1		50.0
			19	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
			11.5	36	14.1	37.7	-	-	37.7		50.0		50.0		37.7		50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	1.3	6.1	-	-	6.1		15.6		25.2		6.1		15.6
			73	80	1.3	6.1	-	-	6.1		15.6		25.2		6.1		15.6
			64	80	1.3	6.1	-	-	6.1		15.6		25.2		6.1		15.6
			46%	80	1.3	6.1	-	-	6.1		15.6		25.2		6.1		15.6
			64L	50	5.7	17.9	-	-	17.9		42.4		50.0		17.9		42.4
			29	46	7.1	21.5	-	-	21.5		50.0		50.0		21.5		50.0
		-1XX 720cm²(111in²)	116	80	6.5	16.4	22.4	28.4	18.0		39.5		50.0		18.0		39.5
			73	80	6.5	16.4	22.4	28.4	18.0		39.5		50.0		18.0		39.5
			64	80	6.5	16.4	22.4	28.4	18.0		39.5		50.0		18.0		39.5
			46%	80	6.5	16.4	22.4	28.4	18.0		39.5		50.0		18.0		39.5
			64L	50	18.9	44.4	50.0	50.0	48.5		50.0		50.0		48.5		50.0
			29	46	22.7	50.0	50.0	50.0	50.0		50.0		50.0		50.0		50.0

Continued Table 5.1

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
100 4"	30	-5XX 320cm²(50in²)	139	100	0.4	3.5	-	-	3.5	9.6	15.7	3.5	9.6
			73%	100	0.4	3.5	-	-	3.5	9.6	15.7	3.5	9.6
			116	80	1.3	6.1	-	-	6.1	15.6	25.2	6.1	15.6
			73L	80	1.3	6.1	-	-	6.1	15.6	25.2	6.1	15.6
			64	80	1.3	6.1	-	-	6.1	15.6	25.2	6.1	15.6
			46	80	1.3	6.1	-	-	6.1	15.6	25.2	6.1	15.6
		-1XX 720cm²(111in²)	139	100	3.7	10.1	13.9	17.7	11.1	24.9	38.6	11.1	24.9
			73%	100	3.7	10.1	13.9	17.7	11.1	24.9	38.6	11.1	24.9
			116	80	6.5	16.4	22.4	28.4	18.0	39.5	50.0	18.0	39.5
			73L	80	6.5	16.4	22.4	28.4	18.0	39.5	50.0	18.0	39.5
			64	80	6.5	16.4	22.4	28.4	18.0	39.5	50.0	18.0	39.5
			46	80	6.5	16.4	22.4	28.4	18.0	39.5	50.0	18.0	39.5
150 6"	60	-2XX 720cm²(111in²)	445	143	1.7	5.2	7.3	9.4	5.7	13.3	20.8	5.7	13.3
			246	143	1.7	5.2	7.3	9.4	5.7	13.3	20.8	5.7	13.3
			304	113	2.6	7.4	10.3	13.2	8.2	18.6	29.0	8.2	18.6
			176	113	2.6	7.4	10.3	13.2	8.2	18.6	29.0	8.2	18.6
			198	90	4.9	12.7	17.4	22.2	14.0	31.0	47.9	14.0	31.0
			146	90	4.9	12.7	17.4	22.2	14.0	31.0	47.9	14.0	31.0
200 8"	60	-2XX 720cm²(111in²)	527	172	0.7	2.6	3.8	5.0	2.9	7.2	11.4	2.9	7.2
			304%	172	0.7	2.6	3.8	5.0	2.9	7.2	11.4	2.9	7.2
			445	143	1.7	5.2	7.3	9.4	5.7	13.3	20.8	5.7	13.3
			246	143	1.7	5.2	7.3	9.4	5.7	13.3	20.8	5.7	13.3
			304L	113	2.6	7.4	10.3	13.2	8.2	18.6	29.0	8.2	18.6
			176	113	2.6	7.4	10.3	13.2	8.2	18.6	29.0	8.2	18.6

Continued Table 5.1

Actuator SA3 Series					Spring Nos.			spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-1XX 1600cm²(248in²)	445	143	12.1	19.1	26.1	27.2	46.7	50.0	37.0	50.0
			246	143	12.1	19.1	26.1	27.2	46.7	50.0	37.0	50.0
			304	113	17.0	26.7	36.3	37.8	50.0	50.0	50.0	50.0
			176	113	17.0	26.7	36.3	37.8	50.0	50.0	50.0	50.0
			198	90	28.4	44.2	50.0	50.0	50.0	50.0	50.0	50.0
			146	90	28.4	44.2	50.0	50.0	50.0	50.0	50.0	50.0
200 8"	60	-1XX 1600cm²(248in²)	527	172	6.6	10.5	14.4	15.0	26.7	36.8	20.5	31.3
			304%	172	6.6	10.5	14.4	15.0	26.7	36.8	20.5	31.3
			445	143	12.1	19.1	26.1	27.2	46.7	50.0	37.0	50.0
			246	143	12.1	19.1	26.1	27.2	46.7	50.0	37.0	50.0
			304L	113	17.0	26.7	36.3	37.8	50.0	50.0	50.0	50.0
			176	113	17.0	26.7	36.3	37.8	50.0	50.0	50.0	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			608	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			761	172	6.0	9.7	13.3	11.3	20.9	30.8	14.3	24.1
			445%	172	6.0	9.7	13.3	11.3	20.9	30.8	14.3	24.1
			445L	143	11.2	17.8	24.1	20.6	37.7	50.0	25.8	43.3
			375	143	11.2	17.8	24.1	20.6	37.7	50.0	25.8	43.3
300 12"	100	-2XX 1600cm²(248in²)	1521	282	2.5	4.3	5.9	5.0	9.4	14.0	6.3	10.9
			842	282	2.5	4.3	5.9	5.0	9.4	14.0	6.3	10.9
			1053	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			608	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			761	172	6.0	9.7	13.3	11.3	20.9	30.8	14.3	24.1
			445	172	6.0	9.7	13.3	11.3	20.9	30.8	14.3	24.1
350 14"	100	-2XX 1600cm²(248in²)	2106	313	1.8	3.0	4.2	3.5	6.8	10.1	4.5	7.9
			995	313	1.8	3.0	4.2	3.5	6.8	10.1	4.5	7.9
			1521	282	2.5	4.3	5.9	5.0	9.4	14.0	6.3	10.9
			842	282	2.5	4.3	5.9	5.0	9.4	14.0	6.3	10.9
			1053	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
			608	220	3.9	6.4	8.7	7.4	13.9	20.4	9.4	16.0
400 16"	120	-2XX 1600cm²(248in²)	2925	400	0.4	0.9	1.3	1.6	3.5	5.4	2.0	3.8
			1463	400	0.4	0.9	1.3	1.6	3.5	5.4	2.0	3.8
			2106	313	0.9	1.7	2.4	2.9	6.0	9.1	3.5	6.6
			1053	313	0.9	1.7	2.4	2.9	6.0	9.1	3.5	6.6
			1638	282	1.3	2.5	3.3	4.1	8.3	12.6	4.9	9.1
			878	282	1.3	2.5	3.3	4.1	8.3	12.6	4.9	9.1

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Table 5.2 Allowable pressure differential ( Leakage class IV Graphite packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
100 4"	30	-5XX 320cm²(50in²)	139	100	-	2.6	-	-	2.6	8.7	14.8	2.6	8.7
			73%	100	-	2.6	-	-	2.6	8.7	14.8	2.6	8.7
			116	80	-	4.7	-	-	4.7	14.2	23.8	4.7	14.2
			73L	80	-	4.7	-	-	4.7	14.2	23.8	4.7	14.2
			64	80	-	4.7	-	-	4.7	14.2	23.8	4.7	14.2
			46	80	-	4.7	-	-	4.7	14.2	23.8	4.7	14.2
		-1XX 720cm²(111in²)	139	100	2.8	9.2	13.0	16.9	10.2	24.0	50.0	10.2	24.0
			73%	100	2.8	9.2	13.0	16.9	10.2	24.0	50.0	10.2	24.0
			116	80	5.1	15.0	21.0	27.0	16.6	38.1	50.0	16.6	38.1
			73L	80	5.1	15.0	21.0	27.0	16.6	38.1	50.0	16.6	38.1
			64	80	5.1	15.0	21.0	27.0	16.6	38.1	50.0	16.6	38.1
			46	80	5.1	15.0	21.0	27.0	16.6	38.1	50.0	16.6	38.1
150 6"	60	-2XX 720cm²(111in²)	445	143	1.2	4.7	6.8	8.9	5.2	12.8	20.3	5.2	12.8
			246	143	1.2	4.7	6.8	8.9	5.2	12.8	20.3	5.2	12.8
			304	113	1.9	6.7	9.6	12.5	7.5	17.9	28.3	7.5	17.9
			176	113	1.9	6.7	9.6	12.5	7.5	17.9	28.3	7.5	17.9
			198	90	3.8	11.6	16.3	21.1	12.9	29.9	46.8	12.9	29.9
			146	90	3.8	11.6	16.3	21.1	12.9	29.9	46.8	12.9	29.9
200 8"	60	-2XX 720cm²(111in²)	527	172	0.4	2.3	3.5	4.7	2.7	6.9	11.2	2.7	6.9
			304%	172	0.4	2.3	3.5	4.7	2.7	6.9	11.2	2.7	6.9
			445	143	1.2	4.7	6.8	8.9	5.2	12.8	20.3	5.2	12.8
			246	143	1.2	4.7	6.8	8.9	5.2	12.8	20.3	5.2	12.8
			304L	113	1.9	6.7	9.6	12.5	7.5	17.9	28.3	7.5	17.9
			176	113	1.9	6.7	9.6	12.5	7.5	17.9	28.3	7.5	17.9

Table 5.3 Allowable pressure differential ( Leakage class IV PTFE packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
15 1/2"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	46.6	50.0	-	-	50.0	50.0	50.0	50.0	50.0
			-	-	-	-	-	-	-	-	-	-	-
			-	-	-	-	-	-	-	-	-	-	-
20 3/4"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	46.6	50.0	-	-	50.0	50.0	50.0	50.0	50.0
			-	-	-	-	-	-	-	-	-	-	-
			-	-	-	-	-	-	-	-	-	-	-
25 1"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	0.8	49.7	-	-	49.7	50.0	50.0	49.7	50.0
			4.7	25	0.8	49.7	-	-	49.7	50.0	50.0	49.7	50.0
			2.9	20	50.0	50.0	-	-	50.0	50.0	50.0	50.0	50.0
32 1 1/4"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	0.8	49.7	-	-	49.7	50.0	50.0	49.7	50.0
			4.7	25	0.8	49.7	-	-	49.7	50.0	50.0	49.7	50.0
			2.9	20	50.0	50.0	-	-	50.0	50.0	50.0	50.0	50.0
40 1 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	19	36	-	15.5	-	-	15.5	50.0	50.0	15.5	50.0
			11.5	36	-	15.5	-	-	15.5	50.0	50.0	15.5	50.0
			7.3	25	0.8	49.7	-	-	49.7	50.0	50.0	49.7	50.0
50 2"	20	-2^Ö(3)XX 320cm²(50in²)	29	46	-	4.7	-	-	4.7	33.6	50.0	4.7	33.6
			19	36	-	15.5	-	-	15.5	50.0	50.0	15.5	50.0
			11.5	36	-	15.5	-	-	15.5	50.0	50.0	15.5	50.0
			7.3	25	-	28.9	-	-	28.9	50.0	50.0	28.9	50.0
65 2 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	46	50	-	2.4	-	-	2.4	26.9	50.0	2.4	26.9
			29	46	-	4.7	-	-	4.7	33.6	50.0	4.7	33.6
			19	36	-	15.5	-	-	15.5	50.0	50.0	15.5	50.0
			11.5	36	-	15.5	-	-	15.5	50.0	50.0	15.5	50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	-	-	-	-	5.6	15.2	-	5.6	-
			73	80	-	-	-	-	5.6	15.2	-	5.6	-
			64	80	-	-	-	-	5.6	15.2	-	5.6	-
			46%	80	-	-	-	-	5.6	15.2	-	5.6	-
			64L	50	-	1.9	-	-	1.9	26.4	50.0	1.9	26.4
			29	46	-	4.1	-	-	4.1	33.0	50.0	4.1	33.0
		-1XX 720cm²(111in²)	116	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			73	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			64	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			46%	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			64L	50	2.9	28.4	43.7	50.0	32.5	50.0	50.0	32.5	50.0
			29	46	5.4	35.5	50.0	50.0	40.3	50.0	50.0	40.3	50.0

Continued Table 5.3

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3	3	6	6
					bar	bar	bar	bar	Air supply (bar)
					bar	bar	bar	bar	3.0	4.5	6.0	4.5	6.0
100 4"	30	-5XX 320cm²(50in²)	139	100	-	-	-	-	-	1.6	7.7	-	1.6
			73%	100	-	-	-	-	-	1.6	7.7	-	1.6
			116	80	-	-	-	-	-	5.6	15.2	-	5.6
			73L	80	-	-	-	-	-	5.6	15.2	-	5.6
			64	80	-	-	-	-	-	5.6	15.2	-	5.6
			46	80	-	-	-	-	-	5.6	15.2	-	5.6
		-1XX 720cm²(111in²)	139	100	-	2.1	5.9	9.7	3.1	16.9	30.6	3.1	16.9
			73%	100	-	2.1	5.9	9.7	3.1	16.9	30.6	3.1	16.9
			116	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			73L	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			64	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
			46	80	-	6.4	12.4	18.4	8.0	29.5	50.0	8.0	29.5
150 6"	60	-2XX 720cm²(111in²)	445	143	-	-	1.3	3.4	-	7.3	14.9	-	7.3
			246	143	-	-	1.3	3.4	-	7.3	14.9	-	7.3
			304	113	-	0.5	3.3	6.2	1.2	11.6	22.0	1.2	11.6
			176	113	-	0.5	3.3	6.2	1.2	11.6	22.0	1.2	11.6
			198	90	-	3.8	8.5	13.3	5.1	22.1	39.1	5.1	22.1
			146	90	-	3.8	8.5	13.3	5.1	22.1	39.1	5.1	22.1
200 8"	60	-2XX 720cm²(111in²)	527	172	-	-	-	0.5	-	2.7	7.0	-	2.7
			304%	172	-	-	-	0.5	-	2.7	7.0	-	2.7
			445	143	-	-	1.3	3.4	-	7.3	14.9	-	7.3
			246	143	-	-	1.3	3.4	-	7.3	14.9	-	7.3
			304L	113	-	0.5	3.3	6.2	1.2	11.6	22.0	1.2	11.6
			176	113	-	0.5	3.3	6.2	1.2	11.6	22.0	1.2	11.6

Continued Table 5.3

Actuator SA3 Series					Spring Nos.			spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4	6	8	2	2	2	4	4
					bar	bar	bar	Air supply (bar)
					bar	bar	bar	3.0	4.5	6.0	4.5	6.0
150 6"	60	-2XX 1600cm²(248in²)	445	143	6.2	13.2	20.2	21.3	40.8	50.0	31.0	50.0
			246	143	6.2	13.2	20.2	21.3	40.8	50.0	31.0	50.0
			304	113	10.1	19.7	29.4	30.8	50.0	50.0	44.3	50.0
			176	113	10.1	19.7	29.4	30.8	50.0	50.0	44.3	50.0
			198	90	19.6	35.3	50.0	50.0	50.0	50.0	50.0	50.0
			146	90	19.6	35.3	50.0	50.0	50.0	50.0	50.0	50.0
200 8"	60	-2XX 1600cm²(248in²)	527	172	2.1	6.0	10.0	10.6	21.6	32.4	16.1	26.9
			304%	172	2.1	6.0	10.0	10.6	21.6	32.4	16.1	26.9
			445	143	6.2	13.2	20.2	21.3	40.8	50.0	31.0	50.0
			246	143	6.2	13.2	20.2	21.3	40.8	50.0	31.0	50.0
			304L	113	10.1	19.7	29.4	30.8	50.0	50.0	44.3	50.0
			176	113	10.1	19.7	29.4	30.8	50.0	50.0	44.3	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	0.2	2.7	5.1	3.8	10.2	16.8	5.7	12.3
			608	220	0.2	2.7	5.1	3.8	10.2	16.8	5.7	12.3
			761	172	1.6	5.3	8.8	6.9	16.5	26.3	9.8	19.6
			445%	172	1.6	5.3	8.8	6.9	16.5	26.3	9.8	19.6
			445L	143	5.2	11.9	18.2	14.7	31.8	49.3	19.9	37.4
			375	143	5.2	11.9	18.2	14.7	31.8	49.3	19.9	37.4
300 12"	100	-2XX 1600cm²(248in²)	1521	282	-	-	-	-	-	-	-	-
			842	282	-	-	-	-	-	-	-	-
			1053	220	-	-	-	-	-	-	-	-
			608	220	-	-	-	-	-	-	-	-
			761	172	-	-	-	-	-	-	-	-
			445	172	-	-	-	-	-	-	-	-
350 14"	100	-2XX 1600cm²(248in²)	2106	313	-	-	-	-	-	-	-	-
			995	313	-	-	-	-	-	-	-	-
			1521	282	-	-	-	-	-	-	-	-
			842	282	-	-	-	-	-	-	-	-
			1053	220	-	-	-	-	-	-	-	-
			608	220	-	-	-	-	-	-	-	-
400 16"	120	-2XX 1600cm²(248in²)	2925	400	-	-	-	-	-	-	-	-
			1463	400	-	-	-	-	-	-	-	-
			2106	313	-	-	-	-	-	-	-	-
			1053	313	-	-	-	-	-	-	-	-
			1638	282	-	-	-	-	-	-	-	-
			878	282	-	-	-	-	-	-	-	-

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

Table 5.4 Allowable pressure differential ( Leakage classIV Graphite packing )

Actuator SA1, 2 Series					Air to open Spring Nos.				Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6	9	12	3	3		3		6		6
					bar	bar	bar	bar	Air supply (bar)
									3.0		4.5		6.0		4.5		6.0
15 1/2"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	12.6	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
20 3/4"	20	-1^Ö(6)XX 320cm²(50in²)	2.9	20	12.6	50.0	-	-	50.0		50.0		50.0		50.0		50.0
			-	-	-	-	-	-	-		-		-		-		-
			-	-	-	-	-	-	-		-		-		-		-
25 1"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	-	37.5	-	-	37.5		50.0		50.0		37.5		50.0
			4.7	25	-	37.5	-	-	37.5		50.0		50.0		37.5		50.0
			2.9	20	12.6	50.0	-	-	50.0		50.0		50.0		50.0		50.0
32 1 1/4"	20	-1^Ö(6)XX 320cm²(50in²)	7.3	25	-	37.5	-	-	37.5		50.0		50.0		37.5		50.0
			4.7	25	-	37.5	-	-	37.5		50.0		50.0		37.5		50.0
			2.9	20	-	50.0	-	-	50.0		50.0		50.0		50.0		50.0
40 1 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	19	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
			11.5	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
			7.3	25	37.5	-	-	37.5	50.0		50.0		37.5		50.0		37.5
50 2"	20	-2^Ö(3)XX 320cm²(50in²)	29	46	-	1.1	-	-	1.1		30.0		50.0		1.1		30.0
			19	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
			11.5	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
			7.3	25	-	20.5	-	-	20.5		50.0		50.0		20.5		50.0
65 2 1/2"	20	-2^Ö(3)XX 320cm²(50in²)	46	50	-	-	-	-	-		23.8		48.3		-		23.8
			29	46	-	1.1	-	-	1.1		30.0		50.0		1.1		30.0
			19	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
			11.5	36	-	9.6	-	-	9.6		50.0		50.0		9.6		50.0
80 3"	30	-5XX 320cm²(50in²)	116	80	-	-	-	-	-		4.2		13.8		-		4.2
			73	80	-	-	-	-	-		4.2		13.8		-		4.2
			64	80	-	-	-	-	-		4.2		13.8		-		4.2
			46%	80	-	-	-	-	-		4.2		13.8		-		4.2
			64L	50	-	-	-	-	-		22.8		47.3		-		22.8
			29	46	-	-	-	-	-		28.8		50.0		-		28.8
		-1XX 720cm²(111in²)	116	80	-	5.0	11.0	17.0	6.6		28.1		50.0		6.6		28.1
			73	80	-	5.0	11.0	17.0	6.6		28.1		50.0		6.6		28.1
			64	80	-	5.0	11.0	17.0	6.6		28.1		50.0		6.6		28.1
			46%	80	-	5.0	11.0	17.0	6.6		28.1		50.0		6.6		28.1
			64L	50	-	24.8	40.1	50.0	28.9		50.0		50.0		28.9		50.0
			29	46	1.1	31.2	49.3	50.0	36.1		50.0		50.0		36.1		50.0
100 4"	30	-5XX 320cm²(50in²)	139	100	-	-	-	-	-		0.7		6.8		-		0.7
			73%	100	-	-	-	-	-		0.7		6.8		-		0.7
			116	80	-	-	-	-	-		4.2		13.8		-		4.2
			73L	80	-	-	-	-	-		4.2		13.8		-		4.2
			64	80	-	-	-	-	-		4.2		13.8		-		4.2
			46	80	-	-	-	-	-		4.2		13.8		-		4.2
		-1XX 720cm²(111in²)	139	100	-	1.2	5.0	8.9	2.2		16.0		29.7		2.2		16.0
			73%	100	-	1.2	5.0	8.9	2.2		16.0		29.7		2.2		16.0
			116	80	-	5.0	11.0	17.0	6.6		28.1		49.6		6.6		28.1
			73L	80	-	5.0	11.0	17.0	6.6		28.1		49.6		6.6		28.1
			64	80	-	5.0	11.0	17.0	6.6		28.1		49.6		6.6		28.1
			46	80	-	5.0	11.0	17.0	6.6		28.1		49.6		6.6		28.1

Continued Table 5.4

Actuator SA1, 2 Series					Air to open Spring Nos.						Air to close spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	3	6		9		12	3	3	3	6	6
					bar	bar		bar		bar	Air supply (bar)
											3.0	4.5	6.0	4.5	6.0
150 6"	60	-2XX 720cm²(111in²)	445	143	-	-		0.8		2.9	-	6.9	14.4	-	6.9
			246	143	-	-		0.8		2.9	-	6.9	14.4	-	6.9
			304	113	-	-		2.7		5.6	0.6	11.0	21.4	0.6	11.0
			176	113	-	-		2.7		5.6	0.6	11.0	21.4	0.6	11.0
			198	90	-	2.7		7.4		12.2	4.0	21.0	38.0	4.0	21.0
			146	90	-	2.7		7.4		12.2	4.0	21.0	38.0	4.0	21.0
200 8"	60	-2XX 720cm²(111in²)	527	172	-	-		-		0.3	-	2.5	6.7	-	2.5
			304%	172	-	-		-		0.3	-	2.5	6.7	-	2.5
			445	143	-	-		0.8		2.9	-	6.9	14.4	-	6.9
			246	143	-	-		0.8		2.9	-	6.9	14.4	-	6.9
			304L	113	-	-		2.7		5.6	0.6	11.0	21.4	0.6	11.0
			176	113	-	-		2.7		5.6	0.6	11.0	21.4	0.6	11.0
Actuator SA3 Series					Spring Nos.						spring Nos.
Nominal size DN(mm)	Travel (mm)	Actuator size parameter	Cv	Seat Dia. F (mm)	4		6		8		2	2	2	4	4
					bar		bar		bar		Air supply (bar)
											3.0	4.5	6.0	4.5	6.0
150 6"	60	-2XX 1600cm²(248in²)	445	143	5.7		12.7		19.7		20.8	40.3	50.0	30.5	49.8
			246	143	5.7		12.7		19.7		20.8	40.3	50.0	30.5	49.8
			304	113	9.4		19.0		28.7		30.1	50.0	50.0	43.6	50.0
			176	113	9.4		19.0		28.7		30.1	50.0	50.0	43.6	50.0
			198	90	18.5		34.2		49.9		50.0	50.0	50.0	50.0	50.0
			146	90	18.5		34.2		49.9		50.0	50.0	50.0	50.0	50.0
200 8"	60	-2XX 1600cm²(248in²)	527	172	1.8		5.8		9.7		10.3	21.3	32.1	15.8	26.6
			304%	172	1.8		5.8		9.7		10.3	21.3	32.1	15.8	26.6
			445	143	5.7		12.7		19.7		20.8	40.3	50.0	30.5	49.8
			246	143	5.7		12.7		19.7		20.8	40.3	50.0	30.5	49.8
			304L	113	9.1		19.0		28.7		30.1	50.0	50.0	43.6	50.0
			176	113	9.1		19.0		28.7		30.1	50.0	50.0	43.6	50.0
250 10"	100	-2XX 1600cm²(248in²)	1053	220	-		2.4		4.8		3.5	9.9	16.5	5.5	12.0
			608	220	-		2.4		4.8		3.5	9.9	16.5	5.5	12.0
			761	172	1.1		4.9		8.4		6.4	16.1	25.9	9.4	19.2
			445%	172	1.1		4.9		8.4		6.4	16.1	25.9	9.4	19.2
			445L	143	4.5		11.1		17.4		13.9	31.0	48.5	19.2	36.6
			375	143	4.5		11.1		17.4		13.9	31.0	48.5	19.2	36.6
300 12"	100	-2XX 1600cm²(248in²)	1521	282	-		-		-		-	-	-	-	-
			842	282	-		-		-		-	-	-	-	-
			1053	220	-		-		-		-	-	-	-	-
			608	220	-		-		-		-	-	-	-	-
			761	172	-		-		-		-	-	-	-	-
			445	172	-		-		-		-	-	-	-	-
350 14"	100	-2XX 1600cm²(248in²)	2106	313	-		-		-		-	-	-	-	-
			995	313	-		-		-		-	-	-	-	-
			1521	282	-		-		-		-	-	-	-	-
			842	282	-		-		-		-	-	-	-	-
			1053	220	-		-		-		-	-	-	-	-
			608	220	-		-		-		-	-	-	-	-
400 16"	120	-2XX 1600cm²(248in²)	2925	400	-		-		-		-	-	-	-	-
			1463	400	-		-		-		-	-	-	-	-
			2106	313	-		-		-		-	-	-	-	-
			1053	313	-		-		-		-	-	-	-	-
			1638	282	-		-		-		-	-	-	-	-
			878	282	-		-		-		-	-	-	-	-

Note: 1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

2. The implication of “XX” is shown in SA series actuator specification.

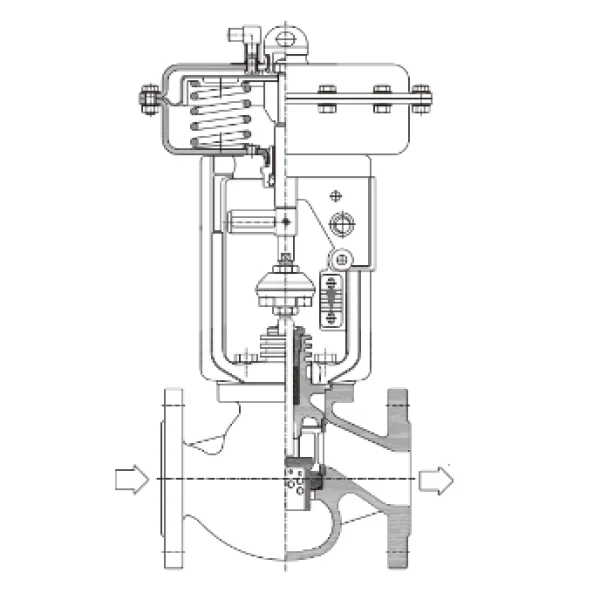

Figure5.1 DN15~DN100 ( 1/2" ~ 4" )

Figure 5.2 DN150~DN400 ( 6" ~ 16")

Table 6.1 Figure size (mm)&Weight (Kg) ( DN15 ~ DN100, DIN PN16/25/40)

Body flange dimension is according to DIN 2543/2544/2545. The Face to face dimension is according to DIN3202-F1
Body assembly		DN	15	20	25	32	40	50	65	80	100
		L	130	150	150	180	200	230	290	310	350
	V	<300°C	114				105			156	181
		³300°C	170				167			248	267
	U		48	59	62	70	78	83	93	106	136
Actuator	ÆC	SA1	270
		SA2								400
	A	SA1	346							404
		SA2								489
	H	SA1	493							551
		SA2								651
	B		130							130
	Weight	SA1	20.5	22.5	23	24	31	33	41.5	70	93
		SA2								96	119

Note: Weight=Body assembly+Actuator ( without handwheel )

Table 6.2 Figure size(mm)&Weight (Kg) ( 1/2" ~ 4" , ANSI150/300 )

Flange ( ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF

(IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).

Body

assembly

1/2"

3/4"

11/4"

11/2"

2½"

CI.150

178

181

184

200

222

254

276

298

352

RFJ

197

213

235

267

289

311

365

CI.300

190

194

197

213

235

267

292

317

368

RFJ

202

206

210

225

248

282

308

333

384

<300°C

114

105

156

181

³300°C

170

167

248

267

106

136

Actuator

ÆC

SA1

270

SA2

400

SA1

346

404

SA2

489

SA1

493

551

SA2

651

130

150

Weight

SA1

20.5

22.5

41.5

SA2

119

Note: Weight=Body assembly+Actuator ( without handwhell )

Table 6.3 Figure size (mm)&Weight (Kg) ( DN15 ~ DN100, DIN PN16/25/40)

Body flange dimension is according to DIN 2543/2544/2545. The Face to face dimension is according to DIN3202-F1
Body assembly	DN			150		200	250	300	350	400
	L			480		600	730	850	980	1100
	V	<300°C		260		292	357	394	462	518
		³300°C		355		407	506	543	611	667
	U			189		239	305	335	395	443
	ÆC	SA2		400
		SA3		596
	A	SA2		625
		SA3		840			1010			1080
Actuator	H	SA2		888
	B			200			340
	Weight	SA2		190		250
		SA3		330		390	450	750	840	1490
Note: Weight=Body assembly+Actuator ( without handwheel )
Table 6.4 Figure size(mm)&Weight (Kg) ( 6" ~ 16" , ANSI150/300 ) Flange ( ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF (IEC60534-3-1 37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).
Body assembly	DN				6"	8"	10"	12"	14"	16"
	L CI.150	RF			451	543	673	737	889	1016
		RFJ			464	556	686	750	902	1029
	L CI.300	RF			473	568	708	775	927	1057
		RFJ			489	584	724	791	943	1073
	V	<300°C			260	292	357	394	462	518
		³300°C			355	407	506	543	611	667
	U				189	239	305	335	395	443
Actuator	ÆC	SA2			400
		SA3			596
	A	SA2			625
		SA3			840		1010			1080
	H	SA2			888
	B				200		340
	Weight		SA2		190	250	190
			SA3		330	390	450	750	840	1490

Note: Weight=Body asembly+Actuator ( without handwheel )

Ordering Information

Please specify the following information

Type
Nominal size
Nominal pressure & end connection
Body & trim material, harden treatment request
Flow characteristic
Packing material ( code )
Actuator type, with handwheel or not & Air pressure supply
Action type ( Direct or Reverse )
Accessory ( with positioner & Air regulator or not )

Oil-free or Copper-free, etc.
Fluid Name & state ( liquid, gas, steam, etc. )
Pipeline size, wall thickness ( Inlet, outlet )
Flow, Max. flow & Min. flow
Flow pressure & Pressure differential
( Full open/close )
Flow temp., Gravity or Density
Inlet and outlet pressure
The Gravity & viscosity of fluid, with slurry, flashing or not
Used in high pressure, Temp., &EXP. Condition or not

Other special requests

Oil-free or Copper-free, etc.

LƯU Ý:

Sản phẩm Van điều khiển SGC được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!

Đánh giá sản phẩm của chúng tôi

Gửi ảnh

Van điều khiển SGC

Mục lục

SH6000 Series

SGC Bushing and Port Guiding Perforated Plug Type

Table 1 Body material

Table 2 Applicable Temp.&Pressure range of packing material

Table 3 STD Material Assembly, Operated Temp.&Pressure Range of Trim

Table 4 Rated Cv.

Table 5.1 Allowable pressure differential ( Leakage class IV PTFE packing )

Table 5.2 Allowable pressure differential ( Leakage class IV Graphite packing )

Table 5.3 Allowable pressure differential ( Leakage class IV PTFE packing )

Table 5.4 Allowable pressure differential ( Leakage classIV Graphite packing )

Table 6.1 Figure size (mm)&Weight (Kg) ( DN15 ~ DN100, DIN PN16/25/40)

Table 6.2 Figure size(mm)&Weight (Kg) ( 1/2" ~ 4" , ANSI150/300 )

Table 6.3 Figure size (mm)&Weight (Kg) ( DN15 ~ DN100, DIN PN16/25/40)

Table 6.4 Figure size(mm)&Weight (Kg) ( 6" ~ 16" , ANSI150/300 )
