SH6000 Series

SPW Parabolic Plug Bellows Sealing Type

Based STP structure, Sealing bellows are increased in SPW. The pressure-proof and elastic stainless steel bellows is tightly seal-welded to the valve stem and upper adapter ring. For safety reasons the construction includes a standard stem sealing as back-up in case of bellows failure.

SPW series is available for process fluids when stem leakage can’t be tolerated at all (e.g. toxic fluids).



Valve Body

Type: Cast globe Valve

Nominal Size:    DN15, 20, 25, 32, 40, 50, 65, 80, 100, 150,

200, 250, 300

Nominal Pressure:   ANSI 150, 300

DIN PN16, 25, 40

JIS 10K, 20K 30K

GB PN1.6, 2.5, 4.0 MPa

End Connection:    Flange ANSI B16.5   RF,  RTJ

DIN2543/2544/2545  RF

JISB2201  RF

JB/T81  RF

JB/T82.2  FM

Weld ANSI B16.5  SW ( DN £ 50 ) ; BW ( DN > 50 )

Face to Face Dimension: ANSI150RF,  JIS10K   ( IEC60534-3-1 37 Series )

ANSI300RF, JIS20K, JIS30K  ( IEC60534-3-1 38 Series )

ANSI150/300 RTJ  ( ASME B16.10 CLASS 150/300RTJ )

DIN PN16, 25, 40  ( DIN3202-F1 )

GB PN1.6, 2.5, 4.0 MPa   ( ISO5752  1 Series )

Please refer to table 6.1~6.4

Body Material: Please refer to table1         Please refer to figure 3 for Operated Temp.&Pressure Range

Bonnet Type: Bellows type·········-46°C ~ 350°C

Please pay attention to the different Temp.&Pressure Range of material

Packing Material: V-ring compound packing, graphite + PTFE,

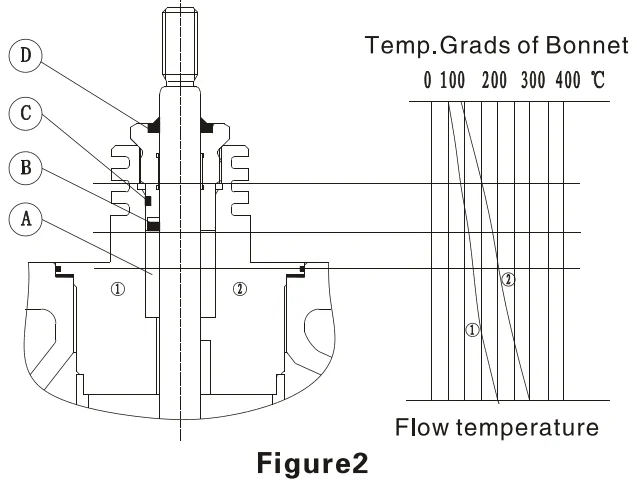

Operating Temp.&Pressure range is shown in table 2, figure2

Seal Gasket: Spiral wound gasket ( PTFE+316,  Flexible Graphite+316 )

Graphite with metal gasket ( Graphite+316,  Graphite+304 )

Valve Trim

Plug Type:  Parabolic column plug

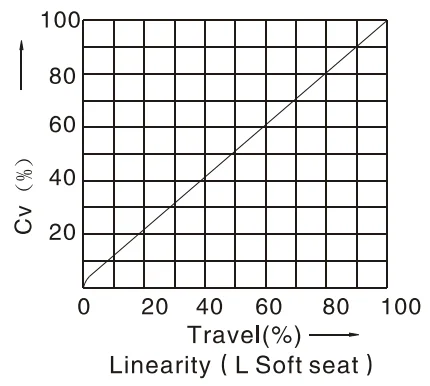

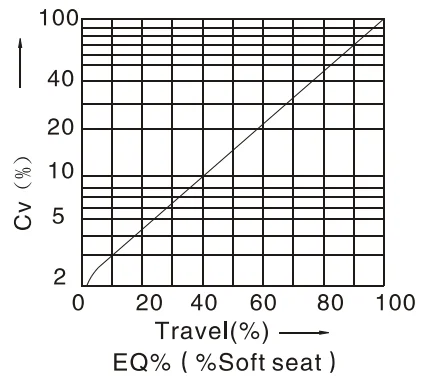

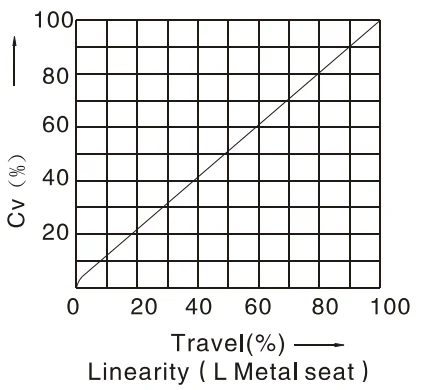

Flow Characteristic: EQ%,  Linearity, Quickly opening ( As shown in figure4 )

Trim Material:  Please refer to table 3 for STD material assembly, operated Temp.&Pressure Range

Bellows Material: 0Cr18Ni12Mo2Ti (316Ti)

Actuator Type: Multi-spring diaphragm

Air Supply: Max.  6bar

Ambient Temp.:  -20°C+80°C

Spring range: As shown in Table 5.1 ~ 5.5

Air Connection: G1/8 ( SA1 ) ; G1/4 ( SA2 ) ; G3/4 ( SA3 )

STD Specification: As shown in Table 5.1 ~ 5.5

Accessory

Positioner,  Filter-regulator valve, Solenoid valve, Limit switch, Valve position

Transmitter,  Booster relay,  Lock-valve,  Handwheel,  etc.

Action

Air to open,  Air to close

Performance

Rangeability: 50:1

Seat leakage:  Metal seal is according to ANSI B16.104 ClassIV,  Class V

Soft seal is according to ANSI B16.104 ClassVI

Hysteresis: 3%  ( Without Positioner )   1% ( With Positioner )

Linearity: ± 5% ( Without Positioner )   ±1% ( With Positioner )

Rated CV: As shown in table 4

Allowable pressure differential: As shown in table 5.1~5.5

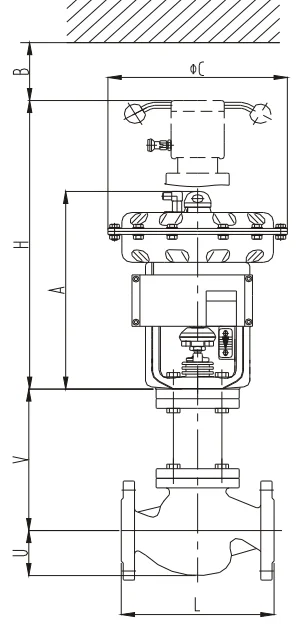

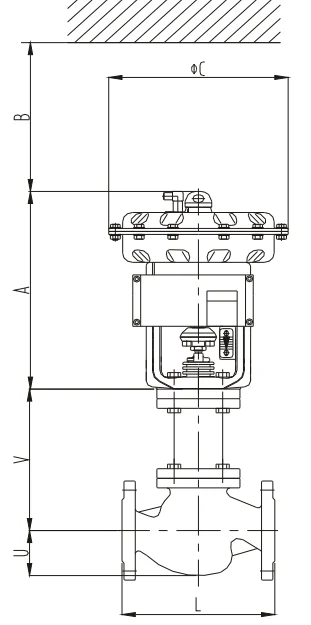

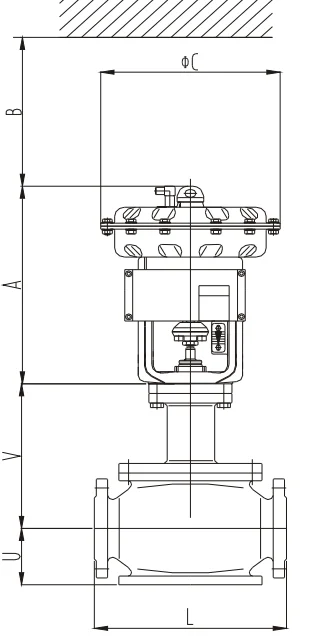

Figure Size: As shown in figure5.1, 5.2, table 6.1~6.4

Weight of product: As shown in table 6.1~6.4

Performance

Special inspection

Flow characteristic test, material test, low temperature test, steam test, non-damages test

  • copper-free treatment
  • non-standard painting
  • dust and sand proof
  • vacuum service
  • tropical area proof
  • completely oi-free, water-free treatment
  • special air piping and fitting
  • strong corrosion proof
  • stainless steel bolt and nut for exposed parts

cold area proof

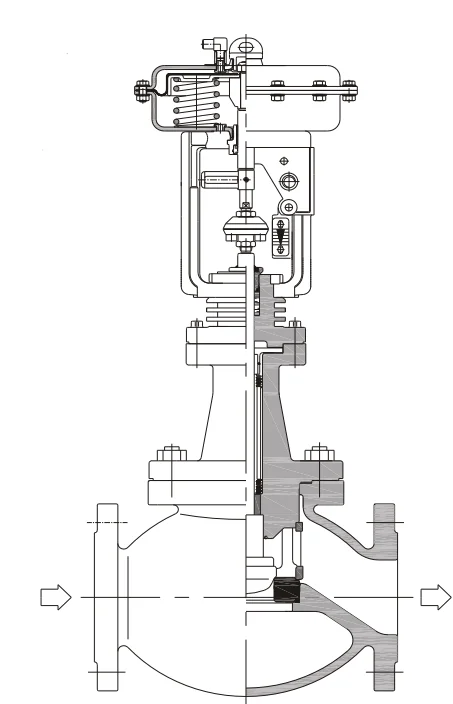

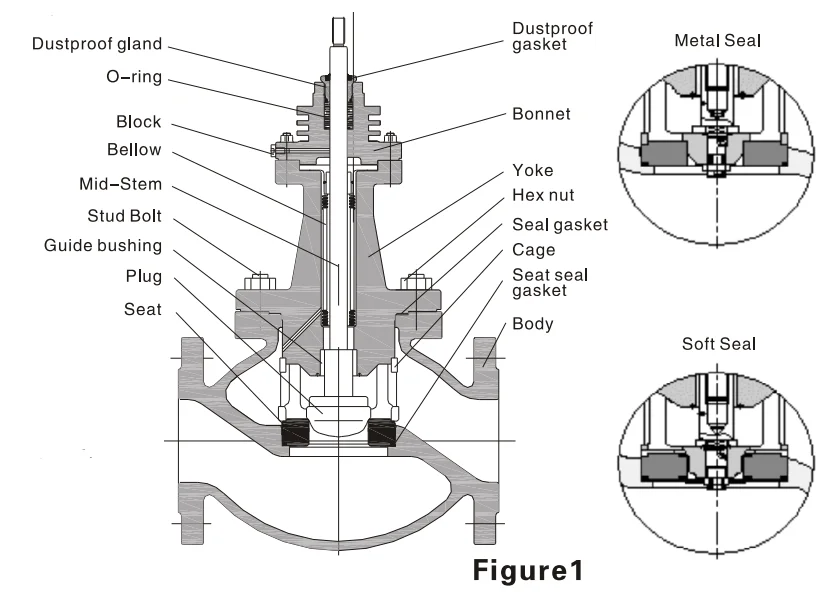

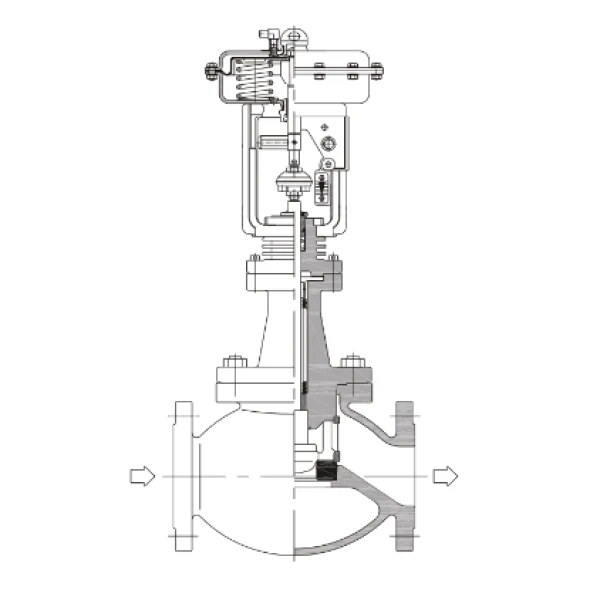

Body Assembly Structure ( As shown in figure 1 )

Performance

  • Both faces of valve seat can be used to improve service life
  • Quickly disassembly and installation without any special tools
  • Good price performance
  • Optimize flow of cage
  • Various of materials are available
  • Maintenance-free for packing
  • Packing stuffing box is wear resistance and corrosion resistance


Table 1 Body material

GB

ANSI

DIN

Temp.Range

ZG230-450 WCB

A216 WCB ( ASTM )

1.0619   GP240GH

-10°C ~ 400°C

ZG0Cr18Ni9

A351 CF8 ( ASTM )

1.4308 G-X6CrNi18 9

-200°C ~ 530°C

ZG0Cr18Ni12Mo2Ti

A351 CF8M ( ASTM )

1.4408 G-X6CrNiMo18 10

-200°C ~ 530°C

ZG0Cr18Ni12Mo2Nb

-

1.4581 G-X5CrNiMo18 10

-200°C ~ 530°C



A217 WC6 ( ASTM )

1.7357 GS-17CrMo5 5

-10°C ~ 450°C



A217 WC9 ( ASTM )

1.7379 GS-18CrMo9 10

-10°C ~ 450°C



Table 2 Applicable Temp.&Pressure range of packing material

Type of material

( Shown in A )

Code

Seal material

( Shown in B )

O-ring material

( Shown in C )

Dustproof ring

( Shown in D )

Temp.Range

Bonnet

Type

Remarks

PTFE

V type packing

1

EPDM

EPDM

NBR

-25°C ~ 180°C

Bellow

( Alter- nate load )

with compress spring

2

VITON

VITON

-25°C ~ 200°C



Graphite+PTFE

6

-

-

NBR

-196°C ~ 200°C

Bellow

High Temp. occasion

Note: please choose the most related Temp.Range

Table 3 STD Material Assembly,  Operated Temp.&Pressure Range of Trim

Parabolic Column Plug

Seat

Type of seat seal

Temp.

0Cr18Ni12Mo2Ti (1.4571)

Harden treatment

0Cr18Ni12Mo2Ti (1.4571)

Harden treatment

Metal seal

-196°C ~ 530°C

0Cr18Ni12Mo2Ti (1.4571)

0Cr18Ni12Mo2Ti (1.4571)

PTFE/EPDM

-46°C ~ 140°C

Harden treatment: Hard chrome plated, Stellite surface, Heat treatment, Nitriding treatment, Spray tungsten carbide, etc.

ASME B16.35 150/300



Temp.

ASME

B16.34/B16.35





ASME B16.34 600/900/1500

Temp.

DIN EN 1092-1 PN16, PN25, PN40

Temp.

DIN EN

1092-1



DIN EN 1092-1 PN63, PN100, PN160, PN250

Temp.

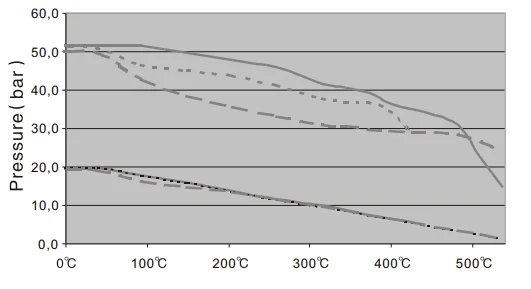

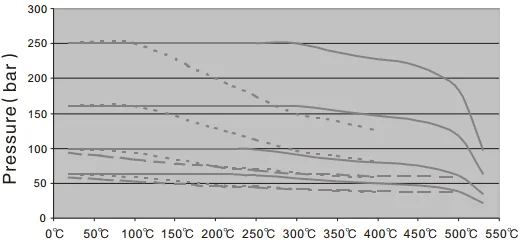

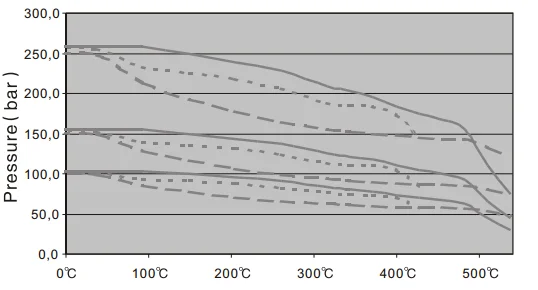

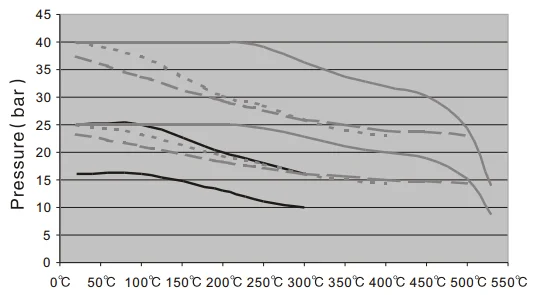

Figure3 Temp.&Pressure curve

Table 4 Rated Cv.

Seat type

Metal seat

Soft seat

Flow characteristic

Linearity

EQ%

Quick

Linearity

EQ%

Quick

Nominal size (DN)

Travel

(mm)

Cv1

Cv2

Cv3

Cv1

Cv2

Cv3

Cv1

Cv1

Cv2

Cv3

Cv1

Cv2

Cv3

Cv1

15

16

4.7

1.9

0.73

4.7

1.9

0.73

4.7

4.7

1.9

0.73

4.7

1.9

0.73

4.7

20

4.7

1.9

0.73

4.7

1.9

0.73

4.7

4.7

1.9

0.73

4.7

1.9

0.73

4.7

25

11.5

4.7

1.9

11.5

4.7

1.9

11.5

11.5

4.7

1.9

11.5

4.7

1.9

11.5

32

11.5

4.7

1.9

11.5

4.7

1.9

11.5

11.5

4.7

1.9

11.5

4.7

1.9

11.5

40

29

19

11.5

29

19

11.5

29

29

19

11.5

29

19

11.5

29

50

46

29

19

46

29

19

46

46

29

19

46

29

19

46

65

73

46

29

73

46

29

73

73

46

29

73

46

29

73

80

30

116

73

46

116

73

46

116

116

73

46

116

73

46

116

100

186

116

73

186

116

73

186

186

116

73

186

116

73

186

150

60

445

304

176

445

304

176

445

445

304



445

304



445

200

761

445

304

761

445

304

761

761



761



761

250

100

1053

761

445

1053

761

445

1053



1053

1053

300

1521

1053

761

1521

1053

761

1521

1521

1521

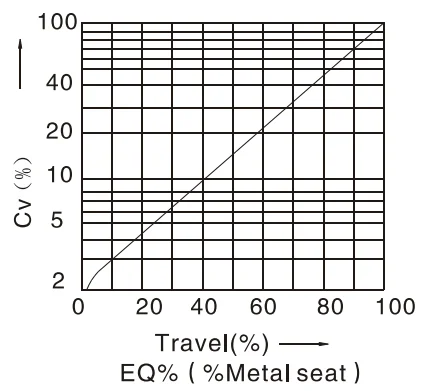

Figure4 Flow characteristic curve

Table 5.1 Allowable pressure differential ( Leakage class IV PTFE packing )

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

15

1/2"

16

-1Ö(6)XX

320cm2 (50in2)

4.7

15

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

0.73

5

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

20

3/4"

16

-1Ö(6)XX

320cm2 (50in2)

4.7

15

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

0.73

5

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

25

1"

16

-1Ö(6)XX

320cm2 (50in2)

11.5

25

32.8

50.0

-

-

50.0

50.0

50.0

50.0

50.0

4.7

15

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

32

1 1/4"

16

-1Ö(6)XX

320cm2 (50in2)

11.5

25

32.8

50.0

-

-

50.0

50.0

50.0

50.0

50.0

4.7

15

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

40

1 1/2"

16

-2Ö(3)XX

320cm2 (50in2)

29

36

14.1

37.7

-

-

37.7

50.0

50.0

37.7

50.0

19

30

21.6

50.0

-

-

50.0

50.0

50.0

50.0

50.0

11.5

25

32.8

50.0

-

-

50.0

50.0

50.0

50.0

50.0

50

2"

16

-2Ö(3)XX

320cm2 (50in2)

46

46

7.1

22.1

-

-

22.1

50.0

50.0

22.1

50.0

29

36

14.1

37.7

-

-

37.7

50.0

50.0

37.7

50.0

19

30

21.6

50.0

-

-

50.0

50.0

50.0

50.0

50.0

65

2 1/2"

16

-2Ö(3)XX

320cm2 (50in2)

73

50

6.2

18.4

-

-

18.4

42.9

50.0

18.4

42.9

46

46

7.1

22.1

-

-

22.1

50.0

50.0

22.1

50.0

29

36

14.1

37.7

-

-

37.7

50.0

50.0

37.7

50.0

80

3"

30

-5XX

320cm2 (50in2)

116

80

1.3

6.1

-

-

6.1

15.6

25.2

6.1

15.6

73

50

5.7

17.9

-

-

17.9

42.4

50.0

17.9

42.4

46

46

7.1

21.5

-

-

21.5

50.0

50.0

21.5

50.0

-1XX

720cm2 (111in2)

116

80

6.5

16.4

22.4

28.4

18.0

39.5

50.0

18.0

39.5

73

50

18.9

44.4

50.0

50.0

48.5

50.0

50.0

48.5

50.0

46

46

22.7

50.0

50.0

50.0

50.0

50.0

50.0

50.0

50.0

Continued Table 5.1

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

100

4"

30

-5XX

320cm2 (50in2)

186

100

0.4

3.5

-

-

3.5

9.6

15.7

3.5

9.6

116

80

1.3

6.1

-

-

6.1

15.6

25.2

6.1

15.6

73

50

5.7

17.9

-

-

17.9

42.4

50.0

17.9

42.4

-1XX

720cm2 (111in2)

186

100

3.7

10.1

13.9

17.7

11.1

24.9

38.6

11.1

24.9

116

80

6.5

16.4

22.4

28.4

18.0

39.5

50.0

18.0

39.5

73

50

18.9

44.4

50.0

50.0

48.5

50.0

50.0

48.5

50.0

150

6"

60

-1XX

720cm2 (111in2)

445

143

1.7

5.2

7.3

9.4

5.7

13.3

20.8

5.7

13.3

304

113

2.6

7.4

10.3

13.2

8.2

18.6

29.0

8.2

18.6

176

90

4.9

12.7

17.4

22.2

14.0

31.0

47.9

14.0

31.0

200

8"

60

-1XX

720cm2 (111in2)

761

172

0.7

2.6

3.8

5.0

2.9

7.2

11.4

2.9

7.2

445

143

1.7

5.2

7.3

9.4

5.7

13.3

20.8

5.7

13.3

304

113

2.6

7.4

10.3

13.2

8.2

18.6

29.0

8.2

18.6



Actuator SA3 Series

Spring Nos.

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

4

6

8

2

2

2

4

4

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

150

6"

60

-1XX

1600cm2 (248in2)

445

143

12.1

19.1

26.1

27.2

46.7

50.0

37.0

50.0

304

113

17.0

26.7

36.3

37.8

50.0

50.0

50.0

50.0

176

90

28.4

44.2

50.0

50.0

50.0

50.0

50.0

50.0

200

8"

60

-1XX

1600cm2 (248in2)

761

172

6.6

10.5

14.4

15.0

26.7

36.8

20.5

31.3

445

143

12.1

19.1

26.1

27.2

46.7

50.0

37.0

50.0

304

113

17.0

26.7

36.3

37.8

50.0

50.0

50.0

50.0

250

10"

100

-2XX

1600cm2 (248in2)

1053

220

3.9

6.4

8.7

7.4

13.9

20.4

9.4

16.0

761

172

6.0

9.7

13.3

11.3

20.9

30.8

14.3

24.1

445

143

11.2

17.8

24.1

20.6

37.7

50.0

25.8

43.3

300

12"

100

-2XX

1600cm2 (248in2)

1521

282

2.5

4.3

5.9

5.0

9.4

14.0

6.3

10.9

1053

220

3.9

6.4

8.7

7.4

13.9

20.4

9.4

16.0

761

172

6.0

9.7

13.3

11.3

20.9

30.8

14.3

24.1

Note:   1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

           2. The implication of “XX” is shown in SA series actuator specification.

Table 5.2 Allowable pressure differential ( Leakage class IV PTFE packing )

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

15

1/2"

16

-1Ö(6)XX

320cm2 (50in2)

4.7

15

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

0.73

5

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

20

3/4"

16

-1Ö(6)XX

320cm2 (50in2)

4.7

15

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

0.73

5

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

25

1"

16

-1Ö(6)XX

320cm2 (50in2)

11.5

25

20.5

50.0

-

-

50.0

50.0

50.0

50.0

50.0

4.7

15

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

32

1 1/4"

16

-1Ö(6)XX

320cm2 (50in2)

11.5

25

20.5

50.0

-

-

50.0

50.0

50.0

50.0

50.0

4.7

15

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

40

1 1/2"

16

-2Ö(3)XX

320cm2 (50in2)

29

36

8.2

31.8

-

-

31.8

50.0

50.0

31.8

50.0

19

30

13.1

47.1

-

-

47.1

50.0

50.0

47.1

50.0

11.5

25

20.5

50.0

-

-

50.0

50.0

50.0

50.0

50.0

50

2"

16

-2Ö(3)XX

320cm2 (50in2)

46

46

4.1

18.5

-

-

18.5

47.4

50.0

18.5

47.4

29

36

8.2

31.8

-

-

31.8

50.0

50.0

31.8

50.0

19

30

13.1

47.1

-

-

47.1

50.0

50.0

47.1

50.0

65

2 1/2"

16

-2Ö(3)XX

320cm2 (50in2)

73

50

3.1

15.4

-

-

15.4

39.8

50.0

15.4

39.8

46

46

4.1

18.5

-

-

18.5

47.4

50.0

18.5

47.4

29

36

8.2

31.8

-

-

31.8

50.0

50.0

31.8

50.0

80

3"

30

-5XX

320cm2 (50in2)

116

80

-

4.7

-

-

4.7

14.2

23.8

4.7

14.2

73

50

2.1

14.3

-

-

14.3

38.8

50.0

14.3

38.8

46

46

2.9

17.3

-

-

17.3

46.2

50.0

17.3

46.2

-1XX

720cm2 (111in2)

116

80

5.1

15.0

21.0

27.0

16.6

38.1

50.0

16.6

38.1

73

50

15.4

40.8

50.0

50.0

44.9

50.0

50.0

44.9

50.0

46

46

18.5

48.6

50.0

50.0

50.0

50.0

50.0

50.0

50.0

Continued Table 5.2

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

100

4"

30

-5XX

320cm2 (50in2)

186

100

-

2.6

-

-

2.6

8.7

14.8

2.6

8.7

116

80

-

4.7

-

-

4.7

14.2

23.8

4.7

14.2

73

50

2.1

14.3

-

-

14.3

38.8

50.0

14.3

38.8

-1XX

720cm2 (111in2)

186

100

2.8

9.2

13.0

16.9

10.2

24.0

37.7

10.2

24.0

116

80

5.1

15.0

21.0

27.0

16.6

38.1

50.0

16.6

38.1

73

50

15.4

40.8

50.0

50.0

44.9

50.0

50.0

44.9

50.0

150

6"

60

-2XX

720cm2 (111in2)

445

143

1.2

4.7

6.8

8.9

5.2

12.8

20.3

5.2

12.8

304

113

1.9

6.7

9.6

12.5

7.5

17.9

28.3

7.5

17.9

176

90

3.8

11.6

16.3

21.1

12.9

29.9

46.8

12.9

29.9

200

8"

60

-2XX

720cm2 (111in2)

761

172

0.4

2.3

3.5

4.7

2.7

6.9

11.2

2.7

6.9

445

143

1.2

4.7

6.8

8.9

5.2

12.8

20.3

5.2

12.8

304

113

1.9

6.7

9.6

12.5

7.5

17.9

28.3

7.5

17.9



Actuator SA3 Series

Spring Nos.

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

4

6

8

2

2

2

4

4

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

150

6"

60

-1XX

1600cm2 (248in2)

445

143

11.7

18.6

25.6

27.7

46.3

50.0

36.5

50.0

304

113

16.4

26.0

35.6

37.1

50.0

50.0

50.0

50.0

176

90

27.3

43.1

50.0

50.0

50.0

50.0

50.0

50.0

200

8"

60

-1XX

1600cm2 (248in2)

761

172

6.3

10.2

14.1

14.7

25.7

36.6

20.2

31.1

445

143

11.7

18.6

25.6

26.7

46.3

50.0

36.5

50.0

304

113

16.4

26.0

35.6

37.1

50.0

50.0

50.0

50.0

250

10"

100

-2XX

1600cm2 (248in2)

1053

220

3.6

6.1

8.4

7.1

13.6

20.1

9.1

15.7

761

172

5.6

9.3

12.8

10.9

20.5

30.3

13.8

23.7

445

143

10.4

17.0

23.3

19.8

37.0

50.0

25.1

42.6

300

12"

100

-2XX

1600cm2 (248in2)

1521

282

2.3

4.1

5.7

4.8

9.2

13.8

6.1

10.7

1053

220

3.6

6.1

8.4

7.1

13.6

20.1

9.1

15.7

761

172

5.6

9.3

12.8

10.9

20.5

30.3

13.8

23.7

Note:    1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

           2. The implication of “XX” is shown in SA series actuator specification.

Table 5.3 Allowable pressure differential ( Leakage class IV PTFE packing )

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

15

1/2"

16

-1Ö(6)XX

320cm2 (50in2)

4.7

15

46.6

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

0.73

5

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

20

3/4"

16

-1Ö(6)XX

320cm2 (50in2)

4.7

15

46.6

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

0.73

5

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

25

1"

16

-1Ö(6)XX

320cm2 (50in2)

11.5

25

0.8

49.7

-

-

49.7

50.0

50.0

49.7

50.0

4.7

15

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

32

1 1/4"

16

-1Ö(6)XX

320cm2 (50in2)

11.5

25

0.8

49.7

-

-

49.7

50.0

50.0

49.7

50.0

4.7

15

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

40

1 1/2"

16

-2Ö(3)XX

320cm2 (50in2)

29

36

-

15.5

-

-

15.5

50.0

50.0

15.5

50.0

19

30

-

28.9

-

-

28.9

50.0

50.0

28.9

50.0

11.5

25

0.8

49.7

-

-

49.7

50.0

50.0

49.7

50.0

50

2"

16

-2Ö(3)XX

320cm2 (50in2)

46

46

-

4.7

-

-

4.7

33.6

50.0

4.7

33.6

29

36

-

15.5

-

-

15.5

50.0

50.0

15.5

50.0

19

30

-

28.9

-

-

28.9

50.0

50.0

28.9

50.0

65

2 1/2"

16

-2Ö(3)XX

320cm2 (50in2)

73

50

-

2.4

-

-

2.4

26.9

50.0

2.4

26.9

46

46

-

4.7

-

-

4.7

33.6

50.0

4.7

33.6

29

36

-

15.5

-

-

15.5

50.0

50.0

15.5

50.0

80

3"

30

-5XX

320cm2 (50in2)

116

80

-

-

-

-

-

5.6

15.2

-

5.6

73

50

-

1.9

-

-

1.9

26.4

50.0

1.9

26.4

46

46

-

4.1

-

-

4.1

33.0

50.0

4.1

33.0

-1XX

720cm2 (111in2)

116

80

-

6.4

12.4

18.4

8.0

29.5

50.0

8.0

29.5

73

50

2.9

28.4

43.7

50.0

32.5

50.0

50.0

32.5

50.0

46

46

5.4

35.5

50.0

50.0

40.3

50.0

50.0

40.3

50.0

Continued Table 5.3

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

100

4"

30

-5XX

320cm2 (50in2)

186

100

-

-

-

-

-

1.6

7.7

-

1.6

116

80

-

-

-

-

-

5.6

15.2

-

5.6

73

50

-

1.9

-

-

1.9

26.4

50.0

1.9

26.4

-1XX

720cm2 (111in2)

186

100

-

2.1

5.9

9.7

3.1

16.9

30.6

3.1

16.9

116

80

-

6.4

12.4

18.4

8.0

29.5

50.0

8.0

29.5

73

50

2.9

28.4

43.7

50.0

32.5

50.0

50.0

32.5

50.0

150

6"

60

-2XX

720cm2 (111in2)

445

143

-

-

1.3

3.4

-

7.3

14.9

-

7.3

304

113

-

0.5

3.3

6.2

1.2

11.6

22.0

1.2

11.6

176

90

-

3.8

8.5

13.3

5.1

22.1

39.1

5.1

22.1

200

8"

60

-2XX

720cm2 (111in2)

761

172

-

-

-

0.5

-

2.7

7.0

-

2.7

445

143

-

-

1.3

3.4

-

7.3

14.9

-

7.3

304

113

-

0.5

3.3

6.2

1.2

11.6

22.0

1.2

11.6



Actuator SA3 Series

Spring Nos.

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

4

6

8

2

2

2

4

4

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

150

6"

60

-1XX

1600cm2 (248in2)

445

143

6.2

13.2

20.2

21.3

40.8

50.0

31.0

50.0

304

113

10.1

19.7

29.4

29.4

50.0

50.0

44.3

50.0

176

90

19.6

35.3

50.0

50.0

50.0

50.0

50.0

50.0

200

8"

60

-1XX

1600cm2 (248in2)

761

172

2.1

6.0

10.0

10.0

21.6

32.4

16.1

26.9

445

143

6.2

13.2

20.2

20.2

40.8

50.0

31.0

50.0

304

113

10.1

19.7

29.4

29.4

50.0

50.0

44.3

50.0

250

10"

100

-2XX

1600cm2 (248in2)

1053

220

0.2

2.7

5.1

5.1

10.2

16.8

5.7

12.3

761

172

1.6

5.3

8.8

8.8

16.5

26.3

9.8

19.6

445

143

5.2

11.9

18.2

18.2

31.8

49.3

19.9

37.4

300

12"

100

-2XX

1600cm2 (248in2)

1521

282

-

-

-

-

-

-

-

-

1053

220

-

-

-

-

-

-

-

-

761

172

-

-

-

-

-

-

-

-

Note:    1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

           2. The implication of “XX” is shown in SA series actuator specification.

Table 5.4 Allowable pressure differential ( Leakage class IV Graphite packing )

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

15

1/2"

16

-1Ö(6)XX

320cm2 (50in2)

4.7

15

12.6

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

0.73

5

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

20

3/4"

16

-1Ö(6)XX

320cm2 (50in2)

4.7

15

12.6

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

0.73

5

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

25

1"

16

-1Ö(6)XX

320cm2 (50in2)

11.5

25

-

37.5

-

-

37.5

50.0

50.0

37.5

50.0

4.7

15

12.6

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

32

1 1/4"

16

-1Ö(6)XX

320cm2 (50in2)

11.5

25

-

37.5

-

-

37.5

50.0

50.0

37.5

50.0

4.7

15

12.6

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

40

1 1/2"

16

-2Ö(3)XX

320cm2 (50in2)

29

36

-

9.6

-

-

9.6

50.0

50.0

9.6

50.0

19

30

-

20.5

-

-

20.5

50.0

50.0

20.5

50.0

11.5

25

-

37.5

-

-

37.5

50.0

50.0

37.5

50.0

50

2"

16

-2Ö(3)XX

320cm2 (50in2)

46

46

-

1.1

-

-

1.1

30.0

50.0

1.1

30.0

29

36

-

9.6

-

-

9.6

50.0

50.0

9.6

50.0

19

30

-

20.5

-

-

20.5

50.0

50.0

20.5

50.0

65

2 1/2"

16

-2Ö(3)XX

320cm2 (50in2)

73

50

-

-

-

-

-

23.8

48.3

-

23.8

46

46

-

1.1

-

-

1.1

30.0

50.0

1.1

30.0

29

36

-

9.6

-

-

9.6

50.0

50.0

9.6

50.0

80

3"

30

-5XX

320cm2 (50in2)

116

80

-

-

-

-

-

4.2

13.8

-

4.2

73

50

-

-

-

-

-

22.8

47.3

-

22.8

46

46

-

-

-

-

-

28.8

49.6

-

28.8

-1XX

720cm2 (111in2)

116

80

-

5.0

11.0

17.0

6.6

28.1

50.0

6.6

28.1

73

50

-

24.8

40.1

50.0

28.9

50.0

50.0

28.9

50.0

46

46

1.1

31.2

49.3

50.0

36.1

50.0

50.0

36.1

50.0

Continued Table 5.4

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

100

4"

30

-5XX

320cm2 (50in2)

186

100

-

-

-

-

-

0.7

6.8

-

0.7

116

80

-

-

-

-

-

4.2

13.8

-

4.2

73

50

-

-

-

-

-

22.8

47.3

-

22.8

-1XX

720cm2 (111in2)

186

100

-

1.2

5.0

8.9

2.2

16.0

29.7

2.2

16.0

116

80

-

5.0

11.0

17.0

6.6

28.1

49.6

6.6

28.1

73

50

-

24.8

40.1

50.0

28.9

50.0

50.0

28.9

50.0

150

6"

60

-2XX

720cm2 (111in2)

445

143

-

-

0.8

2.9

-

6.9

14.4

-

6.9

304

113

-

-

2.7

5.6

0.6

11.0

21.4

0.6

11.0

176

90

-

2.7

7.4

12.2

4.0

21.0

38.0

4.0

21.0

200

8"

60

-2XX

720cm2 (111in2)

761

172

-

-

-

0.3

-

2.5

6.7

-

2.5

445

143

-

-

0.8

2.9

-

6.9

14.4

-

6.9

304

113

-

-

2.7

5.6

0.6

11.0

21.4

0.6

11.0



Actuator SA3 Series

Spring Nos.

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

4

6

8

2

2

2

4

4

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

150

6"

60

-1XX

1600cm2 (248in2)

445

143

5.7

12.7

19.7

20.8

40.3

50.0

30.5

49.8

304

113

9.4

19.0

28.7

30.1

50.0

50.0

43.6

50.0

176

90

18.5

34.2

49.9

50.0

50.0

50.0

50.0

50.0

200

8"

60

-1XX

1600cm2 (248in2)

761

172

1.8

5.8

9.7

10.3

21.3

32.1

15.8

26.6

445

143

5.7

12.7

19.7

20.8

40.3

50.0

30.5

49.8

304

113

9.1

19.0

28.7

30.1

50.0

50.0

43.6

50.0

250

10"

100

-2XX

1600cm2 (248in2)

1053

220

-

2.4

4.8

3.5

9.9

16.5

5.5

12.0

761

172

1.1

4.9

8.4

6.4

16.1

25.9

9.4

19.2

445

143

4.5

11.1

17.4

13.9

31.0

48.5

19.2

36.6

300

12"

100

-2XX

1600cm2 (248in2)

1521

282

-

-

-

-

-

-

-

-

1053

220

-

-

-

-

-

-

-

-

761

172

-

-

-

-

-

-

-

-

Note:    1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

           2. The implication of “XX” is shown in SA series actuator specification

Table 5.5 Allowable pressure differential ( Leakage class IV Soft packing )

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

15

1/2"

16

-1Ö(6)XX

320cm2 (50in2)

4.7

15

34.5

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

0.73

5

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

20

3/4"

16

-1Ö(6)XX

320cm2 (50in2)

4.7

15

34.5

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

0.73

5

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

25

1"

16

-1Ö(6)XX

320cm2 (50in2)

11.5

25

12.4

42.2

-

-

42.2

50.0

50.0

42.2

50.0

4.7

15

34.5

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

32

1 1/4"

16

-1Ö(6)XX

320cm2 (50in2)

11.5

25

12.4

42.2

-

-

42.2

50.0

50.0

42.2

50.0

4.7

15

34.5

50.0

-

-

50.0

50.0

50.0

50.0

50.0

1.9

10

50.0

50.0

-

-

50.0

50.0

50.0

50.0

50.0

40

1 1/2"

16

-2Ö(3)XX

320cm2 (50in2)

29

36

4.3

20.4

-

-

20.4

50.0

50.0

20.4

50.0

19

30

7.5

29.2

-

-

29.2

50.0

50.0

29.2

50.0

11.5

25

12.4

42.2

-

-

42.2

50.0

50.0

42.2

50.0

50

2"

16

-2Ö(3)XX

320cm2 (50in2)

46

46

0.7

10.0

-

-

10.0

28.5

47.7

10.0

28.5

29

36

4.3

20.4

-

-

20.4

50.0

50.0

20.4

50.0

19

30

7.5

29.2

-

-

29.2

50.0

50.0

29.2

50.0

65

2 1/2"

16

-2Ö(3)XX

320cm2 (50in2)

73

50

0.7

10.0

-

-

10.0

28.5

47.7

10.0

28.5

46

46

0.7

10.0

-

-

10.0

28.5

47.7

10.0

28.5

29

36

4.3

20.4

-

-

20.4

50.0

50.0

20.4

50.0

80

3"

30

-5XX

320cm2 (50in2)

116

80

-

2.4

-

-

2.4

10.0

17.6

2.4

10.0

73

50

0.4

9.6

-

-

9.6

28.1

46.6

9.6

28.1

46

46

0.4

9.6

-

-

9.6

28.1

46.6

9.6

28.1

-1XX

720cm2 (111in2)

116

80

2.7

10.6

15.4

20.2

11.9

29.1

46.3

11.9

29.1

73

50

10.4

29.6

41.2

50.0

32.7

50.0

50.0

32.7

50.0

46

46

10.4

29.6

41.2

50.0

32.7

50.0

50.0

32.7

50.0

Continued Table 5.5

Actuator SA1, 2 Series

Air to open

Spring Nos.

Air to close

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

3

6

9

12

3

3

3

6

6

bar

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

100

4"

30

-5XX

320cm2 (50in2)

186

100

-

0.9

-

-

0.9

6.0

11.1

0.9

6.0

116

80

-

2.4

-

-

2.4

10.0

17.6

2.4

10.0

73

50

0.4

9.6

-

-

9.6

28.1

46.6

9.6

28.1

-1XX

720cm2 (111in2)

186

100

1.1

6.4

9.6

12.8

7.3

18.8

30.2

7.3

18.8

116

80

2.7

10.6

15.4

20.2

11.9

29.1

46.3

11.9

29.1

73

50

10.4

29.6

41.2

50.0

32.7

50.0

50.0

32.7

50.0

150

6"

60

-2XX

720cm2 (111in2)

445

143

-

2.6

4.2

5.9

3.0

8.9

14.9

3.0

8.9

304

113

0.6

4.8

7.3

9.9

5.5

14.6

23.8

5.5

14.6

176

90

1.8

8.2

12.1

15.9

9.2

23.1

37.0

9.2

23.1

200

8"

60

-2XX

720cm2 (111in2)

761

172

-

1.2

2.3

3.3

1.5

5.2

9.0

1.5

5.2

445

143

-

2.6

4.2

5.9

3.0

8.9

14.9

3.0

8.9

304

113

0.6

4.8

7.3

9.9

5.5

14.6

23.8

5.5

14.6



Actuator SA3 Series

Spring Nos.

spring Nos.

Nominal size DN(mm)

Travel

(mm)

Actuator size parameter

Cv

Seat Dia.

F (mm)

4

6

8

2

2

2

4

4

bar

bar

bar

Air supply (bar)

3.0

4.5

6.0

4.5

6.0

150

6"

60

-1XX

1600cm2 (248in2)

445

143

8.1

13.5

19.0

19.8

35.2

50.0

27.5

42.6

304

113

13.3

21.8

30.3

31.5

50.0

50.0

43.4

50.0

176

90

21.1

33.9

46.8

48.7

50.0

50.0

50.0

50.0

200

8"

60

-1XX

1600cm2 (248in2)

761

172

4.7

8.2

11.6

12.2

21.9

31.4

17.0

26.6

445

143

8.1

13.5

19.0

19.8

35.2

50.0

27.5

42.6

304

113

13.3

21.8

30.3

31.5

50.0

50.0

43.4

50.0

250

10"

100

-2XX

1600cm2 (248in2)

1053

220

2.6

4.9

7.0

5.8

11.7

17.6

7.6

13.6

761

172

4.2

7.5

10.6

8.9

17.4

26.1

11.5

20.2

445

143

7.3

12.5

17.4

14.7

28.1

41.8

18.8

32.5

300

12"

100

-2XX

1600cm2 (248in2)

1521

282

1.6

3.1

4.6

3.8

7.9

12.0

5.0

9.2

1053

220

2.6

4.9

7.0

5.8

11.7

17.6

7.6

13.6

761

172

4.2

7.5

10.6

8.9

17.4

26.1

11.5

20.2

Note:   1 .”Ö” stands for bolt and nut impacted yoke ( Nor. Temp. ) , the rest is round nut impacted yoke ( Nor. Temp.or High Temp. ) .

           2. The implication of “XX” is shown in SA series actuator specification.





Figure 5.1    DN4015 ~ DN100     ( 1/2"    ~ 4"   )



Figure 5.2   DN150 ~ DN300     ( 6"   ~  12")

Table 6.1 Figure size (mm)&Weight (Kg)  ( DN15 ~ DN100, DIN PN16/25/40)

Body flange dimension is according to DIN 2543/2544/2545.

The Face to face dimension is according to DIN3202-F1

Body

assembly

DN

15

20

25

32

40

50

65

80

100

L

130

150

150

180

200

230

290

310

350

V

228

223

356

389

U

48

59

62

70

78

83

93

106

136

Actuator

ÆC

SA1

270

SA2



400

A

SA1

346

404

SA2



489

H

SA1

493

551

SA2



651

B

130

150

Weight

SA1

20.5

22.5

23

24

31

33

41.5

70

93

SA2



96

119

Note: Weight=Body assembly+Actuator ( without handwheel )

Table 6.2 Figure size(mm)&Weight (Kg)  ( 1/2"   ~  4"   ,  ANSI150/300)

Flange ( ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF

(IEC60534-3-1  37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).

Body

assembly

DN

1/2"

3/4"

1"

11/4"

11/2"

2"

2½"

3"

4"

L

CI.150

RF

178

181

184

200

222

254

276

298

352

RFJ





197

213

235

267

289

311

365

L

CI.300

RF

190

194

197

213

235

267

292

317

368

RFJ

202

206

210

225

248

282

308

333

384

V

228

223

356

389

U

48

59

62

70

78

83

93

106

136

Actuator



ÆC

SA1

270

SA2



400

A

SA1

346

404

SA2



189

H

SA1

493

551

SA2



651

B

130

150

Weight

SA1

20.5

22.5

23

24

31

33

41.5

70

93

SA2

96

119

Note: Weight=Body assembly+Actuator ( without handwhell )

Table 6.3 Figure size (mm)&Weight (Kg)  ( DN150 ~ DN100, DIN PN16/25/40)

Body flange dimension is according to DIN 2543/2544/2545.

The Face to face dimension is according to DIN3202-F1

Body

assembly

DN

150

200

250

300

L

480

600

730

850

V

Depends on the customer’s needs

U

189

239

305

335



ÆC

SA2

400





SA3

596



A

SA2

625





SA3

840

1010

Actuator

H

SA2

888





B

200

340



Weight

SA2

190

250





SA3

330

390

450

750

Note: Weight=Body assembly+Actuator ( without handwheel )

Table 6.4 Figure size(mm)&Weight (Kg)  ( 6"   ~  16",  ANSI150/300  )

Flange ( ANSI B16.5 CLASS150/300RF/RTJ). Face to face dimension ANSI CLASS150/300RF

(IEC60534-3-1  37/38 series), ANSI CLASS150/300RTJ ( ASME B16.10 CLASS150/300RTJ).

Body

assembly

DN

6"

8"

10"

12"

L

CI.150

RF

451

543

673

737

RFJ

464

556

686

750

L

CI.300

RF

473

568

708

775

RFJ

489

584

724

791

V

Depends on the customer’s needs

U

189

239

305

335

Actuator

ÆC

SA2

400



SA3

596

A

SA2

625



SA3

840

1010

H

SA2

888



B

200

340

Weight

SA2

190

250

190

SA3

330

390

450

750

Note: Weight=Body asembly+Actuator ( without handwheel )

Ordering Information

Please specify the following information:

1.    Type

2.    Nominal size

3.    Nominal pressure & end connection

4.    Body & trim material, harden treatment request

5.    Flow characteristic

6.    Packing material (code)

7.    Actuator type, with handwheel or not & Air pressure supply

8.    Action type (Direct or Reverse)

9.    Accessory (with positioner & Air regulator or not)

10.Oil-free or Copper-free, etc.

11.Fluid Name & state (liquid, gas, steam, etc.)

12.Pipeline size, wall thickness (Inlet, outlet)

13.Nor. Flow, Max. flow & Min. flow

14.Flow pressure & Pressure differential

15.(Full open/close)

16.Flow temp., Gravity or Density

17.Inlet and outlet pressure

18.The Gravity & viscosity of fluid, with slurry, flashing or not

19.Used in high pressure, Temp., &EXP. Condition or not

20. Other special requests



Lưu ý

Sản phẩm Van điều khiển SPW được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!

Đánh giá sản phẩm

Sản phẩm liên quan

Sản phẩm đã xem
