3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00
TU&STU series lobe pump, parameter selection table
Model
Inlet/Outlet
Max pressure (bar)
Max speed per minute
Suggested speed range per minute
Flow per revolution (L/R)
Max flow (m3/h)
Suggested Flow (m3/h)
Flow per revolution (L/R)
Max flow (m3/h)
Suggested Flow (m3/h)

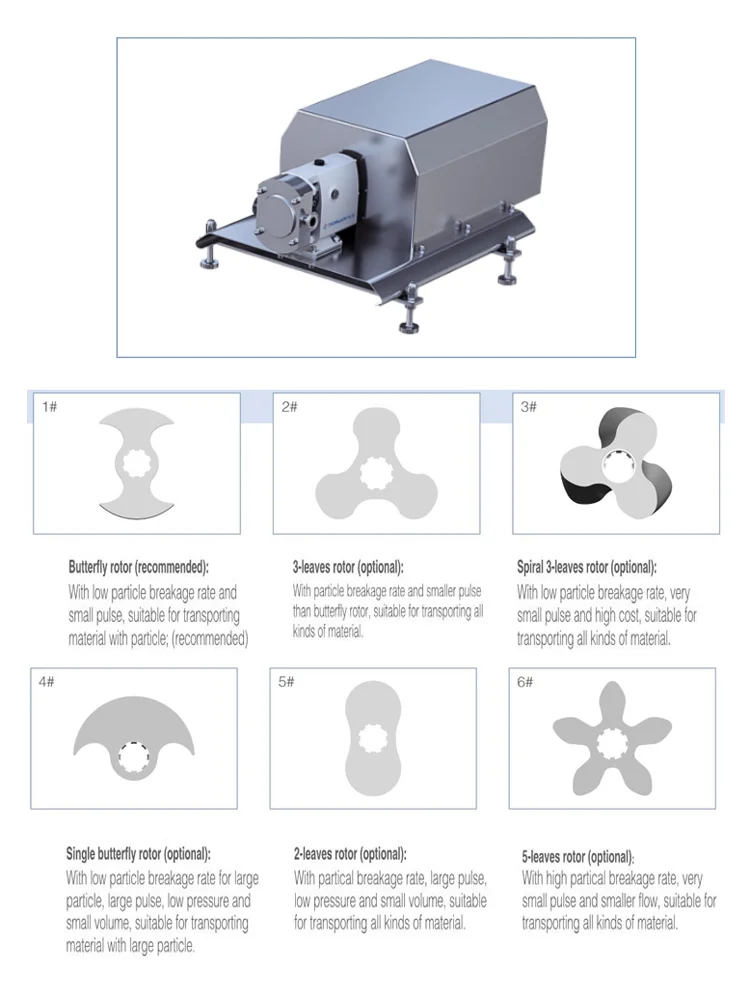

1#
2#
TUL/TUR-20
1’-DN25
15
700
50-450
0.12
5.0
0.36
3.2
0.11
4.6
0.33
2.9
TUL/TUR-23
1.5’-DN40
15
700
50-450
0.17
7.1
0.50
4.5
0.15
6.5
0.46
4.2
TUL/TUR-25
2’-DN50
15
700
50-450
0.24
10.1
0.72
6.5
0.22
9.1
0.65
5.8
TUL/TUR-30
2’-DN50
15
700
50-400
0.39
16.4
1.17
9.4
0.34
14.1
1.01
8.1
TUL/TUR-35
2.5’
12
700
50-400
0.49
20.5
1.47
11.7
0.42
17.7
1.26
10.1
TUL/TUR-55
DN65
12
500
50-350
0.55
16.5
1.65
11.5
0.48
14.3
1.43
10.0
TUL/TUR-60
3’
10
500
50-350
0.61
18.2
1.82
12.7
0.53
15.8
1.58
11.1
TUL/TUR-70
3’
15
500
50-350
1.41
42.4
4.24
29.7
1.21
36.3
3.36
25.4
TUL/TUR-80
DN80
15
500
50-350
1.41
42.4
4.24
29.7
1.21
36.3
3.36
25.4
TUL/TUR-100
4’-DN100
10
500
50-350
1.81
54.4
5.44
38.1
1.55
46.5
4.65
32.6
TUL/TUR-125
5’-DN125
10
500
50-350
2.30
69.1
6.91
48.3
1.97
59.1
5.91
41.3
Lưu ý
Sản phẩm 1.5KW stainless steel 316L food grade horizontal rotary gear pump with stainless steel cover được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
