Bơm ly tâm INM-KSCP

Centrifugal Pumps (INM-KSCP Series)

bom-ly-tam-inm-kscp

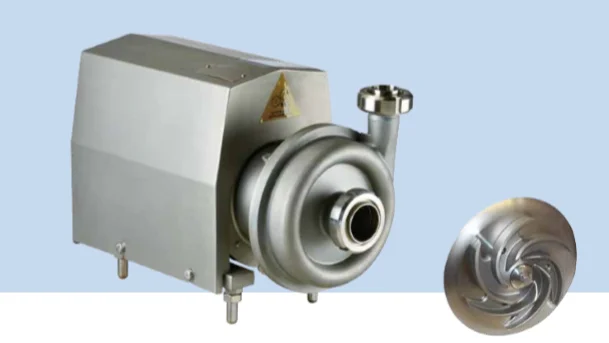

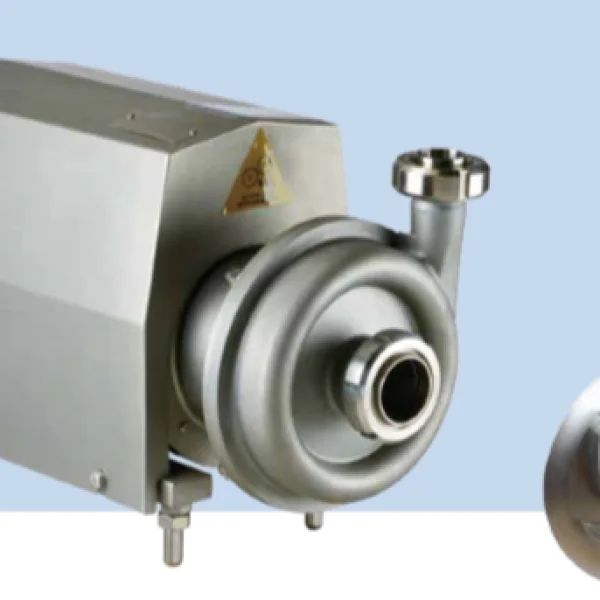

Applications

The centrifugal pump is manufactured in stainless steel and with a hrouded motor.

Its sanitary and cost-efficient design makes it perfect for the dairies, beverages, food-processing, pharmaceutical and fine chemicals industries.

Technical Specifications

Max. flow: 130m3/h

Max. head: 70H(m)

Max. temperature: 120oC/248oF

Max, rev: 3600 min – 1

Certificate: 3A-02-10/NO.1597, FDA.177.2600

Operating Principles

Housed inside the casing, the impeller rotates in conjunction with the pump shaft. With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.

This pump is not reversible by simple reversal of the direction of rotation.

The direction of rotation is clockwise when the pump is viewed from the rear side of the motor.

Design and Features

Casing manufactured with cold-formed plate. Open impeller and close impeller manufactured with stainless steel investment casting.

Adjustable stainless steel legs. Pump designed according to 3A sanitary standards. IEC NEMA B34 motors, IP55, F-class insulation, 50HZ, 60HZ

 bom-ly-tam-inm-kscp1

Options

Mechanical seal in: C/St.S and SiC/Sic

Gasket in: FPM (Viton) and PTFE

Connections: Clamp, thread, flange, DIN, SMS, RJT, IDF

Motor 2900, 1450, 3600 rev./min , 50HZ, 60HZ

Single mechanical seal (standard)

Flushed couble mechanical seal (options)

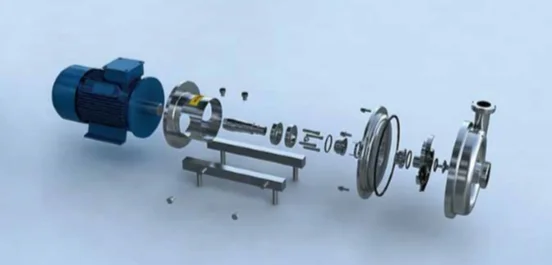

bom-ly-tam-inm-kscp2

Motor the IEC EN IE2 (Equivalent to China two energy efficiency), PTC themistor

Materials

Parts in contact with pumped media: AISI 316L/AISI304

Gaskets (Standard): C/Sic/EPDM

Inside surface finishing: Sandblast or Mirror Polish

Wide input range motor

Power (KW)

Voltage

Power (KW)

Voltage

0.55

210V-230V/50HZ

360V-400V/50HZ

420V-460V/60HZ

4

360V-400V/50HZ

630V-690V/50HZ

420V-460V/60HZ

0.75

5.5

1.1

7.5

1.5

11

2.2

15

3

18.5





30

 bom-ly-tam-inm-kscp3

Centrifugal Pump Open Impeller Series

Modes

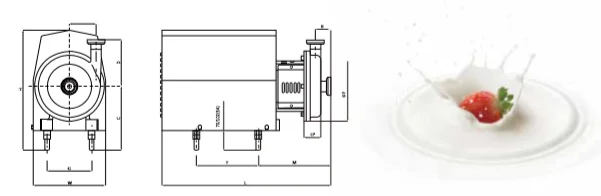

Pump Dimension

Assembly Dimension





Power (kw)

Inlet

Outlet

P

LP

Mechanical seal size

A

B

C

D

M

F

G

H

L

W

C

H

INM-KSCP-5

0.75

1.5”/32

1.5”/32

189

50

Φ32

63

56.5

200

136

169

203

125

370

452

210

232

402

INM-KSCP-10

0.75

1.5”/32

1.5”/32

189

50

Φ32

200

173

203

125

370

452

210

232

402

1.1

1.5”/32

1.5”/32

189

50

Φ32

200

175

203

125

370

452

210

232

402

1.5

1.5”/40

1.5”/40

189

50

Φ32

190

161

240

140

360

492

210

222

392

2.2

1.5”/40

1.5”/40

189

50

Φ32

190

162

240

140

360

492

210

222

392

INM-KSCP-15

1.5

2”/50

1.5”/40

250

61

Φ32

95.6

44

190

155

187

240

140

360

525

210

222

392

2.2

2”/50

1.5”/40

250

61

Φ32

190

187

240

140

360

525

210

222

392

3

2”/50

1.5”/40

250

61

Φ32

230

171

300

160

430

593

210

262

462

INM-KSCP-20

3

2”/50

2”/50

250

74.5

Φ32

90.2

45

230

155

171

300

160

430

582

260

262

42

4

2”/50

2”/50

250

74.5

Φ32

222

179

300

190

430

598

260

254

462

5.5

2.5”/65

2”/50

250

74.5

Φ32

242

197

330

216

460

653

260

274

462

INM-KSCP-25

INM-KSCP-30

3

2”/50

1.5”/40

268

57

Φ32

108

60

230

158

173

300

216

430

500

310

262

462

4

2”/50

1.5”/40

268

57

Φ32

222

181

300

216

430

590

260

254

462

5.5

2”/50

2”/50

268

57

Φ32

242

196

330

254

460

651

260

274

492

7.5

2.5”/65

2”/50

268

57

Φ32

242

199

330

254

460

651

310

274

492

INM-KSCP-35

7.5

2.5”/65

1.5”/40

350

86.5

φ 36

131

76

242

229

216

330

254

460

721

310

274

492

11

2.5”/65

1.5”/40

350

86.5

φ 36

290

234

450

254

575

871

310

322

607

15

2.5”/65

2”/50

350

86.5

φ 36

290

240

450

254

575

871

375

322

607

INM-KSCP-40

11

2.5”/65

2.5”/65

303

90

φ 36

105

83.5

290

214

235

450

254

575

866

375

322

607

15

3”/80

2.5”/65

303

90

φ 36

290

236

450

254

575

866

375

322

607

18.5

3”/80

2.5”/65

303

90

φ 36

290

234

450

254

575

921

375

322

607

22

3”/80

2.5”/65

303

90

φ 36

310

234

515

279

625

946

400

342

657

Attention: Please refer to selection table for details of nest page, The size in the following from is the ference value, the actual size is according to practicality.

 bom-ly-tam-inm-bscp1 bom-ly-tam-inm-bscp2

bom-ly-tam-inm-kscp4

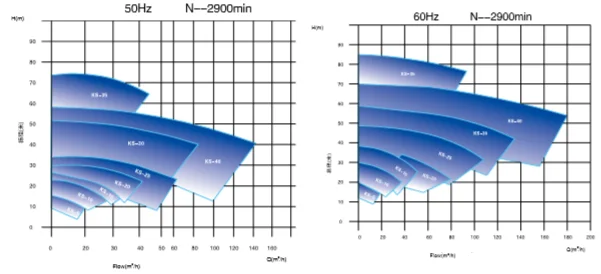

Model Instruction of Centrifugal Pump

Centrifugal pump

SCP series pump and motor configuration



Model

Flow

Lift

Power

Inlet/Outlet

Motor Option

1

2

KSCP-1.5-1.4

KSCP-3-16

1.5T

3T

14M

16M

0.55KW

0.75KW

38/32

38/38

ABB Motor

Sienmens motor

3

4

KSCP-5-16

KSCP-3-24

5T

3T

16M

24M

1.1KW

1.5KW

38/38

51/38

5

6

KSCP-3-30

KSCP-5-24

3T

5T

30M

24M

2.2KW

1.5KW

51/38

51/38

7

8

KSCP-5-30

KSCP-10-24

10T

15T

32M

24M

2.2KW

2.2KW

51/38

51/38

9

10

KSCP-10-36

KSCP-15-24

20T

20T

36M

24M

3KW

3KW

51/38

51/38

11

12

KSCP-20-24

KSCP-20-36

25T

30T

24M

36M

4KW

5.5KW

51/51

51/51

13

14

KSCP-25-35

KSCP-30-24

30T

40T

35M

24M

5.5KW

5.5KW

51/51

63/51

15

16

KSCP-30-36

SCP-40-24

10T

30T

36M

24M

7.5KW

7.5KW

63/51

63/51

17

18

KSCP-20-60

KSCP-30-50

20T

30T

60M

50M

11KW

11KW

63/51

63/63

19

20

KSCP-40-35

KSCP-40-50

40T

40T

35M

50M

11KW

15KW

63/63

76/63

21

22

KSCP-60-30

KSCP-30-60

60T

30T

30M

60M

15KW

15KW

76/63

76/51

23

24

KSCP-50-50

KSCP-80-50

50T

80T

50M

50M

18.5KW

22KW

76/63

89/76
