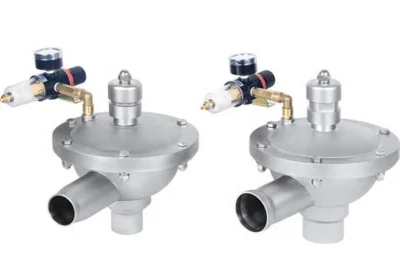

Constant pressure control valve pressure reduce valve

0 Bình luận

Nhà sản xuất: DONJOY
Dòng sản phẩm: VAN INOX | STAINLESS STEEL VALVE
Chủng loại sản phẩm: Van an toàn | Safety Valve
Phân loại sản phẩm:

Constant pressure control valve pressure reduce valve

Model NO.: Constant pressure valve
FOB Price: USD 316.00-394.00 / pieces
Min order:10 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Ningbo or Shanghai

Product Description

Place of Origin: CN;ZHE
Power: Pneumatic
Structure: Control
Temperature of Media: Normal Temperature
Media: Food, Beer, Beverage, Dairy
Brand Name: DONJOY
Model Number: Constant pressure valve
Port Size:1.5"-2.5"or DN40-DN65

Constant pressure control valve pressure reduce valve

Product structure

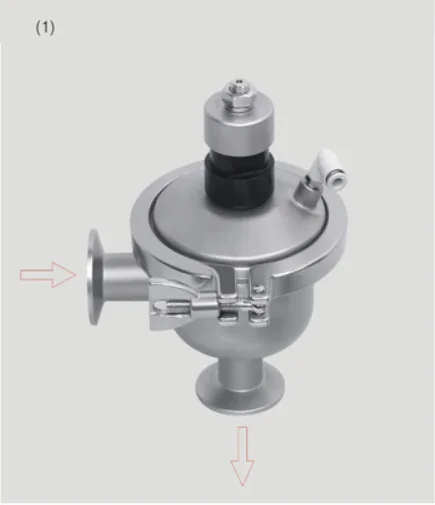

Note: Figure 1 input constant pressure design to keep constant pressure inlet pipe

Figure 2 outlet constant pressure design, of outlet pipe line pressure constant

Technical Parameters

Material	1.4404/1.4301, SS304/SS316L
Seal	EPDM+PTFE, FDA177.2600
Working pressure	8 bar
Working temperature	-10 ~150 °C
Internal surface	Mirror polish, Ra<0.6μm
Outside surface	standblast
Connection way	clamp, thread, welding

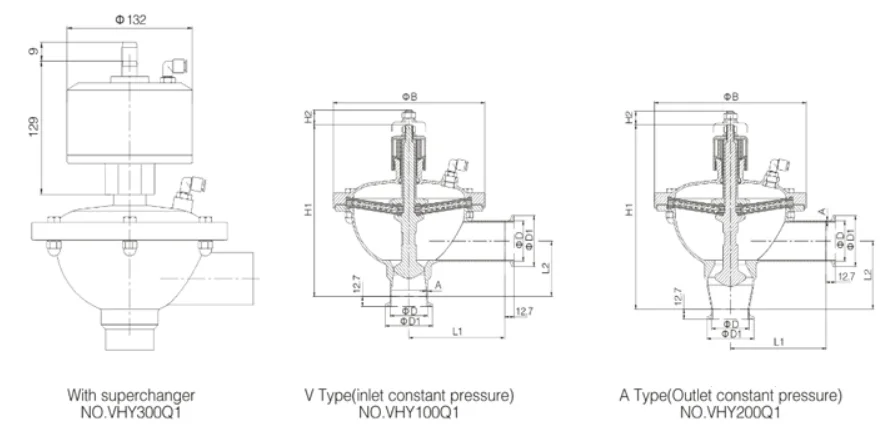

Dimensions

SIZE		D	D1	A	B	L1	L2	H1	H2
V	DN40	40	50.5	1.5	206	130	62	215	18
	1.5’	38.1
	DN50	52	64	1.5	206	130	69	215	18
	2’	50.8
	2.5’	63.5	77.5	2	206	130	9	215	18
A	DN40	40	50.5	1.5	206	130	78	230	18
	1.5’	38.1
	DN50	52	64	1.5	206	130	85	230	18
	2’	50.8
	2.5’	63.5	77.5	2	206	130	85	230	18

Lưu ý

Sản phẩm Constant pressure control valve pressure reduce valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
