Customized multiport stainless steel ball valve non retention handle 3 way ball valves

·  Model NO.: VQW2

·  FOB Price: USD 100.00-1200.00 / piece

·  Min order:1 piece

·  Accept Min order: Yes

·  Supply Ability:1000 piece / Month

  • Country of Origin: ningbo



Product Description

·         Place of Origin: CN; ZHE

·         Temperature of Media: Normal Temperature

·         Power: Manual

·         Media: Water

·         Structure: Ball

·         Brand Name: DONJOY

·         Port Size:DN25-100 or 1"-4"

·         Application: Liquid control

·         Model Number:VQW2

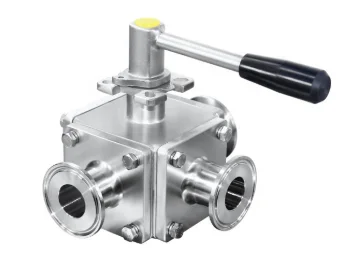

DONJOY forged stainless steel Industrial 1pc ball valve

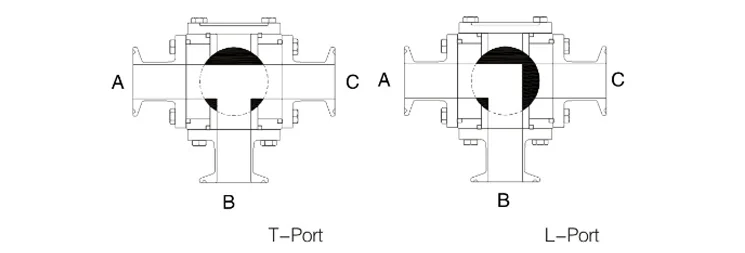

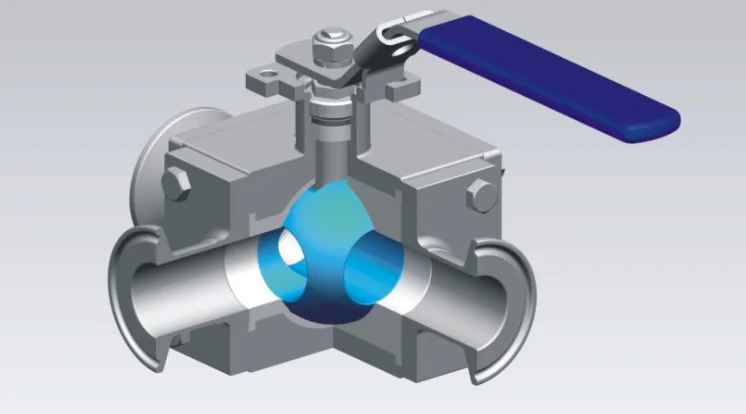

Product structure



Technical Parameters

Product Name:

Donjoy factory Three 3 way Ball Valve with clamp end

Valve Body Material:

SS304 or SS316L

Seal Material:

PTFE

Max. Working Pressure:

30Bar

Max. Working Temperature:

150 degree C

Availably size:

DN25-DN100 or 1"- 4"

Availably connection:

Thread, Weld, Clamp, Flange

Availably standard:

DIN,SMS,3A

Certificate:

CE,FDA,3A

Operated:

Manual

Dimensions



INCH

SIZE

ISO5211

FDn

FD

FD1

L

H

A

H1

A1

H2

A2

H3

A3

1”

F04\F05

22.4

25.4

50.5

148

92

165

210

190

240

165

247

86

1.25”

F04\F05

28.8

31.8

50.5

152

96

165

215

207

245

165

252

86

1.5”

F06\F07

35.1

38.1

50.5

180

100

165

234

207

252

165

312

113

2”

F07\F07

47.8

50.8

64

198

106

165

262

213

271

165

331

113

2.5”

F07\F10

59.5

63.5

77.5

252

116

236

274

213

314

212

380

133

3”

F07\F10

72.2

76.2

91

264

137

236

341

259

335

212

402

133

4”

F07\F10

97.6

101.6

119

323

165

236

396

267

565

269

448

196

DIN

SIZE

ISO5211

FDn

FD

FD1

L

H

A

H1

A1

H2

A2

H3

A3

DN25

F04\F05

22.4

25.4

50.5

148

92

165

210

190

240

165

247

86

DN32

F04\F05

28.8

31.8

50.5

152

96

165

215

207

245

165

252

86

DN40

F06\F07

35.1

38.1

50.5

180

100

165

234

207

252

165

312

113

DN50

F07\F07

47.8

50.8

64

198

106

165

262

213

271

165

331

113

DN65

F07\F10

59.5

63.5

77.5

252

116

236

274

213

314

212

380

133

DN80

F07\F10

72.2

76.2

91

264

137

236

341

259

335

212

402

133

DN100

F07\F10

97.6

101.6

119

323

165

236

396

267

565

269

448

196
