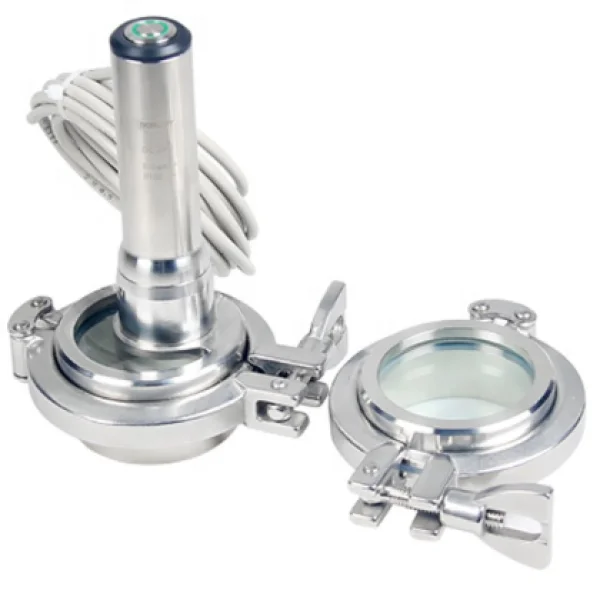

DONJOY CLAMPED UNION TYPE SIGHT GLASS with DC24V high lighting

Product Name:

DONJOY UNION TYPE SIGHT GLASS with DC24V high lighting

The parts contact with liquid  Material:

SS304 OR SS316L

Nut Material

AISI 304(1.4301)

Flat Gasket  Material:

EPDM FPM

Sight glass :

tempered glass. max temperature 130°C

Max working pressure:

10 bar (or higher if customer has special requirement)Vacuum

Availably  size:

DN40-DN100/ 1.5"-4"

Type option:

Basic type;Basic type with light;Basic type with both light and brush

Assemble way:

the glass can be installed on the equipment through clamps.

Application scope:

Especially in food, pharmacy, and beverage processing,such as the brewery,dairy

Packaging Details:

Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.

Delivery details:

Usually within 20 days after receiving T/T down payment.

SIZE

D

Dn

D1

H

DN40

40

37

50.5

35.5

DN50

52

49

64

35.5

DN65

70

66

91

35.5

DN80

85

81

106

35.5

DN100

104

100

130

37.5

SIZE

D

Dn

D1

H

1.5’

38.1

35.1

50.5

35.5

2’

50.8

47.8

64

35.5

2.5’

63.5

59.5

77.5

35.5

3’

76.2

72.2

91

35.5

4’

101.6

79.6

130

37.5
