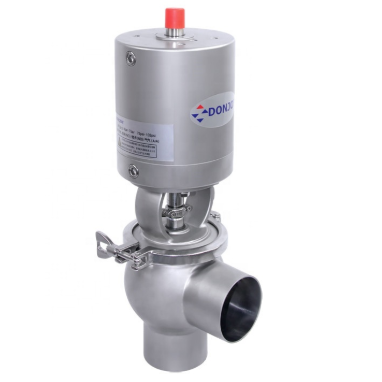

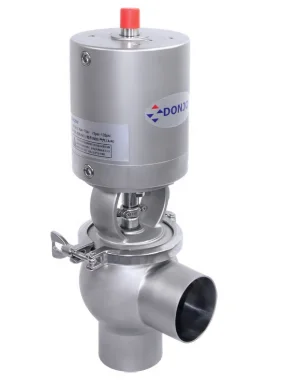

DONJOY HOT SAEL Double stop pneumatic diverter valve

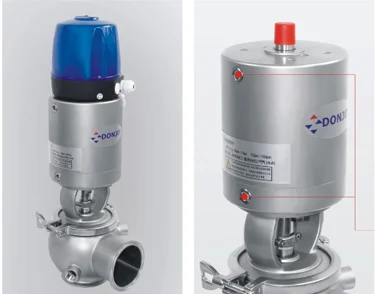

Product structure
Double stop pneumatic divert seat valve
Technical features:
Adjust regulator can reduce actuator operation moving speed, preventing plug from shocking with valve body
Technical Parameters
Product Name:
Double hot selling Double stop pneumatic diverter valve
Valve Body Material:
SS304 or SS316L
Seal Material:
EPDM
Max. Working Pressure:
10Bar
Max. Working Temperature:
120 degree C
Availably size:
DN25-DN100 or 1"- 4"
Availably connection:
Thread, Weld, Clamp
Availably standard:
DIN,SMS,RJT,3A
Operated:
Manual, Pneumatic, C-Top
Certificate:
FDA,CE

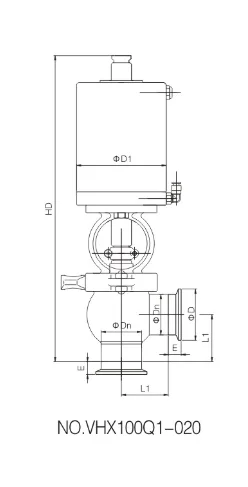

Dimensions
DIN Pneumatic Divert Seat Valve
SIZE
H
H1
HD
Dn
D
L2
D1
Weight
(kg)
6bar
10bar
DN25
476
433
314
28
50.5
50
67
88
113
12.7
6
DN32
34
55
12.7
6
DN40
40
60
12.7
6
DN50
537
494
378
52
64
70
76
113
132
12.7
8
DN65
583
540
406
70
91
99
105
132
180
12.7
15
DN80
583
540
406
85
106
99
105
132
180
12.7
15
DN100
662
619
489
104
119
114
146
180
15.8
17
INCHPneumatic Divert Seat Valve
SIZE
H
H1
HD
Dn
D
L2
D1
Weight
(kg)
6bar
10bar
1”
476
433
314
28
50.5
50
67
88
113
12.7
6
1.25’
34
55
12.7
6
1.5”
40
60
12.7
6
2”
537
494
378
52
64
70
76
113
132
12.7
8
2.5”
583
540
406
70
91
99
105
132
180
12.7
15
3”
583
540
406
85
106
99
105
132
180
12.7
15
4”
662
619
489
104
119
114
146
180
15.8
17
Lưu ý
Sản phẩm DONJOY Double stop pneumatic divert seat valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
