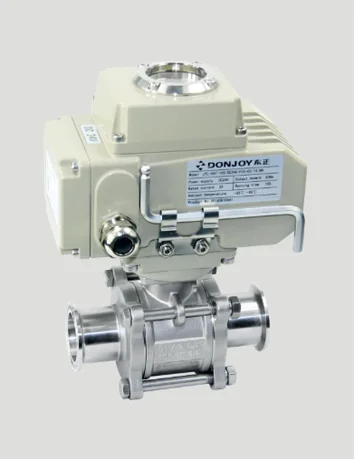

DONJOY Electric Actuator 3pc female ball valve

·  Model NO.: DJ-5-A

·  FOB Price: USD 122.00-140.00 / pieces

·  Min order:2 pieces

·  Accept Min order: Yes

·  Supply Ability:10000 pieces / Month

  • Country of Origin: NINGBO/SHANGHAI

Product Description

·         Structure: Ball

·         Power: Pneumatic

·         Temperature of Media: High Temperature

·         Media: Oil

·         Place of Origin: CN; ZHE

·         Port Size:1/2"-4"

·         Application: General

·         Brand Name: DONJOY

·         Model Number:DJ-5-A

Product structure



Electric non-retention ball valve



Switching type



Intelligent(4-20mA)



Position feedback



Power DC.24V

Technical Parameters

Product Name:

Donjoy manual handle Stainless steel non retention 3 pieces ball valves

Valve Body Material:

SS304 or SS316L

Seal Material:

PTFE/EPDM

Max. Working Pressure:

10Bar

Max. Working Temperature:

150 degree C

Availably  size:

DN25-DN100 or 1/2"- 4"

Availably connection:

Weld, Clamp, thread, flange

Availably standard:

DIN,SMS,3A

Operated:

Manual, Pneumatic, Electric

Certificate:

FDA,CE

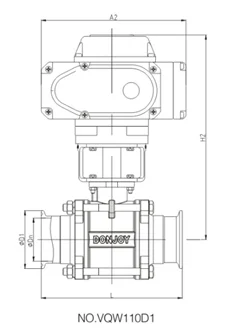

Dimensions



Pressure And Temperature Curve



INCH

SIZE

ISO5211

FDn

FD

FD1

L

H

A

H1

A1

H2

A2

H3

A3

AA

0.5”

F04

9.7

12.7

25.4

89

75

163

175.5

158

220

165

226

86

6

0.75”

F04

16.1

19.1

25.4

89

75

163

175.5

158

220

165

226

86

1”

F04

22.4

25.4

50.5

114

78

163

179

158

223

165

230

86

1.25”

F04

28.8

31.8

50.5

117

83

163

198

190

228

165

235

86

1.5”

F05

35.1

38.1

50.5

142

94

164

206

190

236

165

243

86

10

2”

F05

47.8

50.8

64

156

99

164

237

207

255

165

315

113

2.5”

F07

59.5

63.5

77.5

197

116

236

257

207

272

212

332

113

12

3”

F07

72.2

76.2

91

221

127

236

274

213

314

212

380

133

3.5”

F07

85

89

106

229

133

236

391

259

354

259

386

133

4”

F10

97.6

101.6

119

241

150

236

308

259

371

259

423

166

DIN

SIZE

ISO5211

FDn

FD

FD1

L

H

A

H1

A1

H2

A2

H3

A3

AA

DN10

F04

9

12

25.4

89

75

163

175.5

158

220

165

226

86

6

DN15

F04

15

18

25.4

89

75

163

175.5

158

220

165

226

86

DN20

F04

19

22

50.5

114

78

163

179

158

223

165

230

86

DN25

F04

25

28

50.5

117

83

163

198

190

228

165

235

86

DN32

F05

31

34

50.5

142

94

164

206

190

236

165

243

86

10

DN40

F05

37

40

64

156

99

164

237

207

255

165

315

113

DN50

F07

49

52

77.5

197

116

236

257

207

272

212

332

113

12

DN65

F07

66

70

91

221

127

236

274

213

314

212

380

133

DN80

F07

81

85

106

229

133

236

391

259

354

259

386

133

DN100

F10

100

101

119

241

150

236

308

259

371

259

423

166







Lưu ý

Sản phẩm DONJOY Electric Actuator 3pc female ball valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
