DONJOY food grade 316L Sanitary Mini type safety valve

  • Model NO.: NO.1112005
  • FOB Price: USD 57.00-72.00 / pieces
  • Min order:10 pieces
  • Accept Min order: Yes
  • Supply Ability:1000 pieces / Month
  • Country of Origin: Ningbo or Shanghai

Product Description

  • Place of Origin: CN;ZHE
  • Temperature of Media: Medium Temperature
  • Power: Manual
  • Structure: Safety
  • Media: Food, Beer, Beverage, Dairy
  • Brand Name: Donjoy
  • Model Number:NO.1112005
  • Port Size:1/2"-3/4"or DN15-DN20

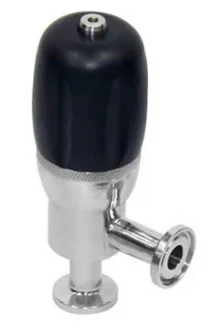

DONJOY food grade 316L Sanitary Mini type safety valve

Product structure



Technical Parameters

Valve body material

SS304 or SS316L

Material of gasket

EPDM,NBR,FPM

Size

1/2"-3/4", DN10-DN20

Max. working temperature

121  °C

Max. operating pressure

0-3bar/0-6bar/0-10bar

Availably connection

Thread, Clamp

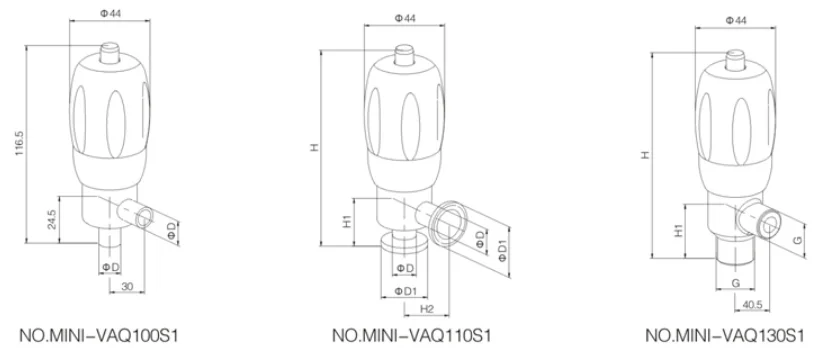

Dimensions





Clamped

SIZE

D

D1

H

H1

H2

DN10

12

34

128.5

36.5

38

DN15

18

34

128.5

36.5

38

1/2'

12.7

25.4

116.5

24.5

30



SIZE

G

H

H1

1/2'

G1/2

121.5

29.5

3/4'

G3/4

121.5

29.5

DN10

G1/2’

127

35

DN15

G1/2’

127

35

DN20

G3/4’

127

35

Welded

SIZE

D

DN10

12

DN15

18

1/2'

12.7

3/4'

19





Lưu ý

Sản phẩm DONJOY food grade 316L Sanitary Mini type safety valve  được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
