Donjoy high flow rate sanitary stainless steel 304/316L self priming pump

  • Model NO.: CIP-L
  • FOB Price: USD 852.00-1014.00 / set
  • Min order:1 set
  • Accept Min order: Yes
  • Supply Ability:500 set / Month
  • Country of Origin: NINGBO OR SHANGHAI

Product Description

  • Place of Origin: CN;ZHE
  • Structure: Single-stage Pump
  • Usage: Water
  • Power: Electric
  • Fuel: electricity
  • Pressure: NP
  • Application: CIP cleaning system
  • Brand Name: DONJOY
  • Model Number: CIP-L

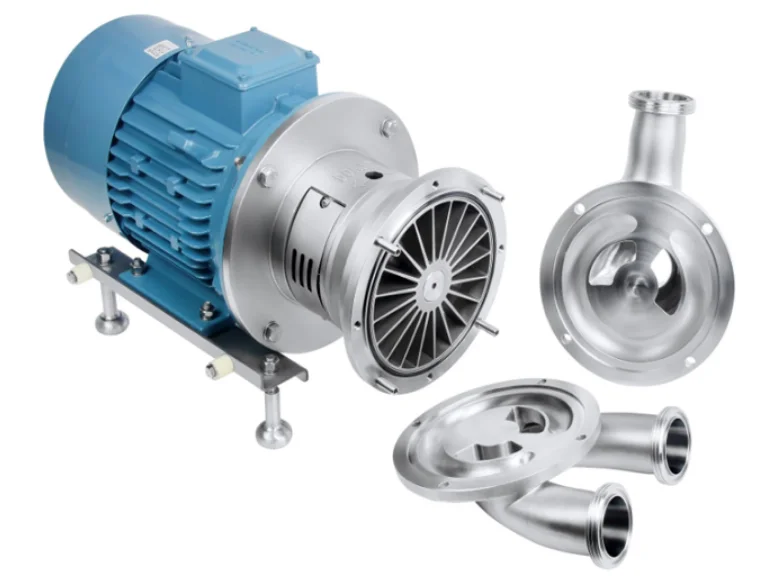

Product structure

Technical Parameters



Product

self-priming pump

Max flow rate

40m3/h

Max Head

42M

Max suction

8/M

Material

 304/316L, 1.431/1.4404, ASME BPS, 316L, 1.4435 NB2 Fe<=0.5%

Temperature

-20°C to 130 °C/-20 ° to 130 °C

Surface treatment

≤Ra0.8μm,  ≤Ra0.6μm, ≤Ra0.4μm

Mechanical treatment

 Single seal, double seal

Inlet/Outlet Connection

Thread, clamp,  flange, Aseptic

Certification

3-A-02-1099( N.O.1759),  MD/06/42

EC(N.O.70521616101-00) FDA  177.2600; USP CLASS-II; EGNO1395/2004



Dimensions

CIP-L CIP series self-priming pump selection table

Model

Power

Flow (m3/h)

Head (M)

Inlet port negative pressure

(bar)

Inlet

Outlet

Weight (KG)

CIP-L-05

2.2KW

10

15

-0.56

2"-DN50

2"-DN50

45.9

2.2 KW

8

18

3.0 KW

5

20

54.9

CIP-L-10

5.5 KW

20

11

-0.72

2.5"-DN65

2.5"-DN65

89

5.5 KW

15

18

5.5 KW

10

24

CIP-L-20

7.5KW

25

17

-0.65

3"

2.5"

95

7.5KW

20

22

7.5KW

18

24

7.5KW

15

28

11.0KW

10

34

139

11.0KW

5

38

CIP-L-30

11.0KW

35

19

-0.8

3"

2.5"

150

11.0KW

30

24

11.0KW

25

30

11.0KW

21

33

15.0KW

16

38

163

15.0KW

11

42







Lưu ý

Sản phẩm Donjoy high flow rate sanitary stainless steel 304/316L self priming pump được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
