DONJOY Hot sell stainless steel safety pressure control valve for tank and pipeline

Name: DONJOY Hot sell stainless steel safety pressure control valve for tank and pipeline
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY Hot sell stainless steel safety pressure control valve for tank and pipeline

Model NO.: pressure control valve
FOB Price: USD 112.00-128.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Ningbo or Shanghai

Product Description

Structure: Safety
Power: Manual
Temperature of Media: Normal Temperature
Place of Origin: CN;ZHE
Media: Food, Beer, Beverage, Dairy
Port Size:1"-4"or DN25-DN100
Brand Name: Donjoy
Application: General
Model Number: pressure control valve

DONJOY Hot sell stainless steel safety pressure control valve for tank and pipeline

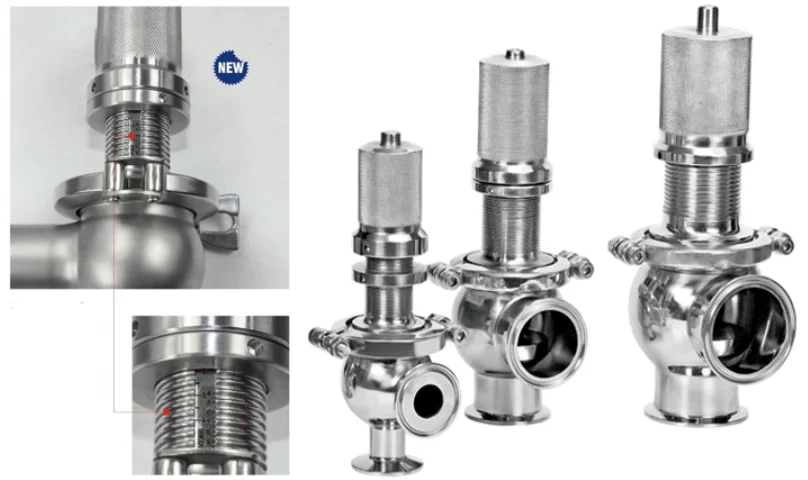

Product structure

Technical Parameters

Valve body material	SS304 or SS316L
Material of gasket	EPDM,NBR,FPM
Max. working temperature	121 °C
Max. operating pressure	0-3bar/0-6bar/0-10bar
Availably connection	Thread, Weld, Clamp

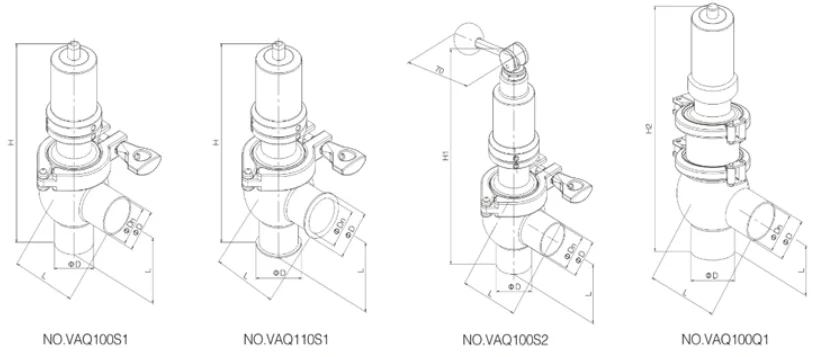

Dimensions

SIZE	D	Dn	L	h	H1	H2
1’	25.4	2.4	50	216	260	269
1.25’	31.8	28.8	55	218	260	269
1.5’	38.1	35.1	60	222	266	309
2’	50.8	47.8	70	265	300	350
2.5’	63.5	59.5	80	297	340	392
3’	76.2	72.2	99	339	370	507

SIZE	D	Dn	L	h	H1	H2
1’	50.5	22.4	62.7	228.5	260	269
1.25’	50.5	28.8	67.7	230.5	260	269
1.5’	50.5	35.1	72.7	234.5	266	309
2’	64	47.8	82.7	277.5	300	350
2.5’	77.5	59.5	92.7	309.5	340	392
3’	91	72.2	111.7	351.5	370	507

Lưu ý

Sản phẩm DONJOY Hot sell stainless steel safety pressure control valve for tank and pipeline được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
