DONJOY KS centrifugal pump stainless with diaphragm valve

Name: DONJOY KS centrifugal pump stainless with diaphragm valve
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY KS centrifugal pump stainless with diaphragm valve

Model NO.: KS
FOB Price: USD 310.00-3000.00 / set
Min order:1 set
Accept Min order: Yes
Supply Ability:1000 set / Quarter
Country of Origin: NINGBO OR SHANGHAI

Product Description

Place of Origin: CN;ZHE
Structure: Gear Pump
Usage: Water
Power: Electric
Pressure: Low Pressure
Brand Name: DONJOY
Model Number: KS

DONJOY KS centrifugal pump stainless with diaphragm valve

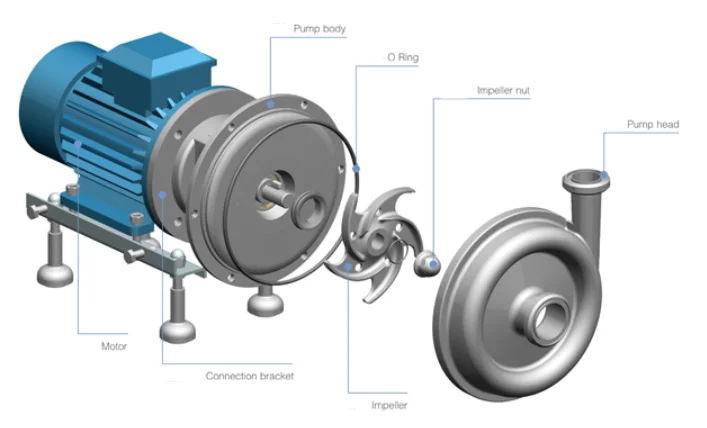

Product structure

Technical Parameters

Max flow	1m3/h to 140m3/h
Max head	70m
Max temperature	-20°C to 140 °C
Power	0.37KW-30KW
Material	304/316L
Surface treatment	Ra≤0.8μm ≤Ra0.6μm, Ra ≤0.4μm
Mechanical seal	Single mechanical seal, double mechanical se l
Inlet/Outlet	Threaded, clamped, flange, Aseptic flange
Certifi ation	3-A-02-10 NO.1579; MD/06/42-EC NO.70521616101-00; FDA 177.2600 ; USP CLASS II; EG/VO 1935/2004

Dimensions

Model	Power	Flow rate (m)	Head (M)	Inlet & outlet	(KG)
DJ-KLX-10	1.1KW	3	22	1.5^’/1.5^’	30
	1.1KW	5	22		30
	1.5KW	3	22		36
	1.5KW	5	22		36
	1.5KW	8	22		36
	1.5KW	9	22		36
	1.5KW	12	20		36
	1.5KW	15	18		36
	2.2KW	15	18		40
	2.2KW	18	16		40
DJ-KLX-15	1.5KW	3	28	2^’/1.5^’	39
	1.5KW	5	28		39
	1.5KW	8	26		39
	2.2KW	8	26		42
	2.2KW	10	25		42
	2.2KW	15	22		42
	2.2KW	18	18		42
	3.0KW	18	18		54
	2.2KW	20	16		42
	3.0KW	20	16		54

Model	Power	Flow rate (m)	Head (M)	Inlet & outlet	(KG)
DJ-KLX-20-1	2.2KW	5	36	2^’/2^’	47
	3.0KW	5	36		56
	3.0KW	10	36		56
	4.0KW	10	36		61
	4.0KW	15	35		61
	4.0KW	20	33		61
	4.0KW	25	30		61
	5.5KW	25	30		83
	5.5KW	30	30	2.5^’/2^’	83
	5.5KW	38	22	2.5^’/2^’	83
DJ-KLX20-2	5.5KW	20	40	2^’/2^’	82
	5.5KW	25	37	2^’/2^’	82
	5.5KW	30	36	2.5^’/2^’	82
	5.5KW	36	32		82
	7.5KW	40	30		86
	7.5KW	45	28		86
DJ-KLX-25	4.0KW	5	50	2.5^’/1.5^’	61
	5.5KW	10	50		82
	5.5KW	15	48		82
	5.5KW	20	45		82
DJ-KLX-30	5.5KW	10	60	2.5^’/1.5^’	83
	5.5KW	15	55		83
	5.5KW	20	50		83
	7.5KW	20	50		87
	7.5KW	25	45		87
	7.5KW	30	40		87

Model	Power	Flow rate (m)	Head (M)	Inlet & outlet	(KG)
DJ-KLX-35-1	11KW	10	70	3^’/1.5^’ 3^’-2^’	152
	11KW	15	65		152
	11KW	20	65		152
	11KW	25	60		152
	11KW	30	60		152
	11KW	35	55		152
	15KW	40	50		165
	15KW	45	50		165
	15KW	50	45		165
DJ-KLX-35-2	15KW	20	70	3^’-2^’ DN80-2^'	165
	15KW	25	70		165
	15KW	30	70		165
	15KW	35	65		165
	15KW	40	65		165
	18, 5KW	45	60		174
	18, 5KW	50	55		174

Model	Power	Flow rate (m)	Head (M)	Inlet & outlet	(KG)
DJ-KLX-40-1	11KW	45	42	3^’/2.5^’ 4^’-3^’	148
	11KW	50	42		148
	15KW	60	40		162
	15KW	65	40		162
	15KW	70	38		162
	15KW	80	35		162
	15KW	90	33		162
	18.5KW	100	30		171
	18.5KW	110	28		171
DJ-KLX-40-2	15KW	50	50	3^’/2.5^’ 4^’-3^’	162
	15KW	60	48		162
	18.5KW	70	47		171
	18.5KW	80	46		171
	22KW	85	45		205
	22KW	90	44		205
	22KW	100	43		205
	22KW	110	40		205
	22KW	120	35		205
	30KW	130	30		263
	30KW	140	20		263

Lưu ý

Sản phẩm DONJOY KS centrifugal pump stainless with diaphragm valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
