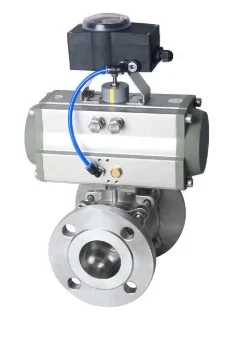

DONJOY Pneumatic Flanged Ball Valve with high mounting pad

·   Model NO.: IFB

·   FOB Price: USD 10.00-500.00 / pieces

·   Min order:50 pieces

·   Accept Min order: Yes

·   Supply Ability:10000 pieces / Month

  • Country of Origin: NINGBO/SHANGHAI

Product Description

·         Structure: Ball

·         Power: Pneumatic

·         Temperature of Media: Medium Temperature

·         Place of Origin: CN; ZHE

·         Port Size:1/2"-4"

·         Brand Name: Donjoy

·         Application: Flow control

·         Media: Liquid

·         Model Number: IFB

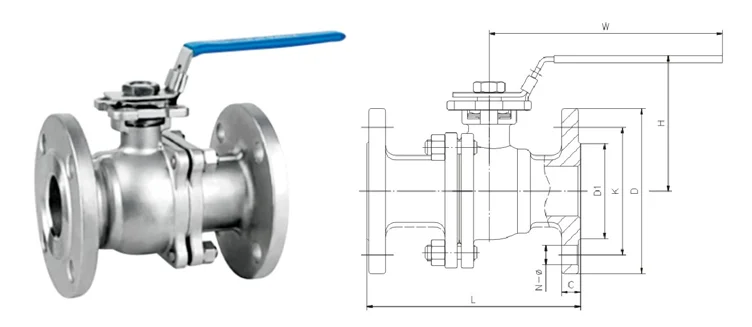

Product structure



Dimensions

GB flange Ball Valve With High Mounting Pad(Fire Safe)

INCH

DN

L

D

K

D1

N-F

C

W

½”

15

108

95

65

45

4-14

14

140

¾”

20

117

105

75

55

4-14

14

140

1”

25

127

115

85

65

4-14

14

165

1 ¼”

32

140

125

100

78

4-18

16

165

1 ½”

40

165

145

110

85

4-18

16

190

2”

50

178

160

125

100

4-18

16

210

2 ½”

65

190

180

145

120

4-18

18

240

3”

80

203

195

160

135

8-18

20

260

4”

100

229

215

180

155

8-18

20

320

5”

125

356

245

210

185

8-18

22

520

6”

150

394

280

240

210

8-23

24

600

8”

200

457

335

295

265

12-23

26

800

10”

250

533

405

355

320

12-25

30

1000

12”

300

610

460

410

375

12-25

30

1200

Technical Parameters

Product Name:

3pc Flanged  Ball Valve

Nominal pressure:

PN1.6, 2.5, 4.0, 6.4MPa

Strength testing pressure:

PT2.4, 3.8, 6.0, 9.6MPa

Seat testing pressure (low pressure):

0.6MPa

Applicable media:

Q11F-(16-64)C Water. Oil. Gas



Q11F-(16-64)P Nitric acid



Q11F-(16-64)R Acetic acid

Applicable temperature:

-40~180 degree
