Donjoy sanitary SS304 and SS316L stainless steel manual butterfly type ball valve

0 Bình luận



Donjoy sanitary SS304 and SS316L stainless steel manual butterfly type ball valve

·   Model NO.: VQD

·   FOB Price: USD 35.00-500.00 / pieces

·   Min order:10 pieces

·   Accept Min order: Yes

·   Supply Ability:1000 pieces / Month

  • Country of Origin: Ningbo/Shanghai

Product Description

·         Structure: Ball

·         Power: Manual

·         Temperature of Media: High Temperature

·         Media: Water

·         Place of Origin: CN; ZHE

·         Port Size:DN10-100 or 1/2"- 4"

·         Brand Name: Donjoy

·         Model Number: VQD

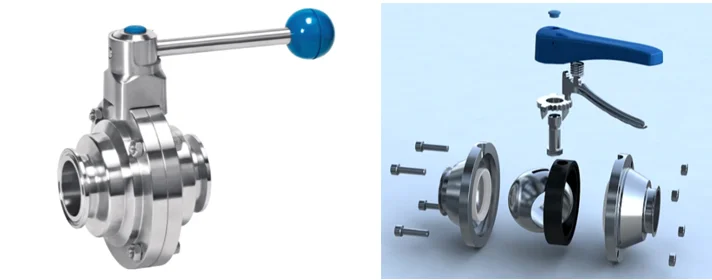

Product structure



Technical Parameters

Product Name:

Donjoy sanitary SS304 and SS316L stainless steel manual butterfly type ball valve

Valve Body Material:

SS304 or SS316L

Seal Material:

PTFE

Max. Working Pressure:

10Bar

Max. Working Temperature:

121 degree C

Availably  size:

DN10-DN100 or 1/2"- 4"

Availably connection:

Thread, Weld, Clamp, Flange

Availably standard:

DIN,SMS,3A

Operated:

Manual, Pneumatic, Electric

Certificate:

FDA,CE

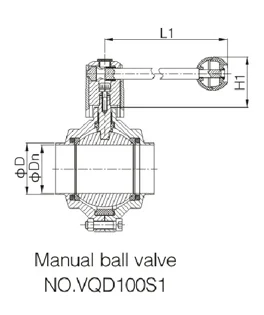

Dimensions



DIN

DN

Dn

D

L1

H1

H2

H3

H4

H5

M

LxW

L1xW1

DN10

9.7

13

126

43.5

172.5

309

140

141

86

158x71

165x120

DN 15

16

19

126

43.5

172.5

309

140

141

86

158x71

165x120

DN 20

19

22

126

43.5

172.5

309

140

141

86

158x71

165x120

DN 25

25

28

126

43.5

172.5

309

140

141

86

158x71

165x120

DN 32

31

34

126

43.5

172.5

309

140

141

86

190x81

165x120

DN 40

37

40

133

47.5

172.5

309

157

141

86

190x81

165x120

DN 50

49

52

144

47.5

172.5

309

157

141

113

207x94

212x134

DN 65

66

70

160

50

248

385

192

184

113

213x98.5

212x134

DN 80

81

85

257

52.5

285

422

204

208

166

259x108.5

259x166

DN 100

100

104

397

52.5

306

431

230

208

166

259x108.5

259x166

INCH (3A, SMS, IOS/IDF, RJT, DS)



SIZE

Dn

D

L1

H1

H2

H3

H4

H5

M

LxW

L1xW1

1/2”

9.7

13

126

43.5

172.5

309

140

141

86

158x71

165x120

3/4”

16

19

126

43.5

172.5

309

140

141

86

158x71

165x120

1”

19

22

126

43.5

172.5

309

140

141

86

158x71

165x120

1 ¼”

25

28

126

43.5

172.5

309

140

141

86

158x71

165x120

1 ½”

31

34

126

43.5

172.5

309

140

141

86

190x81

165x120

2”

37

40

133

47.5

172.5

309

157

141

86

190x81

165x120

2 ½”

49

52

144

47.5

172.5

309

157

141

113

207x94

212x134

3”

66

70

160

50

248

385

192

184

113

213x98.5

212x134

4”

81

85

257

52.5

285

422

204

208

166

259x108.5

259x166







Lưu ý

Sản phẩm Donjoy sanitary SS304 and SS316L stainless steel manual butterfly type ball valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
