Donjoy sanitary stainless steel CIP pump 5hp self-priming water circulation return pump for food process

Name: Donjoy sanitary stainless steel CIP pump 5hp self-priming water circulation return pump for food process
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

Donjoy sanitary stainless steel CIP pump 5hp self-priming water circulation return pump for food process

Model NO.: CIP
FOB Price: USD 600.00-1200.00 / set
Min order: 1 set
Accept Min order: Yes
Supply Ability: 500 set / Month
Country of Origin: NINGBO OR SHANGHAI

Product Description

Place of Origin: CN; ZHE
Structure: Single-stage Pump
Usage: Water
Power: Electric
Fuel: electricity
Pressure: NP
Application: CIP cleaning system
Brand Name: DONJOY
Model Number: CIP

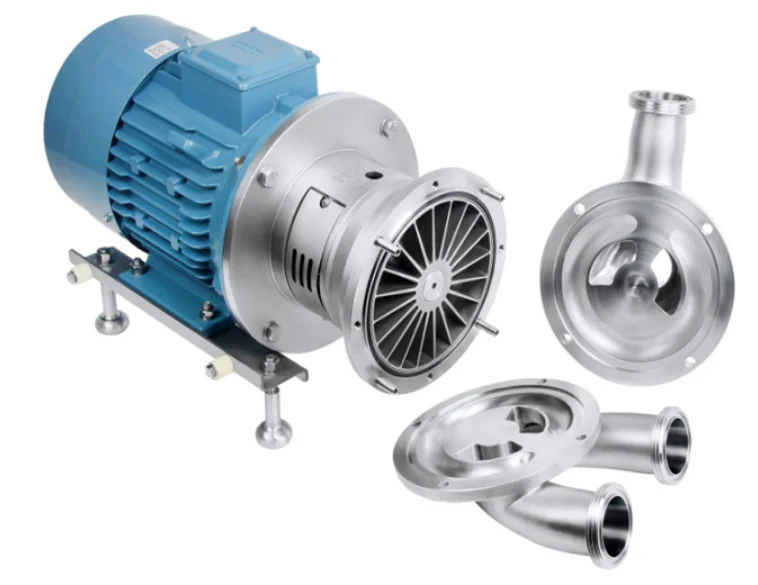

Product structure

Technical Parameters

Product	self-priming pump
Max flow rate	40m3/h
Max Head	42M
Max suction	8/M
Material	304/316L, 1.431/1.4404, ASME BPS, 316L, 1.4435 NB2 Fe<=0.5%
Temperature	-20°C to 130 °C/-20 ° to 130 °C
Surface treatment	≤Ra0.8μm, ≤Ra0.6μm, ≤Ra0.4μm
Mecha ical treatment	Single seal , double seal
Inlet/Outlet Connection	Thread, clamp, flange, Aseptic
Certification	3-A-02-1099( N.O.1759), MD/06/42 EC(N.O.70521616101-00) FDA 177.2600; USP CLASS-II; EGNO1395/2004

Dimensions

CIP-L CIP series self-priming pump selection table

Model	Power	Flow (m³/h)	Head (M)	Inlet port negative pressure (bar)	Inlet	Outlet	Weight (KG)
CIP-L-05	2.2KW	10	15	-0.56	2"-DN50	2"-DN50	45.9
	2.2 KW	8	18				45.9
	3.0 KW	5	20				54.9
CIP-L-10	5.5 KW	20	11	-0.72	2.5"-DN65	2.5"-DN65	89
	5.5 KW	15	18
	5.5 KW	10	24
CIP-L-20	7.5KW	25	17	-0.65	3"	2.5"	95
	7.5KW	20	22
	7.5KW	18	24
	7.5KW	15	28
	11.0KW	10	34				139
	11.0KW	5	38				139
CIP-L-30	11.0KW	35	19	-0.8	3"	2.5"	150
	11.0KW	30	24
	11.0KW	25	30
	11.0KW	21	33
	15.0KW	16	38				163
	15.0KW	11	42				163

Lưu ý

Sản phẩm Donjoy sanitary stainless steel CIP pump 5hp self-priming water circulation return pump for food process được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
