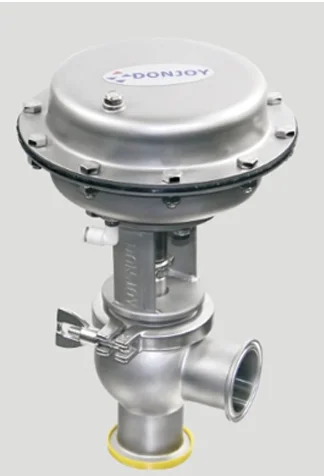

DONJOY sanitary stainless steel Diaphragm divert seat valve
Model NO.: VHX600Q1
FOB Price: USD 183.50-210.00 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Ningbo
Product Description
Place of Origin: CN; ZHE
Temperature of Media: Medium Temperature
Power: Pneumatic
Media: Water
Structure: Regulating
Brand Name: DONJOY
Port Size:DN25-DN100 or 1"-4"
Model Number:VHX600Q1
DONJOY SS diaphragm pneumatic divert seat valve
Product structure
Technical Parameters
Parts in contact with medium
304/316L
Other parts in stainless steel
304
Gasket
EPDM
Internal surface finish
Ra<0.8μm
External surface finish
Sandblast or mirror polish
Size
DN25-DN100 1"-4"
Working temperature
-10°C to 120 °C
Max working pressure
10bar
Dimensions
DIN Pneumatic Divert Seat Valve
SIZE
D
D1
L1
A
E
H
H!
DN50
52
64
70
200
12.7
310
401
DN65
70
91
99
296
12.7
391
507
DN80
85
106
99
12.7
391
507
DN100
104
119
114
12.7
443
560
