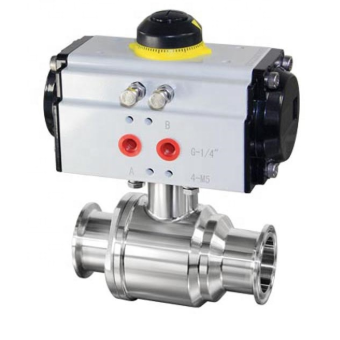

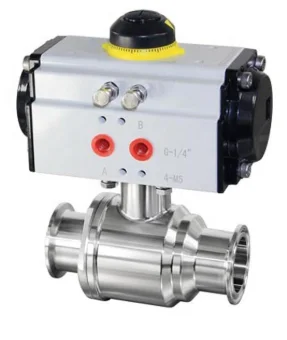

DONJOY sanitary stainless steel horizontal pneumatic ball valve

Name: DONJOY sanitary stainless steel horizontal pneumatic ball valve
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY sanitary stainless steel horizontal pneumatic ball valve

· Model NO.: VQC

· FOB Price: USD 30.00-350.00 / pieces

· Min order:10 pieces

· Accept Min order: Yes

· Supply Ability:5000 pieces / Month

Country of Origin: Ningbo/Shanghai

Product Description

· Place of Origin: CN; ZHE

· Temperature of Media: Normal Temperature

· Power: Manual

· Structure: Ball

· Brand Name: DONJOY

· Application: Fluid control

· Media: Liquid

· Model Number: VQC

· Port Size: depend on request

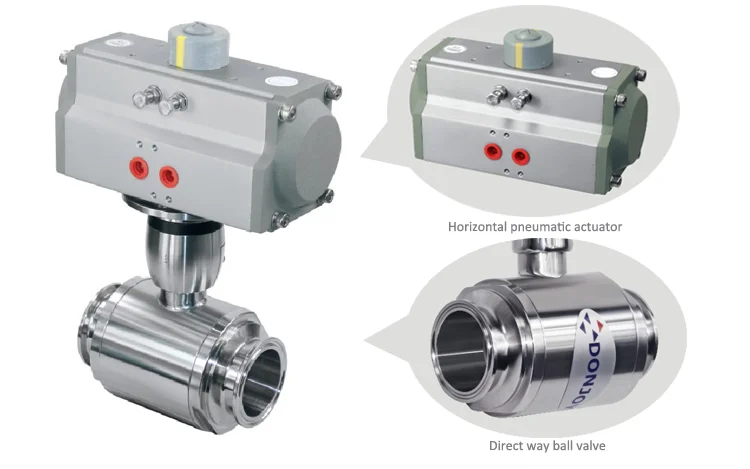

Product structure

Technical Parameters

Product Name:	Donjoy Stainless steel horizontal pneumatic sanitary 3 way ball Valve
Valve Body Material:	SS304 or SS316L
Seal Material:	PTFE
Max. Working Pressure:	10Bar
Max. Working Temperature:	120 degree C
Availably size:	DN10-DN100 or 1/2"- 4"
Availably connection:	Thread, Weld, Clamp, Flange
Availably standard:	DIN,SMS,3A
Operated:	Manual, Pneumatic, Electric
Certificate:	FDA,CE

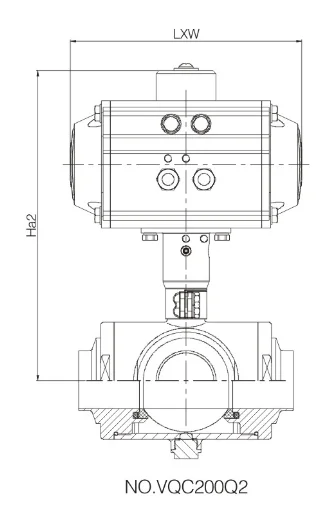

Dimensions

DIN

DN	Dn	D	Ha1	Ha2	M	LXW
DN10	9.7	13	239	198.5	86	158x71
DN 15	16	19	239	198.5	86	158x71
DN 20	19	22	239	198.5	86	158x71
DN 25	25	28	239	198.5	86	158x71
DN 32	31	34	240	213.5	86	190x81
DN 40	37	40	278	251.5	86	190x81
DN 50	49	52	339	261	113	207x94
DN 65	66	70	365	296	113	213x98.5
DN 80	81	85	434	319	166	259x108.5
DN 100	100	104	450	335.5	166	259x108.5

INCH

DN	Dn	D	Ha1	Ha2	M	LXW
0.5”	9.7	12.7	239	198.5	86	158x71
0.75”	16.1	19.1	239	198.5	86	158x71
1”	22.4	25.4	239	198.5	86	158x71
1 ¼”	28.8	31.8	239	198.5	86	158x71
1 ½”	35.1	38.1	240	213.5	86	190x81
2”	47.8	50.8	278	251.5	86	190x81
2 ½”	59.5	63.5	339	261	113	207x94
3”	72.2	76.2	365	296	113	213x98.5
4”	97.6	101.6	434	319	166	259x108.5

Lưu ý

Sản phẩm DONJOY sanitary stainless steel horizontal pneumatic ball valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
