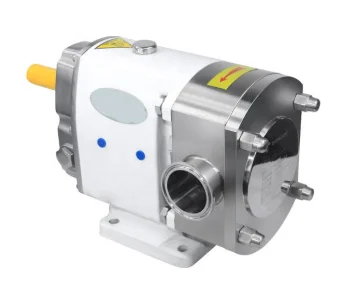

DONJOY sanitary stainless steel Rotary Lobe Cam Pump for honey and food

0 Bình luận

DONJOY sanitary stainless steel Rotary Lobe Cam Pump for honey and food

  • Model NO.: TUL
  • FOB Price: USD 866.00-1031.00 / set
  • Min order:1 set
  • Accept Min order: Yes
  • Supply Ability:100 set / Month
  • Country of Origin: Ningbo or Shanghai
  • Bottom of Form

Product Description



  • Place of Origin: CN;ZHE
  • Structure: Gear Pump
  • Power: Electric
  • Pressure: Low Pressure
  • Application: Cryogenic
  • Usage: food &dairy processing
  • Fuel: electric
  • Brand Name: donjoy
  • Model Number: TUL

DONJOY sanitary stainless steel Rotary Lobe Pump for honey and food

Product structure

Butterfly rotor (recommended)

With low particle breakage rate and small pulse, suitable for transporting material with particle, (recommended)

3-leaves rotor (optional):

With particle breakage rate and smaller pulse than butterfly rotor, suitable for transporting all kinds of metarial.

Spiral 3-leaves rotor (optional):

With low particle breakage rate, very small pulse and high cost, suitable for transporting all kinds of metarial.

Single butterfly rotor (optionall)

With low particle breakage rate for large particle, large pulse, low pressure and small volume, suitable for transporting material with large partice.

2-leaves rotor (optional):

With particle breakage rate large pulse, low pressure and small volume, suitable for transporting all of kinds material

5-leaves rotor (optional):

With low particle breakage rate very small pulse and smaller flow, suitable for transporting all kinds of material.

Technical Parameters

Max flow

90m3/h

Max pressure

15bar

Max temperature

150 °C

Max speed

750 R.P.M

Surface treatment

Ra≤0.8μm,Ra≤0.6μm, Ra≤0.4μm

Material

316L, ASME BPE 316L

Certification

3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00

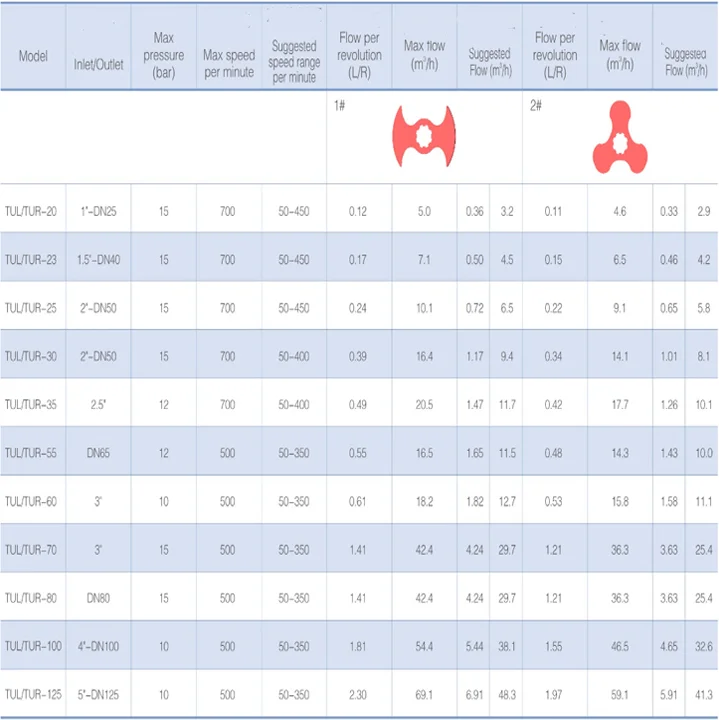

TU&STU series lobe pump, parameter selection table
