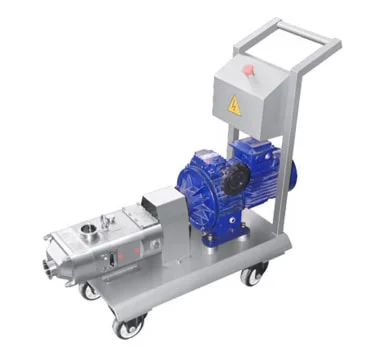

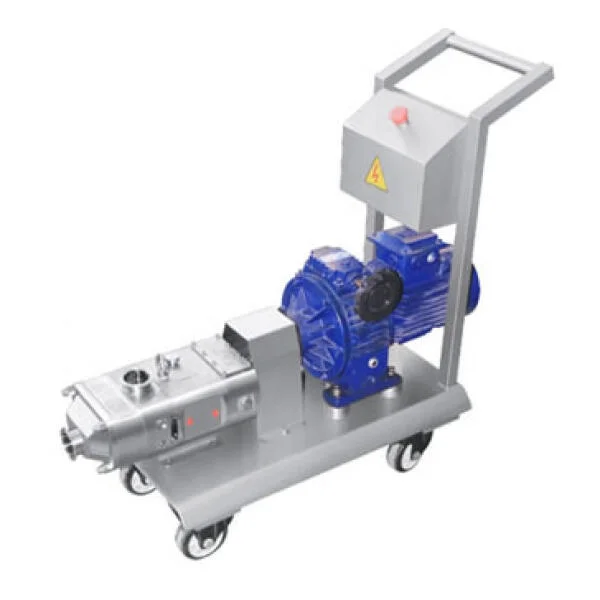

Donjoy Screw pump for transport big solid large space twin screw pump

·        Model NO.: LG-20-70

·        FOB Price: USD 3144.00-3466.50 / sets

·        Min order:2 sets

·        Accept Min order: Yes

·        Supply Ability:100 sets / Month

·       Country of Origin: NINGBO

Product Description

  • Place of Origin: CN; ZHE
  • Structure: Screw Pump
  • Power: Electric
  • Usage: Transport fluid
  • Application: Food, fruit, cosmetic, beverage
  • Fuel: Electric
  • Pressure: Depend on request
  • Brand Name: DONJOY
  • Model Number: LG-20-70

Donjoy Screw pump for transport big solid large space twin screw pump

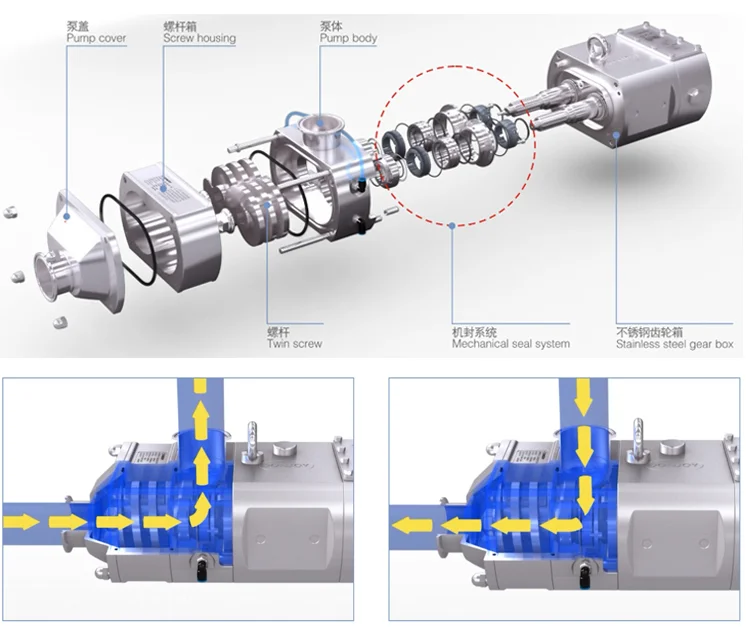

Product structure



Technical Parameters



Max flow

110 m3/h

Max particles

23mm

Max pressure

20bar

Speed range

10-3500 R.P.M

Working temperature

-40°C to 150 °C

Surface treatment

Ra≤0.6μm, Ra≤0.4μm

Material

100% stainless steel, product contact part316L

Certification

3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00



Dimensions



Motor direct-connected screw pump selection table

Model

Screw spacing (mm)

Pressure (bar)

Motor (kw)

Max solid (mm)

Flow per rotation (L/r)

Suggested speed range (r/min)

Suggested Flow range (

Pump head inlet

Pump body outlet

Net weight (kg)

LG-L/R-20-18

18

4

22

8.5

0.09

100-1450

0.54

7.8

1.5’-2’

1.5’-2’

80.9

7

3

84.9

10

4

90.9

14

5.5

123.9

18

7.5

134.9

LG-L/R-20-26

26

3

2.2

12.5

0.13

100-1450

0.78

11.3

1.5’-2’

1.5’-2’

80.9

5

3

84.9

8

4

90.9

11

5.5

123.9

15

7.5

134.9

LG-L/R-30-26

26

4

4

12.5

0.20

100-1450

1.2

17.4

2.5’-3’

2’-3’

152.7

8

5.5

163.7

12

7.5

218.7

18

11

233.7

LG-L/R-30-36

36

3

4

17.5

0.29

100-1450

1.74

25.2

2.5’-3’

2.5’-3’

152.7

7

5.5

163.7

10

7.5

218.7

15

11

233.7

LG-L/R-70-32

32

4

7.5

16.5

0.53

100-1000

3.18

31.8

3’-4’

3’-4’

314.7

8

11

329.7

12

15

374.7

18

18.5

387.7

LG-L/R-70-48

48

4

7.5

23.5

0.79

100-1000

4.74

47.4

3’-4’

3’-4’

314.7

7

11

329.7

10

15

374.7

15

18.5

387.7



Variable frequency motor helical gear screw pump selection table

Model

Screw spacing (mm)

Pressure (bar)

Motor (kw)

Max solid (mm)

Flow per rotation (L/r)

Suggested speed range (r/min)

Suggested Flow range (

Pump head inlet

Pump body outlet

Net weight (kg)

LG-L/R-20-18

18

5

1.1

8.5

0.09

100-1000

0.54

7.8

1.5’-2’

1.5’-2’

76.9

10

1.5

85.9

14

2.2

93.9

18

3

101.9

20

4

114.9

LG-L/R-20-26

26

4

1.1

12.5

0.13

100-1000

0.78

11.3

1.5’-2’

1.5’-2’

76.9

8

1.5

85.9

12

2.2

93.9

16

3

101.9

18

4

114.9

LG-L/R-30-26

26

5

3

12.5

0.20

100-1000

1.2

17.4

2.5’-3’

2’-3’

130.7

10

4

143.7

15

5.5

201.7

20

7.5

214.7

LG-L/R-30-36

36

4

3

17.5

0.29

100-1000

1.74

25.2

2.5’-3’

2.5’-3’

130.7

8

4

143.7

12

5.5

201.7

16

7.5

214.7

LG-L/R-70-32

32

5

5.5

15.5

0.53

100-1000

3.18

31.8

3’-4’

3’-4’

297.7

10

7.5

310.7

15

11

441.7

20

15

460.7

LG-L/R-70-48

48

4

5.5

23.5

0.79

100-1000

4.74

47.4

3’-4’

3’-4’

297.7

8

7.5

310.7

12

11

441.7

16

15

460.7
