DONJOY SS Sanitary Manual Plastic handwheel Angle Seat Valve
Model NO.: NO.1106001
FOB Price: USD 56.50-64.60 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Shanghai or Ningbo
Product Description
Place of Origin: CN;ZHE
Temperature of Media: Normal Temperature
Power: Manual
Structure: Angle
Media: Other
Brand Name: Donjoy
Model Number:NO.1106001
Port Size:DN15-65
Product structure
Technical Parameters
Product Name:
Manual Angle Seat Valve
Valve Body Material:
CF8/304 or CF8M/316L
Seal Material:
EPDM
Working Pressure:
8 Bar, 10Bar(option).
Max. Working Temperature:
120 degree C
Availably size:
DN15-DN65 or 0.5"- 2.5"
Availably connection:
Thread, Weld, Clamp, BSP/BSP/NPT
Handwheel:
Plastic; Stainless steel
Operate:
Manual
Certificate:
FDA,CE

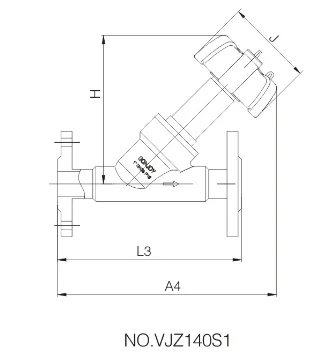

Dimensions
INCH
SIZE
t/mm
D
L3
A4
A5
H
H1
Q
J
0.5’
1.5/1.65
12.7
163
207.5
242
141.5
173
70
87.2
0.75’
1.5/1.65
19.1
163
209.5
242
141.5
173
70
87.2
1’
1.5/1.65
25.4
174
211
268
145
202
100
87.2
1.25’
1.5/1.65
31.8
208
246
286
175
215
100
114
1.5’
1.5/1.65
38.1
212
248
288
175
215
100
114
1.5/1.65
38.1
212
248
323
175
250
135
114
2’
1.5/1.65
50.8
235
382
359
193
270
135
138
2.5’
1.65/2.0
63.5
240
291
366
220
290
135
138
3’
1.65/2.0
76.2
240
291
366
220
290
135
138
DIN
SIZE
t/mm
D
L3
A4
A5
H
H1
Q
J
DN10
1.5
13
163
207.5
242
141.5
173
70
87.2
DN15
1.5
18/19
163
209.5
242
141.5
173
70
87.2
DN25
1.5
28/29
174
211
268
145
202
100
87.2
DN32
1.5
34/35
208
246
286
175
215
100
114
DN40
1.5
40/41
212
248
288
175
215
100
114
1.5
40/41
212
248
323
175
250
135
114
DN50
1.5
52/53
235
382
359
193
270
135
138
DN60
2.0
70
240
291
366
220
290
135
138
Lưu ý
Sản phẩm DONJOY SS Sanitary Manual Plastic handwheel Angle Seat Valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
