Smart valve positioner / C-TOP control / position sensor
Operated
Manual, Pneumatic
Certificate
3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

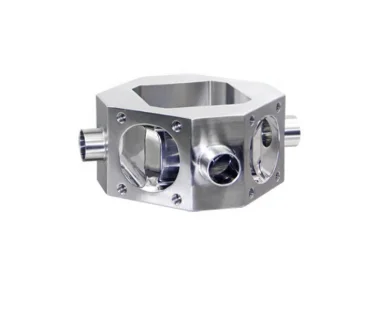

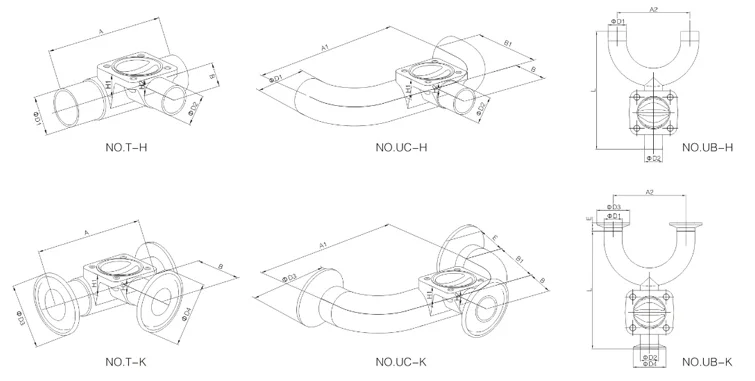

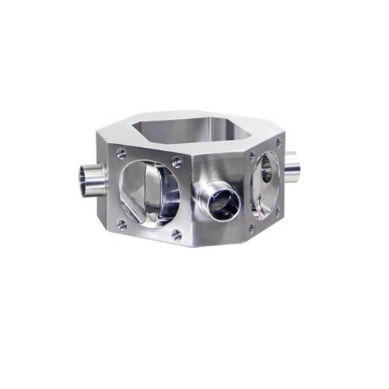

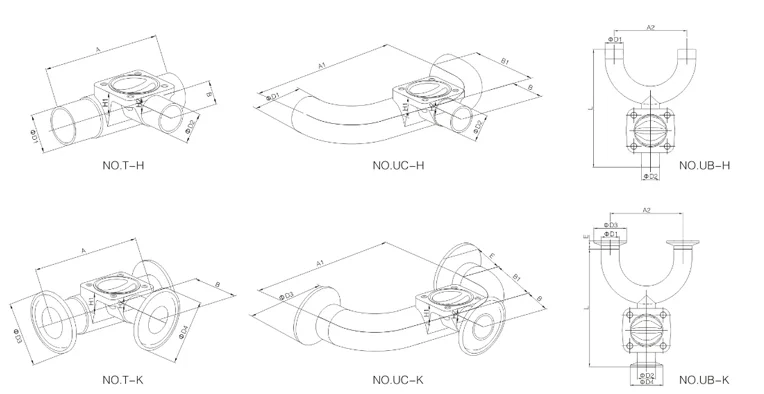

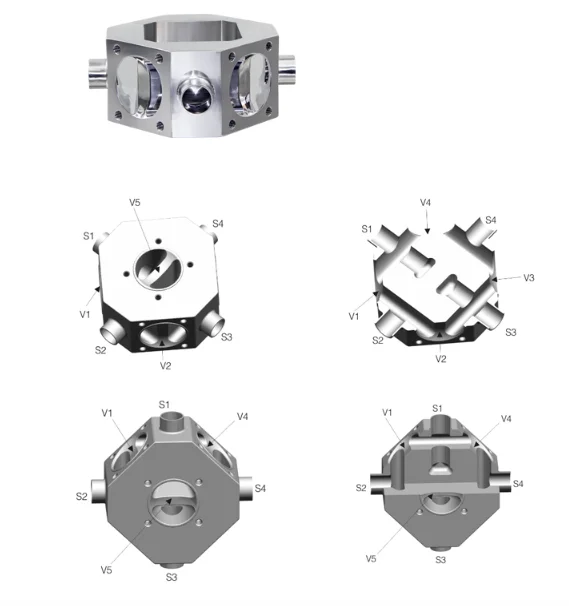

Dimensions
ASME BPE/ASTM 269
SIZE
D1
D2
D3
D4
A
A1
A2
B
B1
H1
H2
L
E
1”-1/2”
25.4
12.7
50.5
25.4
100
176
76.2
59
68
24.5
9
142.9
12.7
1”-3/4”
19.1
25.4
13
154.3
1”-1”
25.4
50.5
124
200
85
29.8
17
188.3
1 ¼”-1/2”
31.8
12.7
50.5
25.4
100
195.5
95.4
61
78
26.5
9
155.7
12.7
1 ¼”-3/4”
19.1
25.4
13
167.1
1 ¼”-1”
25.4
50.5
124
219.5
85
32.8
17
201.1
1 ¼”-1 ¼”
31.8
50.5
95.4
20
222.6
1.5”-1/2”
38
12.7
50.5
25.4
100
214
114.3
64
87
29.5
9
168.3
12.7
1.5”-3/4”
19.1
25.4
13
179.7
1.5”-1”
25.4
50.5
124
238
89
35.8
17
213.7
1.5”-1 ¼”
31.8
50.5
150
266
114.3
109
20
235.2
1.5”- 1.5”
38.1
50.5
23
241.7
2”-1/2”
50.8
12.7
64
25.4
100
252.5
152.4
70
106
33.5
9
193.7
12.7
2”-3/4”
19
25.4
13
205.1
2”-1”
25.4
50.5
124
276.5
95
41.8
17
239.1
2”-1 ¼”
31.8
50.5
152
304.5
152.4
115
43.8
20
260.6
2”-1.5”
38.1
50.5
23
267.1
2”- 2”
50.8
64
152.4
123
43.3
29
289.6
DIN32676/DN11850-1/2
SIZE
D1
D2
D3
D4
A
A1
A2
B
B1
H1
H2
L
E
DN25-1/2”
28
12.7
50.5
25.4
100
200
100
59
80
24.5
9
166.1
21.5
DN25-3/4”
19
34
13
177.5
DN25- DN20
22
34
206.5
DN25- DN25
28
50.5
124
224
85
29.8
17
211.5
DN32-1/2”
34
12.7
50.5
25.4
100
210
110
61
85
26.5
9
174.1
21.5
DN32-3/4
16
25.4
13
185.5
DN32-DN20
22
34
214.5
DN32-DN25
28
50.5
124
234
85
32.8
17
219.5
DN32-32
34
50.5
20
241
DN40-1/2”
40
12.7
50.5
25.4
100
220
120
64
90
29.5
9
182.1
21.5
DN40-3/4”
19
25.4
13
193.5
DN40-DN20
22
34
222.5
DN40-DN25
28
50.5
124
244
89
35.8
17
227.5
DN40-DN32
34
50.5
152
272
109
20
249
DN40-DN40
40
50.5
23
255.5
DN50-1/2”
52
12.7
64
25.4
100
240
140
70
100
33.5
9
198.1
21.5
DN50-3/4”
19.
25.4
13
209.5
DN50-DN20
22
34
238.5
DN50-DN25
28
50.5
124
264
95
41.8
17
243.5
DN50-DN32
34
50.5
152
292
115
43.8
20
265
DN50-DN40
40
50.5
23
271.5
DN50-DN50
52
64
184
324
123
43.3
29
294
