DONJOY SS316L Sanitary back pressure valve constant pressure valve

Name: DONJOY SS316L Sanitary back pressure valve constant pressure valve
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY SS316L Sanitary back pressure valve constant pressure valve

FOB Price: USD 212.00-266.00 / pieces
Min order:10 pieces
Accept Min order: Yes
Supply Ability:1000 pieces / Month
Country of Origin: Ningbo or Shanghai

Product Description

Structure: Pressure Reducing
Power: Manual
Temperature of Media: Medium Temperature
Media: Water
Place of Origin: CN;ZHE
Application: General
Port Size:DN25-DN50,1"-2"
Brand Name: DONJOY

DONJOY SS316L Sanitary coustant pressure valve

Product structure

donjoy-ss316l-sanitary-3

Note: Figure 1 input constant pressure design to keep constant pressure inlet pipe

Figure 2 outlet constant pressure design, of outlet pipe line pressure constant

Technical Parameters

Material	1.4404/1.4301, SS304/SS316L
Seal	EPDM+PTFE, FDA177.2600
Working pressure	8 bar
Working temperature	-10 ~150 °C
Internal surface	Mirror polish, Ra<0.6μm
Outside surface	Stand blast
Connection way	clamp, thread, welding

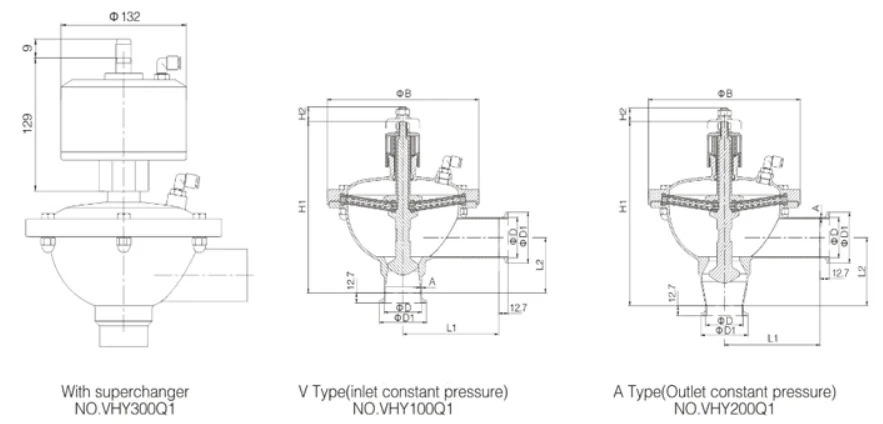

Dimensions

donjoy-ss316l-sanitary-back-4

SIZE		D	D1	A	B	L1	L2	H1	H2
V	DN40	40	50.5	1.5	206	130	62	215	18
	1.5’	38.1
	DN50	52	64	1.5	206	130	69	215	18
	2’	50.8
	2.5’	63.5	77.5	2	206	130	69	215	18
A	DN40	40	50.5	1.5	206	130	78	230	18
	1.5’	38.1
	DN50	52	64	1.5	206	130	85	230	18
	2’	50.8
	2.5’	63.5	77.5	2	206	130	85	230	18

Lưu ý

Sản phẩm DONJOY SS316L Sanitary back pressure valve constant pressure valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
