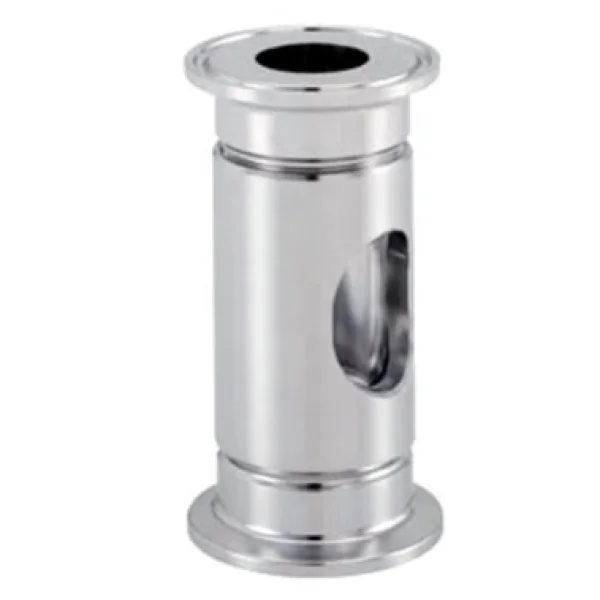

DONJOY stainless steel clamp type tubular Sight Glass Aseptic and no Zero-dead Angle sight glass

Name: DONJOY stainless steel clamp type tubular Sight Glass Aseptic and no Zero-dead Angle sight glass
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY stainless steel clamp type tubular Sight Glass Aseptic and no Zero-dead Angle sight glass

Model NO.: VSJ
FOB Price: USD 18.00-20.50
Min order:2
Accept Min order: Yes
Country of Origin: Shanghai/Ningbo

Product Description

Place of Origin: CN;ZHE
Technics: Forged
Connection: Welding
Shape: Equal
Head Code: Square
Brand Name: DONJOY
Model Number: VSJ

DONJOY stainless steel clamp type tubular Sight Glass Aseptic and no Zero-dead Angle sight glass

Product structure

donjoy-stainless-steel-clamp-type-tubular-sight-glass-2

Technical Parameters

Product Name:	DONJOY stainless steel tubular Sight Glass Aseptic and no Zero-dead Angle sight glass
Protective sleeve Material:	AISI 304
Gasket Material:	VMQ/NBR(standard) /EPDM,FPM, FDA177.2600
working pressure:	5 bar to 10 bar according to sight glass size
Working Temperature:	-10°—120 °C(VMQ)
Availably size:	DN25-DN100 1"-4"
Design:	Full bore design, attachment by self-locking nuts;360°viewing angle; can be used in vertical or horizontal position
Function:	Through it, operator can observe the flowing of the liquid substance clearly and precisely.
Application scope:	food, pharmacy, cosmetic, Chemical, etc
Packaging Details:	Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

Dimensions

Orifice	C (mm)	Di (mm)	B (mm)	L (mm)
ASME DN1/4’	25.00	4.6	20.00	76.00
ASME DN3/8’	25.00	7.75	20.00	76.00
ASME DN1/2’	25.00	9.40	20.00	76.00
ASME DN3/4’	25.00	15.75	30.00	92.00
ASME DN1’	50.50	22.10	30.00	92.00
ASME DN1/2’	50.50	34.80	32.00	115.00
ASME DN2’	64.00	47.50	48.00	120.00
DIN Dimensions inline flow indicator with Clamp connection/standard
DN08	25.00	8.00	20.00	76.00
DN10	34.00	10.00	20.00	76.00
DN15	50.50	16.00	30.00	92.00
DN20	50.50	20.00	30.00	92.00
DN25	50.50	26.00	32.00	92.00
DN32	50.50	32.00	32.00	92.00
DN40	64.00	38.00	32.00	120.00
DN50	64.00	50.00	48.00	120.00

donjoy-stainless-steel-clamp-type-tubular-sight-glass-33

Orifice	D (mm)	Da (mm)	Di (mm)	L (mm)	S (mm)	B (mm)
BS-OD Dimensions inline flow indicator with weld end/standard
ASME DN1/4’	21.94	6.35	4.60	92.00	18.00	20.20
ASME DN3/8’	25.40	9.50	7.70	107.30	25.10	21.00
ASME DN1/2’	31.18	12.70	9.40	107.30	25.40	18.00
ASME DN3/4’	36.95	19.06	15.75	120.00	25.10	20.00
ASME DN1’	48.30	24.40	22.10	121.00	25.40	30.00
ASME DN1/2’	62.00	38.10	34.80	136.00	25.40	32.00
ASME DN2’	80.00	50.80	47.50	161.50	25.40	48.00
DIN Dimensions inline flow indicator with Clamp connection/standard
DN08	25.40	10.00	8.00	92.50	18.00	17.00
DN10	31.18	12.00	10.00	92.00	18.00	18.00
DN10	31.18	13.00	10.00	92.50	18.00	18.00
DN15	36.95	19.00	16.00	110.00	18.00	20.00
DN20	48.30	23.00	20.00	110.00	18.00	28.00
DN25	48.00	29.00	26.00	110.00	18.00	24.00
DN32	62.00	35.00	32.00	114.50	18.00	24.00
DN40	62.00	41.00	38.00	122.50	18.00	31.00
DN50	80.00	53.00	50.00	154.50	18.00	54.00

Lưu ý

Sản phẩm DONJOY stainless steel clamp type tubular Sight Glass Aseptic and no Zero-dead Angle sight glass được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
