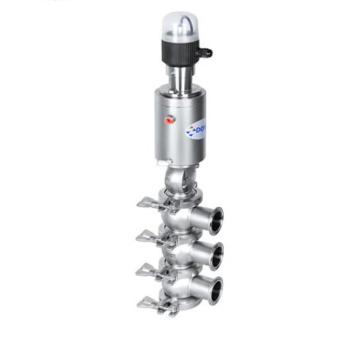

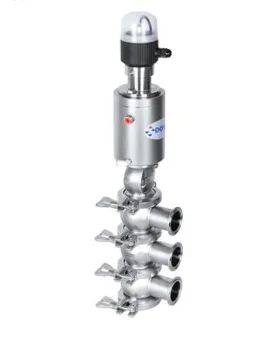

DONJOY factory stainless steel pneumatic three seat divert seat Valve 111type with position feedback

0 Bình luận



DONJOY factory stainless steel pneumatic three seat divert seat Valve 111type with position feedback

  •   Model NO.: 111
  •   FOB Price: USD 315.00-360.00 / pieces
  •   Min order:2 pieces
  •   Accept Min order: Yes
  •   Supply Ability:1000 pieces / Month
  •   Country of Origin: Shanghai or Ningbo

Product Description

  •     Structure: Regulating
  •     Temperature of Media
  •     Normal Temperature
  •     Place of Origin: CN; ZHE
  •     Media: Other
  •     Port Size: DN25-100
  •     Brand Name: Donjoy
  •     Application: General
  •     Power: Pneumatic
  •     Model Number:111

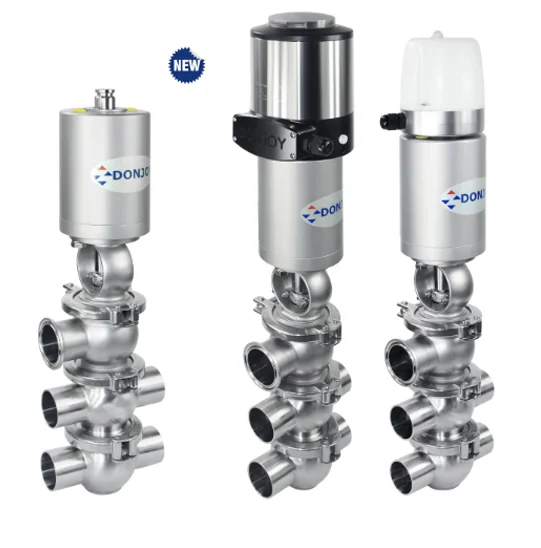

DONJOY factory stainless steel pneumatic three seat divert seat Valve 111type with position feedback

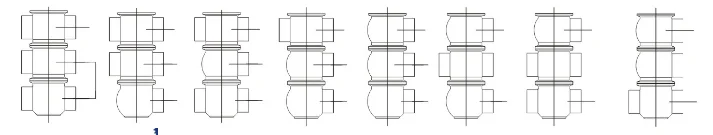

Product structure



Technical Parameters

Product Name:

DONJOY factory stainless steel pneumatic three seat divert seat Valve 111type with MINI C TOP

Valve Body Material:

AISI304, AISI316L

Seal Material:

EPDM

Working Pressure:

10Bar

Max. Working Temperature:

120 degree C

Availably  size:

DN25-DN100 or 1"- 4"

Availably connection:

CLAMP, DIN, SMS

Air Operation:

can be configured to intelligent/C-TOP controller

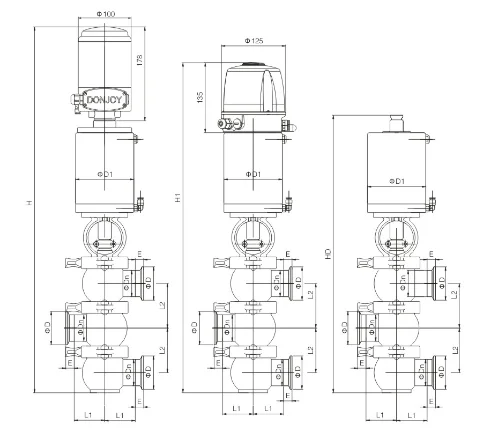

Dimensions





Ari consumption (L/One cycle)

SIZE

FD1

Spring/ari

Ari/ari

88

0.12

0.24

113

0.21

0.42

132

0.45

0.90

180

1.00

2.00




DIN Pneumatic Divert Seat Valve

SIZE

H

H1

HD

Dn

D



L2

D1



Weight

(kg)

6bar

10bar

DN40

590

547

428

40

50.5

60

67

68

113

12.7

7

DN50

662

619

504

52

64

70

76

113

132

12.7

8

DN65

758

715

581

70

91

99

105

132

180

12.7

15

DN80

758

715

581

85

106

99

105

132

180

12.7

15

DN100

958

915

785

104

119

114

146

180



15.8

17

INCH Pneumatic Divert Seat Valve

SIZE

H

H1

HD

Dn

D



L2

D1



Weight

(kg)

6bar

10bar

1.5”

590

547

428

40

50.5

60

67

68

113

12.7

7

2”

662

619

504

52

64

70

76

113

132

12.7

8

2.5”

758

715

581

70

91

99

105

132

180

12.7

15

3”

758

715

581

85

106

99

105

132

180

12.7

15

4”

958

915

785

104

119

114

146

180



15.8

17







Lưu ý

Sản phẩm DONJOY factory stainless steel pneumatic three seat divert seat Valve 111type with position feedback được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
