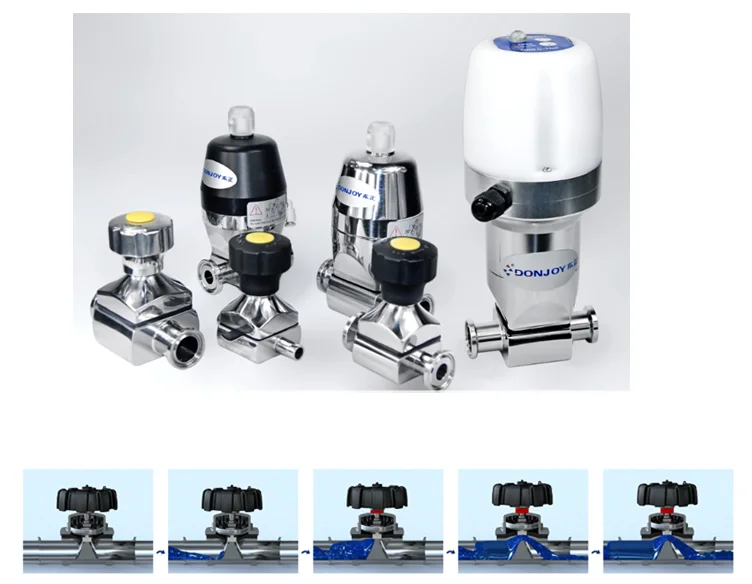

Manual sanitary plastic pressure mini diaphragm sample valve for beverage

·   Model NO.: 12031601

·   FOB Price: USD 100.00-110.00 / pieces

·   Min order:10 pieces

·   Accept Min order: Yes

·   Supply Ability:1000 pieces / Month

·   Country of Origin: NINGBO OR SHANGHAI

Product Description

·   Place of Origin: CN; ZHE

·   Application: General

·   Temperature of Media: Medium Temperature

·   Power: Manual

·   Media: Water

·   Structure: Diaphragm

·   Brand Name: DONJOY

·   Model Number: 12031601

·   Port Size:DN6- DN15 1/4"-3/4"

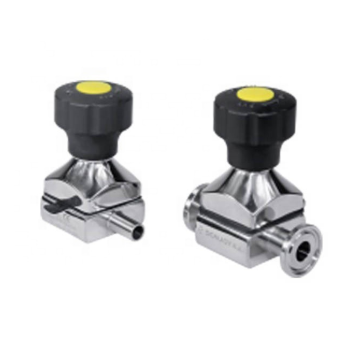

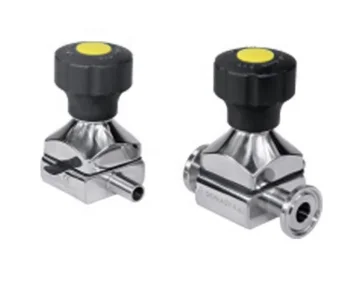

Manual sanitary plastic pressure mini diaphragm sample valve for beverage

Product structure

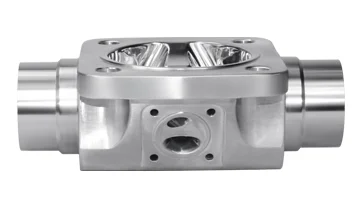

Diapharagm valve forging body

Diapharagm valve casging body



Technical Parameters

Availably  size

1/4"-3/4", DN6-DN15

Max. temperature

-30 to 150 °C(depending on diaphragm) (stainless steel wheel)

Max. temperature

-30 to 130 °C (depending on diaphragm) (plastic wheel)

Max. pressure

10bar

Valve body

316L / BPE 316L

Availably connection

Clamp / weld / thread / flange

Seal Material

PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)

Availably standard

3A/BPE/DIN/ISO/IDF

Control

Smart valve positioner / C-TOP control / position sensor

Operated

Manual, Pneumatic

Certificate

3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

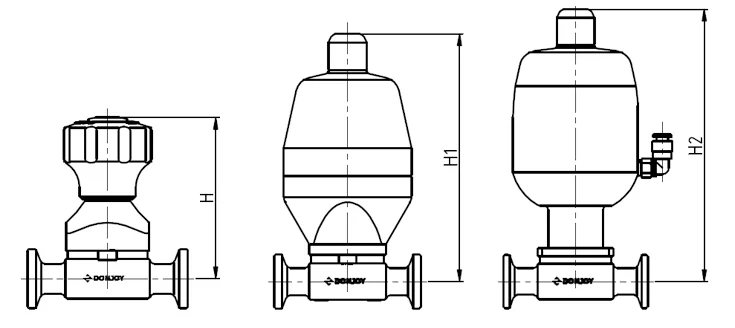

Dimensions



SIZE

SIZE

H

H1

H2

¼”

DN6

69

116

130

3/8”

DN8

69

116

130

½”

DN10

69

116

130

¾”

DN15

72

119

133
