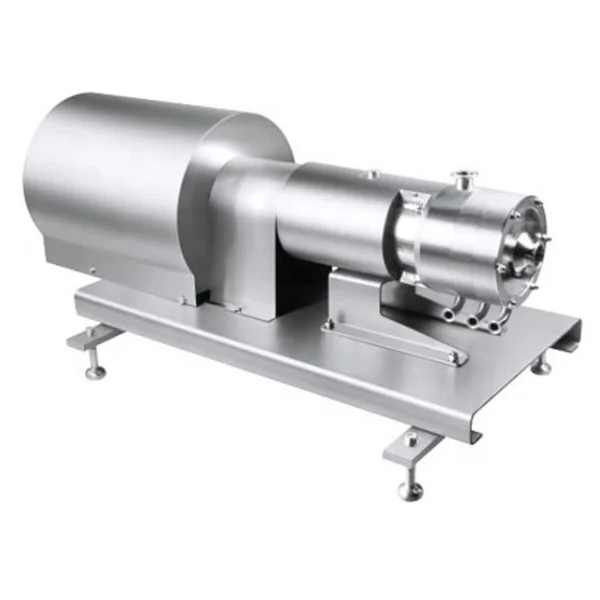

Multi - Stage homogenizer mixer Liquid mixer emulsifier homogenizer mixer for food and beverage
Model NO.: JZ-3
FOB Price: USD 1000.00-4000.00 / set
Min order: 1 set
Accept Min order: Yes
Supply Ability: 100 set / Month
Country of Origin: Ningbo or Shanghai
Product Description
Place of Origin: CN
Structure: Multistage Pump
Power: Electric
Pressure: Low Pressure
Usage: Dispersing
Fuel: Power
Application: Mixing
Brand Name: DONJOY
· Model Number: JZ-3
Multi- Stage/Emulsified homogenizing softening pump JZ-3 for food and beverage
Product structure
Technical Parameters
Max flow rate
50m3/h
Max power
90kw
Max temperature
-20°C to 140 °C
Media refinement
≤100GRIT ≤100mesh
Material
304/316L
Surface treatment
Ra≤0.8μm, Ra≤0.6μm, Ra≤0.4μm
Mechanical seal
Single mechanical seal, double mechanical seal
Inlet/Outlet
Threaded, clamped, flange, Aseptic flange
Certification
3-A-02-10 NO.1579; MD/06/42-EC NO.70521616101-00;FDA 177.2600 ;USP CLASS II;EG/VO 1935/2004
Dimensions
DJ-JZ3 series multi stage emulsifying homogenizing pump selection table
Model
Power (kw)
Flow (m3/h)
Outlet pressure
(bar)
Rotate speed
(r/min)
Inlet
Outlet
Weight (kg)
DJ-JZ3-130
75
4.0
1.0
2900
1.5"-DN40
1.5"-1.1/4"
139.5
11
2.0
183.5
DJ-JZ3-150
11
6.0
2.0
2900
2"-DN40
1.5"-DN40
189.8
15
2.0
202.8
DJ-JZ3-170
15
12.0
2.0
2900
2"-2.5"
2"-DN50
237.2
18.5
4.0
245.2
DJ-JZ3-190
22
20.0
2.0
2900
3"-DN65
2"-2.5"
298.9
30
5.0
346.9
DJ-JZ3-210
45
30.0
2.0
2900
3"-DN80
2.5"-DN65
433
55
5.0
494
DJ-JZ3-240
75
50.0
2.0
2900
4"-DN100
3"-DN60
806
90
5.0
846
Lưu ý
Sản phẩm Multi - Stage homogenizer mixer Liquid mixer emulsifier homogenizer mixer for food and beverage được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
