Ống vi sinh ASME BPE
ASME BPE tube or pipe
|
 |
|
Product Catalogues
|
|

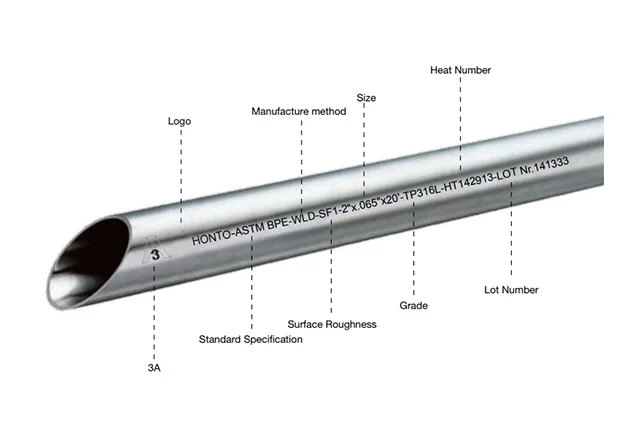

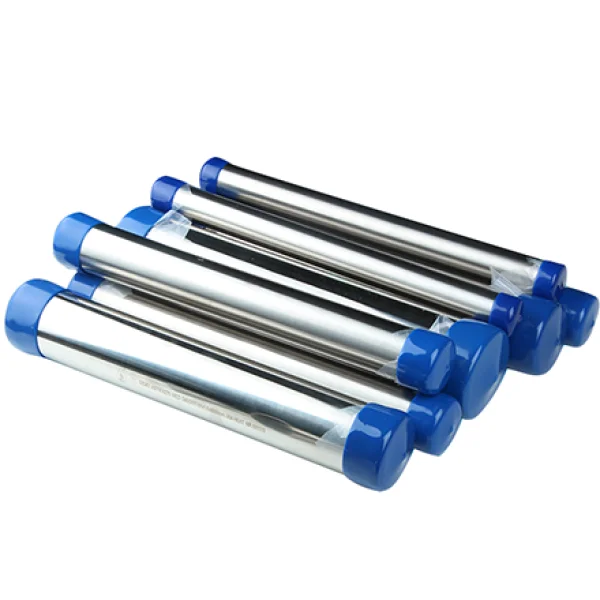

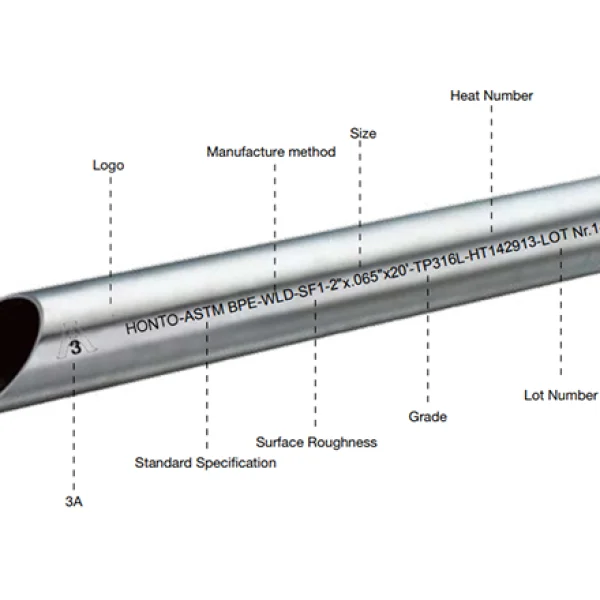

Ống inox vi sinh ASME BPE cho dược phẩm, sinh học
Bio Pharm/Ultrapure Tubes or pipe ASME BPE
Dimensional Tolerances all dimensions in inches (mm)
|
Size OD
|
Tolerances, OD
|
Wall thickness
|
Tolerances on wall thickness a)
|
Tolerances on Length
|
Weight Kg/M
|
|
1/2" (12.7)
|
+/-0.005" (0.13)
|
0.065" (1.65)
|
+/-10.0%
|
+1/8" (3.18) - 0
|
0.4571
|
|
3/4" (19.1)
|
+/-0.005" (0.13)
|
0.065" (1.65)
|
+/-10.0%
|
+1/8" (3.18) – 0
|
0.7218
|
|
1" (25.4)
|
+/-0.005" (0.13)
|
0.065" (1.65)
|
+/-10.0%
|
+1/8" (3.18) – 0
|
0.9824
|
|
1-1/2" (38.1)
|
+/-0.008" (0.20)
|
0.065" (1.65)
|
+/-10.0%
|
+1/8" (3.18) – 0
|
1.5078
|
|
2" (50.8)
|
+/-0.008" (0.20)
|
0.065" (1.65)
|
+/-10.0%
|
+1/8" (3.18) – 0
|
2.0331
|
|
2-1/2" (63.5)
|
+/-0.010" (0.25)
|
0.065" (1.65)
|
+/-10.0%
|
+1/8" (3.18) – 0
|
2.5585
|
|
3" (76.2)
|
+/-0.010" (0.25)
|
0.065" (1.65)
|
+/-10.0%
|
+1/8" (3.18) – 0
|
3.0797
|
|
4" (101.6)
|
+/-0.015" (0.38)
|
0.083" (2.11)
|
+/-10.0%
|
+1/8" (3.18) – 0
|
5.2628
|
|
6" (152.4)
|
+/-0.030" (0.76)
|
0.109" (2.77)
|
+/-10.0%
|
+1" (25.4) – 0
|
10.3909
|
|
|
Chemical Composition
|
Elements
|
|
316L (wt %)
|
|
(C)
|
Carbon, Max.
|
0.035
|
|
(Mn)
|
Manganese, Max.
|
2.00
|
|
(P)
|
Phosphorus, Max.
|
0.040
|
|
(S)
|
Sulfur
|
0.005-0.017
|
|
(Si)
|
Silicon, Max.
|
0.75
|
|
(Ni)
|
Nickel
|
10.0-15.0
|
|
(Cr)
|
Chromium
|
16.0-18.0
|
|
(Mo)
|
Molybdenum
|
2.0-3.0
|
|
 |
|
Flow Information
|
Tube or pipe OD
|
Tube or pipe ID
|
Wall Thickness
|
Volume
|
Weight Dry
|
Weight with Water
|
Flow (GPM) at a Mean Velocity
|
|
Inches
|
Inches
|
Inches
|
Gal/100ft
|
Lbs/100ft
|
Lbs/100ft
|
5 fps
|
7 fps
|
10 fps
|
|
½
|
0.37
|
0.065
|
0.56
|
30.6
|
35.3
|
1.7
|
2.3
|
3.4
|
|
¾
|
0.62
|
0.065
|
1.57
|
48.2
|
61.3
|
4.7
|
6.6
|
9.4
|
|
1
|
0.87
|
0.065
|
3.09
|
65.8
|
91.5
|
9.3
|
13
|
19
|
|
1½
|
1.37
|
0.065
|
7.66
|
100.9
|
164.8
|
23
|
32
|
46
|
|
2
|
1.87
|
0.065
|
14.27
|
136.1
|
255.1
|
43
|
60
|
86
|
|
2½
|
2.37
|
0.065
|
22.92
|
171.2
|
362.4
|
69
|
96
|
138
|
|
3
|
2.87
|
0.065
|
33.6
|
206.4
|
486.7
|
101
|
141
|
202
|
|
4
|
3.834
|
0.083
|
59.97
|
351.8
|
851.9
|
180
|
252
|
360
|
|
6
|
5.782
|
0.109
|
136.39
|
694.7
|
1832.2
|
409
|
573
|
818
|
|
8
|
7.782
|
0.109
|
247.07
|
930.6
|
2991.1
|
741
|
1038
|
1482
|
***This tubing is available in 1/2" (12.7 mm) to 6" (152.4 mm) OD in stock 20' (6.1 m) lengths
***Due to continuous product development, information may change without notice.
|
LƯU Ý:
Sản phẩm Ống vi sinh ASME BPE được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
