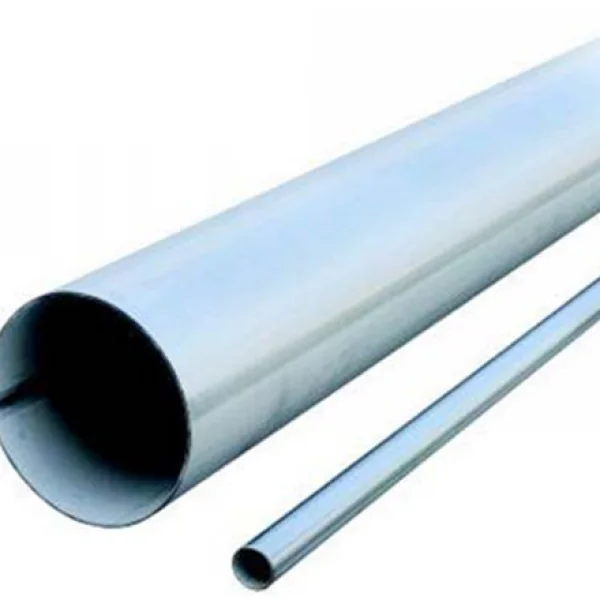

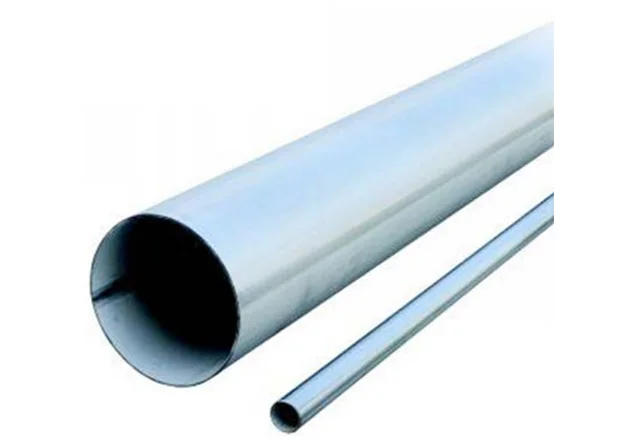

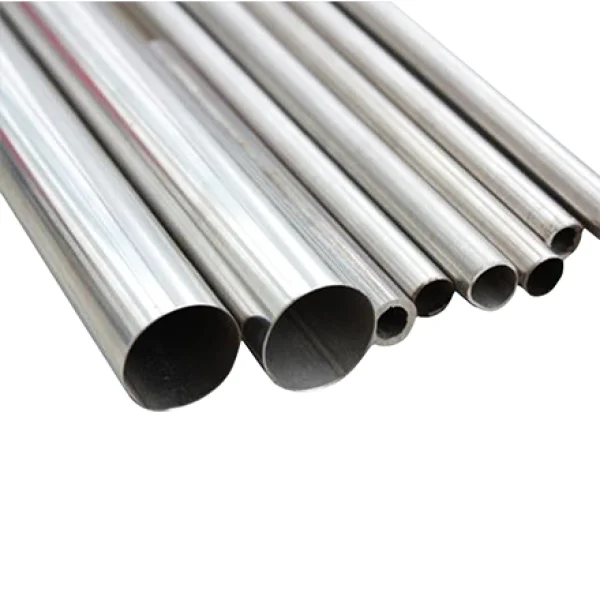

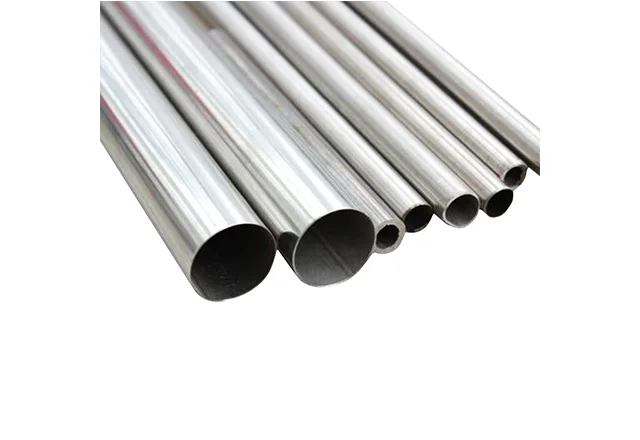

Ống vi sinh DIN11850
DIN11850 Sanitary Tubes or pipe
|
 |
 |
 |
|
Product Catalogues
|
|
Ống inox vi sinh DIN11850
Sanitary Tubes DIN11850
Tubes or pipe acc. to DIN 11850 - Series 1 Dimensional Tolerances all dimensions in mm
|
Nominal diameter DN
|
Size OD
|
Tolerances, OD
|
Wall thickness
|
Tolerances on wall thickness a)
|
Tolerances on Length
|
Weight Kg/M
|
|
10
|
12
|
±0.12
|
1.0
|
±10%
|
+3.00
|
0.27
|
|
15
|
18
|
±0.12
|
1.0
|
±10%
|
+3.00
|
0.42
|
|
20
|
22
|
±0.12
|
1.0
|
±10%
|
+3.00
|
0.51
|
|
25
|
28
|
±0.15
|
1.0
|
±10%
|
+3.00
|
0.66
|
|
32
|
34
|
±0.15
|
1.0
|
±10%
|
+3.00
|
0.82
|
|
40
|
40
|
±0.2
|
1.0
|
±10%
|
+3.00
|
0.97
|
|
50
|
52
|
±0.2
|
1.0
|
±10%
|
+3.00
|
1.27
|
|
|
Tubes or pipe acc. to DIN 11850 - Series 2 Dimensional Tolerances all dimensions in mm
|
Nominal diameter DN
|
Size OD
|
Tolerances, OD
|
Wall thickness
|
Tolerances on wall thickness a)
|
Tolerances on Length
|
Weight Kg/M
|
|
10
|
13
|
±0.3
|
1.5
|
±10%
|
+3.00
|
0.43
|
|
15
|
19
|
±0.3
|
1.5
|
±10%
|
+3.00
|
0.66
|
|
20
|
23
|
±0.3
|
1.5
|
±10%
|
+3.00
|
0.81
|
|
25
|
29
|
±0.25
|
1.5
|
±10%
|
+3.00
|
1.03
|
|
32
|
35
|
±0.3
|
1.5
|
±10%
|
+3.00
|
1.26
|
|
40
|
41
|
±0.3
|
1.5
|
±10%
|
+3.00
|
1.50
|
|
50
|
53
|
±0.3
|
1.5
|
±10%
|
+3.00
|
1.944
|
|
65
|
70
|
±0.3
|
2.0
|
±10%
|
+3.00
|
3.43
|
|
80
|
85
|
±0.3
|
2.0
|
±10%
|
+3.00
|
4.16
|
|
100
|
104
|
±0.3
|
2.0
|
±10%
|
+3.00
|
5.03
|
|
125
|
129
|
±0.4
|
2.0
|
±10%
|
+10.00
|
6.36
|
|
150
|
154
|
±0.4
|
2.0
|
±10%
|
+10.00
|
7.612
|
|
200
|
204
|
±0.4
|
2.0
|
±10%
|
+10.00
|
10.116
|
|
250
|
254
|
±0.4
|
2.0
|
±10%
|
+20.00
|
12.555
|
|
300
|
304
|
±0.4
|
2.0
|
±10%
|
+20.00
|
15.045
|
|
|
Chemical Composition
|
Werkstoff-nummer
|
Norm
|
C ≤
|
Si ≤
|
Mn ≤
|
P max.
|
S ≤
|
N ≤
|
Cr
|
Mo
|
Ni
|
|
1.4301
|
DIN EN 10217-7
|
0.07
|
1.0
|
2.0
|
0.045
|
0.015
|
0.11
|
17.0 bis 19.5
|
_
|
8.0 bis 10.5
|
|
304
|
ASTM A269 ASTM A 270
|
0.08
|
0.75
|
2.0
|
0.045
|
0.030
|
0.10
|
18.0 bis 20.0
|
_
|
8.0 bis 10.5
|
|
1.4307
|
DIN EN 10217-7
|
0.03
|
1.0
|
2.0
|
0.045
|
0.015
|
0.11
|
17.5 bis 19.5
|
_
|
8.0 bis 10.0
|
|
304L
|
ASTM A269 ASTM A 270
|
0.03
|
0.75
|
2.0
|
0.045
|
0.030
|
0.10
|
18.0 bis 20.0
|
_
|
8.0 bis 12.0
|
|
1.4404
|
DIN EN 10217-7
|
0.03
|
1.0
|
2.0
|
0.045
|
0.015
|
0.11
|
16.5 bis 18.5
|
2.0 bis 2.5
|
10.0 bis 13.0
|
|
316L
|
ASTM A269 ASTM A 270
|
0.03
|
0.75
|
2.0
|
0.045
|
0.030
|
0.10
|
16.0 bis 18.0
|
2.0 bis 3.0
|
10.0 bis 14.0
|
|
|
Ống vi sinh / Ống inox vi sinh DIN11850
Sanitary Tubes or pipe DIN11850
Tubes or pipe DIN11850 Practice based sizes Dimensional Tolerances all dimensions in mm
|
Nominal diameter DN
|
Size OD
|
Tolerances, OD
|
Wall thickness
|
Tolerances on wall thickness a)
|
Tolerances on Length
|
Weight Kg/M
|
|
10
|
12
|
±0.12
|
1.5
|
±10%
|
+3.00
|
0.3924
|
|
15
|
18
|
±0.12
|
1.5
|
±10%
|
+3.00
|
0.6205
|
|
20
|
22
|
±0.12
|
1.5
|
±10%
|
+3.00
|
0.7709
|
|
25
|
28
|
±0.15
|
1.5
|
±10%
|
+3.00
|
0.9965
|
|
32
|
34
|
±0.15
|
1.5
|
±10%
|
+3.00
|
1.2222
|
|
40
|
40
|
±0.2
|
1.5
|
±10%
|
+3.00
|
1.4478
|
|
50
|
52
|
±0.2
|
1.5
|
±10%
|
+3.00
|
1.8991
|
|
|
Tubes or pipe acc. to DIN 11850 - Series 3 Dimensional Tolerances all dimensions in mm
|
Nominal diameter DN
|
Size OD
|
Tolerances, OD
|
Wall thickness
|
Tolerances on wall thickness a)
|
Tolerances on Length
|
Weight Kg/M
|
|
10
|
14
|
±0.3
|
2.0
|
±10%
|
+3.00
|
0.60
|
|
15
|
20
|
±0.3
|
2.0
|
±10%
|
+3.00
|
0.90
|
|
20
|
24
|
±0.3
|
2.0
|
±10%
|
+3.00
|
1.10
|
|
25
|
30
|
±0.3
|
2.0
|
±10%
|
+3.00
|
1.40
|
|
32
|
36
|
±0.3
|
2.0
|
±10%
|
+3.00
|
1.70
|
|
40
|
42
|
±0.3
|
2.0
|
±10%
|
+3.00
|
2.00
|
|
50
|
54
|
±0.3
|
2.0
|
±10%
|
+3.00
|
2.60
|
|
|

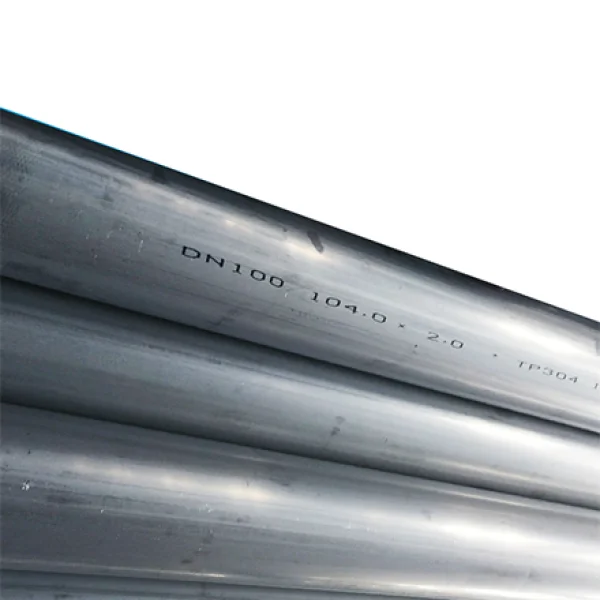

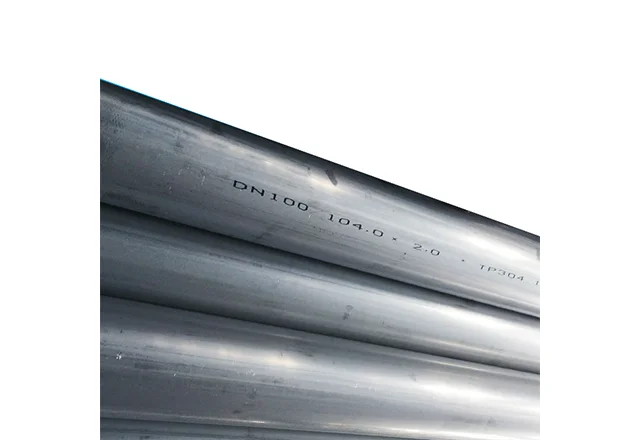

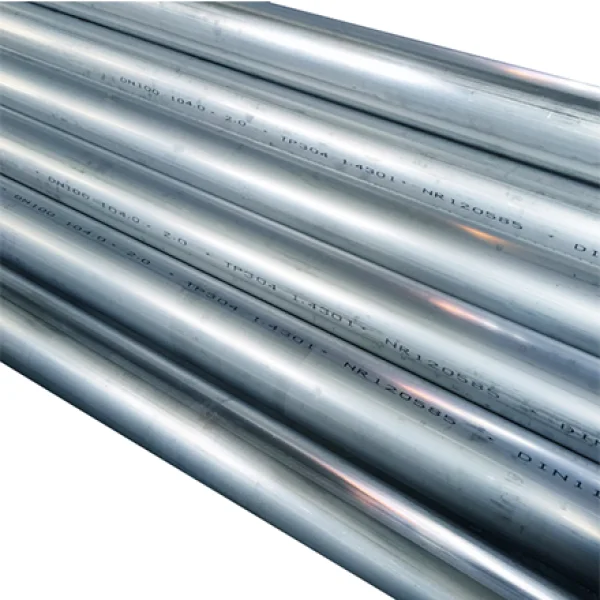

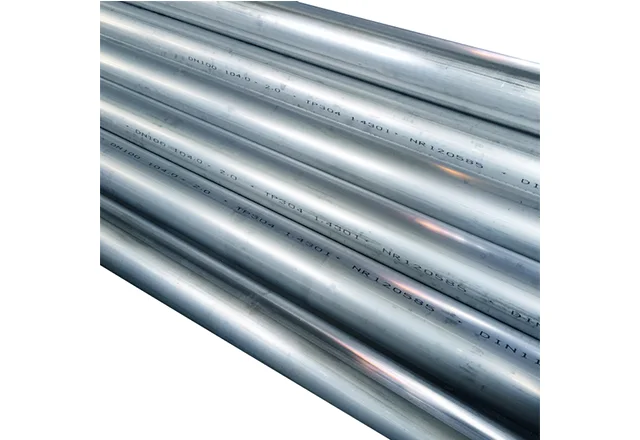

Marking
The pipes should be marked according to the provisions of the technical specifications DIN 17456 or DIN 17455 with :
● Manufacture mark
● Standard
● Surface quality mark ( see ***Section 14 )
● Dimension(OD x WT x LENGTH)
● Steel grade ( material number )
● Heat number
● Lot number
|
|
For Examples
HONTO-DIN11850-CD-52x1.5x6000mm-1.4301-HT145611-LOT Nr.141413
|
|
Ordering:
All tubes are delivered in lengths of 6 metres or 6.1 metres. Please state the following when ordering:
● Range Series
● DIN number of the technical specification ( welded pipes DIN17455 , seamless pipes DIN 17456 )
● Outside diameter and wall thickness
● Manufactured length
● Material
● Abbreviation for the surface quality (see ***Section 14 )
● Certificates
● Test category according to DIN EN 10217-7
*** Due to continuous product development, information may change without notice.
|
LƯU Ý:
Sản phẩm Ống vi sinh DIN11850 được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
