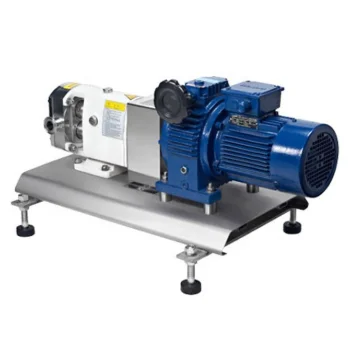

SS304 and SS316L sanitary stainless steel gear pump for syrup with gear box

0 Bình luận



SS304 and SS316L sanitary stainless steel gear pump for syrup with gear box

  • FOB Price: USD 500.00-1000.00 / set
  • Min order:1 set
  • Accept Min order: Yes
  • Supply Ability:500 set / Month
  • Country of Origin: Ningbo or ShanghaiTop of FormBottom of Form



Product Description



  • Place of Origin: CN;ZHE
  • Structure: Single-stage Pump
  • Power: Electric
  • Usage: viscous media and liquid
  • Pressure: max pressure: 12 bar
  • Application: food, beverage, ice cream, honey, sugar and brewery
  • Brand Name: DONJOY

SS304 and SS316L sanitary stainless steel pump for syrup with gear box

Product structure

Butterfly rotor (recommended)

With low particle breakage rate and small pulse, suitable for transporting material with particle, (recommended)

3-leaves rotor (optional):

With particle breakage rate and smaller pulse than butterfly rotor, suitable for transporting all kinds of metarial.

Spiral 3-leaves rotor (optional):

With low particle breakage rate, very small pulse and high cost, suitable for transporting all kinds of metarial.

Single butterfly rotor (optionall)

With low particle breakage rate for large particle, large pulse, low pressure and small volume, suitable for transporting material with large partice.

2-leaves rotor (optional):

With particle breakage rate large pulse, low pressure and small volume, suitable for transporting all of kinds material

5-leaves rotor (optional):

With low particle breakage rate very small pulse and smaller flow, suitable for transporting all kinds of material.

Technical Parameters

Max flow

90m3/h

Max pressure

15bar

Max temperature

150 °C

Max speed

750 R.P.M

Surface treatment

Ra≤0.8μm,Ra≤0.6μm, Ra≤0.4μm

Material

316L, ASME BPE 316L

Certification

3-A-02-11 NO.1759, FDA 177.2600 CE-MD/06-42 NO.705201402401-00

Lobe pump selection table (mechanical stepless speed regulation
