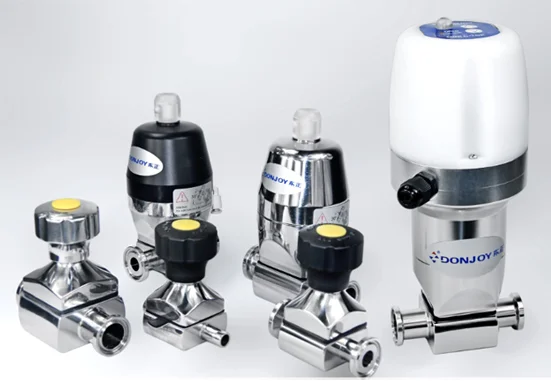

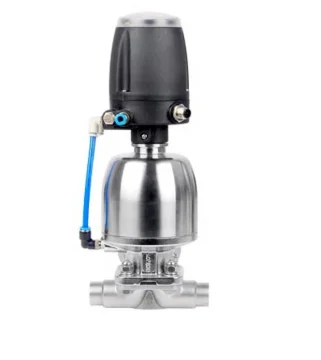

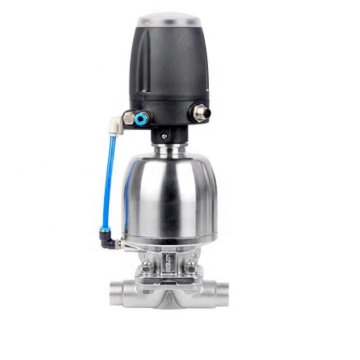

SS316L stainless steel pneumatic diaphragm valve with positioner for biological systems

0 Bình luận

Nhà sản xuất: DONJOY
Dòng sản phẩm: VAN INOX | STAINLESS STEEL VALVE
Chủng loại sản phẩm: Van màng | Diaphragm Valve
Phân loại sản phẩm:

· Model NO.: 12030902

· FOB Price: USD 735.00-1310.00 / pieces

· Min order:10 pieces

· Accept Min order: Yes

· Supply Ability:1000 pieces / Month

· Country of Origin: NINGBO OR SHANGHAI

Product Description

· Place of Origin: CN;ZHE

· Temperature of Media: Medium Temperature

· Power: Pneumatic

· Media: Water

· Structure: Diaphragm

· Brand Name: DONJOY

· Model Number:12030902

· Port Size:1"-3",DN20-DN65

SS316L stainless steel pneumatic diaphragm valve with positioner for biological systems

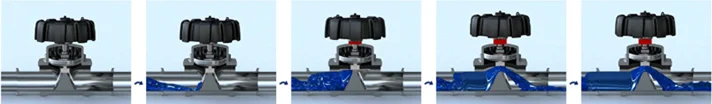

Product structure

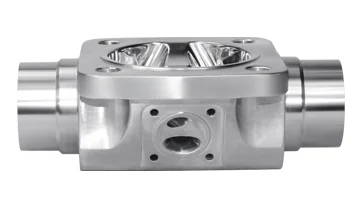

Diapharagm valve forging body

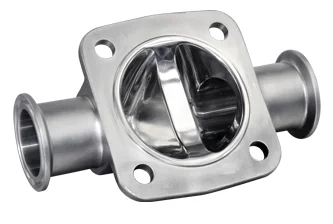

Diapharagm valve casging body

Technical Parameters

Availably size	1/4"-3/4", DN6-DN15
Max. temperature	-30 to 150 °C(depending on diaphragm) (stainless steel wheel)
Max. temperature	-30 to 130 °C (depending on diaphragm) (plastic wheel)
Max. pressure	Normally close EPDM 8 bar, PTFE 6 bar(option) Normally close EPDM 6 bar, PTFE 4.5 bar(standard) and double action EPDM 8 bar, PTFE 6 bar
Actuators	Assemble different actuators can meet the higher pressure rating
Pneumatic actuators suitable for body	Straight, tee, multichannel body, welding combination valve, tank bottom valve
Valve body	316L / BPE 316L
Availably connection	Clamp / weld / thread / flange
Seal Material	PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Availably standard	3A/BPE/DIN/ISO/IDF
Control	Smart valve positioner / C-TOP control / position sensor
Operated	Manual, Pneumatic
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

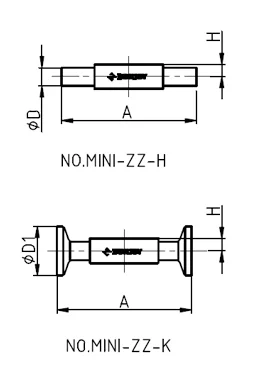

Dimensions

DIN32676/DIN11850-1/2

SIZE	D	D1	A	H
DN6	8	25.4/34	68.6	5.5
DN8	10	25.4/34	68.6	7
DN10	12/13	25.4/34	68.6	8.5
DN15	18/19	25.4/34	85	12

ASME BPE/ASTM 269

SIZE	D	D1	A	H
1/4”	6.35	25.4	68.6	5.5
3/8”	9.5	25.4	68.6	7
1/2”	12.7	25.4	68.6	8.5
¾”	19	25.4/50.5	85	12

Lưu ý

Sản phẩm SS316L stainless steel pneumatic diaphragm valve with positioner for biological systems được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
