Stainless steel mini pharmaceutical multiport diaphragm valve with four ports and three control valves 4

Name: Stainless steel mini pharmaceutical multiport diaphragm valve with four ports and three control valves 4
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

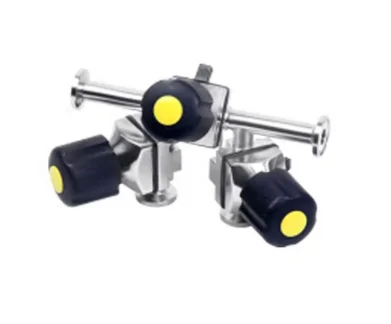

stainless-steel-mini-pharmaceutical-multiport-1

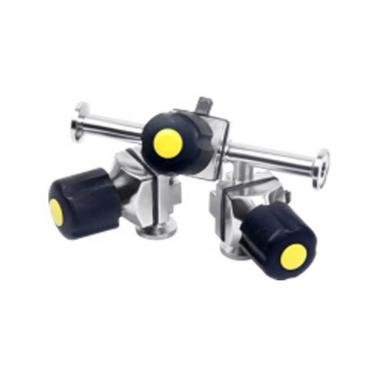

Stainless steel mini pharmaceutical multiport diaphragm valve with four ports and three control valves

· Model NO.: Mini

· FOB Price: USD 50.00-100.00 / pieces

· Min order:10 pieces

· Accept Min order: Yes

· Supply Ability: 1000 pieces / Month

· Country of Origin: Ningbo/Shanghai

Product Description

· Place of Origin: CN; ZHE

· Temperature of Media: Normal Temperature

· Power: Pneumatic

· Structure: Diaphragm

· Media: Wine, milk, edible oil

· Brand Name: Donjoy

· Model Number: Mini

· Port Size:DN6- DN15 1/4"-3/4"

Stainless steel mini pharmaceutical multiport diaphragm valve with four ports and three control valves

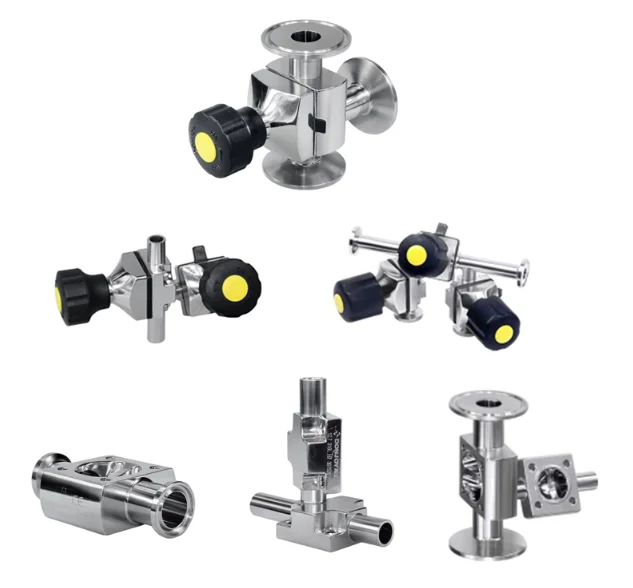

Product structure

stainless-steel-mini-pharmaceutical-multiport-diaphragm-2

Technical Parameters

Availably size	1/4"-3/4", DN6-DN15
Max. temperature	-30 to 150 °C(depending on diaphragm) (stainless steel wheel)
Max. pressure	10bar
Valve body	316L / BPE 316L
Manual applies to body	T port / L port / direct-way / multiport
Availably connection	Clamp / weld / thread / flange
Seal Material	PTFE + EPDM (double layer) / EPDM / SILICON / FPM (VITON)
Availably standard	3A/BPE/DIN/ISO/IDF
Control	Smart valve positioner / C-TOP control / position sensor
Operated	Manual, Pneumatic
Certificate	3A/54-02 (1580), PED/97/23/EC, FDA.177.2600

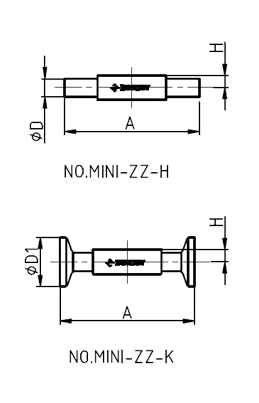

Dimensions

stainless-steel-mini-pharmaceutical-multiport-diaphragm-valve

DIN32676/DIN11850-1/2

SIZE	D	D1	A	H
DN6	8	25.4/34	68.6	5.5
DN8	10	25.4/34	68.6	7
DN10	12/13	25.4/34	68.6	8.5
DN15	18/19	25.4/34	85	12

ASME BPE/ASTM 269

SIZE	D	D1	A	H
¼”	6.35	25.4	68.6	5.5
3/8”	9.5	25.4	68.6	7
½”	12.7	25.4	68.6	8.5
¾”	19	25.4/50.5	85	12

Lưu ý

Sản phẩm Stainless steel mini pharmaceutical multiport diaphragm valve with four ports and three control valves được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
