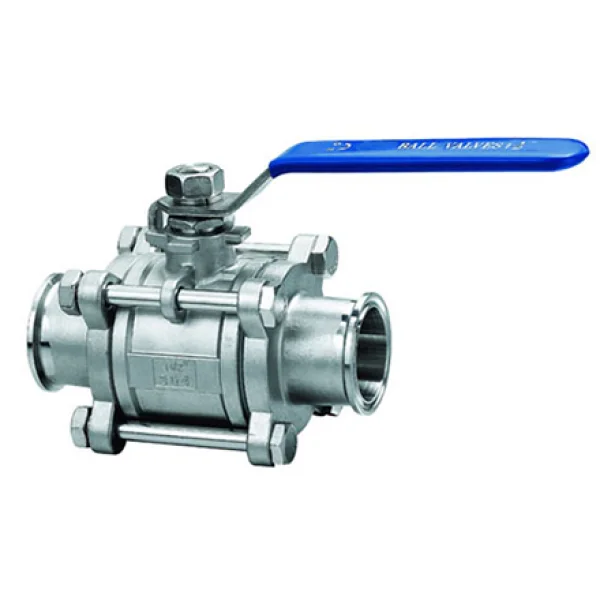

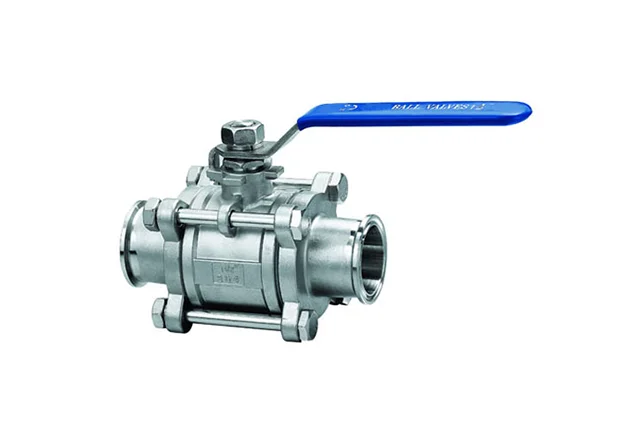

Van bi ba mảnh nối clamp

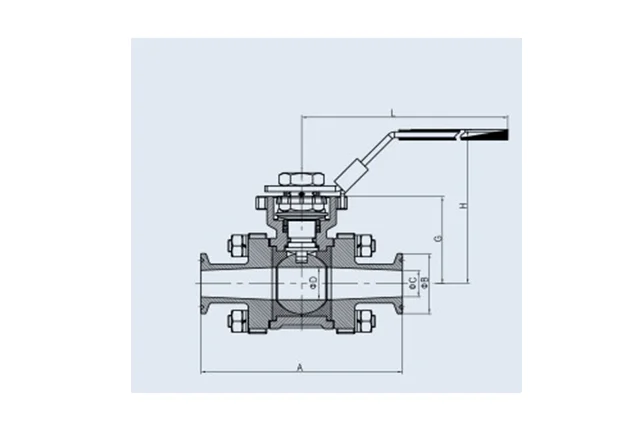

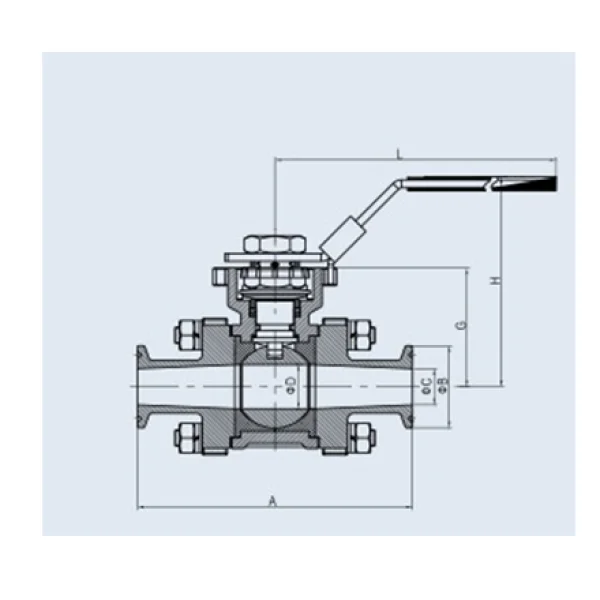

DN

Size

A

B

C

G

H

H2

L

L2

ISO5211

S

N.m

DN15

1/2"

93

34

15

40.3

71

129.3

130

140

F03 PCD36 6X4

F04 PCD42 6X4

9

5.5

DN20

3/4"

103.5

50.5

19

42.3

73

131.3

130

140

F03 PCD36 6X4

F04 PCD42 6X4

9

5.5

DN25

1"

110

50.5

25

53.4

91.6

142.4

165

140

F04 PCD42 6X4

F05 PCD50 7X4

11

11.8

DN32

1 1/4"

120

50.5

31

58.4

96.6

147.4

165

140

F04 PCD42 6X4

F05 PCD50 7X4

11

14.2

DN40

1 1/2"

129

50.5

37

70.8

104

175.8

190

159

F05 PCD50 7X4

F07 PCD70 9X4

14

19.0

DN50

2"

145

64

49

77.8

110

182.8

190

159

F05 PCD50 7X4

F07 PCD70 9X4

14

23.7

3A

Size

1/2"

3/4

1"

1 1/4"

1 1/2"

2"

B

25.2

25.2

50.5

50.5

50.5

50.5

C

9.4

15.75

22.1

28.5

34.8

47.5

SMS/ISO

Size

12.7

19

25

32

38

51

B

25.2

25.2

50.5

50.5

50.5

50.5

C

9.7

16.05

22.4

28.8

35.1

47.8
