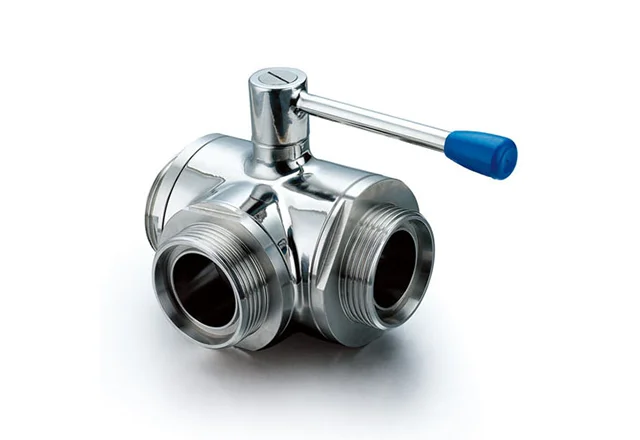

Van bi ba mảnh nối ren ngoài

DIN

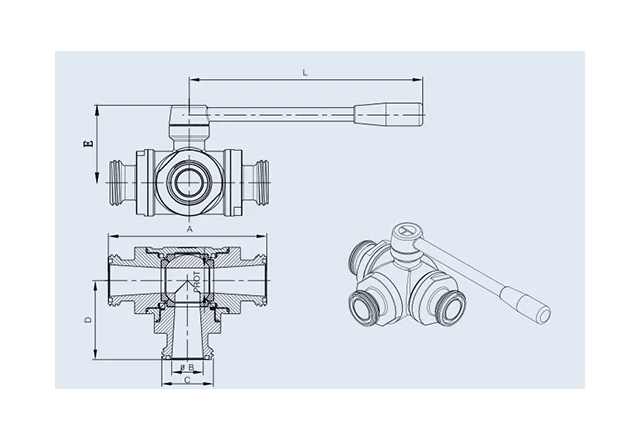

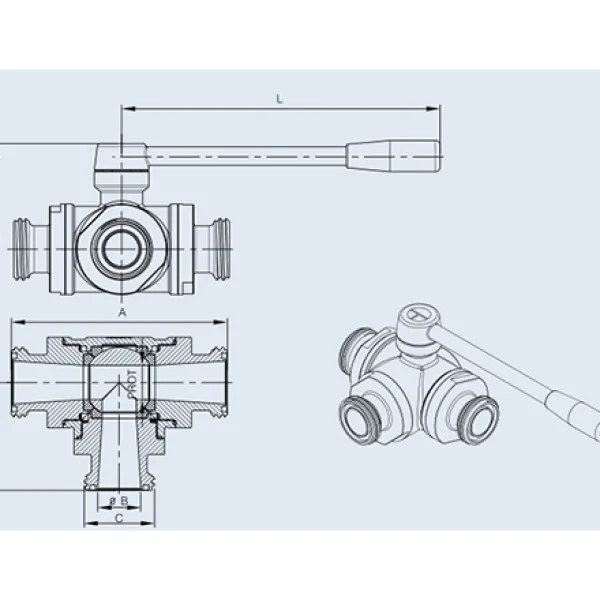

Size

 A

B

C

PORT

D

E

L

DN20

143.6

19

RD44X1/6

15

71.8

55

160

DN25

153.6

25

RD52X1/6

20

76.8

65

200

DN32

167.6

31

RD58X1/6

25

83.8

71.5

200

DN40

175.6

37

RD65X1/6

32

87.8

78

200

DN50

200.6

49

RD78X1/6

38

100.3

93.6

220

3A

Size

A

B

C

PORT

D

E

L

1“

158.9

22.1

37.1X1/8 TACME

20

79.5

65

200

1 1/2"

180.9

34.8

50.6X1/8 TACME

32

90.5

78

200

2"

207.5

47.5

64.1X1/8 TACME

38

103.8

93.6

220

SMS

Size

A

B

C

PORT

D

E

L

25

152.3

22.4

RD40X1/6

20

76.2

65

200

32

168.3

28.8

RD48X1/6

25

84.2

71.5

200

38

184.3

35.1

RD60X1/6

32

92.2

78

200

51

209.3

47.8

RD70X1/6

38

104.7

93.6

220

ISO

Size

A

B

C

PORT

D

E

L

25

165.3

22.4

37.1X1/8 TACME

20

82.7

65

200

38

187.3

35.1

50.6X1/8 TACME

32

93.7

78

200

51

212.3

47.8

64.1X1/8 TACME

38

106.2

93.6

220
