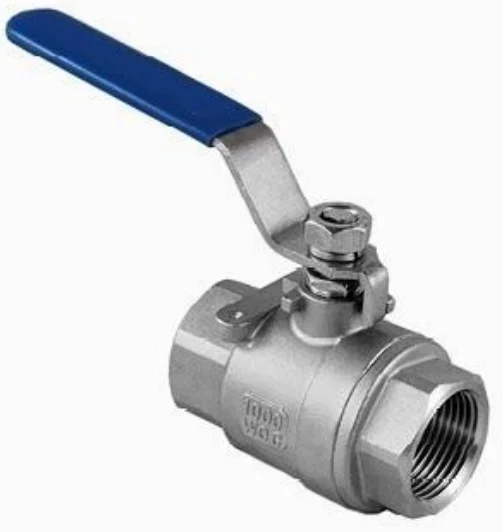

Industrial Valve - 2PC BALL VALVE

1000PSI/PN63

DIMENSION

L*= DIN3202-M3

 Features:

·   Full Port

·   Locking Device Handle Upon Request

·   Blow-Out Proof Stem

·   Balance Hole in Ball Slot

·   Precision Casting

·   Design Standard: ASME B16.34

·   Testing Standard: API 598/SP-110

·   Light Type & DIN3202-M3 Available

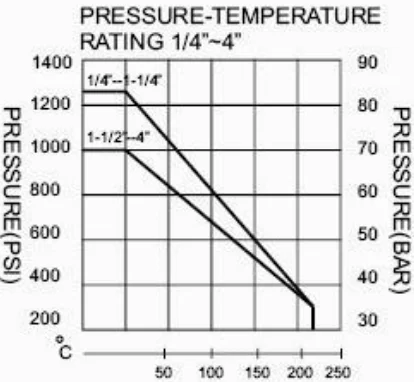

PRESSURE TESTING

STANDARD PRESSURE

1000PSI

SHELL PRESSURE TESTING

10.4Mpa

WATER SEAL TESTING

7.6Mpa

AIR SEAL TESTING

0.4~0.7Mpa

Size

L*

L

Φd

W

H

TORQUE N.M

CV

1/4"

50

55

10.5

100

50

4

2

3/8"

60

55

12

100

50

4

2

1/2"

75

62

15

130

60

5

3.4

3/4"

80

72

20

130

64

7

7.1

1"

90

84

25

165

71

8

12.4

1-1/4"

110

97

32

165

78

15

20.3

1-1/2"

120

104

38

190

86

22

28.5

2"

140

120

49

190

95

25

47.5

2-1/2"

185

150

62

215

130

50

76

3"

205

164

76

250

148

85

108.4

4"

240

200

96

280

180

115

198

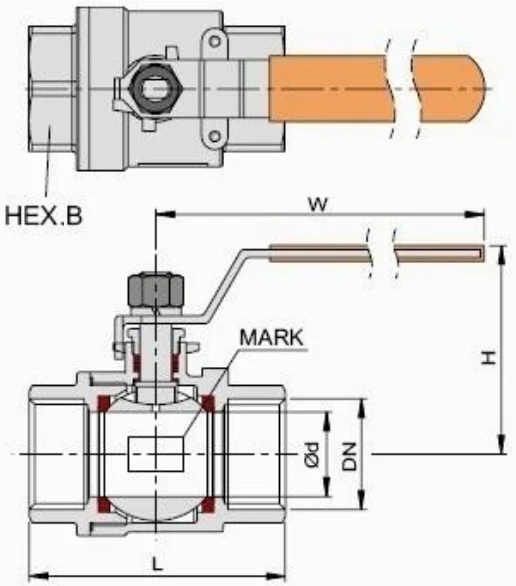

DRAWING

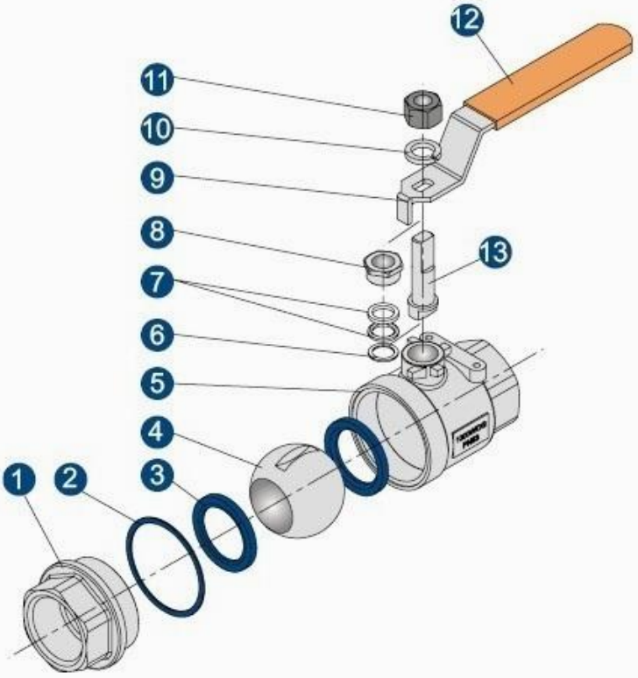

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

CAP

CF8M

CF8

2

CAP GASKET

PTFE

3

BALL SEAT

PTFE

R-PTFE

4

BALL

SUS316

SUS304

5

BODY

CF8M

CF8

6

THRUST WASHER

PTFE

PEEK

7

STEM PACKING

PTFE

8

STOP NUT

SUS304

9

HANDLE

SUS304

10

SPRING WASHER

SUS304

11

NUT

SUS304

12

HANDLE COVER

PLASTIC

13

STEM

SUS316

SUS304
