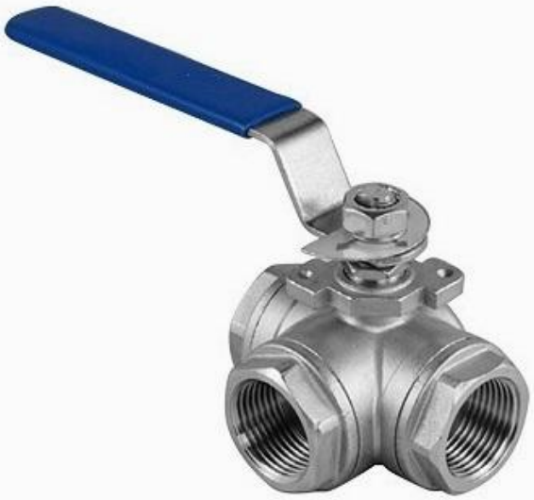

  Industrial Valve - 3 WAY BALL VALVE

1000PSI/PN63

DIMENSION

 Features:

·   Reduce Port

·   Locking Device Handle Upon Request

·   Blow-Out Proof Stem

·   Spring Ball Seat for Self-Adjust

·   Design Standard: ASME B16.34

·   ISO5211 Top Flange

·   L-Port/T-Port/X-Port

·   Testing Standard: API 598

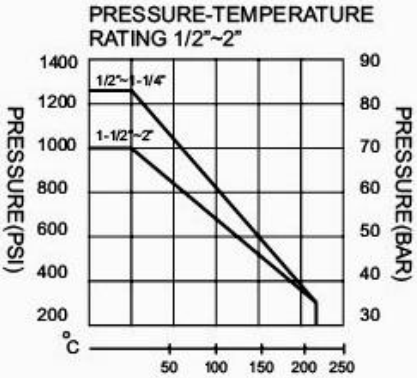

PRESSURE TESTING

STANDARD PRESSURE

1000PSI

SHELL PRESSURE TESTING

10.4Mpa

WATER SEAL TESTING

7.6Mpa

AIR SEAL TESTING

0.4~0.7Mpa

Size

L

Φd

W

H

H1

ΦR

C

TORQUE N.M

CV

1/2"

73

12

110

57

29

36

M6

5

1.3

3/4"

80

15

120

61

32

42

M6

7

2

1"

88

18

145

67

36.5

42

M6

8

3.4

1-1/4"

125

25

145

81

44

42

M6

15

7.1

1-1/2"

136

32

160

97

52.5

50

M6

22

12.4

2"

152

38

170

108

58.5

50

M6

25

20.3

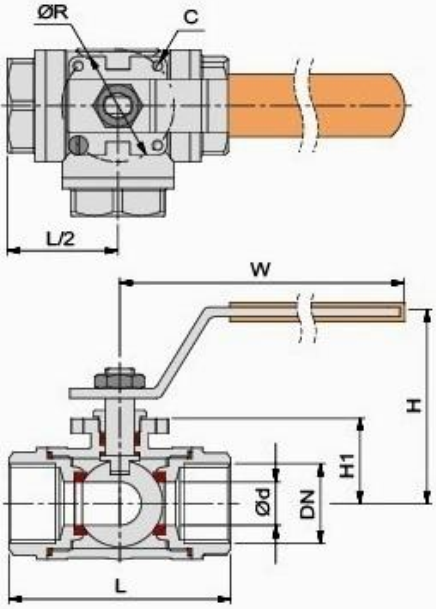

DRAWING

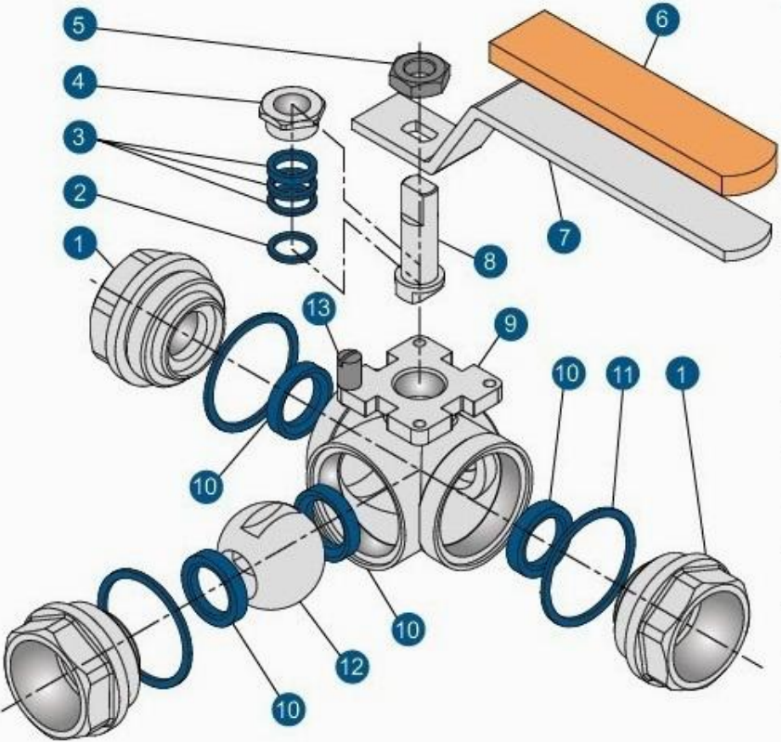

MATERIAL LIST

ITEM

PART NAME

MATERIAL

1

CAP

CF8M

CF8

2

THRUST WASHER

PTFE

3

STEM SEALING

PTFE

4

STOP NUT

SUS304

5

STEM NUT

SUS304

6

HANDLE COVER

PLASTIC

7

HANDLE

SUS304

8

STEM

SUS316

SUS304

9

BODY

CF8M

CF8

10

BALL SEAT

PTFE

R-PTFE

11

GASKET

PTFE

12

BALL

SUS316

SUS304

13

LOCKING PIN

SUS304
