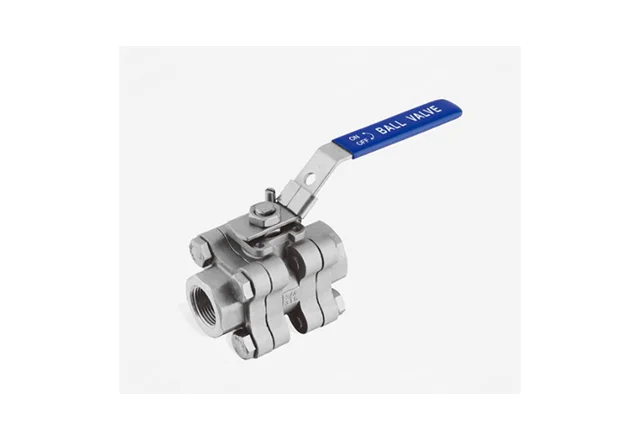

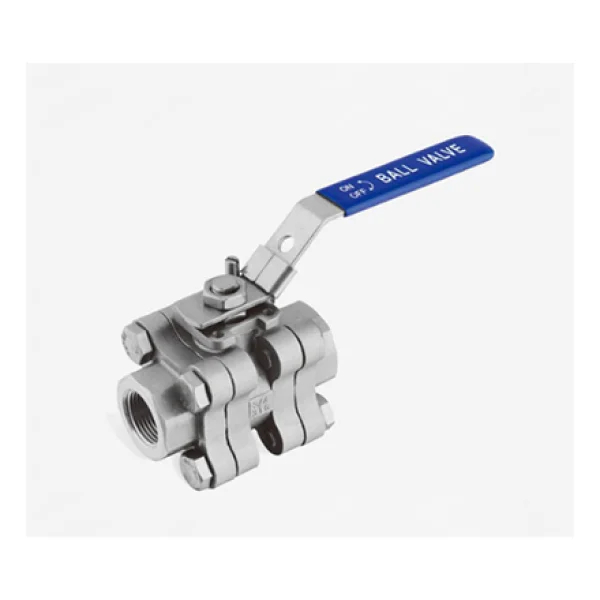

3PC 3000PSI Reduced Ball Valve
Material : 304, 316, 1.4308, 1.4408, CF8, CF8M
Model : 3PC
Connection : Thread
Medium : Water, Oil, Gas
|
FEATURES
|
3000 PSI
|
Reduce Port
|
Investment Casting
|
Blow-out-Proof Stem
|
Anti-Static device (option)
|
PED97/23/PE(CE0036) Approved
|
Casting Approved AD2000-W0
|
Inspection Testing:API598,EN12266
|
Anti-Static device (option)
|
Thread: ASME B1.20.1 BS21.DIN2999/259,ISO228-1,JIS B 0203,ISO7/1
|
|
MATERIALS LIST
|
ITEM
|
DESIGNATION
|
QTY
|
MATERIAL
|
1
|
BODY
|
1
|
CF8/CF8M
|
2
|
END CAP
|
2
|
CF8/CF8M
|
3
|
BALL SEAT
|
2
|
RPTFE
|
4
|
BALL
|
1
|
CF8/CF8M
|
5
|
O-RING
|
2
|
VITON
|
6
|
JOINT GASKET
|
2
|
PTFE
|
7
|
THRUST WASHER
|
2
|
PTFE
|
8
|
O-RING
|
2
|
VITON
|
9
|
STEM PACKING
|
2
|
PTFE
|
10
|
BELLEVILLE WASHER
|
2
|
301
|
11
|
STEM NUT
|
2
|
304
|
12
|
HANDLE
|
1
|
304
|
13
|
STEM
|
1
|
304/316
|
14
|
HANDLE SLEEVE
|
1
|
PVC
|
15
|
STOP PIN
|
1
|
304
|
16
|
RING
|
1
|
304
|
17
|
BOLT
|
4
|
304
|
|

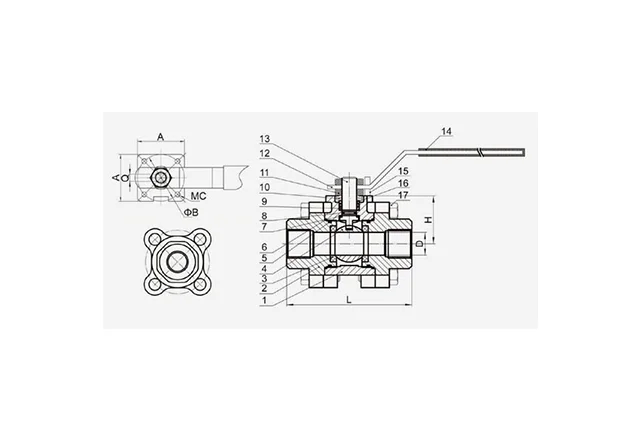

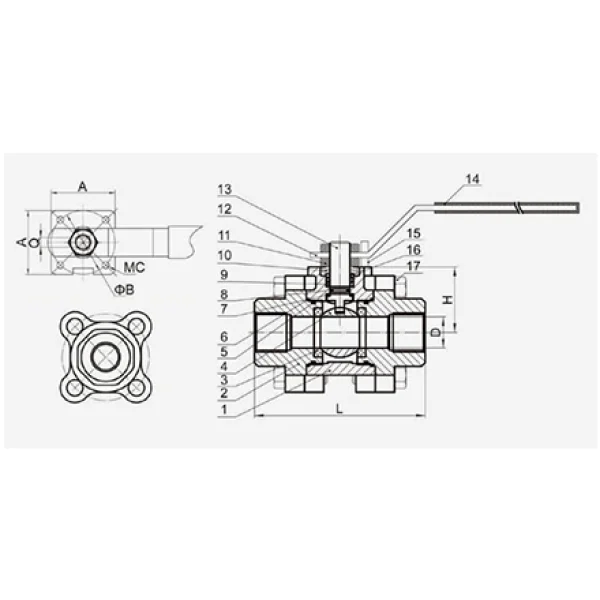

DIMENSIONS (mm)
|
SIZE \ ITEM
|
D
|
L
|
H
|
W
|
A
|
B
|
MC
|
Q
|
1/4"
|
11
|
92.6
|
31.5
|
140
|
36
|
36
|
6
|
9
|
3/8"
|
12.5
|
92.6
|
31.5
|
140
|
36
|
36
|
6
|
9
|
1/2"
|
12.5
|
92.6
|
31.5
|
140
|
36
|
36
|
6
|
9
|
3/4"
|
15
|
89.6
|
37
|
140
|
36
|
36
|
6
|
9
|
1"
|
20
|
112.8
|
46.5
|
160
|
42
|
42
|
6
|
11
|
1.1/4"
|
25
|
125
|
53
|
160
|
42
|
42
|
6
|
11
|
1.1/2"
|
32
|
165
|
65
|
185
|
70
|
50
|
8
|
14
|
2"
|
38
|
165
|
82
|
185
|
70
|
50
|
8
|
14
|
|
