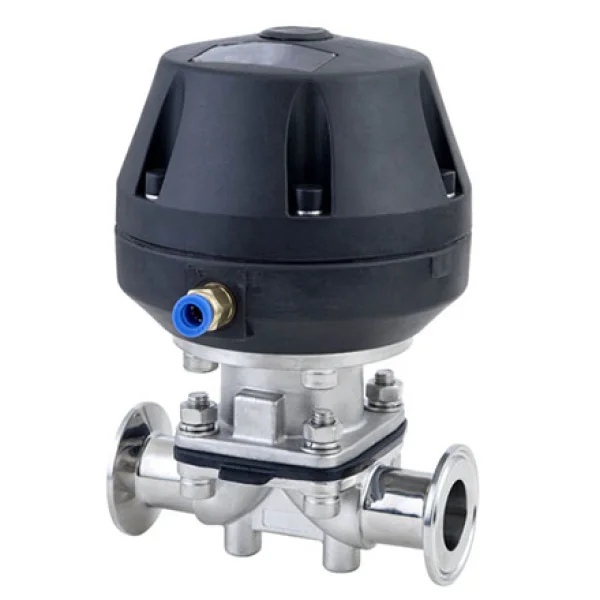

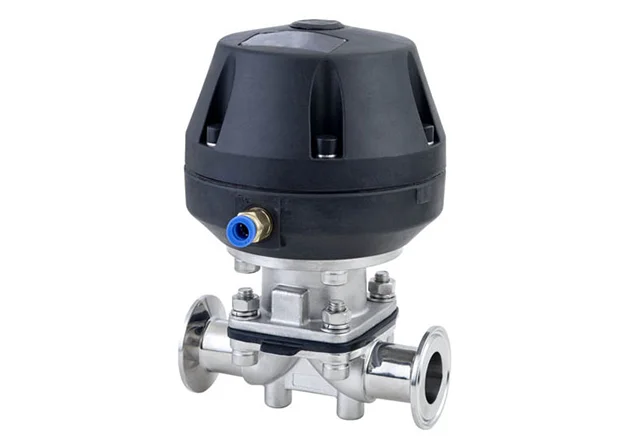

Van màng nối clamp điều khiển khí nén

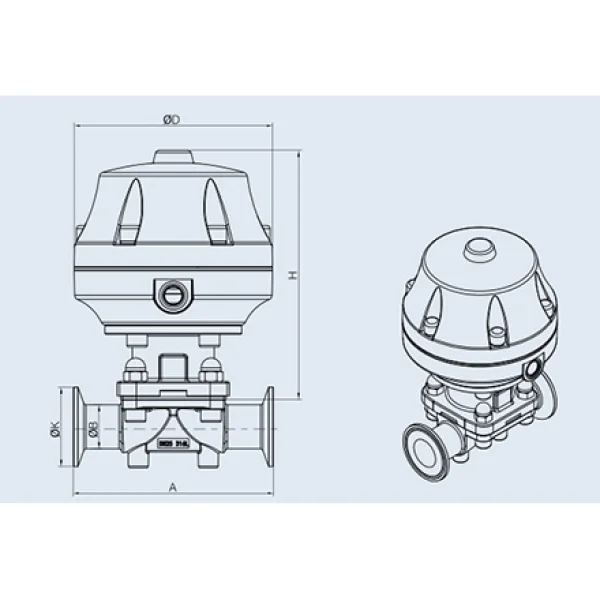

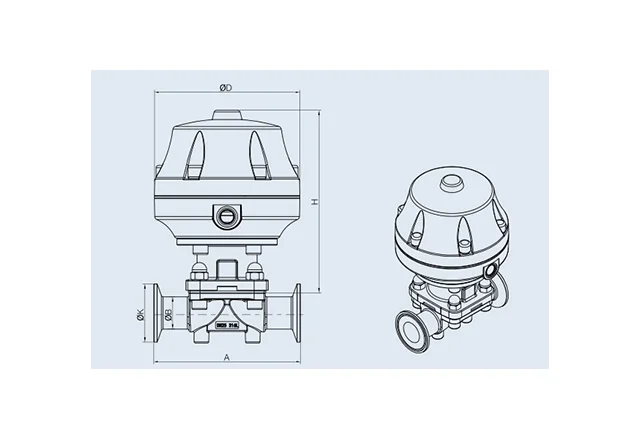

DN

Size

A

B

K

D

H

DN15

3/4"

108

18

34

90

125

DN20

108

22

50.5

90

125

DN25

1"

127

28

50.5

126

160

DN32

1 1/4"

146

34

50.5

150

190

DN40

1 1/2"

160

40

50.5

150

190

DN50

2"

190

52

64

150

190

3A

Size

3/4"

1"

1 1/4"

11/2"

2"

B

19.05

25.4

31.8

38.1

50.8

K

25.2

50.5

50.5

50.5

64

SMS/ISO

Size

19

25

32

38

51

B

19.05

25.4

1.5

38.1

50.8

K

25.2

50.5

50.5

50.8

64
