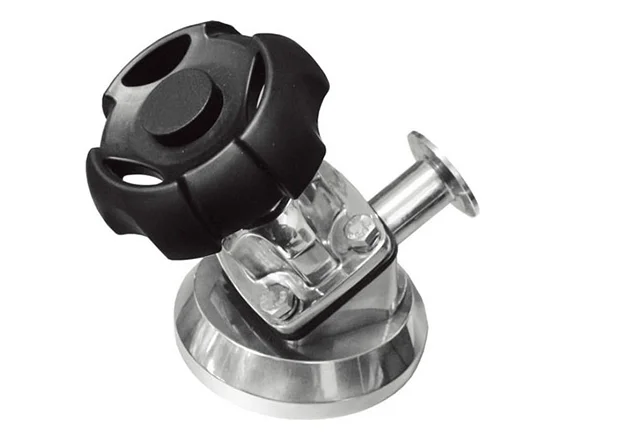

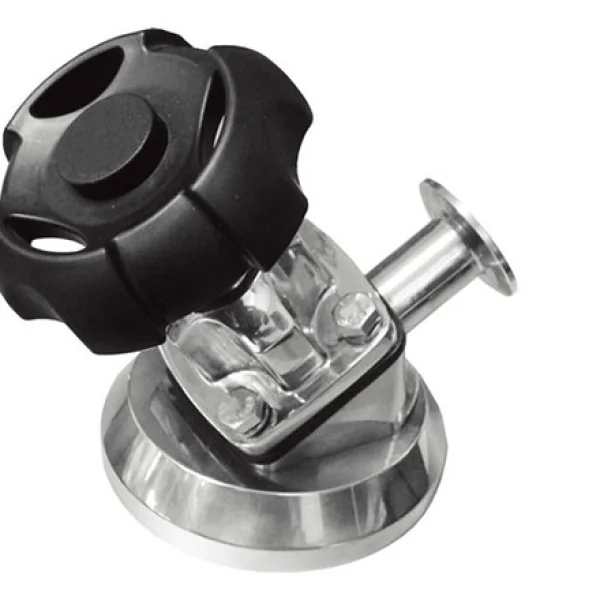

Van màng xả đáy bồn tank

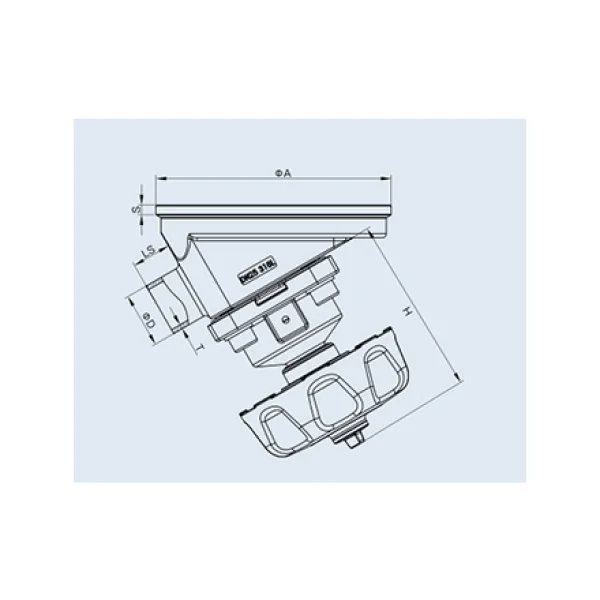

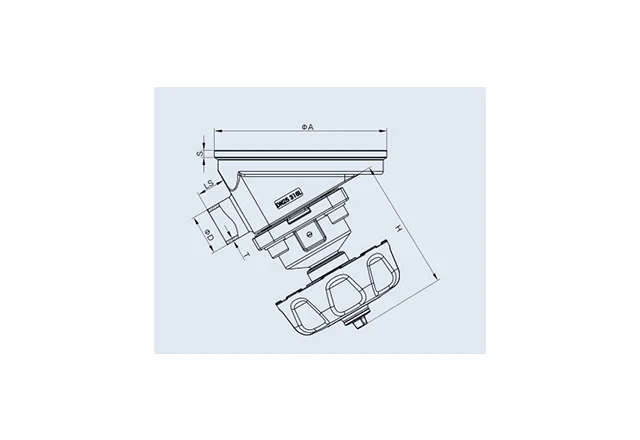

DN

Size

A

S

LS

H

D

T

DN10

1/2"

90

6

16

76.5/85.5

12

1.5

DN15

3/4"

90

6

16

76.5/85.5

18

1.5

DN20

90

6

16

93/103.5

22

1.5

DN25

1"

120

6

20

93/103.5

28

1.5

DN32

1 1/4"

160

6

20

107/124.5

34

1.5

DN40

1 1/2"

160

6

20

107/124.5

40

1.5

DN50

2"

200

6

30

129/151.5

52

1.5

3A

Size

1/2"

3/4"

1"

1 1/4"

1 1/2"

2"

D

12.7

19.05

25.4

31.8

38.1

50.8

T

1.65

1.65

1.65

1.65

1.65

1.65

SMS/ISO

Size

12.7

19

25

32

38

51

D

12.7

19.05

25.4

31.8

38.1

50.8

T

1.5

1.5

1.5

1.5

1.5

1.5
