STAINLESS STEEL BUTT-WELD SEAMLESS FITTINGS
PHỤ KIỆN ĐÚC NỐI HÀN ĐƯỜNG ỐNG ĐÚC INOX CÔNG NGHIỆP
|
|

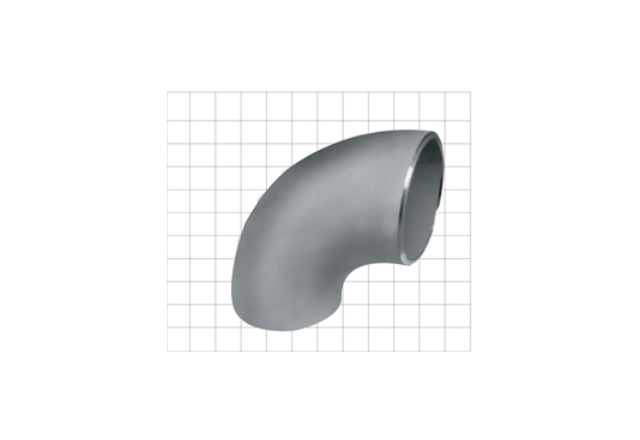

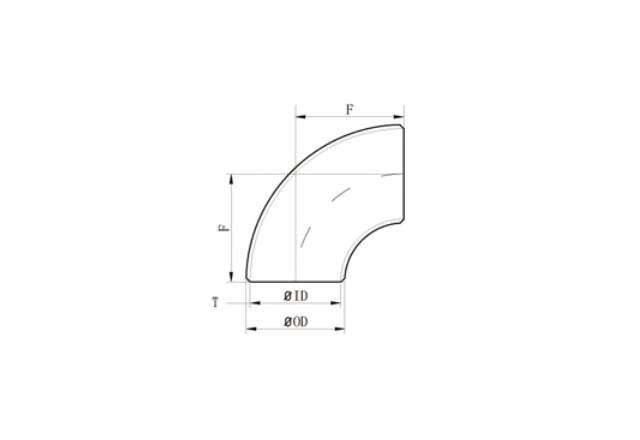

900 LONG RADIUS ELBOWS
CÚT ĐÚC 900 LOẠI DÀI
|
90E(L) OR 90LR
|
|
|
|
GB
|
mm
|
|
NPS
|
|
SCH 5S
|
SCH 10S
|
SCH 40S
|
F
|
|
A
|
B
|
I OD
|
II OD
|
T
|
I ID
|
II ID
|
T
|
I ID
|
II ID
|
T
|
I ID
|
II ID
|
|
15A
|
1/2”
|
21.3
|
18.00
|
1.65
|
18.03
|
14.70
|
2.11
|
16.43
|
17.08
|
2.77
|
15.80
|
12.46
|
38
|
|
20A
|
3/4”
|
26.9
|
25.00
|
1.65
|
23.37
|
21.70
|
2.11
|
22.45
|
22.68
|
2.87
|
20.93
|
19.28
|
38
|
|
25A
|
1”
|
33.7
|
32.00
|
1.65
|
30.10
|
28.70
|
2.77
|
27.86
|
28.16
|
3.38
|
26.64
|
25.24
|
38
|
|
32A
|
1.1/4”
|
42.4
|
38.00
|
1.65
|
38.86
|
34.70
|
2.77
|
36.63
|
36.86
|
3.56
|
35.05
|
30.88
|
48
|
|
40A
|
1.1/2”
|
48.3
|
45.00
|
1.65
|
44.96
|
41.70
|
2.77
|
42.72
|
42.76
|
3.68
|
40.89
|
37.64
|
57
|
|
50A
|
2”
|
60.3
|
57.00
|
1.65
|
57.02
|
53.70
|
2.77
|
54.79
|
54.76
|
3.91
|
52.50
|
49.18
|
76
|
|
65A
|
2.1/2”
|
73.0
|
76.00
|
2.11
|
68.81
|
71.78
|
3.05
|
66.93
|
66.90
|
5.16
|
62.71
|
65.68
|
95
|
|
80A
|
3”
|
88.9
|
89.00
|
2.11
|
84.68
|
84.78
|
3.05
|
82.80
|
82.80
|
5.49
|
77.93
|
78.02
|
114
|
|
90A
|
3.1/2”
|
101.6
|
…..
|
2.11
|
97.38
|
…..
|
3.05
|
95.50
|
95.50
|
5.74
|
90.12
|
…..
|
133
|
|
100A
|
4”
|
114.3
|
108.00
|
2.11
|
112.19
|
103.78
|
3.05
|
108.20
|
108.20
|
6.02
|
102.26
|
95.96
|
152
|
|
125A
|
5”
|
141.3
|
133.00
|
2.77
|
135.76
|
127.46
|
3.40
|
139.49
|
134.50
|
6.55
|
128.19
|
119.90
|
190
|
|
150A
|
6”
|
168.3
|
159.00
|
2.77
|
162.74
|
153.46
|
3.40
|
161.47
|
161.50
|
7.11
|
154.05
|
144.78
|
229
|
|
200A
|
8”
|
219.1
|
219.00
|
2.77
|
213.54
|
213.46
|
3.76
|
211.56
|
211.58
|
8.18
|
202.72
|
202.64
|
305
|
|
250A
|
10”
|
273.0
|
273.00
|
3.40
|
266.24
|
266.20
|
4.19
|
264.67
|
264.62
|
9.27
|
254.51
|
254.46
|
381
|
|
300A
|
12”
|
323.9
|
325.00
|
3.96
|
315.93
|
317.08
|
4.57
|
314.71
|
314.76
|
9.52
|
304.80
|
305.96
|
457
|
|
350A
|
14”
|
355.6
|
377.00
|
3.96
|
347.68
|
369.09
|
4.78
|
346.05
|
346.04
|
…..
|
…..
|
…..
|
533
|
|
400A
|
16”
|
406.4
|
426.00
|
4.19
|
398.02
|
417.62
|
4.78
|
396.85
|
396.84
|
…..
|
…..
|
…..
|
610
|
|
450A
|
18”
|
457.0
|
480.00
|
4.19
|
448.82
|
471.62
|
4.78
|
447.65
|
474.44
|
…..
|
…..
|
…..
|
686
|
|
500A
|
20”
|
508.0
|
530.00
|
4.78
|
498.45
|
520.44
|
5.54
|
496.93
|
496.92
|
…..
|
…..
|
…..
|
762
|
|
550A
|
22”
|
559.0
|
…..
|
4.78
|
549.25
|
…..
|
5.54
|
547.73
|
547.92
|
…..
|
…..
|
…..
|
838
|
|
600A
|
24”
|
610.0
|
630.00
|
5.54
|
598.53
|
618.92
|
6.35
|
596.90
|
597.30
|
…..
|
…..
|
…..
|
914
|
|
|
|
|
|
ASME
|
mm
|
|
NPS
|
OD
|
SCH 5S
|
SCH 10S
|
SCH 40S
|
F
|
|
A
|
B
|
T
|
ID
|
T
|
ID
|
T
|
ID
|
|
15A
|
1/2”
|
21.3
|
1.65
|
18.03
|
2.11
|
16.43
|
2.77
|
15.80
|
38
|
|
20A
|
3/4”
|
26.7
|
1.65
|
23.37
|
2.11
|
22.45
|
2.87
|
20.93
|
38
|
|
25A
|
1”
|
33.4
|
1.65
|
30.10
|
2.77
|
27.86
|
3.38
|
26.64
|
38
|
|
32A
|
1.1/4”
|
42.3
|
1.65
|
38.86
|
2.77
|
36.63
|
3.56
|
35.05
|
48
|
|
40A
|
1.1/2”
|
48.3
|
1.65
|
44.96
|
2.77
|
42.72
|
3.68
|
40.89
|
57
|
|
50A
|
2”
|
60.3
|
1.65
|
57.02
|
2.77
|
54.79
|
3.91
|
52.50
|
76
|
|
65A
|
2.1/2”
|
73.0
|
2.11
|
68.81
|
3.05
|
66.93
|
5.16
|
62.71
|
95
|
|
80A
|
3”
|
88.9
|
2.11
|
84.68
|
3.05
|
82.80
|
5.49
|
77.93
|
114
|
|
90A
|
3.1/2”
|
101.6
|
2.11
|
97.38
|
3.05
|
95.50
|
5.74
|
90.12
|
133
|
|
100A
|
4”
|
114.3
|
2.11
|
112.19
|
3.05
|
108.20
|
6.02
|
102.26
|
152
|
|
125A
|
5”
|
141.3
|
2.77
|
135.76
|
3.40
|
139.49
|
6.55
|
128.19
|
190
|
|
150A
|
6”
|
168.3
|
2.77
|
162.74
|
3.40
|
161.47
|
7.11
|
154.05
|
229
|
|
200A
|
8”
|
219.1
|
2.77
|
213.54
|
3.76
|
211.56
|
8.18
|
202.72
|
305
|
|
250A
|
10”
|
273.0
|
3.40
|
266.24
|
4.19
|
264.67
|
9.27
|
254.51
|
381
|
|
300A
|
12”
|
323.8
|
3.96
|
315.93
|
4.57
|
314.71
|
9.52
|
304.80
|
457
|
|
350A
|
14”
|
355.6
|
3.96
|
347.68
|
4.78
|
346.05
|
…..
|
…..
|
533
|
|
400A
|
16”
|
406.4
|
4.19
|
398.02
|
4.78
|
396.85
|
…..
|
…..
|
610
|
|
450A
|
18”
|
457.0
|
4.19
|
448.82
|
4.78
|
447.65
|
…..
|
…..
|
686
|
|
500A
|
20”
|
508.0
|
4.78
|
498.45
|
5.54
|
496.93
|
…..
|
…..
|
762
|
|
550A
|
22”
|
559.0
|
4.78
|
549.25
|
5.54
|
547.73
|
…..
|
…..
|
838
|
|
600A
|
24”
|
610.0
|
5.54
|
598.53
|
6.35
|
596.90
|
…..
|
…..
|
914
|
|
|
JIS
|
mm
|
|
NPS
|
OD
|
SCH 5S
|
SCH 10S
|
SCH 40S
|
F
|
|
A
|
B
|
T
|
ID
|
T
|
ID
|
T
|
ID
|
|
15A
|
1/2”
|
21.7
|
1.65
|
18.4
|
2.1
|
17.5
|
2.8
|
16.1
|
38.1
|
|
20A
|
3/4”
|
27.2
|
1.65
|
23.9
|
2.1
|
23.0
|
2.9
|
21.4
|
38.1
|
|
25A
|
1”
|
34.0
|
1.65
|
30.7
|
2.8
|
28.4
|
3.4
|
27.2
|
38.1
|
|
32A
|
1.1/4”
|
42.7
|
1.65
|
39.4
|
2.8
|
37.1
|
3.6
|
35.5
|
47.6
|
|
40A
|
1.1/2”
|
48.6
|
1.65
|
45.3
|
2.8
|
43.0
|
3.7
|
41.2
|
57.2
|
|
50A
|
2”
|
60.5
|
1.65
|
57.2
|
2.8
|
54.9
|
3.9
|
52.7
|
76.2
|
|
65A
|
2.1/2”
|
76.3
|
2.1
|
72.1
|
3.0
|
70.3
|
5.2
|
65.9
|
95.3
|
|
80A
|
3”
|
89.1
|
2.1
|
84.9
|
3.0
|
83.1
|
5.5
|
78.1
|
114.3
|
|
90A
|
3.1/2”
|
101.6
|
2.1
|
97.4
|
3.0
|
95.6
|
5.7
|
90.2
|
133.4
|
|
100A
|
4”
|
114.3
|
2.1
|
110.1
|
3.0
|
108.3
|
6.0
|
102.3
|
152.4
|
|
125A
|
5”
|
139.8
|
2.8
|
134.2
|
3.4
|
133.0
|
6.6
|
126.6
|
190.5
|
|
150A
|
6”
|
165.2
|
2.8
|
159.6
|
3.4
|
158.4
|
7.1
|
151
|
228.6
|
|
200A
|
8”
|
216.3
|
2.8
|
210.7
|
4.0
|
208.3
|
8.2
|
199.9
|
304.8
|
|
250A
|
10”
|
267.4
|
3.4
|
260.6
|
4.0
|
259.4
|
9.3
|
248.8
|
381
|
|
300A
|
12”
|
318.5
|
4.0
|
310.5
|
4.5
|
309.5
|
10.3
|
297.9
|
457.2
|
|
350A
|
14”
|
355.6
|
4.0
|
347.6
|
5.0
|
345.6
|
11.1
|
333.4
|
533.4
|
|
400A
|
16”
|
406.4
|
4.5
|
397.4
|
5.0
|
396.4
|
12.7
|
381
|
609.6
|
|
450A
|
18”
|
457.2
|
4.5
|
448.2
|
5.0
|
447.2
|
14.3
|
428.6
|
685.8
|
|
500A
|
20”
|
508.0
|
5.0
|
498.0
|
5.5
|
497.0
|
15.1
|
477.8
|
762
|
|
550A
|
22”
|
558.8
|
5.0
|
548.8
|
5.5
|
547.8
|
15.9
|
527
|
838.2
|
|
600A
|
24”
|
609.6
|
5.5
|
598.6
|
6.5
|
596.6
|
17.5
|
574.6
|
914.4
|
|
LƯU Ý:
Sản phẩm Cút đúc 90° loại dài được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
