DONJOY 304 or 316L millipore filter food grade

Name: DONJOY 304 or 316L millipore filter food grade
Brand: DONJOY
Availability: InStock
Rating: 5 (6 reviews)

0 đánh giá

Còn hàng

Liên hệ

Tư vấn giá tốt nhất

DONJOY 304 or 316L millipore filter food grade

FOB Price: USD 154.50-176.50 / pieces
Min order:2 pieces
Accept Min order: Yes
Supply Ability:5000 pieces / Year
Country of Origin: Ningbo or ShanghaiTop of FormBottom o

Product Description

Place of Origin: CN;ZHE
Warranty:1 Year
After-sales Service Provided: Field maintenance and repair service
Brand Name: DONJOY
Applicable Industries :Food & Beverage Shops

DONJOY 304 or 316L millipore filter food grade

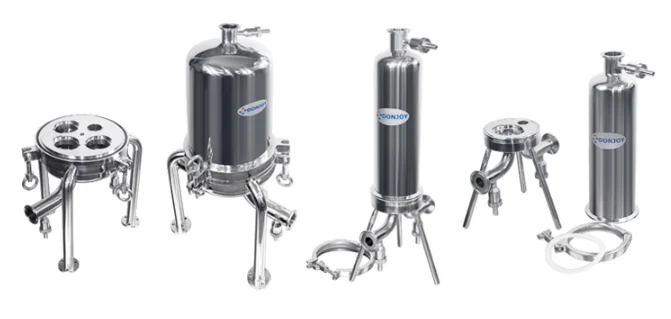

Product structure

Technical Parameters

Product Name:	DONJOY 304 or 316L millipore filter food grade
Cartridge housing Material:	ASTM304/316L
Cartridge Material:	PTFE/PE/NYLON/PP
Capacity:	0.5~25 t/h
Pressure:	filter 0.1~0.6 mpa
Filter Seat:	1 core; 3 core;5 core; 7 core
Length:	10"; 20"; 30"; 40"(250; 500; 750; 1000mm)
Connections:	plugged(222,226)/flat nib style
Cartridge presicion:	0.1~0.6μm
Internal surface:	Ra 0.2μm
Hole dia:	0.1μm; 0.22μm;1μm;3μm;5μm;10μm;
Advantages:	high presicion, fast speed, low adsorption, no media fall off; acid resistant, easy operation
Features:	small volume, lightweight, large filter area, low jam, N n-pollution, good chemical and calorific stabilities.
Application Scope:	Widely used in the fields of pharmacy, winery, beverage, chemical, etc
Design:	users should configure different material and type of filter for different purpose and medium. For example, for GMP pharmacy water, we use 5μm and 0.1μmfolded sleeve filters tandem. Another one, in ferment industry, before inputting air, this filter can annihilate the bacteria, it can also dispose the exhaust till thegas reaches HIM standard.
Packaging Details:	Bubble pack for each. Outside packing are carton or plywood cases. Or as per the request of customers.
Delivery details:	Usually within 20 days after receiving T/T down payment.

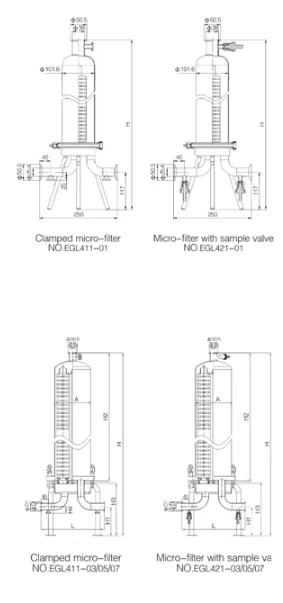

Dimensions

donjoy-304-or-316l-millipore-filter-foodgrade-5

Single core filter

Size	H	Cartridge
5’	435	226(7#)
10’	560	226(7#)
20’	814	226(7#)
30’	1068	226(7#)

Three cores filter

Size	L	H	H1	H2	H3	H4	D	D1	A	Cartridge
10’	350	685	160	380	293	35	38.1	50.5	204	226(222)
20’	350	935	160	630	293	35	38.1	50.5	204	226(222)
30’	350	1185	160	880	293	35	38.1	50.5	204	226(222)
40’	350	1435	160	1130	293	35	38.1	50.5	204	226(222)

Five cores filter

Size	L	H	H1	H2	H3	H4	D	D1	A	Cartridge
10’	350	679	152	380	287	35	38.1	50.5	219	226(222)
20’	350	929	152	630	287	35	38.1	50.5	219	226(222)
30’	350	1179	152	880	287	35	38.1	50.5	219	226(222)
40’	350	1429	152	1130	287	35	38.1	50.5	219	226(222)

Seven cores filter

Size	L	H	H1	H2	H3	H4	D	D1	A	Cartridge
10’	450	713	152	390	311	45	50.8	64	273	226(222)
20’	450	963	152	640	311	45	50.8	64	273	226(222)
30’	450	1213	152	890	311	45	50.8	64	273	226(222)
40’	450	1463	152	1140	311	45	50.8	64	273	226(222)
