DONJOY forged stainless steel Industrial 1pc ball valve

0 Bình luận

Nhà sản xuất: DONJOY
Dòng sản phẩm: VAN INOX | STAINLESS STEEL VALVE
Chủng loại sản phẩm: Van bi | Ball Valve
Phân loại sản phẩm:

· Model NO.: INL-1

· FOB Price: USD 5.00-400.00 / pieces

· Min order:50 pieces

· Accept Min order: Yes

· Supply Ability:10000 pieces / Month

Country of Origin: Shanghai/Ningbo

Product Description

· Structure: Ball

· Power: Manual

· Temperature of Media: Normal Temperature

· Place of Origin: CN; ZHE

· Port Size:1/4"-4"

· Brand Name: DONJOY

· Temperature of Media: High Temperature

· Temperature of Media: Low Temperature

· Temperature of Media: Medium Temperature

· Application: Flow control

· Media: Liquid

· Model Number:INL-1

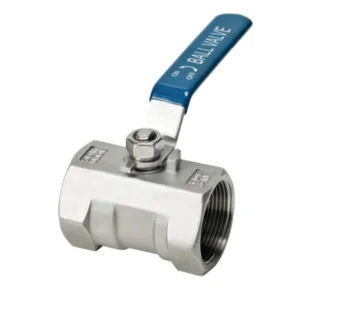

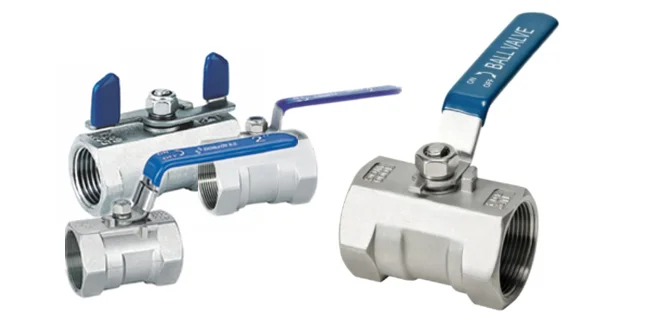

DONJOY forged stainless steel Industrial 1pc ball valve

Product structure

One-piece female ball valve

Technical Parameters

Product Name:	DONJOY forged stainless steel Industrial 1pc ball valve
Valve Body Material:	CF8/CF8M
Seal Material:	PTFE
Max. Working Pressure:	PN16-PN64
Max. Working Temperature:	-40-180 degree
Availably size:	DN15-DN100,1/2"-4"
Availably connection:	FEMALE
Availably standard:	BSP/NPT
Operated:	Handle/Manual

Dimensions

DN	G	d	L	H	W
8	¼”	5	40	28	70
10	3/8”	7	45	30	70
15	½”	9	55	34	90
20	¾”	12	60	38	90
25	1”	15	70	50	110
32	1 ¼”	20	80	56	120
40	1 ½”	25	86	60	130
50	2”	32	101	65	140
65	2 ½”	38	117	72	170
80	3”	50	140	105	185

Lưu ý

Sản phẩm DONJOY forged stainless steel Industrial 1pc ball valve được phát triển liên tục, thông tin có thể có thay đổi mà không kịp thời thông báo đến Quý khách hàng!
